Product description

• Ikelite Underwater Housing for Canon 5D Mark III, 5D Mark IV, 5DS, or 5DS R with Dry Lock Port Mount (200') Capture sharp, detailed photos and video beneath the surface with your Canon EOS 5D Mark III, 5D Mark IV, 5DS, or 5DS R DSLR camera in Ikelite's Underwater Housing with Dry Lock Port Mount. The front and back parts are both depth rated to 200'. The back can be swapped out for an optional one with a 50' rating if you're looking for something lighter in weight and slightly smaller, and you aren't venturing down a great distance below the surface. An Ikelite ICS-5 bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of optional, external strobes. Use of an optional TTL hot shoe and circuitry will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.

  Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers, afford access to virtually all camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It's white on the front, top, sides, and bottom, but the clear Lexan back plate allows you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm.

  The housing ships without a required lens port, and accepts various dome and flat ports for a broad array of zoom, macro, and wide-angle lenses. For full compatibility, see the Port Chart. The Dry Lock (DL) Port System accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before the dive.
  Construction Details
  • • The front and back parts are both depth rated to 200'
    • Back can be swapped out for an optional one with a 50' depth rating
    • Made by hand in USA from corrosion-resistant polycarbonate and ABS plastic blend
    • White on front, top, sides, and bottom to reflect sunlight and keep camera cool when shooting on or above water's surface
    • Clear Lexan back, which is also corrosion-resistant, allows you to monitor O-ring seal and maintain view of camera's rear controls
    • Nearly neutral buoyancy in fresh water; actual buoyancy varies depending on choice of lens and port
    • Open-groove design suspends rear O-ring in natural position, allowing for easier maintenance and preventing accidental twisting or stretching of O-ring
    • Camera mounting plate enables quick installation and does not need to be removed in order for you to gain battery or memory card access
    • Spare 1/2-20 threaded mount on front of housing for attaching optional accessories
  Strobe Connection and Operation
  • • Ikelite ICS-5 bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of optional, external strobes via sync cords
    • Optional # 46070 CT1K Canon TTL Kit (hot shoe and circuitry) will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes, such as Sea & Sea, Inon, and Nikonos models, will still work in manual mode only
    • All strobes used with camera in this housing require sync cord connection, unless they are additional flash units being triggered as slaves by the hard-wired strobes
    • Ikelite DS strobes support remote triggering via Optical Slave Converter #4403 or Aquatica's Water Wizard system
    • Use of external strobe highly recommended for color-correction and adequate brightness, and basically essential once you descend further than 15-20' underwater
    • Strobe restores hues that get absorbed by water, so your images are vibrant and accurate
    • Try to stay no more than 3-4' away from subject to preserve natural colors in images
  Controls and Handling
  • • Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers
    • Controls afford access to virtually all camera functions, including shutter release, zoom, power on/off, start/stop video recording, main dial, mode dial/lock release, metering mode/white balance, AF mode/drive mode, ISO, lens release, AF-ON, menu, info, playback, Creative photo/comparative playback, rate button, index/magnify/reduce, erase, live view shooting/movie shooting switch, AE lock, AF point selection, quick control, setting, [Q] quick control dial
    • Extra large, soft touch zoom knob and universal zoom gear system
    • Control symbols laser-etched into rear of housing won't fade with time
    • Supplied aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm
    • Optional right-hand QR grip can be added to allow for a second lighting arm to be connected
    • Enhance your view with optional # 6890 Straight Magnified Viewfinder or #6891.1 45° Magnified Viewfinder Type 1
  Lens Port System
  • • Dry Lock (DL) Port System
    • Housing ships without a required lens port, and accepts various interchangeable dome and flat ports for a broad array of zoom, macro, and wide-angle lenses
    • For full compatibility, see Port Chart linked above
    • Provides added security against leaks at the surface--thanks in large part to included vacuum valve for checking watertight integrity before dive
    • Pump required in order to remove excess air and actually create a vacuum
  UPC: 883711052809
• Canon EOS 5D Mark IV DSLR Camera (Body Only) Continuing on in their legacy of powerful workhorse cameras, Canon has released the 5D Mark IV DSLR which is an outstanding still photography option and an able 4K-capable video machine. This multimedia maven offers a newly developed 30.4MP full-frame CMOS sensor paired with the DIGIC 6+ image processor in order to balance fine detail and resolution with low-light performance and sensitivity. It is able to work within a native range of ISO 100-32000, which can then be expanded to an impressive ISO 50-102400, for sharp, low-noise images in a variety of conditions. Along with these improvements to image quality, users will enjoy a performance boost across the board with an enhanced AF system, built-in Wi-Fi, NFC, and GPS, and much more.

  In order to deliver detailed images quickly and effectively the 5D Mark IV leverages the power of the DIGIC 6+ image processor, which can handle up to 7 frames per second during continuous shooting. It also uses a 150,000-pixel RGB+IR metering sensor to evaluate the scene and subjects for accurate exposures under a variety of different lighting conditions. An improved 61-point High Density Reticular AF furthers the camera's speed by tracking and locking onto subjects quickly and accurately for tack sharp photos. A new AF area select button is now available as well for near immediate access to this setting.

  Video benefits from the addition of Dual Pixel CMOS AF and Movie Servo AF to smoothly rack focus during a shot. Shooters can even make use of the 3.2" 1.62m-dot touchscreen LCD to simply tap to adjust the focus point. Furthermore, now that the camera has DCI 4K (4096 x 2160) video recording at up to 30 fps, users can snag 8.8MP stills from the video for an even faster capture option. Tied into the Dual Pixel sensor architecture is a brand new feature for Canon: Dual Pixel RAW, which allows for fine tuning of certain image parameters, including bokeh shift and focus micro adjustment, after the image is taken.

  The body has been further refined for comfort and ease of access, as well as durability and weather resistance. The Canon N3 remote port has been relocated to the front of the camera body and they have added both GPS and Wi-Fi with NFC to make this model a connected camera.
  30.4MP Full-Frame CMOS Sensor and DIGIC 6+ Image Processor
  • In line with previous members of the main 5D series, the Mark IV attempts to balance high resolution with low-light performance with a newly developed 30.4MP full-frame CMOS sensor. This provides a beneficial increase in overall resolution without compromising on sensitivity. Additionally, thanks to the DIGIC 6+ image processor it is paired with, it offers impressive performance within a native range of ISO 100-32000, which can be expanded to ISO 50-102400.

    Versatility is key with the 5D, as it needs to be able to tackle landscapes and weddings with equal ease. By using a 150,000-pixel RGB+IR metering sensor shooters will be able to more comfortably rely on the camera to capture difficult scenes. This sensor also has face detection as well as flicker detection which can ensure proper exposure in less-than-ideal lighting situations. Along with this, the camera offers an improved continuous shooting rate of 7 fps, making it a great option for events and action.
  High Density Reticular AF and Dual Pixel CMOS AF Systems
  • Ensuring your subject is tack sharp, the 5D Mark IV incorporates an enhanced High Density Reticular AF system, which offers 61 phase-detect points, with all points sensitive to f/8 and 41 of which are cross-type. The center point can function down to -3 EV for working in extremely dim lighting. Compared to previous versions, this sensor has expanded vertical coverage of 24% on the peripherals and 8% in the center in order to better track and locate subjects in the frame.

    In addition to advanced tracking and focusing while using the optical finder for stills, Live View and video can now use Dual Pixel CMOS AF on the actual imaging sensor. This offers about 80% coverage of phase-detection autofocus for faster and more accurate focusing in these modes. It is ideal for video as users will enjoy smoother rack focusing without the downsides normally encountered with contrast-based systems. Also, this works well with the touchscreen functions, allowing shooters to just tap to adjust focus.
  DCI 4K Video Recording
  • Designed for both professional stills shooting and video recording, the 5D Mark IV supports DCI 4K (4096 x 2160) resolution recording at up to 30 fps at 500 Mbps, along with Full HD 1080p shooting at 60 fps and HD 720p at 120 fps for slow motion playback. When recording in-camera, 4K video has 4:2:2 sampling and 8-bit color depth, while Full HD 1080p footage has 4:2:0 sampling. Uncompressed Full HD 1080p video can also be saved via HDMI to an optional external recorder with 4:2:2 color sampling. 4K video is recorded using a central 4096 x 2160 area of the sensor at a 1.74x crop in order to record video with an ideal 1:1 pixel sampling ratio, while Full HD recording makes use of the entire full frame.

    Audio can be recorded using the on-board stereo microphone or an optional external mic can also be used via the 3.5mm mic jack. Real time audio monitoring is possible, too, via the 3.5mm headphone jack. The 4K video recording also avails the ability to take 8.8MP still frame grabs during playback on the rear touchscreen and save them as single images.
  Dual Pixel RAW
  • First implemented here on the 5D Mark IV, Dual Pixel RAW allows photographers to record all the information the sensor's unique pixel architecture can deliver, providing a way for fine adjustments to be made after the image is taken. These adjustments include focus fine tuning that can help you ever-so-slightly adjust the focus point to bring out extra details, shift bokeh around for improved composition, and reduce the impact of ghosting on your photos. This requires the use of Canon's Digital Photo Professional 4.5 software.
  Body Design
  • • A large 3.2" 1.62m-dot Clear View II LCD monitor is available and features an anti-reflective design for bright, vivid image playback and live view shooting, and its touchscreen interface can be used for intuitive touch-to-focus control and adjusting settings in the menus.
    • A dedicated AF mode selection button located beneath the rear joystick offers another avenue for accessing settings, allowing for fast, intuitive access to commonly changed options.
    • Dual CompactFlash and SD memory card slots allow you to extend your file saving capabilities by permitting overflow recording or in-camera file type separation while shooting.
    • An Intelligent Viewfinder II uses a pentaprism design and offers a bright means for viewing. When using the viewfinder, AF points are highlighted in red for greater visibility in low-light conditions, and the finder can also be configured to display a range of other shooting aids, such as an electronic level, grid, flicker detection, white balance, metering mode, AF information, and other settings.
    • A Mirror Vibration Control System helps to minimize mechanical vibrations in order to better ensure sharpness during long exposures or fast continuous shooting bursts.
    • A robust magnesium alloy body design is both dust- and weather-sealed to permit working in harsh environments.
  Other Camera Features
  • • A built-in GPS module allows you to geotag imagery in-camera as well as auto time sync with the Universal Time Code via satellites. This module is compatible with American GPS, Russian GLONASS, and Japanese quasi-zenith Michibiki satellites for a wide coverage of support.
    • Digital Lens Optimizer technology compensates for a range of optical defects from various lenses, including chromatic aberration, distortion, peripheral brightness, and diffraction, and the camera can store lens data in order to avoid having to re-register lenses prior to each use. The camera can handle this process in real time, delivering JPEGs with the corrections already applied.
    • A built-in intervalometer permits the creation of time-lapse imagery and supports recording 1-99 consecutive frames in pre-selected intervals from 1 second to 99 hours 59 minutes and 59 seconds. Users can also choose to set the camera to unlimited frames.
    • Built-in Wi-Fi and NFC connectivity enable wireless sharing, control, and image transfer with a compatible smart device as well as the CS100 Connect Station.
  UPC: 013803281347

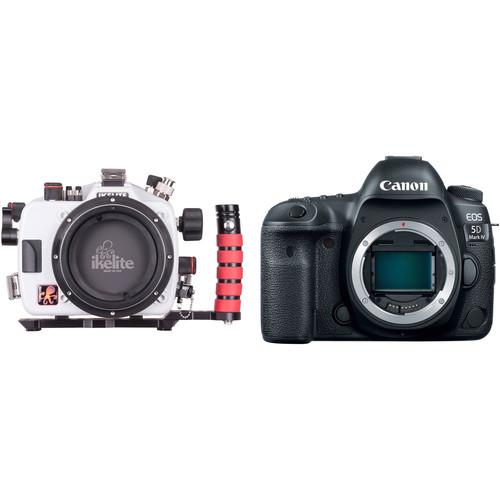

• Underwater Housing for Canon 5D Mark III, 5D Mark IV, 5DS, or 5DS R with Dry Lock Port Mount (200') uyvyryqbterb
• Housing Back with 200' Depth Rating
• Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings
• ICS Bulkhead Cap (Replacement)
• #0184.1 1cc Tube of Silicone Lubricant
• Limited 2-Year Warranty

• Canon - EOS 5D Mark IV DSLR Camera (Body Only)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ikelite Underwater Housing for Canon 5D Mark III, 5D Mark IV, 5DS, or 5DS R with Dry Lock Port Mount (200')

  Depth Rating	Front and Back: 200' / 61 m Back can be swapped out for optional one with 50' / 15 m rating
  Control Type	Mechanical push-buttons, knurled knobs/dials, and levers
  Controls	Afford access to virtually all camera functions, including the following: Shutter release Zoom Power on/off Start/stop video recording Main dial Mode dial/lock release Metering mode/white balance AF mode/drive mode ISO Lens release AF-ON Menu Info Playback Creative photo/comparative playback Rate button Index/magnify/reduce Erase Live view shooting/movie shooting switch AE lock AF point selection Quick control Setting [Q] quick control dial
  Material of Construction	Front/Top/Sides/Bottom: Polycarbonate and ABS plastic blend Back Plate: Lexan plastic
  Lens Port	Dry Lock (DL) Port System Compatible with lenses that have large diameters Housing ships without a required lens port, and accepts various interchangeable dome and flat ports for a broad array of zoom, macro, and wide-angle lenses For full compatibility, see Port Chart linked above
  Buoyancy	Nearly neutral in fresh water Actual buoyancy varies depending on choice of lens and port
  External Flash Connector	Ikelite ICS-5 bulkhead connector with manual hot shoe for optional, external strobes Optional TTL hot shoe/circuitry for automatic TTL exposure with Ikelite DS strobes (third-party strobes still manual only)
  Mounting	1/4"-20 threaded mounts with 3.5" / 8.9 cm spacing
  Dimensions	9.2 x 7.1 x 6.6" / 23.4 x 18 x 16.8 cm
  Weight	5.1 lb / 2.3 kg

  Box Dimensions (LxWxH)	14.6 x 9.4 x 8.4"

• Canon EOS 5D Mark IV DSLR Camera (Body Only)

  Lens Mount	Canon EF
  Camera Format	Full-Frame (1x Crop Factor)
  Pixels	Actual: 31.7 Megapixel Effective: 30.4 Megapixel
  Maximum Resolution	6720 x 4480
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Sensor Type	CMOS
  Sensor Size	36 x 24 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 100 to 32000 (Extended: 50 to 102400)
  Shutter Speed	Electronic Front Curtain Shutter 1/8000 to 30 Seconds Bulb Mode
  Metering Method	Evaluative, Partial, Spot
  Exposure Modes	Aperture Priority, Auto, Manual, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3 EV Steps)
  Metering Range	0 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
  Continuous Shooting	Up to 7 fps at 30 MP for up to 21 Exposures (Raw Format) Up to 7 fps at 30 MP for Unlimited Exposures
  Interval Recording	Yes
  Self Timer	2/10-Second Delay
  Mirror Lock-Up	Yes

  Recording Modes	M-JPEG 4:2:2 8-Bit DCI 4K (4096 x 2160) at 23.976p/24p/29.97p [500 Mb/s] MOV Full HD (1920 x 1080) at 59.94p [180 Mb/s] Full HD (1920 x 1080) at 23.976p/24p/29.97p [90 Mb/s] Full HD (1920 x 1080) at 59.94p [60 Mb/s] Full HD (1920 x 1080) at 23.976p/24p/29.97p [30 Mb/s] HD (1280 x 720) at 120p [160 Mb/s] MP4 Full HD (1920 x 1080) at 59.94p [60 Mb/s] Full HD (1920 x 1080) at 23.976p/24p/29.97p [30 Mb/s] Full HD (1920 x 1080) at 29.97p [12 Mb/s]
  External Recording Modes	Full HD (1920 x 1080) at 59.94p Full HD (1920 x 1080) at 23.976p/24.00p/29.97p Full HD (1920 x 1080) at 29.97p HD (1280 x 720) at 120p
  Recording Limit	Up to 29 Minutes, 59 Seconds for DCI 4K (4096 x 2160)
  Video Encoding	NTSC/PAL
  ISO Sensitivity	Auto: 100 to 32000
  Audio Recording	Built-In Microphone (Mono) External Microphone Input
  Audio File Format	AAC, Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 61 (41 Cross-Type)
  Autofocus Sensitivity	-3 to +18 EV

  Viewfinder Type	Optical (Pentaprism)
  Viewfinder Eye Point	21 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.71x
  Diopter Adjustment	-3 to +1 m
  Monitor Size	3.2"
  Monitor Resolution	1,620,000 Dot
  Monitor Type	Touchscreen LCD

  Built-in Flash	None
  Maximum Sync Speed	1/200 Second
  Flash Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	eTTL
  External Flash Connection	Hot Shoe, PC Terminal

  Memory Card Slot	1 x SD/SDHC/SDXC 1 x CompactFlash
  Connectivity	3.5mm Headphone, 3.5mm Microphone, Canon N3, HDMI C (Mini), USB 3.0
  Wireless	Wi-Fi
  GPS	Yes

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x LP-E6N Rechargeable Lithium-Ion, 7.2 VDC, 1865 mAh
  Dimensions (W x H x D)	5.9 x 4.6 x 3.0" / 150.7 x 116.4 x 75.9 mm
  Weight	1.76 lb / 800 g (Body Only)
