Product description Capture beautiful photos and stunning 4K video at depths as great as 200' with the Ikelite Underwater Housing and Canon EOS R Mirrorless Digital Camera Body Kit from B&H. Bundling the durable waterproof enclosure with the 30.4MP digital SLR camera body, this package gets you well on your way to a photo or video adventure beneath the surface. Once you grab your favorite lens, the appropriate port, and a strobe or video light, you'll be ready to start your dive. - Ikelite 200DL Underwater Housing for Canon EOS R Mirrorless Camera Capture brilliant images at depths as great as 200' with your Canon EOS R Mirrorless Digital Camera in Ikelite's 200DL Underwater Housing, which features their Dry Lock Port Mount and vacuum valve. An Ikelite bulkhead with a manual hot shoe connection enables reliable electrical triggering of optional external strobes via sync cords. Using an optional TTL hot shoe and the CT2K Canon TTL Kit #46072 will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.
Ergonomic mechanical controls, including push buttons, dials, and levers, afford access to all essential camera functions. The spare M16 threaded accessory port provides an attachment point for third party accessories including HDMI bulkheads. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It is white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray with a left-hand quick release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm.
The housing ships without a required lens port, and accepts various, interchangeable dome and flat ports for a broad array of lenses. For full compatibility details, see the port chart. The DL port system accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before the dive. You'll need to pick up the required pump in order to remove excess air and actually create a vacuum. - Construction Details
-
- Depth rating of 200'
- Made by hand in the USA from a corrosion-resistant polycarbonate and ABS plastic blend
- White on the front, top, sides, and bottom to reflect sunlight and keep the camera cool when shooting at or above the water's surface
- Clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls
- Nearly neutral buoyancy in fresh water
- Open-groove design suspends the rear O-ring in the natural position, allowing for easier maintenance and preventing accidental twisting or stretching
- Front-loading mounting plate enables quick camera installation, and does not need to be removed in order for you to gain battery or memory card access
- Mounting plate has a 1/4"-20 threaded hole on the bottom for connection to an optional tripod
- Strobe Connection and Operation
-
- Ikelite ICS-5 bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of strobes
- Optional CT2K Canon TTL Kit #46072 enables TTL operation with compatible Ikelite DS strobes
- CT2K supports rear curtain synchronization and allows exposure compensation to be adjusted using the control in the camera
- Non-Ikelite strobes, such as those from Sea & Sea, INON, and Nikonos, will still work in manual mode only
- Controls and Handling
-
- Shutter and AF-ON (back-button focus) levers are curved and extendable for comfortable use when holding the optional right-hand quick release grip
- Extra-large, soft-touch zoom knob is located next to the grip handle
- All push-button controls are machined and hard anodized aluminum to reduce weight and resist salt build-up
- Ergonomic mechanical push buttons, dials, and levers afford access to all camera functions except: multi-function bar, multi-function lock button, and diopter adjustment knob
- Control symbols are laser-etched into the back of the housing, so they won't fade or fall off with time
- Super-Eye Viewfinder enhances your view through the camera's OVF when you're wearing a mask
- You can remove the Super-Eye quickly if you'd like to attach the separately sold Straight or 45° Magnified Viewfinder instead
- Hard anodized aluminum tray with a left-hand quick release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm
- 1/4"-20 mounts and other mounting points enable connection to a tripod and the addition of accessories
- Another 1/4"-20 threaded mount is located front and center on the housing above the port mount, allowing for the attachment of a focus light, GoPro action camera, or other lightweight piece of equipment
- Lens Port System
-
- Ships without a required lens port
- Accepts all Ikelite Dry Lock (DL) dome and flat ports, allowing you to shoot with a wide variety of lenses
- Zoom gears are available for many lenses
- For complete compatibility details, see the port chart linked above
- DL port system accommodates lenses with large diameters
- Provides added security against leaks at the surface, thanks in large part to the included vacuum valve that helps you check watertight integrity before the dive
- #47011 pump is required in order to remove excess air and actually create a vacuum
UPC: 883711057040 - Canon EOS R Mirrorless Digital Camera (Body Only) The first step in Canon's mirrorless evolution, the EOS R pairs a redeveloped lens mount and updated full-frame image sensor for a unique and sophisticated multimedia camera system. Revolving around the new RF lens mount, the EOS R is poised to be the means from which to make the most of a new series of lenses and optical technologies.
Focusing on the camera itself, the EOS R features a high-resolution 30.3MP full-frame CMOS sensor along with a DIGIC 8 image processor. The combination of these technologies offers a wide sensitivity range up to a native ISO 40000, fast continuous shooting to 8 fps, and UHD 4K30 video recording. In addition to imaging, the sensor also facilitates an advanced Dual Pixel CMOS AF system, which uses 5655 selectable points for quickly and accurately acquiring focus. This focusing system is also sensitive down to EV -6 for working in impressively dark conditions. The AF system is also perfectly matched to the UHD 4K video recording capabilities, which are also rounded out by Movie Digital IS to minimize camera shake, built-in Canon Log gamma for a greater dynamic range, and 4K 10-bit 4:2:2 output over HDMI for even greater color control.
Beyond the performance attributes, this camera has been designed from the ground up and features a high-resolution 3.69m-dot OLED electronic viewfinder for clear and bright eye-level viewing. Conversely, a rear 3.15" 2.1m-dot LCD touchscreen is also featured, and has a swivel design to suit working from high and low angles. Also catering to the tactile cravings is a Multi-Function bar, which is customizable for intuitively adjusting shooting settings. And as a camera built to withstand the toughest environments, the magnesium alloy body is dust and moisture-sealed. - Canon RF Lens Mount
- Beginning with a new lens mount, the EOS R is the first camera to support Canon's line of RF-mount lenses. This mount is characterized by its wide 54mm diameter and short 20mm flange-back distance, which promotes the ability to design lenses that are both faster and smaller than their SLR equivalents. The mount also incorporates a 12-pin electronic contact system for more sophisticated autofocus and image stabilization capabilities. This mount design also lends full compatibility to existing EF and EF-S-mount lenses via an optional EF-EOS R Mount Adapter.
- 30.3MP Full-Frame CMOS Sensor and DIGIC 8 Image Processor
- A large 30.3MP full-frame CMOS sensor is featured and serves as an ideal balance between high-resolution output, low-light performance, and high-speed capabilities. When paired with the DIGIC 8 image processor, the EOS R affords a native sensitivity range of ISO 100-40000, which can be expanded to ISO 50-102400 for working in a variety of lighting conditions. Quick continuous shooting to 8 fps is also supported for photographing moving subjects.
- Dual Pixel CMOS AF
- Dual Pixel CMOS AF offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network of 5655 phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery. Additionally, the focus system is sensitive down to EV -6 for working in truly low-light conditions with accurate AF capabilities.
- UHD 4K Video Recording and Canon Log Gamma
- Designed for multimedia image-maker, the EOS R supports UHD 4K (3840 x 2160) resolution recording at up to 30 fps at 480 Mb/s, along with Full HD 1080p shooting at 60 fps and HD 720p at 120 fps for slow motion playback. When recording in-camera, 4K video has 4:2:2 sampling and 8-bit color depth, a 4:2:2 10-bit clean output in ITU-R CT.2020 is possible when using an external recorder.
Integrated Canon Log also allows users to capture flat images with an improved dynamic range of 800%, or 12 stops. This function makes it easier to match cameras in post-production as well as provides the most latitude and potential for color grading. For monitoring, a View Assist function is available, which emulates a graded look for more accurate viewing on the camera's LCD.
Audio can be recorded using the on-board stereo microphone or an optional external mic can also be used via the 3.5mm mic jack. - Dual Pixel RAW
- First introduced with the EOS 5D Mark IV, Dual Pixel RAW allows photographers to record all the information the sensor's unique pixel architecture can deliver, providing a way for fine adjustments to be made after the image is taken. These adjustments include focus fine tuning that can help you ever-so-slightly adjust the focus point to bring out extra details, shift bokeh around for improved composition, and reduce the impact of ghosting on your photos. This requires the use of Canon's Digital Photo Professional software.
- Body Design
-
- Integrated 3.69m-dot OLED electronic viewfinder has 0.71x magnification and affords a bright and clear means for eye-level viewing.
- Rear 3.15" 2.1m-dot LCD features a swivel design for easier use when working from high, low, and front-facing angles. It is also a touchscreen for intuitive control over shooting, playback, and menu navigation controls.
- Customizable Multi-Function Bar is located near the viewfinder on the rear of the camera, and can be set to control four functions using right, left, slide, and press movements. It can be used to adjust ISO or white balance, to check focus/display focus info or AF modes, change to movie shooting modes, use flexible-priority AE, or be customized for other functions.
- Top panel incorporates a dot-matrix LCD, which provides quick access to important camera settings.
- One SD memory card slot featured, and supports the UHS-II protocol for faster read and write speeds to better support 4K video recording and fast continuous shooting.
- Magnesium alloy body design is lightweight, durable, and features dust- and water-resistant seals for use in a variety of weather conditions.
- Built-in Wi-Fi and Bluetooth connectivity enable wireless sharing, control, and image transfer with a compatible smart device via the Canon Camera Connect app, which also supports geotagging your files using your mobile device's location data.
- Included LP-E6N rechargeable lithium-ion battery provides approximately 430 shots per charge, and in-camera charging is supported via the PD-E1 USB Power Adapter. This camera is also compatible with the LP-E6 battery, however is not supported for in-camera charging.
- Other Camera Features
-
- Digital Lens Optimizer helps to minimize the appearance of various optical aberrations in-camera, including diffraction, for cleaner image quality.
- Multi shot noise reduction technology records four sequential exposures and then combines them in-camera to produce an image with smoother tones and lower noise to suit long exposure images.
- Images can be saved as Compact Raw (C-RAW / .CR3) files, which offer smaller file sizes for faster post-processing.
- Language Support: English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, and Japanese.

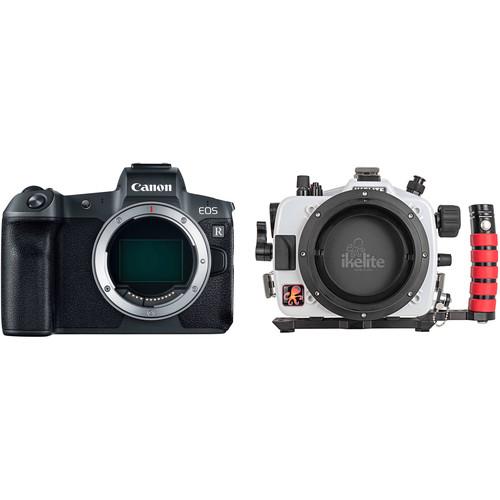

UPC: 013803306347 In the Box - 200DL Underwater Housing for Canon EOS R Mirrorless Camera
- O-Ring (Replacement)
- 0132.45 O-Ring for Ikelite Ultra Compact Digital Camera Housings (Replacement)
- Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings
- Port Hole Cover for Housings with Dry Lock Mount
- DL Zoom Gear Retainer
- Tool for Zoom Gear Retainer #0945.06
- 9104.7 Waterproof Bulkhead Cap (Aluminum)
- 4-40 Hex Head Allen Wrench
- 1/16" Hex Head Allen Wrench for Gears on Housings
- Silicone Lubricant 1cc Tube
- Limited 2-Year Warranty
- Canon - EOS R Mirrorless Digital Camera (Body Only)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing and Canon EOS R Mirrorless Digital Camera Body Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Ikelite 200DL Underwater Housing for Canon EOS R Mirrorless Camera
| Depth Rating | 200' / 60 m | | Control Type | Mechanical push-buttons, dials, and levers | | Controls | Afford Access to All Camera Functions except for the Following: multi-function bar, multi-function lock button, diopter adjustment knob | | Material of Construction | Polycarbonate and ABS plastic | | Lens Port | Dry Lock (DL) interchangeable port system
Ships without required lens port | | External Flash Connector | Ikelite ICS-5 bulkhead with manual hot shoe connection for optional external strobes
Optional TTL hot shoe will allow for TTL operation with compatible Ikelite DS strobes
Non-Ikelite strobes work in manual mode only | | Mounting | 1/4"-20 threaded mounts with 3.5" / 88.9 mm spacing for connecting included tray/base with left QR grip | | Dimensions | 8.8 x 6.9 x 6.5" / 22.0 x 17.5 x 16.5 cm | | Weight | 4.7 lb / 2.2 kg | | | | Box Dimensions (LxWxH) | 14.7 x 9.3 x 8.4" | - Canon EOS R Mirrorless Digital Camera (Body Only)
| | | Lens Mount | Canon RF | | Camera Format | Full-Frame (1x Crop Factor) | | Pixels | Actual: 31.7 Megapixel
Effective: 30.3 Megapixel | | Maximum Resolution | 6720 x 4480 | | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 | | Sensor Type | CMOS | | Sensor Size | 36 x 24 mm | | Image File Format | JPEG, RAW | | Bit Depth | 14-Bit | | Image Stabilization | Digital, 5-Axis (Video Only) | | | | ISO Sensitivity | Auto, 100 to 40000 (Extended: 50 to 102400) | | Shutter Speed | Electronic Front Curtain Shutter
1/8000 to 30 Seconds
Bulb Mode | | Metering Method | Center-Weighted Average, Evaluative, Partial | | Exposure Modes | Aperture Priority, Manual, Shutter Priority | | Exposure Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) | | Metering Range | -3 to 20 EV | | White Balance | Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten | | Continuous Shooting | Up to 8 fps at 30.3 MP for up to 47 Exposures (Raw Format)
Up to 8 fps at 30.3 MP for up to 100 Exposures (JPEG Format)
Up to 3 fps at 30.3 MP for up to 47 Exposures (Raw Format)
Up to 3 fps at 30.3 MP for up to 100 Exposures (JPEG Format)
Up to 2.2 fps at 30.3 MP for up to 47 Exposures (Raw Format)
Up to 2.2 fps at 30.3 MP for up to 100 Exposures (JPEG Format) | | Self Timer | 2/10-Second Delay | | | | Recording Modes | MP4/H.264
UHD 4K (3840 x 2160) at 23.976p/24p/25p/29.97p
Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p
HD (1280 x 720) at 25p/29.97p/50p/59.94p/100p/120p | | External Recording Modes | 4:2:2 10-Bit
UHD 4K (3840 x 2160) | | Recording Limit | Up to 29 Minutes, 59 Seconds | | Video Encoding | NTSC/PAL | | Audio Recording | Built-In Microphone (Stereo)
External Microphone Input | | Audio File Format | AAC, Linear PCM (Stereo) | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) | | Autofocus Points | Phase Detection: 5655 | | Autofocus Sensitivity | -6 to +18 EV | | | | Viewfinder Type | Electronic | | Viewfinder Size | 0.5" | | Viewfinder Resolution | 3,690,000 Dot | | Viewfinder Eye Point | 23 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 0.71x | | Diopter Adjustment | -4 to +2 m | | Monitor Size | 3.15" | | Monitor Resolution | 2,100,000 Dot | | Monitor Type | Articulating Touchscreen LCD | | | | Built-in Flash | None | | Flash Modes | Flash On, Slow Sync | | Flash Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) | | Dedicated Flash System | eTTL | | External Flash Connection | Hot Shoe | | | | Memory Card Slot | 1 x SD/SDHC/SDXC | | Connectivity | 3.5mm Microphone, HDMI C (Mini), USB Type-C | | Wireless | Wi-Fi
Bluetooth | | GPS | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 85% | | | | Battery | 1 x LP-E6N Rechargeable Lithium-Ion, 7.2 VDC, 1865 mAh | | Dimensions (W x H x D) | 5.3 x 3.9 x 3.3" / 135.8 x 98.3 x 84.4 mm | | Weight | 1.45 lb / 660 g (Body with Battery and Memory) | | | | Box Dimensions (LxWxH) | 11.1 x 8.9 x 6.0" |
