Product description

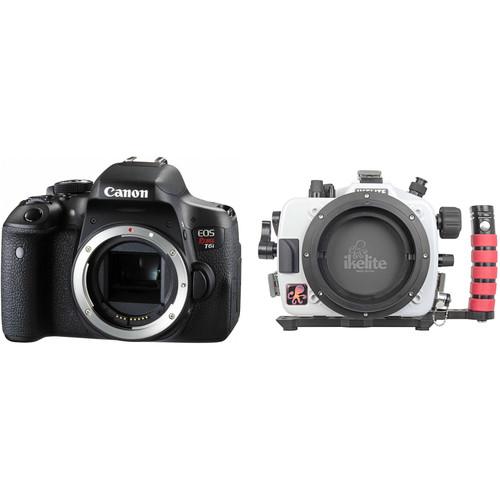

• Ikelite Underwater Housing for Canon T6i with Dry Lock Port Mount Capture sharp, detailed images and video at depths as great as 200' with your Canon EOS Rebel T6i DSLR camera, thanks to Ikelite's 200DL Underwater Housing with Dry Lock Port Mount. An Ikelite ICS-5 bulkhead with a manual hot shoe connection enables reliable electrical triggering of optional, external strobes. Use of an optional TTL hot shoe and circuitry will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.

  Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers, afford access to most camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It's white on the front, top, sides, and bottom, but the clear acrylic back plate allows you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray has a quick release grip to improve balance and handling, while offering an attachment point for an optional lighting arm.

  The housing ships without a required lens port, and accepts various dome and flat ports for a broad array of zoom, macro, and wide-angle lenses. For full compatibility, see the Port Chart. Ikelite's Dry Lock (DL) Port System accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before the dive. The DL port mount may be removed and replaced by an older one to allow you to use standard and modular ports from Ikelite's Four Lock system.
  Construction Details
  • • Depth rating: 200'
    • Made in USA from corrosion-resistant polycarbonate and ABS plastic
    • White on front, top, sides, and bottom to reflect sunlight and keep camera cool when shooting on or above water's surface
    • Clear back allows you to monitor O-ring seal and maintain view of camera's rear controls
    • Housing alone has nearly neutral buoyancy in fresh water; overall system buoyancy varies based on choice of lens and port
    • Open-groove design suspends rear O-ring in natural position, allowing for easier maintenance and preventing accidental twisting or stretching of O-ring
    • Front-loading camera mounting system makes installation and removal easy
    • Camera mounting plate enables quick installation and does not need to be removed in order for you to gain battery or memory card access
  Strobe Connection and Operation
  • • Ikelite ICS-5 bulkhead with manual hot shoe connection enables reliable electrical triggering of optional, external strobes via sync cords
    • Optional # 46070 CT1K Canon TTL Kit (hot shoe and circuitry) will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes such as SEA&SEA, INON, and Retra will work in manual mode only
    • TTL exposure compensation adjustable in-camera
    • Flash units without sync cords may be triggered as slaves by hard-wired strobes
    • Ikelite DS strobes support remote triggering of additional flash units via Optical Slave Converter #4403 or Aquatica's Water Wizard system
    • Flash bulkhead on to top of housing to prevent sync cord from getting in the way and to reduce strain
  Controls and Handling
  • • Ergonomic controls afford access to key camera functions
    • Following functions inaccessible: dioptric adjustment knob, flash button
    • Control symbols laser-etched into rear of housing won't fade with time
    • Anodized aluminum tray with a left-hand quick release grip affords good balance and handling, while offering an attachment point for an optional lighting arm
    • Optional right-hand QR grip can be added to allow for a second lighting arm to be connected
    • Camera mounting plate has 1/4"-20 threaded hole for connection to optional tripod
    • 1/4"-20 threaded hole on housing above lens port for accessories like a focus light or GoPro camera
  Lens Port System
  • • Dry Lock (DL) Port System accommodates lenses with large diameters
    • Housing ships without a required lens port, and accepts interchangeable dome and flat ports for various zoom, macro, and wide-angle lenses
    • For full compatibility, see Port Chart linked above
    • Accepts array of zoom and focus gears for various lenses
    • Large, soft-touch knob on side of housing makes small adjustments easy
    • Vacuum valve for checking watertight integrity before dive (Separately sold #47011 Pump with Gauge required to create a vacuum)
    • DL mount may be removed and replaced with old-style port locks to allow for mounting of standard or modular Four Lock ports; however, re-installation of DL base will require you to ship housing back to Ikelite or other authorized service center
  UPC: 883711057163
• Canon EOS Rebel T6i DSLR Camera (Body Only) Packing a high resolution 24.2-megapixel CMOS sensor and the DIGIC 6 Image Processor into a compact body is the EOS Rebel T6i DSLR Camera from Canon. This system enables shooting in a wide variety of conditions, from bright sunlight to dim indoor scenarios due to ISO performance of up to 12,800, which can be expanded to 25,600. The APS-C camera also has built-in Wi-Fi connectivity with NFC that allows for wireless transfer of images and video to social networks and cloud storage via the Camera Connect mobile app. Also, NFC enables fast connection to mobile devices as well as the CS100 Connect Station.

  Full HD video in MP4 format is possible with the T6i in addition to stills and it has Hybrid CMOS AF III for fast, accurate autofocus during movie shooting and during Live View. A vari-angle 3.0" 1.04M-dot ClearView II touchscreen LCD monitor on the rear of the camera allows for versatile positioning of the camera and clear viewing, even outdoors. Additionally, the EOS scene analysis system can detect near-infrared light and flickering light sources to provide the best information for metering the scene.

  High speed continuous shooting at up to 5 fps ensures you will not miss a shot during fast action and this is benefited by the use of a 19-point all cross-type autofocus system. Creative filters are also available for preset looks for your photos and videos.

  Product Advisory: In some units of the EOS Rebel T6i white spots may exist on the optical layer which may result in the appearance of dark circular patterns on the capture image under certain shooting conditions. Potentially affected units include cameras with serials numbers of "XXnnnnnnnnnn" in which XX is 01 or 02. These cameras will be inspected and repaired free of charge by Canon USA.
  24.2MP APS-C CMOS Sensor & DIGIC 6 Image Processor
  • At the core of the T6i is the 24.2-megapixel APS-C CMOS sensor and the DIGIC 6 Image Processor, both of which work together to produce high resolution images in a variety of shooting conditions. This is possible through a native sensitivity of ISO 100-12,800, which is expandable to 25,600 for situations that demand it.
  3.0" Vari-Angle Touchscreen LCD Monitor
  • A 3.0" Clear View II Vari-angle Touchscreen LCD monitor with 1,040k-dot resolution provides clear composition and playback viewing even in bright light. Its tilt and swivel capability makes shooting at odd angles easy, and a smudge-resistant coating keeps the monitor clear. Seven-level brightness control is available, and intuitive touchscreen control makes menu control simple, and offers Touch Autofocus.
  Full HD 1080p Video Capture
  • Full HD Movie mode supports Movie Servo for continuous focus tracking of moving subjects during recording. Manual exposure control and a built-in stereo microphone with manual audio level adjustment provide high-quality control over your shooting, and multiple frame rates and resolutions provide quality-level and stylistic shooting options. Stills can be recorded during video shooting simply by pressing the camera's shutter button.
  19-Point All Cross-Type AF System
  • For fast, accurate focusing in a variety of situations, the T6i features a 19-point all cross-type AF system. This allows for speedy focusing performance when using the viewfinder as well as in area selection modes.
  Hybrid CMOS AF III
  • The Hybrid CMOS AF III System is utilized when shooting photos and video in Live View. Combining two different kinds of AF-phase and contrast detection-continuous focus tracking becomes faster and more accurate than ever before in Live View.
  Built-In Wi-Fi Connectivity with NFC
  • Wirelessly transfer images and videos with the built-in Wi-Fi connectivity of the T6i. When used with the Camera Connect mobile app users will be able to quickly and effectively upload files directly to social networking sites. Also, with NFC the camera can be paired to compatible mobile devices quickly, as well as to the CS100 Connect Station.
  Other Features
  • • Continuous shooting rate of up to 5 fps.
    • Creative filters during stills, video, and Live View shooting.
    • Microphone jack for audio recording.
    UPC: 013803257342
  In the Box
  • Underwater Housing for Canon T6i with Dry Lock Port Mount rwusdcqqbbtayrbxez
  • O-Ring (Replacement)
  • 0132.45 O-Ring for Ikelite Ultra Compact Digital Camera Housings (Replacement)
  • DL Zoom Gear Retainer
  • Port Hole Cover for Housings with Dry Lock Mount
  • 9104.7 Waterproof Bulkhead Cap (Aluminum)
  • Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings
  • #0945.06 Tool for Zoom Gear Retainer
  • 4-40 Hex Head Allen Wrench
  • 1/16" Hex Head Allen Wrench for Gears on Housings
  • Silicone Lubricant 1 cc Tube
  • Limited 2-Year Warranty
  • Canon - EOS Rebel T6i DSLR Camera (Body Only)
  Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ikelite Underwater Housing for Canon T6i with Dry Lock Port Mount

  Depth Rating	200' / 61 m
  Controls	Access to All Important Controls No Control for Diopter Adjustment Control or Flash button
  Material of Construction	Polycarbonate and ABS Plastic Blend
  External Flash Connector	Ikelite ICS-5 Sync Bulkhead with Manual Hot Shoe Connection
  Mounting	Aluminum Tray with Left-Hand Quick Release Grip 1/4"-20 Tripod Mount on Camera Plate 1/4"-20 Threaded Hole above Port Mount for Lightweight Accessories
  Dimensions	9.2 x 7.1 x 6.6" / 23.4 x 18 x 16.8 cm
  Weight	4.8 lb / 2.2 kg

• Canon EOS Rebel T6i DSLR Camera (Body Only)

  Lens Mount	Canon EF-S
  Camera Format	APS-C (1.6x Crop Factor)
  Pixels	Actual: 24.7 Megapixel Effective: 24.2 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	3:2
  Sensor Type	CMOS
  Sensor Size	22.3 x 14.9 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	100 to 12800 (Extended: 100 to 25600)
  Shutter Speed	Electronic Front Curtain Shutter 1/4000 to 30 Seconds
  Metering Method	Center-Weighted Average, Evaluative, Partial, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	1 to 20 EV
  White Balance	Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Shade, Sunset, Tungsten, Twilight
  Interval Recording	None
  Self Timer	2/10-Second Delay
  Mirror Lock-Up	Yes

  Recording Modes	MP4 Full HD (1920 x 1080) at 23.976p/25p/29.97p HD (1280 x 720) at 50p/59.94p SD (640 x 480) at 25p/29.97p
  External Recording Modes	Full HD (1920 x 1080) SD (640 x 480)
  Recording Limit	Up to 29 Minutes, 59 Seconds for Full HD (1920 x 1080)
  Video Encoding	NTSC/PAL
  ISO Sensitivity	Auto: 100 to 12800 (Extended: 25600)
  Audio Recording	Built-In Microphone
  Audio File Format	AAC

  Focus Type	Auto and Manual Focus
  Focus Mode	Automatic (A), Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 19 (19 Cross-Type)
  Autofocus Sensitivity	-0.5 to +18 EV

  Viewfinder Type	Optical (Pentamirror)
  Viewfinder Eye Point	19 mm
  Viewfinder Coverage	95%
  Viewfinder Magnification	Approx. 0.82x
  Diopter Adjustment	-3 to +1 m
  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	Yes
  Maximum Sync Speed	1/200 Second
  Flash Compensation	-2 to +2 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	eTTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	3.5mm Microphone, HDMI C (Mini)
  Wireless	Wi-Fi
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x LP-E17 Rechargeable Lithium-Ion
  Dimensions (W x H x D)	5.2 x 4.0 x 3.1" / 13.2 x 10.1 x 7.8 cm
  Weight	19.58 oz / 555.09 g

  Box Dimensions (LxWxH)	8.9 x 6.6 x 5.8"
