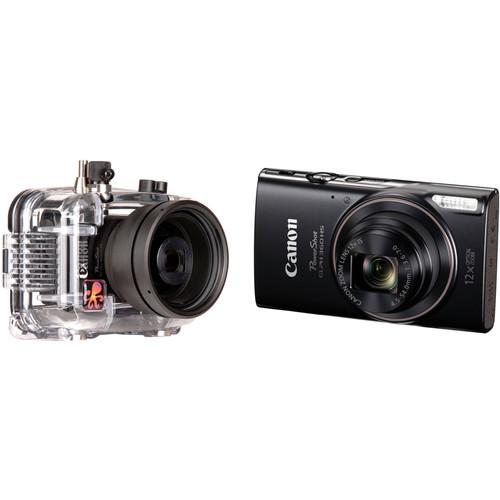

User Manual for Ikelite Underwater Housing and Canon PowerShot ELPH 360 HS Digital Camera Kit

• Product category: Still Cameras & Housings Ikelite
• Brand: Ikelite
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Ikelite Still Cameras & Housings

Product description

• Ikelite Underwater Housing for Canon ELPH 350 HS/IXUS 275 HS or ELPH 360 HS/IXUS 285 HS Capture vibrant images and video of sting rays, parrot fish, and coral at 200' beneath the surface with your Canon ELPH 350 HS/IXUS 275 HS or ELPH 360 HS/IXUS 285 HS camera in this Ikelite Underwater Housing.

  External lighting is more powerful than your camera's built-in flash, but your flash can be used to trigger an optional, external AF35 AutoFlash strobe as a wireless slave, replicating TTL exposure. As an alternative, two fiber-optic ports are provided for connecting optional cables. The housing also includes a diffuser to soften your built-in flash and a deflector to redirect the light towards an external strobe. This added lighting will provide greater color accuracy and vibrancy, and it can be placed in a position to virtually eliminate backscatter, glare, and hard shadows.

  Built for durability, the housing is designed, constructed by hand, and tested in the USA. A corrosion-resistant, clear polycarbonate body offers a full view of the camera, allowing you to monitor the O-ring seal to ensure correct waterproof installation. Large, ergonomic mechanical controls provide access to all camera functions except the mode switch. The camera mounting plate features a 12-24 thread tray with 3" spacing.

  The housing's built-in, flat glass lens port has a 3.0" diameter. Since light is absorbed very quickly as it passes through water, optional color-correction filters can be added to enhance colors below the surface. The port also accepts optional external lenses with 67mm threads, to allow an increased field of view or extreme close-up shots with better clarity and detail, respectively.

  It is compatible with Ikelite's optional 6420 W-20, 6430 W-30, and other optional, external 67mm threaded, wide-angle or macro lenses without the need for an adapter. An external wide-angle conversion lens increases angle of coverage so you can get closer to the subject while still fitting everything in the frame. Moderate vignetting will likely occur at the widest-angle setting with these lenses. This effect can be eliminated by zooming in slightly or cropping the image in post processing. Additionally, bayonet mount lenses or the INON UWL-100 Type 1 lens cannot be used with this housing.
  Construction Details
  • • Depth Rating: 200'
    • Drop-in loading enables quick and easy camera installation and setup
    • Simply close side latch and see o-ring form a solid watertight seal
    • Manufactured from durable, corrosion-resistant polycarbonate, which is clear to allow you to monitor o-ring seal and maintain full view of camera
    • Designed, constructed by hand, and tested in the USA
  Controls, Handling, and Operation
  • • Large, ergonomic mechanical controls, including push-buttons, and a knurled dial, provide access to all camera functions except the mode switch
    • 12-24 thread tray mounting with 3" (76mm) spacing
    • Optional tray with single or dual handles improves balance and control while giving you attachment point(s) for optional lighting arm(s)
  Lens Port
  • • Built-in, flat glass lens port has a 3.0" diameter
    • Accepts optional external wide-angle and macro add-on lenses with 67mm threads, to allow an increased field of view or extreme close-up shots with better clarity and detail, respectively
    • Both types of lenses will enable you to get closer to subjects, cutting down on amount of water between you and them to reduce distortion
    • You can also add optional color-correction filters for blue and green water to restore colors that get absorbed below the surface
  Flash Use
  • • You can add an optional AF35 AutoFlash strobe, which features a flex arm and mounts onto the grip handle of an optional tray
    • This external strobe is triggered as a wireless slave by firing the camera's built-in flash, replicating TTL exposure
    • As an alternative, two ports are provided for connection of Ikelite, Sea & Sea, or Olympus-type fiber-optic cables
    • Housing includes a diffuser to soften the light of the camera's built-in flash and a deflector to redirect it towards an external strobe
    • Since built-in flash is generally only effective within very short distance from subject, use of a more powerful external strobe is highly recommended
    • External strobe will provide greater illumination, color accuracy, and vibrancy, and can be placed in a position to virtually eliminate backscatter, glare, and hard shadows
  UPC: 883711051079
• Canon PowerShot ELPH 360 HS Digital Camera (Black) Combining high-resolution imaging with a versatile feature-set, the black PowerShot ELPH 360 HS Digital Camera from Canon is a sleek point-and-shoot featuring a 20.2MP 1/2.3" CMOS sensor and DIGIC 4+ image processor. The sensor and processor combination avails sensitivity to ISO 3200 and notable image quality, as well as 7.2 fps continuous shooting, to suit working in a variety of conditions, and, in addition to stills, also enables full HD 1080p video recording at 30 fps. A 12x optical zoom lens provides a 25-300mm equivalent focal length range and an Intelligent IS image stabilization system helps to minimize the appearance of camera shake for sharper handheld imagery. For composing imagery and reviewing your photos and movies, a large 3.0" 461k-dot LCD is featured on the back of the camera and built-in Wi-Fi with NFC allows you to wirelessly share images to a linked smartphone or tablet. Additionally, the ELPH 360 HS also features a range of creative features for compiling videos and stills or producing creative works in-camera, including Hybrid Auto, Creative Shot, and Story Highlights.
  • A 20.2MP 1/2.3" High-Sensitivity CMOS sensor pairs with the DIGIC 4+ image processor to realize notable image quality and sensitivity to ISO 3200, and also, together, form the Canon HS SYSTEM to maintain low noise results for cleaner image quality. Additionally, the sensor and processor also afford continuous stills shooting rates up to 7.2 fps and full HD 1080p video recording at 30 fps.
  • A versatile 12x optical zoom lens offers a 25-300mm equivalent focal length range, covering wide-angle to telephoto perspectives. This broad reach is complemented by a versatile Intelligent IS image stabilization system that minimizes the appearance of camera shake for both stills and video shooting:

    Stills:

    • Normal IS corrects for a wide range of common camera movements.
    • Panning IS detects deliberate panning movements and does not compensate for lateral movements to permit desired camera movements.
    • Macro (Hybrid) IS corrects for shift-type camera shake that commonly occurs when working with close-up subject matter.
    • Tripod is a dedicated setting that automatically deactivates IS when the use of a tripod is detected since camera-based stabilization is not needed.


    Video:

    • Dynamic IS is well-suited to recording at wide-angle focal lengths and reduces unwanted shaking that typically occurs when walking while recording.
    • Powered IS compensates for hand movements that become more visually discernible when working at the telephoto end of the zoom range.
    • Macro (Hybrid) IS minimizes the appearance of shake when walking as well as compensates for shift-type shake that occurs when working with close-up subject matter.
    • Active Tripod IS minimizes the slight amount of shake that can happen when recording video while using a tripod.
  • Built-in Wi-Fi with NFC allows you to wirelessly share your photos and movies with a linked smartphone or tablet as well as remotely control the camera from the mobile device by using the Camera Connect app. A dedicated Wi-Fi button is also featured on the camera body to expedite the process of connecting with a smartphone or tablet and sharing imagery between devices.
  • A large 3.0" 461k-dot LCD monitor is available for composing imagery, navigating the menu, and reviewing photos and videos.
  • Hybrid Auto records up to four seconds of video prior to taking a still photo, and then automatically combines the two types of imagery into a video recap.
  • Creative Shot mode utilizes various compositional, color, and lighting elements from an original image in order to produce a new, unique image with artistic flair.
  • Story Highlights can automatically produce a highlight reel, comprised of videos and photos from a day or an event, and then add music and effects for playback.
  UPC: 013803269598

• Underwater Housing for Canon ELPH 350 HS/IXUS 275 HS or ELPH 360 HS/IXUS 285 HS xxdwvbexvsedrfex
• Port Cover
• Flash Diffuser
• Flash Deflector
• Vinyl Break-Away Safety Lanyard
• 1cc Tube of Silicone Lubricant
• Replacement Control Tips/Sleeves
• Limited 2-Year Warranty

• Canon - PowerShot ELPH 360 HS Digital Camera (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ikelite Underwater Housing for Canon ELPH 350 HS/IXUS 275 HS or ELPH 360 HS/IXUS 285 HS

  Depth Rating	200' / 60 m
  Control Type	Mechanical push-buttons, and a knurled dial
  Controls	Provide access to all camera functions except the mode switch
  Material of Construction	Polycarbonate
  Lens Port	Built-in lens port with flat glass front element 3.0" / 76 mm diameter Accepts optional external wide-angle and macro add-on lenses with 67mm threads
  Color Correction Filter	Optional color-correction filters for blue and green water restore colors that get absorbed
  Buoyancy	Slightly positive in fresh water
  Internal Flash Usable	Yes, camera's built-in flash
  External Flash Connector	Optional AF35 AutoFlash strobe is triggered as wireless slave by firing of camera's flash AF35 replicates TTL exposure 2x Fiber-optic ports for Ikelite, Sea & Sea, or Olympus-type cables
  Mounting	12-24 size thread with 3.0" / 76 mm spacing for tray connection
  Dimensions	5.9 x 4.2 x 4.5" / 15.0 x 10.7 x 11.4 cm
  Weight	1.2 lb / 0.54 kg

  Box Dimensions (LxWxH)	6.6 x 5.4 x 5.4"

• Canon PowerShot ELPH 360 HS Digital Camera (Black)

  Pixels	Actual: 21.1 Megapixel Effective: 20.2 Megapixel
  Sensor	1/2.3" CMOS
  File Formats	Still Images: JPEG Movies: MP4, Audio: AAC LC
  Max Resolution	5184 x 3888
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Image Stabilization	Optical

  Lens	Effective Focal Length: 4.5 to 54mm (35 mm Equivalent: 25 to 300mm) Aperture: f/3.6 (W) to f/7 (T)
  Zoom	Optical: 12x Digital: 4x
  Focus Range	Wide: 1.97" to Infinity / 5 cm to Infinity Telephoto: 3.28' to Infinity / 1 m to Infinity Auto: 0.39" to Infinity / 1 cm to Infinity Macro: 0.39" to 1.64' / 1 cm to 50 cm

  ISO Sensitivity	Auto, 80 to 3200
  Shutter	1 to 1/2000 Second 15 to 1 Second in Bulb Mode
  Exposure Metering	Center-Weighted, Evaluative, Spot
  Exposure Modes	Modes: Program Compensation: -2 EV to +2 EV (in 1/3 EV Steps)
  Shooting Modes	Auto Creative Shot Face Self-Timer Fireworks Fish-Eye Effect Handheld Night Scene High Speed Shutter Hybrid Auto Long Exposure Low Light Miniature Effect Monochrome P Portrait Poster Effect Smile Super Vivid Toy Camera Effect Wink Self-Timer
  White Balance	Auto, Cloudy, Custom, Daylight, Fluorescent, Fluorescent H, Tungsten
  Continuous Shooting	Up to 7.2 fps at 5 MP Up to 2.5 fps at 20.2 MP
  Self-Timer	2, 10 Sec

  Flash Modes	Auto Flash On Off Slow Sync
  Built-In Flash	Yes
  Effective Flash Range	Wide:1.6 to 13.1' / 0.5 to 4 m Telephoto:3.3 to 6.6' / 1 to 2 m

  Memory Card Type	SD SDHC SDXC

  Video Recording	Yes, NTSC/PAL
  Resolution	1920 x 1080p: 29.97 fps 1280 x 720p: 29.97 fps 640 x 480p: 29.97 fps

  Video Clip Length	Up to 29 Minutes 59 Seconds
  Audio Recording	Built-In Mic: With Video (Mono)

  Screen	3.0" LCD Rear Screen (461,000 Pixels)
  Screen Coverage	100%

  Connectivity	HDMI D (Micro), Mini-USB, USB 2.0
  Wi-Fi	Yes Built In

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	10 to 90%

  Battery	1 x NB-11LH Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 800 mAh

  Dimensions (W x H x D)	3.9 x 2.3 x 0.9" / 99.6 x 58.0 x 22.8 mm
  Weight	5.18 oz / 147 g CIPA standard

  Box Dimensions (LxWxH)	4.3 x 3.1 x 2.6"
