Ikelite Underwater Housing and Nikon Z7

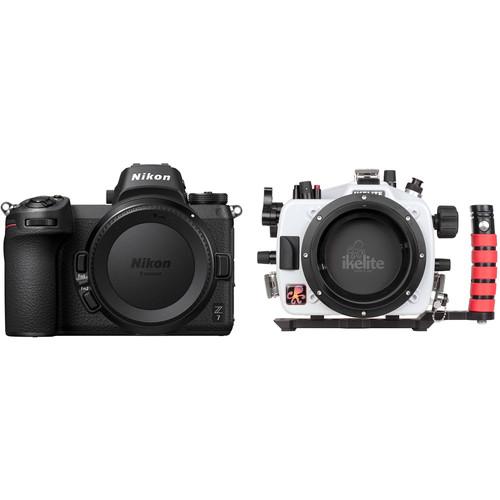

User Manual for Ikelite Underwater Housing and Nikon Z7 Mirrorless Digital Camera Kit

• Product category: Still Cameras & Housings Ikelite
• Brand: Ikelite
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Ikelite Still Cameras & Housings

Product description

• Ikelite 200DL Underwater Housing for Nikon Z7 & Z6 Mirrorless Digital Cameras Capture brilliant images at depths as great as 200' with your Nikon Z7 or Z6 Mirrorless Digital Camera in Ikelite's 200DL Underwater Housing, which features their Dry Lock Port Mount and vacuum valve. An Ikelite bulkhead with a manual hot shoe connection enables reliable electrical triggering of optional external strobes via sync cords. Using an optional TTL hot shoe and the Nikon TTL Converter will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.

  Ergonomic mechanical controls, including push buttons, dials, and levers, afford access to all essential camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It is white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray with a left-hand quick release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm.

  The housing ships without a required lens port, and accepts various, interchangeable dome and flat ports for a broad array of lenses. For full compatibility details, see the port chart. The DL port system accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before the dive. You'll need to pick up the required pump in order to remove excess air and actually create a vacuum.
  Construction Details
  • • Depth rating of 200'
    • Made by hand in the USA from a corrosion-resistant polycarbonate and ABS plastic blend
    • White on the front, top, sides, and bottom to reflect sunlight and keep the camera cool when shooting on or above the water's surface
    • Clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls
    • Nearly neutral buoyancy in fresh water
    • Open-groove design suspends the rear O-ring in the natural position, allowing for easier maintenance and preventing accidental twisting or stretching
    • Front-loading mounting plate enables quick camera installation, and does not need to be removed in order for you to gain battery or memory card access
    • Mounting plate has a 1/4"-20 threaded hole on the bottom for connection to an optional tripod
  Strobe Connection and Operation
  • • Ikelite ICS-5 bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of strobes
    • Optional DL1 DS Link TTL Converter #46054 enables TTL operation with compatible Ikelite DS strobes
    • DL1 supports rear curtain synchronization and allows exposure compensation to be adjusted using the control in the camera
    • Non-Ikelite strobes, such as those from Sea & Sea, INON, and Nikonos, will still work in manual mode only
  Controls and Handling
  • • Shutter and AF-ON (back-button focus) levers are curved and extendable for comfortable use when holding the optional right-hand quick release grip
    • Extra-large, soft-touch zoom knob is located next to the grip handle
    • All push-button controls are machined and hard anodized aluminum to reduce weight and resist salt build-up
    • Ergonomic mechanical push buttons, dials, and levers afford access to all camera functions except: joystick up/down/left/right, Fn1, Fn2, diopter adjustment dial, or DOF button
    • Control symbols are laser-etched into the back of the housing, so they won't fade or fall off with time
    • Supereye Viewfinder enhances your view through the camera's OVF when you're wearing a mask
    • You can remove the Supereye quickly if you'd like to attach the separately sold Straight or 45° Magnified Viewfinder instead
    • Hard anodized aluminum tray with a left-hand quick release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm
    • 1/4"-20 mounts and other mounting points enable connection to a tripod and the addition of accessories
    • Another 1/4"-20 threaded mount is located front and center on the housing above the port mount, allowing for the attachment of a focus light, GoPro action camera, or other lightweight piece of equipment
    • Optional Cable Grip or Aluminum Top Handle can be added for easier carrying if you're using 2 strobes
  Lens Port System
  • • Ships without a required lens port
    • Accepts all Ikelite Dry Lock (DL) dome and flat ports, allowing you to shoot with a wide variety of lenses
    • Zoom gears are available for many lenses
    • For complete compatibility details, see the port chart linked above
    • DL port system accommodates lenses with large diameters
    • Provides added security against leaks at the surface, thanks in large part to the included vacuum valve that helps you check watertight integrity before the dive
    • #47011 pump is required in order to remove excess air and actually create a vacuum
  UPC: 883711057033
• Nikon Z 7 Mirrorless Digital Camera (Body Only) Nikon has taken the next step in their imaging journey with the Z 7 Mirrorless Camera, dubbed "The Perfectionist," and the revolutionary Z System. This high-resolution FX-format camera introduces the Z Mount, a large diameter design with a short 16mm flange distance that allows Nikon to create compact, yet powerful cameras and develop more advanced optics. The Z 7 is among the first in the series, and brings with it a 45.7MP BSI CMOS sensor and EXPEED 6 Image Processing Engine, delivering outstanding image quality and speed with a native sensitivity range of ISO 64-25600.

  On the sensor you will find an advanced phase-detect autofocus system using 493 points covering 90% of the image area and the sensor features 5-axis Vibration Reduction technology for stabilized photos and video regardless of the lens used. This advanced hybrid AF system will also benefit video. The Z 7 features UHD 4K recording at up to 30p and can use the N-Log gamma profile along with the camera's 10-bit HDMI output to create cinema-quality video. The camera's high-resolution sensor also permits the use of an 8K Time-Lapse mode.

  As with many mirrorless systems, the Z Series boasts a much more compact form factor than its DSLR counterparts. The Z 7 is no exception with its slimmed down design and lighter build, though it maintains the weather sealing and ergonomics for which Nikon is known. The camera features multiple displays and screens for ease of use, including a 0.80x 3.6m-dot EVF with NIKKOR optics and a Fluorine coating, ensuring clear viewing. The rear of the camera is equipped with a 3.2" 2.1m-dot tilting touchscreen LCD while the top offers a dot-matrix OLED for quickly checking settings. For storage, the Z 7 has a single XQD card slot that is compatible with CFexpress for faster speeds in the future. Additionally, the body is equipped with both Wi-Fi and Bluetooth.
  Nikon Z System
  • Introducing the Z mount, Nikon's full-frame mirrorless system promises to deliver class-leading image quality and optics in a compact form factor. The Z mount itself makes much of this possible with a 17% larger inner diameter than the F mount, enabling the use of more advanced optics and lens designs, including ultra-fast f/0.95 options. For minimizing camera and lens size, the Z mount features a 65% shorter flange distance, measuring just 16mm, which allows for dramatically slimmed down body designs. The larger mount also supports faster and larger-volume communications between the body and lens to improve overall performance throughout the system.
  45.7MP FX-Format BSI CMOS Sensor and EXPEED 6 Processor
  • A 45.7MP BSI CMOS sensor is used for high-resolution shooting, impressive low-light quality, and fast readout speeds to benefit continuous shooting, movies, and time-lapse recording. The back-illuminated design of the sensor affords noticeably cleaner high-sensitivity output for reduced noise when working at high ISO values, up to a native ISO 25600, as well as vivid and smooth quality at sensitivities as low as ISO 64. The sensor's design also omits the conventional optical low-pass filter in order to achieve the greatest sharpness and resolution from the sensor. Benefitting the sensor is the apt EXPEED 6 image processor, which affords a wealth of speed throughout the camera system, including the ability to shoot continuously at 9 fps in raw.
  4K UHD Video Recording and 8K Time-Lapse
  • Utilizing the sensor and processor attributes for more than just still imagery, the Z 7 is also a more-than-capable multimedia camera. Video recording is possible at UHD 4K (3840 x 2160) using either the full-frame area or a DX crop area in 30p, 25p, or 24p frame rates. Full HD 1080p video recording is also supported at up to 120p for slow motion playback, and video files can be saved to the in-camera memory cards or as an uncompressed file to an optional external recorder via HDMI out.

    Advanced video functionalities have been added with the Z 7. This includes the N-Log gamma for capturing flat-looking footage that maximizes dynamic range. Other additions are the ability to output high-quality 10-bit data over HDMI and an Electronic VR function for smooth handheld shooting. Focus Peaking can be used to benefit manual focus control and a Zebra Stripes option is also available to help detect over-exposed areas within the frame. Audio recording can be handled using the built-in stereo microphone or an optional external mic can be added via the 3.5mm stereo jack for greater control over quality, and live monitoring is possible via the headphone jack.

    The Z 7 also blends both still and video capabilities with the ability to produce 8K time-lapses using the Interval Timer Mode or in-camera 4K time-lapse movies, with the ability to record up to 9999 exposures for either method. This system also makes use of a silent interval timer, which produces no shutter noise, does not contribute to wear on the shutter mechanism, and is energy efficient to maximize battery life.
  493-Point Phase-Detect AF System
  • Located on the sensor is an array of 493 phase-detect autofocus points covering 90% of the image area both vertically and horizontally. This provides fast and accurate focusing for both stills and video and with a wide coverage area, subject tracking will work out to near the edges of the frame. Hybrid AF is available for video, which will automatically switch between phase- and contrast-detect systems to provide smooth focus during shooting. Additionally, the latest NIKKOR Z lenses are optimized for silent operation.
  Body Design
  • • Built-in to the body is a 5-axis sensor-shift Vibration Reduction mechanism for up to 5 stops of stabilization regardless of the lens used. This system also works with adapted lenses when using the optional FTZ Adapter where 3-axis stabilization is used.
    • A large 3.2" 2.1m-dot LCD screen is available for bright, clear, and vivid image playback and live view shooting. The screen has a tilting design to benefit working from both high and low angles, and it is also a touchscreen for more intuitive operation, navigation, and settings control.
    • A 3.6m-dot electronic finder is present for comfortable eye-level viewing. It has a high 0.80x magnification and uses NIKKOR optics to guarantee a sharp, clear image. The finder also has a Fluorine coating for easier cleaning.
    • The top panel of the Z 7 is configured with a dot-matrix OLED. This low-energy display provides quick access to important camera settings.
    • Configured with one XQD memory card slot, the camera will be able to quickly save images. The slot is compatible with CFexpress, enabling support for future media.
    • A robust magnesium-alloy chassis is both dust- and weather-resistant to benefit working in harsh climates and inclement conditions.
    • The ergonomic grip and overall form factor is shaped to benefit handling for extended periods of time and is further accentuated by an anti-slip material and a joystick for seamless settings and focus point selection.
    • Built-in SnapBridge connectivity to enable seamless transfer of low-resolution imagery as well as remote shooting capabilities. BLE (Bluetooth Low Energy) and Wi-Fi enables communication between the camera and a smart device and, additionally, the mobile device can remotely trigger the shutter and display a live view image from the camera to enable working from a distance.
    • Included EN-EL15b rechargeable lithium-ion battery provides approximately 330 shots per charge, and in-camera charging is supported. This camera is also compatible with EN-EL15 and EN-EL15a batteries, however do not support in-camera charging.
  UPC: 018208015917

• 200DL Underwater Housing for Nikon Z7 & Z6 Mirrorless Digital Cameras svfwqeacbddrvrfxyqvfsxbvdr
• O-Ring for Large SLR Housings
• 0132.45 O-Ring for Ikelite Ultra Compact Digital Camera Housings (Replacement)
• Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings
• Port Hole Cover for Housings with Dry Lock Mount
• DL Zoom Gear Retainer
• Tool for Zoom Gear Retainer #0945.06
• ICS Bulkhead Cap (Replacement)
• 4-40 Hex Head Allen Wrench
• 1/16" Hex Head Allen Wrench for Gears on Housings
• Silicone Lubricant #0184.1
• Limited 2-Year Warranty

• Nikon - Z 7 Mirrorless Digital Camera (Body Only)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ikelite 200DL Underwater Housing for Nikon Z7 & Z6 Mirrorless Digital Cameras

  Depth Rating	200' / 60 m
  Control Type	Mechanical Push Buttons, Dials, and Levers
  Controls	Afford Access to All Camera Functions except for the Following: Joystick Up/Down/Left/Right, Fn1, Fn2, Diopter Adjustment Dial, DOF Button
  Material of Construction	Polycarbonate and ABS Plastic
  Lens Port	Dry Lock (DL) Interchangeable Port System Ships without Required Lens Port
  External Flash Connector	Ikelite ICS-5 Bulkhead with Manual Hot Shoe Connection for Optional External Strobes Optional TTL Hot Shoe Will Allow for TTL Operation with Compatible Ikelite DS Strobes Non-Ikelite Strobes Work in Manual Mode Only
  Mounting	1/4"-20 Threaded Mounts with 3.5" / 88.9 mm Spacing for Connecting Included Tray/Base with Left QR Grip
  Dimensions	8.8 x 6.9 x 6.5" / 22.0 x 17.5 x 16.5 cm
  Weight	4.7 lb / 2.2 kg

  Box Dimensions (LxWxH)	15.0 x 9.0 x 8.0"

• Nikon Z 7 Mirrorless Digital Camera (Body Only)

  Lens Mount	Nikon Z
  Camera Format	Full-Frame (1x Crop Factor)
  Pixels	Actual: 46.89 Megapixel Effective: 45.7 Megapixel
  Maximum Resolution	8256 x 5504
  Aspect Ratio	1:1, 3:2, 4:5, 16:9
  Sensor Type	CMOS
  Sensor Size	35.9 x 23.9 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	Sensor-Shift, 5-Axis

  ISO Sensitivity	Auto, 64 to 25600 (Extended: 32 to 102400)
  Shutter Speed	Electronic Front Curtain Shutter 1/8000 to 30 Seconds Bulb Mode
  Metering Method	Center-Weighted Average, Matrix, Spot, Highlight Weighted
  Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	-3 to 17 EV
  White Balance	Auto, Cloudy, Color Temperature, Direct Sunlight, Flash, Fluorescent, Incandescent, Preset Manual, Shade
  Continuous Shooting	Up to 9 fps at 45.7 MP Up to 5.5 fps at 45.7 MP
  Interval Recording	Yes
  Self Timer	2/5/10/20-Second Delay

  Recording Modes	MOV/MP4/H.264 UHD 4K (3840 x 2160) at 23.976p/25p/29.97p Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p/100p/120p
  External Recording Modes	10-Bit UHD 4K (3840 x 2160) Full HD (1920 x 1080)
  Recording Limit	Up to 29 Minutes, 59 Seconds
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	AAC, Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Full-Time Servo (F), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 493

  Viewfinder Type	Electronic
  Viewfinder Size	0.5"
  Viewfinder Resolution	3,690,000 Dot
  Viewfinder Eye Point	21 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.8x
  Diopter Adjustment	-4 to +2 m
  Monitor Size	3.2"
  Monitor Resolution	2,100,000 Dot
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	None
  Flash Modes	First-Curtain Sync, Off, Rear Curtain/Slow Sync, Rear Sync, Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction
  Maximum Sync Speed	1/200 Second
  Flash Compensation	-3 to +1 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	iTTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x XQD
  Internal Memory	None
  Connectivity	3.5mm Headphone, 3.5mm Microphone, HDMI C (Mini), Nikon DC2, USB Type-C
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x EN-EL15b Rechargeable Lithium-Ion
  Dimensions (W x H x D)	5.3 x 4.0 x 2.7" / 134.0 x 100.5 x 67.5 mm
  Weight	1.29 lb / 585 g (Body Only)

  Box Dimensions (LxWxH)	8.75 x 7.5 x 5.25"
