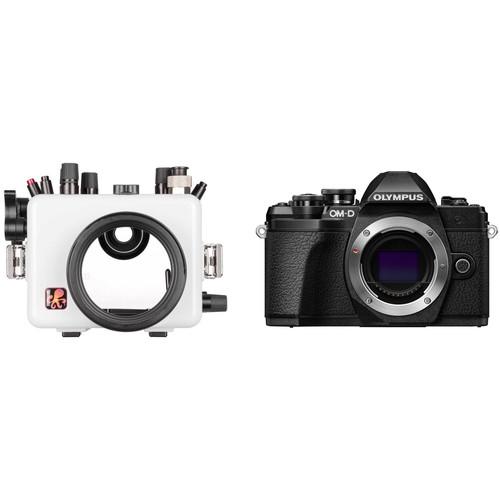

User Manual for Ikelite Underwater Housing and Olympus OM-D E-M10 Mark III Mirrorless Micro Four Thirds Digital Camera Body Kit

• Product category: Still Cameras & Housings Ikelite
• Brand: Ikelite
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Ikelite Still Cameras & Housings

Product description

• Ikelite 200DLM/A Underwater TTL Housing for Olympus OM-D E-M10 Mark III Capture images and video at depths 200' beneath the surface using this Ikelite Underwater Housing with TTL Circuitry for the Olympus OM-D E-M10 Mark III Mirrorless Micro Four-Thirds camera. Large, ergonomic mechanical controls provide access to virtually all camera functions.

  The waterproof enclosure is equipped with built-in TTL circuitry, an Ikelite bulkhead sync cord connector, and an electrical hot shoe to enable the connection and firing of optional external strobes. The circuitry enables TTL exposure with Ikelite DS strobes only. Third-party strobes will work in manual mode. Your camera's built-in flash can trigger optional external strobes via cables connected to the housing's dual fiber-optic ports.

  Built for durability, the housing is made in the USA from corrosion-resistant polycarbonate – white on the front, top, and sides, but clear in the back to allow you to monitor the camera and O-ring seal. It ships without a required lens port and is compatible with a series of interchangeable ports for various lenses. For full details, see the Port Charturbryayeuvyzwwuudwvrbebuzscxquzarcef.
  Construction Details
  • • Depth Rating: 200'
    • Made in the USA from white polycarbonate with clear back to allow you to monitor O-ring seal and maintain a full view of camera
    • Close two locking snaps on sides to see O-ring form watertight seal
  Controls and Handling
  • • Trigger-style shutter control lever, soft-touch knobs and hard-anodized aluminum buttons provide control for all important camera functions with or without gloves
    • Lever access to AEL/AFL button
    • Camera's LCD screen can be viewed edge-to-edge through rear of housing
    • Supereye Viewfinder provides an enhanced view of the camera's optical viewfinder when viewed through a dive mask
    • This OVF can be replaced easily by the optional Straight or 45° Magnified Optical Viewfinders, which enhance your view while eliminating vignetting and offering greater long-term comfort
  Lens Port System
  • • Ships without a required lens port
    • Accepts a series of interchangeable ports for a variety of zoom, macro, and wide-angle lenses. For details, see Port Chart link above
    • Attaching/changing ports is easy--just press on and tighten 3 thumb screws
  Strobe Connection and Operation
  • • Built-in TTL circuitry, Ikelite bulkhead sync cord connector, and electrical hot shoe to enable the connection and firing of non-Ikelite strobes in manual exposure modes
    • Circuitry enables TTL exposure with Ikelite DS strobes only
    • Camera-specific TTL encoding for automatic exposure fine-tuned to the E-M10 Mark III's flash protocol
    • Circuit powered by strobe so batteries and maintenance are not required
  UPC: 883711055886
• Olympus OM-D E-M10 Mark III Mirrorless Micro Four Thirds Digital Camera (Body Only, Black) Compact and lightweight, the black OM-D E-M10 Mark III from Olympus takes its place as an extremely capable entry-level option for shooters looking to pick up an SLR-styled mirrorless Micro Four Thirds camera. This iteration incorporates a 16.1MP Four Thirds Live MOS sensor and the Dual Quad-Core TruePic VIII Image Processor, enabling a variety of fast and powerful functions, including video recording at up to UHD 4K. The camera does retain its intuitive and rugged construction, benefitting from many physical controls as well as a 3.0" tilting touchscreen LCD and a 2.36m-dot electronic viewfinder with an improved 1.23x magnification. Additionally, various other functions have been implemented to make shooting more fun, such as 15 Art Filters and a Clips Video Mode that lets you quickly make videos in camera.

  The E-M10 Mark III features many capabilities to improve overall image quality. The most significant of these is the inclusion of a robust in-body 5-axis image stabilization system that can compensate for about 4 stops of shutter speed. Along with this, an upgraded 121-point contrast-detect AF system will help you lock on, track, and capture tack-sharp photos of your subjects. Speed has been given a boost as well with up to 8.6 fps continuous shooting and a sensitivity range of up to ISO 25600. An electronic shutter function is present in the Mark III for even faster shutter speeds and silent shooting. Beyond all this, the camera of course features built-in Wi-Fi, this time with a QR Code function for even faster setup.
  16.1MP Live MOS Sensor & TruePic VIII Image Processor
  • In order to create high-resolution imagery, the OM-D E-M10 Mark III is blessed with a Four Thirds 16.1MP Live MOS Sensor and the Dual Quad-Core TruePic VIII Image Processor, a combination designed to maximize speed and quality. It helps users create sharp photos and video in a wide range of situations using sensitivities ranging from ISO 200-25600, and which can be extended to ISO 100-25600. It also provides an electronic shutter function for faster shutter speeds and completely silent operation and can record uncompressed 12-bit raw image files.
  UHD 4K Video Recording
  • The added processing power of the TruePic VIII provides the E-M10 Mark III with greater video capabilities in addition to stills, this time permitting the creation of high-resolution UHD 4K video at up to 30p. Users can enjoy a high bit rate of 102 Mbps for crisp, detailed imagery and there are options for both NTSC and PAL frame rates. Full HD and HD recording features increased speed with options in Full HD for up to 60p and high-speed HD 720p at up to 120 fps.

    In addition to video recording, a Time-lapse Movie mode is also available for recording up to 4K UHD resolution with a 5 fps shooting rate to highlight subject changes or movement over a longer period of time. Full HD and HD time-lapse settings are available, too. Also, there is a Clips Video Mode present for in-camera video creation, including the ability to use audio transferred to your SD card.
  In-Body 5-Axis Image Stabilization
  • In-body, sensor-shift image stabilization helps to minimize the appearance of camera shake by up to 4 stops with any lens in use and compensates for camera movements that become especially noticeable when working with telephoto shots, macro imagery, and long exposures. Furthermore, this unique image stabilization system works across five axes to compensate for vertical angle rotation, horizontal angle rotation, horizontal shift, vertical shift, and rolling camera shake movement. This range of detected movements serves to benefit traditional still image shooting as well as movie recording and working with moving subjects more effectively. Additionally, image stabilization can also be used when framing shots, for more accurate compositions, by half-pressing the shutter button.
  121-Point Contrast-Detect AF System and 8.5 fps Shooting
  • Lock on and track subject matter quickly and effectively in order to guarantee tack-sharp imagery by using the E-M10 Mark III's upgraded 121-point contrast-detect high-speed imager AF system. Users can also access Touch AF functions via the rear LCD and will benefit from excellent tracking performance. Also, the E-M10 III can shoot at speeds of up to 8.5 fps with the ability to record burst of up to 22 raw frames or 36 JPEGs. A low-speed 4.8 fps setting is available with no limit to the buffer.
  Body Design and Built-In Wi-Fi
  • • Durable body features two dials, a directional pad, and shortcut button for fast, intuitive control.
    • Built-in Wi-Fi is available for direct connection to a smart device and a QR code setting can be accessed for faster connection and setup.
    • The 3.0" 1.04m-dot touchscreen LCD can tilt downward 45° and upward 85° for use at odd angles.
    • Touch control provides direct access to various functions: shutter release, AF area selection, AF area size adjustment, AF touch pad, frame forward/backward, magnified playback, Live Guide, Super Control Panel, Art Filter, Wi-Fi connection, video controls, video effects, video teleconverter, and timer.
    • For eye-level viewing a 2.36m-dot EVF is available, which features an improved magnification of 1.23x for increased comfort during use.
    • A mechanical shutter with a 1/4000 to 60 second range is present alongside a silent electronic shutter function with a 1/16000 to 30 second range.
    • Built-in flash with guide number of 19' at ISO 100 for illuminating dark scenes.
    • One SD card slot is available with support for UHS-II media.
    • External flash units can be used via the hot shoe.
    Other Camera Features
    • • Silent Shutter Mode eliminates shutter noise and other electronic sounds to benefit working in nature, concert halls, or other sound-sensitive locations.
      • Advanced Auto Mode analyzes the scene and subject in order to select the best possible settings.
      • Scene Mode features various presets for optimizing camera performance to your subject matter, including People, Motion, Indoors, Nightscapes, Scenery, Close-Up, and more.
      • Fifteen Art filters are available to add some flair to your images, including a new Bleach Bypass option to provide an old film feel with a silvery, glossy feel on metal textures.
      • Advanced Photography (AP) Mode offers access to various creative modes, including Live Composite, Live Time, Panorama, HDR, Silent, Keystone Compensation, Focus Bracketing, Multiple Exposure, and AE Bracketing.
      • Live Bulb and Live Time settings can be used to produce creative long exposure imagery. Live Bulb lets you hold the shutter open for up to one minute and Live Time lets you press the shutter button once to open the shutter and then press again within a minute to end the exposure.
      • Live Composite is a unique long exposure mode that allows you to gradually build up an exposure over time without overexposing key elements within the frame. This mode works to only record newly detected light sources over time, and allows you to watch as an image develops, making it ideally suited for photographing star trails or other moving light sources.
      • Interval shooting is supported for up to 999 frames with 1 second to 24-hour exposure intervals.
      UPC: 050332191525
    In the Box
    • 200DLM/A Underwater TTL Housing for Olympus OM-D E-M10 Mark III urbryayeuvyzwwuudwvrbebuzscxquzarcef
    • 2cc Tube of Silicone Lubricant for O-Rings
    • Limited 2-Year Warranty
    • Olympus - OM-D E-M10 Mark III Mirrorless Micro Four Thirds Digital Camera (Body Only, Black)
    Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ikelite 200DLM/A Underwater TTL Housing for Olympus OM-D E-M10 Mark III

  Depth Rating	200' / 60 m
  Control Type	Mechanical push-buttons, knurled knobs/dials, trigger-style shutter control lever
  Material of Construction	Polycarbonate
  Lens Port	Ships without a required port Accepts a series of interchangeable ports for a variety of zoom, macro, and wide-angle lenses For details, see Port Chart link in Overview
  Buoyancy	Slightly negative buoyancy in fresh water Actual buoyancy varies depending on choice of lens and port
  Internal Flash Usable	Yes
  External Flash Connector	Built-in TTL circuitry, Ikelite bulkhead sync cord connector, and electrical hot shoe for optional, external strobe 2 x fiber-optic ports
  Mounting	2 x 1/4"-20 threaded tray mounts with 3" / 76 mm spacing
  Dimensions	7.4 x 6.0 x 5.5" / 18.7 x 15.2 x 13. 9 cm
  Weight	3.7 lb / 1.7 kg

  Box Dimensions (LxWxH)	9.7 x 6.5 x 6.4"

• Olympus OM-D E-M10 Mark III Mirrorless Micro Four Thirds Digital Camera (Body Only, Black)

  Lens Mount	Micro Four Thirds
  Camera Format	Micro Four Thirds (2x Crop Factor)
  Pixels	Actual: 17.2 Megapixel Effective: 16.1 Megapixel
  Maximum Resolution	4608 x 3456
  Aspect Ratio	4:3
  Sensor Type	MOS
  Sensor Size	17.4 x 13 mm
  Image File Format	JPEG, RAW
  Bit Depth	12-Bit
  Image Stabilization	Sensor-Shift, 5-Axis

  ISO Sensitivity	Auto, 200 to 25600 (Extended: 100 to 25600)
  Shutter Speed	Mechanical Shutter 1/4000 to 60 Seconds 0.5 to 60 Minutes in Bulb Mode Electronic Front Curtain Shutter 1/320 to 60 Seconds Electronic Shutter 1/16000 to 30 Seconds
  Metering Method	Center-Weighted Average, Multi-Zone, Spot
  Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3 EV Steps)
  Metering Range	-2 to 20 EV
  White Balance	Auto, Custom
  Continuous Shooting	Up to 8.6 fps at 16.1 MP for up to 22 Exposures (Raw Format) Up to 8.6 fps at 16.1 MP for up to 36 Exposures (JPEG Format) Up to 4.8 fps at 16.1 MP for Unlimited Exposures
  Interval Recording	Yes
  Self Timer	2/12-Second Delay

  Recording Modes	MOV/H.264 UHD 4K (3840 x 2160) at 23.976p/25p/29.97p [102 Mb/s] Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p [18 to 52 Mb/s] HD (1280 x 720) at 23.976p/25p/29.97p [18 to 52 Mb/s]
  Recording Limit	Up to 29 Minutes
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo)
  Audio File Format	Linear PCM (Stereo), WAV

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Contrast Detection: 121

  Viewfinder Type	Electronic
  Viewfinder Resolution	2,360,000 Dot
  Viewfinder Eye Point	19.2 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 1.23x
  Diopter Adjustment	-4 to +2 m
  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	Yes
  Flash Modes	Auto, Fill Flash, Manual, Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction
  Guide Number	19.03' / 5.8 m at ISO 100
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-3 to +3 EV (1/3 EV Steps)
  Dedicated Flash System	TTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Internal Memory	None
  Connectivity	HDMI D (Micro), USB 2.0 Micro-B
  Wireless	Wi-Fi
  GPS	None

  Operating Temperature	14 to 104°F / -10 to 40°C
  Operating Humidity	30 to 90%

  Battery	1 x BLS-50 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1175 mAh
  Dimensions (W x H x D)	4.8 x 3.3 x 1.9" / 121.5 x 83.6 x 49.5 mm
  Weight	14.46 oz / 410 g (Body with Battery and Memory)

  Box Dimensions (LxWxH)	7.4 x 6.4 x 4.6"
