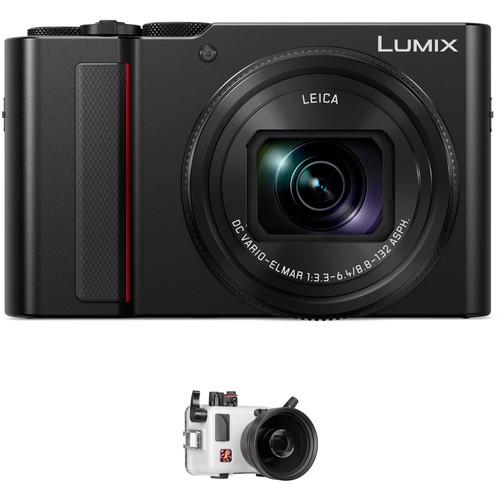

User Manual for Ikelite Underwater Housing and Panasonic Lumix DC-ZS200 Digital Camera Kit

• Product category: Still Cameras & Housings Ikelite
• Brand: Ikelite
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Ikelite Still Cameras & Housings

Product description

• Ikelite Underwater Housing for Panasonic Lumix ZS200/TZ200, TZ202 Digital Cameras Capture clear, detailed images and video at depths as great as 200' with this Ikelite Underwater Housing for your Panasonic Lumix ZS200/TZ200 or TZ202 camera. Two ports for optional fiber-optic cables enable the connection of external strobes. Large, easy-to-reach controls, including a shutter lever (extendable for handle use with optional # 4077.93 extension), provide access to all camera functions. Rear controls are marked with easy-to-see laser engraved symbols which never fade or fall off.Built for durability, the housing is designed, constructed, and tested in the USA. It's manufactured from a white ABS/polycarbonate blend, which is still corrosion-resistant but also reflects sunlight to keep your camera cooler when shooting at or above the water's surface. The back plate is clear to allow you to monitor the O-ring seal and maintain a full view of the camera. The integrated 3.9" flat glass lens port accepts the separately sold Ikelite WD-4 Wide-Angle Dome # 6430.4 for a wider angle of view and 0.75 magnification with no edge distortion. An adapter allows the use of 67mm-threaded macro lenses (threaded wide-angle lenses are not recommended). Optional color-correction filters can also be added to restore colors that get absorbed by the water.Note: the camera cannot be zoomed beyond 135mm equivalent inside the housing.
  Construction Details
  • • Can be safely used at a maximum depth of 200'
    • Designed, constructed by hand, and tested in the USA
    • Made of white ABS/polycarbonate blend with clear back panel
    • Slide-in, front-loading design for quick and easy setup
    • A 1/2-20 size accessory port has been added for installation of optional vacuum valve to allow you to confirm watertight integrity before diving
  Controls, Handling, and Operation
  • • Large controls including shutter lever provide access to all camera functions
    • Shutter lever can be extended for handle use with separately sold Shutter Trigger Extension # 4077.93
    • All rear controls are clearly marked with laser engravings
    • Housing is configured with a 1/4"-20 thread with 3.0" spacing for the mounting of an optional tray with single or dual handles/light arms
  Lens Port
  • • Built-in, 3.9" flat glass lens port
    • Accepts optional WD-4 Wide-Angle Dome
    • Press-on adapter for 67mm-threaded macro lenses
    • Add optional blue-water and green-water color-correction filters to restore colors absorbed by the water
    • Compatible with optional Yellow Fluorescence Filter # 6441.16
  Strobe Connection and Operation
  • • Two fiber-optic ports for external strobes triggered by camera's built-in flash
  UPC: 883711056050
• Panasonic Lumix DC-ZS200 Digital Camera (Black) Built with portability in mind, the black Lumix DC-ZS200 Digital Camera from Panasonic is a sleek point-and-shoot camera with notable photo and video capabilities. Despite its compact size at only 4.4" in width, the camera manages to incorporate a large 1" High-Sensitivity MOS sensor and a Leica 15x optical zoom lens for shooting high quality 20.1MP photos. Complementing the sensor is a Venus Engine image processor capable of UHD 4K video recording at up to 30 fps and with an extended ISO of 25600 for use in low-light situations.The Leica DC Vario-Elmar lens incorporated in this camera has a 24-360mm equivalent focal length range that can cover a wide variety of situations. In the video department, a High-Speed mode allows the ZS200 to record Full HD 120 fps footage and play it back at 30 fps, resulting in instant slow motion video. Also available is a 4K Photo Mode that uses the camera's video capabilities to generate 8 MP pictures at 30 fps; regular burst shooting at higher resolutions can reach 10 fps in AF-S and 6 fps in AF-C, thanks to a fast depth-from-defocus (DFD) focusing system. Finally, a 5-axis Hybrid O.I.S image stabilization system is present in all modes except for 4K and high-speed video recording, and helps minimize the appearance of camera shake for sharper imaging.The ZS200 is also characterized by its intuitive physical design, with both an electronic viewfinder and a rear LCD screen available. The Live View Finder is a 0.21" 2330k-Dot EVF that allows for comfortable eye-level monitoring, while the large 3.0" 1240k-dot LCD touchscreen is best-suited for image review, menu navigation, and live view shooting. Additional features include in-camera raw file processing, L-monochrome mode for black and white pictures, and Bluetooth and Wi-Fi connectivity.
  20.1MP 1" MOS Sensor and Venus Engine
  • A large 1" 20.1MP High-Sensitivity MOS sensor pairs with a Venus Engine image processor to realize rich image quality with reduced noise and high sensitivity to an expanded ISO 25600. The sensor and processor combination also avails continuous shooting rates of 10 fps with single-shot AF, 6 fps with continuous AF, or 30 fps at 8MP in the 4K Photo burst mode.
  Leica DC Vario-Elmar 15x Zoom Lens
  • A long-reaching 15x Leica DC Vario-Elmar zoom offers a 24-360mm equivalent focal length range along with a maximum aperture range of f/3.3-6.4. The lens construction incorporates three ED elements, five aspherical elements, and one aspherical ED lens to minimize spherical aberrations and distortions throughout the zoom range for increased image clarity and sharpness.

    Benefitting the reach of the lens is a powerful 5-axis Hybrid O.I.S. system that compensates for a variety of camera movements for sharper handheld shooting in difficult lighting conditions. This image stabilization system also enables a unique Level Shot function that automatically detects the horizontal line of the recording image and keeps it level during shooting, regardless of camera tilt, helping to achieve greater shooting stability.
  4K Video and Photo Modes
  • The sensor and processor combination also enables 4K video recording at both 30p and 24p frame rates in the MP4 format at 100 Mb/s. Full HD 1080p and HD 720p recording is also possible, as well as high-speed Full HD recording with 120 fps slow-motion playback.

    Besides video, the 4K capabilities also permit recording 8MP stills at 30 fps in a trio of ways:

    4K Burst: Just as with video recording, this mode will allow you to continuously record 8MP images at 30 fps for up to 15 minutes, making it ideal for instances where you need a fast frame rate in order to capture the best moment.

    4K Pre-Burst: This mode is ideal for times when you're unsure of the critical moment to press the shutter button and will record 8MP images at 30 fps one second prior to and one second after pressing the shutter button in order to give you 60 frames to choose from.

    4K Burst (S/S): This mode most closely follows the 4K video recording process, and allows you to playback your video, pause at the chosen moment, and use the shutter button to mark a chosen frame from the video and save it as a single 8MP frame.
  Post Focus and Light Speed AF
  • Another attribute of the 4K capabilities is a unique focusing method called Post Focus. Working in conjunction with the 49-area contrast-detection focusing system, called Light Speed AF, and the intelligent Depth from Defocus (DFD) technology, Post Focus records imagery as a 4K MP4 file at 30 fps and shifts the specific point of focus throughout the burst shooting in order to offer a range of distinct focusing ranges to choose from. During playback, via the camera's touchscreen, you can then tap the specific region of the image you wish to be in focus and an 8MP JPEG file will be created. Multiple individual files with different points of focus can be created from the original burst, and focusing assist functions can also be used to gain even more precise control over the specific in-focus region.
  Live View Finder and Rear LCD Touchscreen
  • A Live View Finder (LVF) is integrated into the sleek body design to permit comfortable eye-level monitoring. This 0.21" electronic viewfinder has a 2330k-dot resolution and covers 100% of the image frame while shooting.

    Alternatively, a rear 3.0" 1240k-dot touchscreen LCD monitor is also available for live view shooting, image review, and intuitive menu navigation. Intuitive touch controls allow you to set focus on the subject simply by touching the screen, as well as release the shutter.
  Other Features
  • • Built-in Wi-Fi and Bluetooth allows you to wirelessly send photos and movies to linked smartphones and tablets for direct sharing online.
    • 4K Photo Auto Marking automatically detects motion on a subject's face and sets a marker, allowing you to quickly skip to that sequence when selecting shots.
    • L.Monochrome mode in Photo Style simulates black and white film, creating impressive monochrome pictures with deep blacks and rich gradations.
    • In-camera raw file processing is possible, allowing you to adjust color space, white balance, exposure compensation, highlights/shadows, saturation, noise reduction, sharpness, and many other settings.
    • The included rechargeable lithium-ion battery provides you with 370 shots per charge when working with the rear LCD, or 350 pictures with the electronic viewfinder when set to the eco30fps setting.
  UPC: 885170331907

• Underwater Housing for Panasonic Lumix ZS200/TZ200, TZ202 Digital Cameras xberexddswbadcrszqezasbwyabzxfatceb
• Replacement 4" Vinyl Port Cover for Flat Assembly
• 0184.1 1cc Tube Silicone Lubricant
• Limited 2-Year Warranty

• Panasonic - Lumix DC-ZS200 Digital Camera (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ikelite Underwater Housing for Panasonic Lumix ZS200/TZ200, TZ202 Digital Cameras

  Depth Rating	200' / 60 m
  Material of Construction	Top/Front/Sides/Bottom: White ABS/polycarbonate blend Back Plate: Clear polycarbonate Locking Latches: Stainless steel
  Lens Port	Built-in, flat glass port 3.9" / 9.9 cm
  Buoyancy	Slightly negative in fresh water
  External Flash Connector	2x fiber-optic ports
  Mounting	2x 1/4"-20 threaded holes with 3.0" / 76 mm spacing for mounting optional tray
  Dimensions	6.8 x 6.2 x 5.1" / 17.3 x 15.7 x 13.0 cm
  Weight	2.8 lb / 1.3 kg

  Box Dimensions (LxWxH)	9.0 x 8.4 x 6.4"

• Panasonic Lumix DC-ZS200 Digital Camera (Black)

  Pixels	Actual: 20.9 Megapixel Effective: 20.1 Megapixel
  Sensor	1" MOS
  File Formats	Still Images: JPEG, RAW Movies: AVCHD 2.0, MP4 Audio: Dolby Digital 2ch
  Max Resolution	20 MP: 5472 x 3648
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Image Stabilization	Optical & Mechanical, 5-Way

  Lens	Leica DC Vario-Elmar, 13 Elements in 11 Groups 5 Aspherical, 3 ED Effective Focal Length: 8.8 to 132mm (35 mm Equivalent: 24 to 360mm) Aperture: f/3.3 (W) to f/6.4 (T) to f/8
  Filter Thread	None
  Zoom	Optical: 15x Digital: 4x
  Focus Range	Normal: 19.68" to Infinity / 49.99 cm to Infinity Telephoto: 39.37" to Infinity / 100 cm to Infinity Wide Macro: 1.18" to Infinity / 3 cm to Infinity

  ISO Sensitivity	125 to 12800 (Extended Mode:80 to 25600)
  Shutter	Type: Electronic Speed: 1 to 1/16000 Second Type: Mechanical Speed: 60 to 1/2000 Second
  Exposure Metering	Center-Weighted, Multi, Spot
  Exposure Modes	Modes: Aperture Priority, Manual, Program, Shutter Priority Compensation: -5 EV to +5 EV (in 1/3 EV Steps)
  Shooting Modes	Bleach-Bypass Cross-Process Dynamic Monochrome Expressive Fantasy High Dynamic High-Key Impressive Art Low Key Miniature Effect Monochrome Old Days One Point Color Retro Rough Monochrome Sepia Silky Monochrome Soft Focus Star Filter Sunshine Toy Camera Effect Toy Pop
  White Balance	Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4
  Continuous Shooting	Up to 10 fps at 20.1 MP Up to 30 fps at 8 MP
  Self-Timer	2, 10 Sec

  Flash Modes	Auto Auto/Red-Eye Reduction Forced On Forced On/Red-Eye Reduction Slow Sync Slow Sync/Red-Eye Reduction
  Built-In Flash	Yes
  Effective Flash Range	Wide:2.0 to 22.3' / 0.6 to 6.8 m Telephoto:3.3 to 12.8' / 1 to 3.9 m

  Built-In Memory	None
  Memory Card Type	SD SDHC SDXC

  Video Recording	Yes, NTSC
  Resolution	3840 x 2160p: 30 fps, 24 fps 1920 x 1080p: 60 fps, 30 fps, 24 fps 1920 x 1080i: 60 fps 1280 x 720p: 30 fps

  Video Clip Length	Up to 29 Minutes 59 Seconds
  Audio Recording	Built-In Mic: With Video (Stereo)

  Viewfinder Type	Electronic
  Viewfinder Coverage	100%
  Screen	3" LCD Rear Touchscreen (124,000 Pixels)
  Screen Coverage	100%

  Connectivity	1 x HDMI D (Micro) 1 x USB 2.0 Micro-B
  Wi-Fi	Yes, Wi-Fi 4 (802.11n) Built In
  GPS	No

  Battery	1 x DMW-BLG10 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1025 mAh
  AC Power Adapter	Yes (Included)

  Dimensions (W x H x D)	4.4 x 2.6 x 1.8" / 111.2 x 66.4 x 45.2 mm
  Weight	11.99 oz / 340 g with Battery and SD Card

  Box Dimensions (LxWxH)	5.38 x 4.9 x 2.63"
