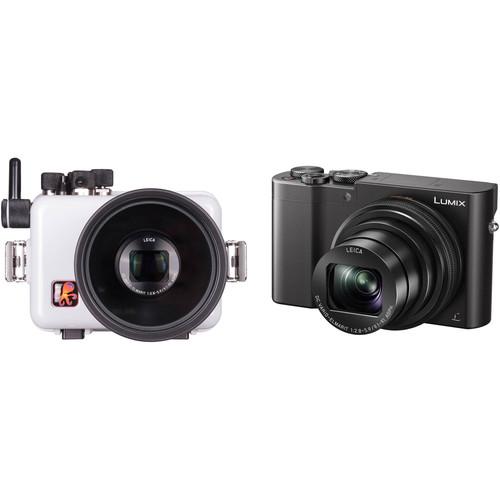

User Manual for Ikelite Underwater Housing and Panasonic Lumix DMC-ZS100 Camera Kit

• Product category: Still Cameras & Housings Ikelite
• Brand: Ikelite
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Ikelite Still Cameras & Housings

Product description

• Ikelite Underwater Housing for Panasonic Lumix ZS100 or TZ101 Capture detailed photos and ultra HD 4K video at depths as great as 200' beneath the surface with Ikelite's Underwater Housing for the Panasonic Lumix ZS100 or TZ101 Digital Camera. The enclosure is equipped with two fiber-optic ports for the connection of optional, external strobes via the appropriate cords. Access to all camera functions except for the flash open lever and diopter adjustment dial is provided by ergonomic mechanical controls. The control ring itself is not accessible, but thanks to convenient shortcuts, its important functions are still available to you.

  Built for durability, the housing is made in the USA from a corrosion-resistant ABS and polycarbonate blend, which is light gray/white on the front, sides, top, and bottom but clear in the back to allow you to monitor the O-ring seal and rear camera controls. The enclosure features a built-in, flat, optical glass lens port with a 3.9" diameter. Optional, accessory wide-angle and macro conversion lenses, as well as color-correction filters, can be attached to enhance your images. A macro adapter is available for the close-up lenses, while an entirely separate port is available for the wide-angle options.
  Construction Details
  • • Depth Rating: 200'
    • Made by hand in USA
    • Crafted from corrosion-resistant ABS and polycarbonate blend
    • Light gray/off-white on front, sides, top, and bottom but clear in back to allow you to monitor O-ring seal and rear camera controls
    • Light gray/off-white color reflects sunlight to keep camera cool when shooting at or above water's surface, and also offers better contrast for improved viewing of camera, monitor, and O-ring seal
    • Design eliminates need for O-ring groove or channel, which can trap sand, dirt, or debris, and prevents accidental twisting or stretching of O-ring
    • Two double-passivated stainless steel locking lid snaps ensure secure closure
    • Front-loading camera mounting system makes installation and removal a breeze
    • Camera mounting plate allows ready access to battery and memory card, and features a standard 1/4"-20 threaded mount for connection to tripod topside
  Strobe Connection and Operation
  • • Dual fiber-optic ports allow for connection of optional, external strobes using appropriate cords
    • Strobes will be triggered by firing of camera's built-in flash
    • At depths greater than about 60', or when diving in dark conditions, an external light source is necessary to provide adequate illumination and restore colors that get absorbed by water and turned into muted blue and green shades
    • To preserve natural colors of subjects and environments in images, try to stay within arm's reach of what you're shooting. The further away you go, the more light is absorbed by water, which acts like a big blue/green filter
  Controls, Handling, and Operation
  • • Access to all camera functions except for flash open lever and diopter adjustment dial provided by ergonomic mechanical controls, including push-buttons, knurled gears/knobs, and levers
    • Control ring itself is not accessible, but thanks to convenient shortcuts, its important functions are still available to you
    • Controls are large and easy to reach and operate with or without diving gloves on
    • Control layout on housing similar to layout on camera to take advantage of familiarity and muscle memory you've already developed with camera
    • Rear controls marked with easy-to-see, laser-engraved symbols that won't fade or fall off with time
    • Two 1/4"-20 threaded holes are included on bottom of housing for attachment of optional tray with grips, which will improve balance and handling underwater while offering attachment points for lighting arms
  Lens Port
  • • Features a built-in, flat, optical glass lens port with a 3.9" diameter
    • Allows for use of 25-200mm zoom range; lens cannot be zoomed beyond that telephoto focal length while installed in this standard port
    • Optional, external, accessory wide-angle and macro conversion lenses, as well as color-correction filters, can be attached to enhance your images
    • Optional Wide Angle Port M67 replaces standard port to allow for use of 67mm threaded wide-angle conversion lenses with very little vignetting
    • Focal length of camera lens must be pre-set to 25mm when using this Wide Angle Port, and cannot be zoomed inside port
    • Optional INON UWL-H100 wide-angle lens is recommended, as it results in least vignetting and offers superb clarity
    • Press-fit Macro Adapter is available for attaching 67mm threaded macro lenses
    • Both types of conversion lenses get you closer to subjects, reducing amount of water in between you and therefore minimizing distortion
    • Lenses available from Epoque, INON, Subsee, Nauticam, and others
    • Optional, external, 3.9" color-correction filters, available for tropical blue and green water, help restore hues that get absorbed underwater in order to bring back richness, vibrancy, and color accuracy to images
    • Since color filters reduce amount of light that enters lens, they are most effective in sunny conditions at depths of about 80' or less
    • Color filters not recommended for use in conjunction with external lighting, as combination can throw off color accuracy in images
  UPC: 883711052328
• Panasonic Lumix DMC-ZS100 Digital Camera (Black) Built with travel in mind, the black Lumix DMC-ZS100 Digital Camera from Panasonic is a versatile point-and-shoot marrying both form and function. Designed to be as sleek as possible, the ZS100 still manages to incorporate a large 1-inch 20.1MP High-Sensitivity MOS sensor and 10x optical zoom lens. The sensor pairs with a Venus Engine image processor to realize clear, clean image quality with low noise and high sensitivity to an expanded ISO 25600. This processor and sensor also permit quick continuous shooting, up to 50 fps with an electronic shutter or 10 fps with a mechanical shutter, as well as 4K UHD video recording at 30p and 24p frame rates. The 4K capabilities are extended to stills applications, too, and allow for 30 fps shooting at 8MP as well as the ability to use Post Focus for choosing your specific point of focus after shooting. Complementing these imaging attributes is a Leica DC Vario-Elmarit lens, which provides a 25-250mm equivalent focal length range, along with 5-axis Hybrid O.I.S. to minimize the appearance of camera shake for sharper handheld shooting. Featuring more than your average pocket-sized point-and-shoot, the ZS100 is a capable camera for photographers and videographers on the move.

  Equally as important as the stills and video components, the ZS100 is also characterized by its intuitive physical design and inclusion of both an electronic viewfinder and rear LCD screen. The Live View Finder is a 1166k-dot EVF that affords comfortable eye-level monitoring, and is especially well-suited to working in bright conditions. Contrasting this is the large rear 3.0" 1.04m-dot LCD touchscreen, which is best-suited for clear image review, menu navigation, and live view shooting. The camera body is also accentuated by a range of manual control dials, such as a lens-surrounding configurable control ring for direct control over zoom, focus, or exposure settings. Additionally, built-in Wi-Fi allows you to pair the ZS100 with a smartphone or tablet for wireless image sharing and remote camera control via the Panasonic Image app.
  20.1MP 1" MOS Sensor and Venus Engine
  • A large 1" 20.1MP High-Sensitivity MOS sensor pairs with a Venus Engine image processor to realize rich image quality with reduced noise and high sensitivity to an expanded ISO 25600. The sensor and processor combination also avails continuous shooting rates of 50 fps when working with the electronic shutter, 10 fps with a mechanical shutter and single-shot AF, 6 fps with continuous AF, or 30 fps at 8MP in the 4K Photo modes.
  Leica DC Vario-Elmarit 10x Zoom Lens
  • A long-reaching 10x Leica DC Vario-Elmarit zoom offers a 25-250mm equivalent focal length range along with a maximum aperture range of f/2.8-5.9. The lens construction incorporates five double-sided aspherical elements to minimize spherical aberrations and distortions throughout the zoom range for increased image clarity and sharpness.

    Benefitting the reach of the lens is a powerful 5-axis Hybrid O.I.S. system that compensates for a variety of camera movements for sharper handheld shooting in difficult lighting conditions. This image stabilization system also enables a unique Level Shot function that automatically detects the horizontal line of the recording image and keeps it level during shooting, regardless of camera tilt, helping to achieve greater shooting stability.
  4K Video and Photo Modes
  • The sensor and processor combination also enables 4K video recording at both 30p and 24p frame rates in the MP4 format at 100 Mbps. Full HD 1080p and HD 720p recording is also possible, as well as high-speed Full HD recording with 120 fps slow-motion playback.

    • Besides video, the 4K capabilities also permit recording 8MP stills at 30 fps in a trio of ways:
    • 4K Burst: Just as with video recording, this mode will allow you to continuously record 8MP images at 30 fps for up to 15 minutes, making it ideal for instances where you need a fast frame rate in order to capture the best moment.
    • 4K Pre-Burst: This mode is ideal for times when you're unsure of the critical moment to press the shutter button and will record 8MP images at 30 fps one second prior to and one second after pressing the shutter button in order to give you 60 frames to choose from.
    • 4K Burst (S/S): This mode most closely follows the 4K video recording process, and allows you to playback your video, pause at the chosen moment, and use the shutter button to mark a chosen frame from the video and save it as a single 8MP frame.
  Post Focus and Light Speed AF
  • Another attribute of the 4K capabilities is a unique focusing method called Post Focus. Working in conjunction with the 49-area contrast-detection focusing system, called Light Speed AF, and the intelligent Depth from Defocus (DFD) technology, Post Focus records imagery as a 4K MP4 file at 30 fps and shifts the specific point of focus throughout the burst shooting in order to offer a range of distinct focusing ranges to choose from. During playback, via the camera's touchscreen, you can then tap the specific region of the image you wish to be in focus and an 8MP JPEG file will be created. Multiple individual files with different points of focus can be created from the original burst, and focusing assist functions can also be used to gain even more precise control over the specific in-focus region.

    The DFD technology also provides quick focusing performance when working in low-light conditions via the Starlight AF feature, which is specifically tuned to acquiring accurate focus during nighttime shooting.
  Body Design and Built-In Wi-Fi
  • • A Live View Finder (LVF) is integrated into the sleek body design to permit comfortable eye-level monitoring. This electronic viewfinder has a 1,166k-dot resolution and covers 100% of the image frame while shooting.
    • Alternatively, a rear 3.0" 1.04m-dot touchscreen LCD monitor is also available for live view shooting, image review, and intuitive menu navigation.
    • A host of manual controls offer simple, direct control over a variety of oft-used camera settings, including a control ring surrounding the lens that can be configured to adjust zoom, shutter speed, manual focus, and ISO sensitivity.
    • Built-in Wi-Fi allows you to wirelessly share photos and movies to linked smartphones and tablets for direct sharing online. A QR code system of pairing makes it simple to link mobile devices and, once paired, the device can also be used to remotely control the camera via the Panasonic Image app.
  Other Camera Features
  • • Light Composition is a dedicated processing mode that selects and recovers information from brighter regions in the image in order to produce more dramatic, yet controlled imagery in high-contrast situations, such as when photographing fireworks or nighttime scenery.
    • 4K Live Cropping is dedicated to UHD video recording and allows the recording frame to move while the camera retains a fixed position in order to provide greater stability when panning or zoom during recording.
    • In-camera raw file processing is possible, allowing you to adjust color space (Adobe RGB/sRGB), white balance, exposure compensation, Photo Style, Intelligent D-Range Control, contrast, highlight/shadow values, saturation, noise reduction, Intelligent Resolution, and sharpness.
    • The Light Speed AF and DFD systems afford precise face- and eye-tracking for maintaining critical focus on moving subjects.
    • Focus peaking is available for easier, more accurate manual focusing control.
    • The included rechargeable lithium-ion battery provides you with 300 shots per charge when working with the rear LCD or 240 shots per charge with the electronic viewfinder.
    • Wide Panorama lets you generate panoramic images in-camera by simply panning about the scene to record a broad field of view.
    • Creative Control modes: Expressive, Retro, Old Days, High Key, Low Key, Sepia, Monochrome, Dynamic Monochrome, Rough Monochrome, Silky Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Toy Pop, Bleach Bypass, Miniature Effect, Soft Focus, Fantasy, Star Filter, One Point Color, and Sunshine.
    • Still Image Scene Guide modes: Clear Portrait, Silky Skin, Backlit Softness, Clear in Backlight, Relaxing Tone, Sweet Child's Face, Distinct Scenery, Bright Blue Sky, Romantic Sunset Glow, Vivid Sunset Glow, Glistening Water, Clear Nightscape, Cool Night Sky, Warm Glowing Nightscape, Artistic Nightscape, Glittering Illuminations, Handheld Night Shot, Clear Night Portrait, Soft Image of a Flower, Appetizing Food, Cute Dessert, Freeze Animal Motion, Clear Sports Shot, and Monochrome.
    • Photo Style modes: Standard, Vivid, Natural, Monochrome, Scenery, Portrait, and Custom, as well as Cinelike D and Cinelike V when Creative Video mode is selected.
    • Picture Adjustment settings: Contrast, Sharpness, Noise Reduction, Saturation, Color Tone, and Filter Effect.
  UPC: 885170282681

• Underwater Housing for Panasonic Lumix ZS100 or TZ101
• Port Cover
• Lubricant
• Limited 2-Year Warranty

• Panasonic - Lumix DMC-ZS100 Digital Camera (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ikelite Underwater Housing for Panasonic Lumix ZS100 or TZ101

  Depth Rating	200' / 61 m
  Control Type	Mechanical controls, including push-buttons, knurled gears/knobs, and levers
  Controls	Provide access to all camera functions except for flash open lever and diopter adjustment dial Control ring itself not accessible, but its important functions are available via shortcuts
  Material of Construction	ABS and polycarbonate blend with stainless steel snap closures
  Lens Port	Built-in, flat, optical glass lens port with 3.9" / 99 mm diameter
  Buoyancy	Nearly neutral buoyancy in fresh water
  Lighting	2x fiber-optic ports for connection of optional, external strobes using appropriate cords (not included)
  Mounting	2x 1/4"-20 threaded holes with 3.0" / 76.2 mm spacing on bottom for optional tray mounting
  Dimensions	6.0 x 5.4 x 6.9" / 15.2 x 13.7 x 17.5 cm
  Weight	2.9 lb / 1.3 kg

  Box Dimensions (LxWxH)	9.8 x 6.4 x 6.4"

• Panasonic Lumix DMC-ZS100 Digital Camera (Black)

  Pixels	Actual: 20.9 Megapixel Effective: 20.1 Megapixel
  Sensor	1" MOS
  File Formats	Still Images: JPEG, RAW Movies: AVCHD 2.0, MP4 Audio: AAC, Dolby Digital 2ch
  Max Resolution	20 MP: 5472 x 3648
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Image Stabilization	Optical & Mechanical, 5-Way

  Lens	Leica DC Vario-Elmarit, 12 Elements in 10 Groups 5 Aspherical Effective Focal Length: 9.1 to 91mm (35 mm Equivalent: 25 to 250mm) Aperture: f/2.8 (W) to f/5.9 (T) to f/8
  Zoom	Optical: 10x Extra Optical Zoom (EZ): 14x Extra Optical Zoom (EZ): 20x Intelligent Zoom: 20x Digital: 4x
  Focus Range	Wide: 1.64' to Infinity / 50 cm to Infinity Telephoto: 2.3' to Infinity / 70 cm to Infinity Wide Macro: 1.97" to Infinity / 5 cm to Infinity

  ISO Sensitivity	Auto, 125 to 12800 (Extended Mode:80 to 25600)
  Shutter	Type: Mechanical Speed: 60 to 1/2000 Second Type: Electronic Speed: 1 to 1/16000 Second 120 to 0 Second in Time Mode
  Exposure Metering	Center-Weighted, Multi, Spot
  Exposure Modes	Modes: Aperture Priority, Manual, Program, Shutter Priority Compensation: -5 EV to +5 EV (in 1/3 EV Steps)
  White Balance	Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4
  Continuous Shooting	Up to 50 fps at 20.1 MP Up to 10 fps at 20.1 MP Up to 6 fps at 20.1 MP Up to 2 fps at 20.1 MP Up to 30 fps at 8 MP
  Self-Timer	2, 10 Sec

  Flash Modes	Auto Auto/Red-Eye Reduction Forced On Forced On/Red-Eye Reduction Off Slow Sync Slow Sync/Red-Eye Reduction
  Built-In Flash	Yes
  Effective Flash Range	Wide:2.0 to 26.2' / 0.6 to 8 m Telephoto:2.30 to 12.5' / 0.7 to 3.8 m

  Memory Card Type	SD SDHC SDXC

  Video Recording	Yes, NTSC
  Resolution	3840 x 2160p: 30 fps, 24 fps 1920 x 1080p: 60 fps, 30 fps, 24 fps 1920 x 1080i: 60 fps 1280 x 720p: 30 fps 640 x 480p: 30 fps

  Video Clip Length	Up to 29 Minutes 59 Seconds
  Audio Recording	Built-In Mic: With Video (Stereo)

  Viewfinder Type	Electronic
  Viewfinder Coverage	100%
  Screen	3.0" LCD Rear Touchscreen (1,040,000 Pixels)
  Screen Coverage	100%

  Connectivity	HDMI D (Micro), USB 2.0 Micro-B, USB 2.0
  Wi-Fi	Yes, Wi-Fi 4 (802.11n) Built In

  Battery	1 x Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1025 mAh

  Dimensions (W x H x D)	4.4 x 2.5 x 1.7" / 110.5 x 64.5 x 44.3 mm
  Weight	11.01 oz / 312 g with battery and memory card

  Box Dimensions (LxWxH)	5.4 x 5.0 x 2.6"
