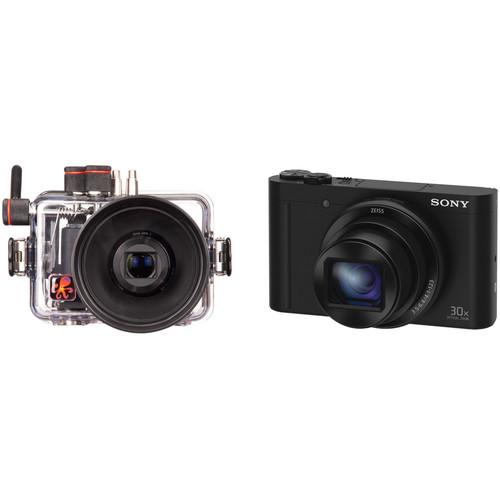

User Manual for Ikelite Underwater Housing and Sony Cyber-shot DSC-WX500 Digital Camera Kit Click to enlarge the picture
Contents of the user manual for the Ikelite Underwater Housing and Sony Cyber-shot
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
|
User manual for the Ikelite Underwater Housing and Sony Cyber-shot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Capture beautiful images of coral, pygmy seahorses, and blue-ringed octopi with this Ikelite Underwater Housing and Sony Cyber-shot DSC-WX500 Digital Camera Kit from B&H. The durable polycarbonate enclosure enables you to descend as far as 200' beneath the surface. Its mechanical controls afford access to virtually all the functions of the WX500. Additionally, it's equipped with a flat glass port for the camera's Zeiss Vario-Sonnar 24-720mm f/3.5 lens, which features 30x optical zoom. - Ikelite Underwater Housing for Sony Cyber-shot DSC-HX90 or DSC-WX500 Capture images and video at depths up to 200' beneath the surface using this Ikelite Underwater Housing for the Sony Cyber-shot DSC-HX90 or DSC-WX500 digital camera. Large, ergonomic mechanical controls provide access to virtually all camera functions.
The enclosure's dual built-in fiber-optic ports allow for the attachment of optional Ikelite, SEA&SEA, and Olympus-type strobes via cables. Alternatively, the housing is also compatible with the optional wireless AF35 strobe, which replicates TTL exposure. Both the fiber-optic and wireless connections rely on the firing of the camera's built-in flash to trigger a strobe. Additionally, a flash diffuser and deflector are supplied.
Built for durability, the housing is designed, made by hand, and tested in the USA. Manufactured from durable, clear polycarbonate, it resists corrosion and allows you to maintain a full view of the camera while monitoring the O-ring seal. The integrated, flat glass lens port has a 3.9" diameter and accepts optional wide-angle and macro add-on lenses, as well as color-correction filters. - Construction Details
-
- Features a depth rating of 200'
- Close two double-passivated (corrosion-resistant), stainless steel locking lid snaps and see O-ring form a solid watertight seal
- Designed, made by hand, and tested in USA
- Made from clear, corrosion-resistant polycarbonate, allowing you to monitor O-ring seal and maintain a full view of camera
- Controls and Handling
-
- Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and a lever, afford access to all camera controls except for flash pop-up switch and viewfinder pop-up switch
- Controls are large for easy operation while wearing diving gloves
- Optional tray with single or dual quick-release handles can be connected to 1/4"-20 mount on bottom of housing, in order to improve balance and provide attachment point for lighting arm
- Lens Port
-
- Built-in, flat glass lens port with 3.9" diameter
- Accepts optional, external wide-angle and macro add-on lenses for increased field of view or extreme close-up shots with better clarity and detail, respectively
- Both types of lenses enable you to get closer to subjects, cutting down on amount of water between subject and lens to reduce distortion
- Optional color-correction filters can also be attached to restore hues that get absorbed by water
- Flash Use
-
- Dual built-in fiber-optic ports allow for the attachment of optional Ikelite, SEA&SEA, and Olympus-type strobes via cables
- Housing also compatible with optional wireless AF35 strobe, which varies power automatically to replicate TTL exposure and also features six manual power settings
- As most built-in flashes are only effective at a range of about 1-3' from your subject in clear conditions, external lighting is highly recommended for brighter, clearer images with greater color accuracy and vibrancy
- External strobes also virtually eliminate backscatter, the reflecting of light off particles in the water, which can lead to "snow" in your images
- Housing includes flash diffuser to soften the light from camera's built-in flash, in order to make it less harsh and reduce backscatter
- Also supplied is a flash deflector to redirect light from built-in flash towards an external strobe
UPC: 883711051475 - Sony Cyber-shot DSC-WX500 Digital Camera (Black) The black Cyber-shot DSC-WX500 Digital Camera from Sony has an 18.2MP BSI Exmor R CMOS Sensor and a powerful 30x optical zoom lens. In combination with the BIONZ X image processor, the sensor provides sharp imaging and fast autofocus speeds. The 30x optical zoom Zeiss Vario-Sonnar lens has a 35mm focal length equivalency of 24-720mm which covers a full range of shooting situations from wide angle to telephoto. In addition, the camera has 60x digital zoom to allow you to effectively double the optical zoom range for distant image capture. The WX500 also supports Full HD 1080p video capture at 60p, 60i, and 24p. In both still and video modes, the camera has Optical SteadyShot Hybrid image stabilization to help reduce shake and blur by countering camera movements in 5 axes, resulting in more stable stills and videos even at long focal lengths. Built-in Wi-Fi and NFC connectivity allows you to instantly transfer images from your camera to your computer, smartphone, or tablet. With the included Sony PlayMemories App you can also use your smartphone as a remote control and viewer and directly send images to social media sites.
- 18.2MP Back-Illuminated Exmor R CMOS Image Sensor
- The 18.2MP CMOS back-illuminated sensor offers high resolution low-light sensitivity with improved image clarity and reduced grain.
- BIONZ X Image Processor
- The BIONZ X image processor provides fast performance speeds, particularly when it comes to autofocus speeds at its long focal lengths.
- Zeiss Vario-Sonnar Lens with 30x Optical Zoom and 60x Digital Zoom
- The 30x optical zoom provides a 35mm focal length equivalency of 24-720mm, which covers a variety of shooting situations from wide-angle to telephoto. In addition, the 60x digital zoom effectively doubles the lens's reach.
- 3" Tilting LCD Screen
- The camera features a 180° tilting 921k-dot 3" LCD screen for shooting at various angles.
- Full HD 1080/60p Video Capture
- Record full HD 1080p videos in AVCHD or in the high-quality XAVC S format at 50 Mbps in multiple frame rates.
- 4K Still Images
- Photos can be viewed in 4K resolution on a compatible television via HDMI output.
- Built-in Wi-Fi and NFC
- The camera has built-in Wi-Fi and NFC capabilities to quickly share images. The PlayMemories Mobile App, available for both Android and iOS allows you to wirelessly transfer photos and videos to a connected smartphone or tablet. The application also allows your device to be used as wireless remote to control the camera.
- Optical SteadyShot Hybrid Image Stabilization
- Optical SteadyShot Hybrid image stabilization reduces shake and blur by countering camera movements on 5 axes.
UPC: 027242889668 In the Box - Underwater Housing for Sony Cyber-shot DSC-HX90 or DSC-WX500 xxdwvbexvsedrfex
- Port Cover
- Flash Diffuser
- Flash Deflector
- 1cc Tube of Silicone Lubricant
- Limited 2-Year Warranty
- Sony - Cyber-shot DSC-WX500 Digital Camera (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing and Sony Cyber-shot DSC-WX500 Digital Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Ikelite Underwater Housing for Sony Cyber-shot DSC-HX90 or DSC-WX500
| Depth Rating | 200' / 60 m | | Control Type | Mechanical push-buttons, knurled knobs/dials, and a lever | | Controls | Provide access to all camera functions except for flash pop-up switch and viewfinder pop-up switch | | Material of Construction | Polycarbonate | | Lens Port | Built-in glass lens port with flat front element
Diameter: 3.9" / 99 mm | | Color Correction Filters | Optional Ikelite #6441.46 for blue water and 6441.86 for green water | | Buoyancy | Nearly neutral in fresh water | | Internal Flash Usable | Yes, camera's built-in flash | | External Flash Connector | 2x fiber-optic ports for optional Ikelite, SEA&SEA, and Olympus-type strobes
Compatible with optional wireless AF35 strobe | | Mounting | 1/4"-20 mounts with 3.0" / 76 mm spacing on bottom for connection to optional tray with one or two quick-release handles | | Dimensions | 6.8 x 5.0 x 5.8" / 17.3 x 12.7 x 14.7 cm | | Weight | 3.1 lb / 1.4 kg | | | | Box Dimensions (LxWxH) | 9.8 x 6.5 x 6.4" | - Sony Cyber-shot DSC-WX500 Digital Camera (Black)
| | | Pixels | 18.2 Megapixel | | Sensor | 1/2.3" CMOS | | File Formats | Still Images: JPEG
Movies: AVCHD 2.0, XAVC S
Audio: AAC LC, AC3, Dolby Digital 2ch, Linear PCM | | Max Resolution | 18 MP: 4896 x 3672 | | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 | | Image Stabilization | Optical, 5-Way | | | | Lens | Carl Zeiss Vario-Sonnar, 11 Elements in 10 Groups
5 Aspherical
Effective Focal Length: 4.3 to 129mm (35 mm Equivalent: 24 to 720mm)
Aperture: f/3.5 (W) to f/6.4 (T) | | Filter Thread | None | | Zoom | Optical: 30x
Digital: 60x | | Focus Range | Wide: 1.97" to Infinity / 5 cm to Infinity
Telephoto: 8.2' to Infinity / 2.5 m to Infinity | | | | ISO Sensitivity | 80 to 3200 (Extended Mode:80 to 12800) | | Shutter | 30 to 1/2000 Seconds | | Exposure Metering | Center-Weighted, Multi, Spot | | Exposure Modes | Modes: Aperture Priority, Intelligent Auto, Manual, Memory Recall, Movie, Panorama Shot, Programmed Auto, Scene Selection, Shutter Priority, Superior Auto
Compensation: -3 EV to +3 EV (in 1/3 EV Steps) | | Shooting Modes | Anti-Motion Blur
Backlight HDR
Beach
Fireworks
Gourmet
Handheld Twilight
High Sensitivity
Landscape
Night Portrait
Night Scene
Pet Mode
Portrait
Snow
Soft Skin
Sports
Sunset | | White Balance | Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Incandescent, One Push, One Push Set, Shade | | Continuous Shooting | Up to 10 fps for up to Exposures | | Self-Timer | 2, 5, 10 Sec | | | | Flash Modes | Flash On
Off
Rear Sync
Slow Sync | | Built-In Flash | Yes | | Effective Flash Range | Wide:1.0 to 17.7' / 0.3 to 5.4 m
Telephoto:8.20 to 9.8' / 2.5 to 3 m | | | | Memory Card Type | Memory Stick Duo
Memory Stick PRO Duo (High Speed)
Memory Stick PRO HG-Duo
Memory Stick Micro
Memory Stick Micro (M2)
SD
SDHC
SDXC
microSD
microSDHC
microSDXC | | | | Video Recording | Yes, NTSC | | Resolution | 1920 x 1080p: 60 fps, 24 fps
1920 x 1080i: 60 fps | | | | Viewfinder Type | None | | Screen | 3.0" LCD Rear Screen (921,000 Pixels) | | | | Connectivity | HDMI D (Micro), USB 2.0 Micro-B, USB 2.0 | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) Built In | | | | Battery | 1 x NP-BX1 Rechargeable Lithium-Ion Battery Pack | | AC Power Adapter | AC-UB10C / UB10D (Included) | | | | Dimensions (W x H x D) | 4.0 x 2.3 x 1.4" / 101.6 x 58.1 x 35.5 mm | | Weight | 7.37 oz / 209 g Without battery | | | | Box Dimensions (LxWxH) | 6.1 x 4.7 x 2.7" |
