User Manual for Ikelite Underwater Housing for Canon 5D Mark III, 5D Mark IV, 5DS, or 5DS R with Dry Lock Port Mount Click to enlarge the picture
Contents of the user manual for the Ikelite Underwater Housing for Canon 5D
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
|
User manual for the Ikelite Underwater Housing for Canon 5D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|

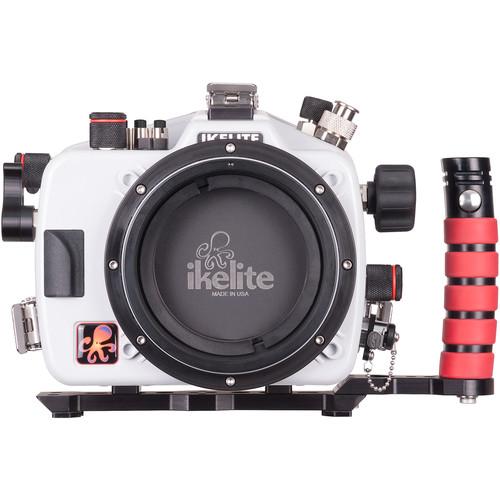

Product description Capture sharp, detailed photos and video beneath the surface with your Canon EOS 5D Mark III, 5D Mark IV, 5DS, or 5DS R DSLR camera in Ikelite's Underwater Housing with Dry Lock Port Mount. The front and back parts are depth rated to 200' and 50', respectively. The back can be swapped out for an optional one with a 200' rating for diving, allowing you to go much deeper. An Ikelite ICS-5 bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of optional, external strobes. Use of an optional TTL hot shoe and circuitry will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.
Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers, afford access to virtually all camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It's white on the front, top, sides, and bottom, but the clear Lexan back plate allows you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm.
The housing ships without a required lens port, and accepts various dome and flat ports for a broad array of zoom, macro, and wide-angle lenses. For full compatibility, see the Port Chart. The Dry Lock (DL) Port System accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before the dive. - Construction Details
-
- The front and back parts are depth rated to 200' and 50', respectively
- Back can be swapped out for an optional one with a 200' depth rating
- Made by hand in USA from corrosion-resistant polycarbonate and ABS plastic blend
- White on front, top, sides, and bottom to reflect sunlight and keep camera cool when shooting on or above water's surface
- Clear Lexan back, which is also corrosion-resistant, allows you to monitor O-ring seal and maintain view of camera's rear controls
- Nearly neutral buoyancy in fresh water; actual buoyancy varies depending on choice of lens and port
- Open-groove design suspends rear O-ring in natural position, allowing for easier maintenance and preventing accidental twisting or stretching of O-ring
- Camera mounting plate enables quick installation and does not need to be removed in order for you to gain battery or memory card access
- Spare 1/2-20 threaded mount on front of housing for attaching optional accessories
- Strobe Connection and Operation
-
- Ikelite ICS-5 bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of optional, external strobes via sync cords
- Optional # 46070 CT1K Canon TTL Kit (hot shoe and circuitry) will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes, such as Sea & Sea, Inon, and Nikonos models, will still work in manual mode only
- All strobes used with camera in this housing require sync cord connection, unless they are additional flash units being triggered as slaves by the hard-wired strobes
- Ikelite DS strobes support remote triggering via Optical Slave Converter #4403 or Aquatica's Water Wizard system
- Use of external strobe highly recommended for color-correction and adequate brightness, and basically essential once you descend further than 15-20' underwater
- Strobe restores hues that get absorbed by water, so your images are vibrant and accurate
- Try to stay no more than 3-4' away from subject to preserve natural colors in images
- Controls and Handling
-
- Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers
- Controls afford access to virtually all camera functions, including shutter release, zoom, power on/off, start/stop video recording, main dial, mode dial/lock release, metering mode/white balance, AF mode/drive mode, ISO, lens release, AF-ON, menu, info, playback, index/magnify/reduce, erase, live view shooting/movie shooting switch, AE lock, AF point selection, quick control, setting, [Q] quick control dial
- Extra large, soft touch zoom knob and universal zoom gear system
- Control symbols laser-etched into rear of housing won't fade with time
- Supplied aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm
- Optional right-hand QR grip can be added to allow for a second lighting arm to be connected
- Enhance your view with optional # 6890 Straight Magnified Viewfinder or #6891.1 45° Magnified Viewfinder Type 1
- Lens Port System
-
- Dry Lock (DL) Port System
- Housing ships without a required lens port, and accepts various interchangeable dome and flat ports for a broad array of zoom, macro, and wide-angle lenses
- For full compatibility, see Port Chart linked above
- Provides added security against leaks at the surface--thanks in large part to included vacuum valve for checking watertight integrity before dive
- Pump required in order to remove excess air and actually create a vacuum
UPC: 883711052861 In the Box Ikelite Underwater Housing for Canon 5D Mark III, 5D Mark IV, 5DS, or 5DS R with Dry Lock Port Mount (50') Housing Back with 50' Depth Rating Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings rwzqawcrtebwwtsqssxftvbavcwdvrv ICS Bulkhead Cap (Replacement) #0184.1 1cc Tube of Silicone Lubricant Limited 2-Year Warranty Port chart PDF 372.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing for Canon 5D Mark III, 5D Mark IV, 5DS, or 5DS R with Dry Lock Port Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 73702 Specs | Depth Rating | Front: 200' / 61 m
Back: 50' / 15 m
Back can be swapped out for optional one with 200' / 61 m rating | | Control Type | Mechanical push-buttons, knurled knobs/dials, and levers | | Controls | Afford access to virtually all camera functions, including the following: Shutter release
Zoom
Power on/off
Start/stop video recording
Main dial
Mode dial/lock release
Metering mode/white balance
AF mode/drive mode
ISO
Lens release
AF-ON
Menu
Info
Playback
Index/magnify/reduce
Erase
Live view shooting/movie shooting switch
AE lock
AF point selection
Quick control
Setting
[Q] quick control dial | | Material of Construction | Front/Top/Sides/Bottom: Polycarbonate and ABS plastic blend
Back Plate: Lexan plastic | | Lens Port | Dry Lock (DL) Port System
Compatible with lenses that have large diameters
Housing ships without a required lens port, and accepts various interchangeable dome and flat ports for a broad array of zoom, macro, and wide-angle lenses
For full compatibility, see Port Chart linked above | | Buoyancy | Nearly neutral in fresh water
Actual buoyancy varies depending on choice of lens and port | | External Flash Connector | Ikelite ICS-5 bulkhead connector with manual hot shoe for optional, external strobes
Optional TTL hot shoe/circuitry for automatic TTL exposure with Ikelite DS strobes (third-party strobes still manual only) | | Mounting | 1/4"-20 threaded mounts with 3.5" / 8.9 cm spacing | | Dimensions | 9.2 x 7.1 x 6.3" / 23.4 x 18 x 16 cm | | Weight | 4.4 lb / 2.0 kg | | | | Package Weight | 6.95 lb | | Box Dimensions (LxWxH) | 14.6 x 9.3 x 8.4" |
