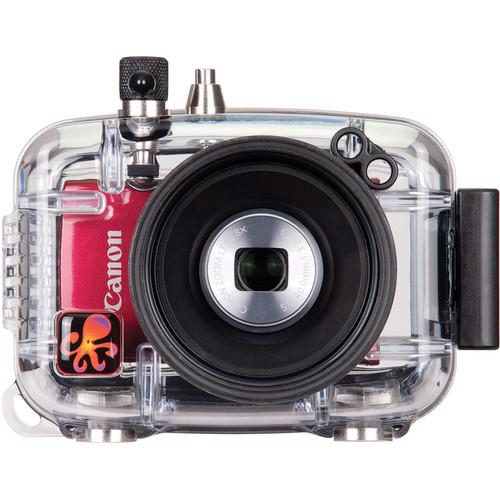

User Manual for Ikelite Underwater Housing for Canon PowerShot ELPH 135 or ELPH 140 IS Digital Camera Click to enlarge the picture
Contents of the user manual for the Ikelite Underwater Housing for Canon PowerShot
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
|
User manual for the Ikelite Underwater Housing for Canon PowerShot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description This Underwater Housing from Ikelite is a waterproof enclosure enabling you to shoot beneath the surface with your Canon PowerShot ELPH 135 or ELPH 140 IS Digital Camera, a.k.a. IXUS 145 or IXUS 150, respectively. It has a depth rating of 200'. Large, ergonomic mechanical controls provide access to all important camera functions.
Built for durability, the housing is designed, constructed, and tested in the USA. It's manufactured from corrosion-resistant polycarbonate, which is clear to allow you to monitor the o-ring seal and maintain a full view of the camera. The 3.0" diameter glass lens port accepts optional, external wide-angle and macro add-on lenses for an increased field of view or extreme close-up shots with better clarity and detail, respectively. You can also add optional color-correction filters to restore colors that get absorbed by the water.
Expand your system by adding an optional AF35 AutoFlash strobe, which features a flex arm and mounts onto the grip handle of an optional tray. This external strobe is triggered as a wireless slave by the firing of the camera's built-in flash and replicates TTL exposure. The housing is also equipped with two ports for Ikelite, Sea & Sea, or Olympus-type fiber optic cables. It comes bundled with a diffuser to soften the light of the camera's built-in flash and a deflector to redirect it towards an external strobe. - Depth Rating
- Can be safely used at a maximum depth of 200'. Simply close the side latch and see the o-ring form a solid black watertight seal.
- Controls and Handling
- Large, ergonomic mechanical controls, including knurled knobs and push-buttons, provide access to all important camera functions. Housing has nearly neutral buoyancy in fresh water for easy handling.
- Construction Details
- Built for durability, the housing is designed, constructed, and tested in the USA. It's manufactured from corrosion-resistant polycarbonate, which is clear to allow you to monitor the o-ring seal and maintain a full view of the camera. The camera is easily installed via drop-in loading for quick setup.
- Lens Port
- The 3.0" diameter glass lens port accepts optional 3.0" color-correction filters to restore colors that get absorbed by the water. Filters #6441.41 for blue water and 6441.81 for green water are available. The port also has 67mm threads to accept optional wide-angle or macro add-on conversion lenses for an increased field of view or extreme close-up shots with better clarity and detail, respectively. The recommended W30 Wide Angle Lens can be removed and replaced while underwater. It provides 0.59x magnification.
- Flash Use
- Expand your system by adding an optional AF35 AutoFlash strobe, which features a flex arm and mounts onto the grip handle of an optional tray. This external strobe is triggered as a wireless slave by the firing of the camera's built-in flash and replicates TTL exposure. The housing is also equipped with two ports for Ikelite, Sea & Sea, or Olympus-type fiber-optic cables. It comes bundled with a diffuser to soften the light of the camera's built-in flash and a deflector to redirect it towards an external strobe. Since a camera's built-in flash is generally only effective within a few feet from your subject, the use of a more powerful external flash is highly recommended. It also gives you the advantages of reduced backscatter, glare and hard shadows.
- Mounting
- Configured with a 12-24 thread with 3.0" spacing for mounting optional tray and handle(s), which provide improved balance and attachment points for lighting.
- Additional Recommended Optional Accessories
- The Vega Video + Photo Light provides a maximum output of up to 2200 lumens at a 65° beam angle and a daylight-balanced color temperature of 5700K. It offers a run time of 45-180 min. The Gamma Waterproof Flashlight outputs 220 lumens in a concentrated 10° beam with a daylight-balanced 6500K color temperature. It can run for over 10 hr.
UPC: 883711048741 In the Box Ikelite Underwater Housing for Canon PowerShot ELPH 135 or ELPH 140 IS Digital Camera Port Cover Flash Diffuser Flash Deflector Vinyl Break-Away Safety Lanyard 1cc Tube Silicone Lubricant Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing for Canon PowerShot ELPH 135 or ELPH 140 IS Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 6243.40 Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical | | Controls | Access to all important camera functions | | Material of Construction | Polycarbonate | | Lens Port | Glass port with 67 mm thread diameter accepts optional, external wide-angle and macro add-on lenses | | Color Correction Filter | Optional 3.0" / 76 mm color-correction filters #6441.41 for blue water and 6441.81 for green water | | Buoyancy | Nearly neutral in fresh water | | Internal Flash Usable | Yes, camera's built-in flash | | External Flash Connector | 2 ports for optional Ikelite, Sea & Sea, or Olympus-type fiber-optic cables
Trigger optional AF35 AutoFlash strobe as wireless slave via camera's flash | | Mounting | 12-24 thread with 3.0" / 76 mm spacing for optional tray with handle(s) | | Dimensions | Overall: 5.9 x 4.5 x 4.1" / 150 x 114 x 104 mm
Lens Port Diameter: 3.0" / 76 mm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 6.7 x 5.4 x 5.4" |
