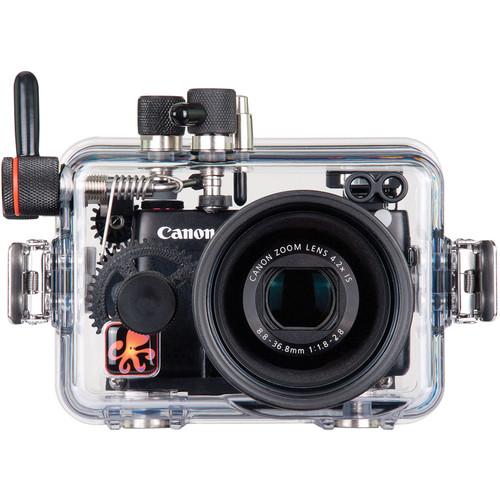

User Manual for Ikelite Underwater Housing for Canon PowerShot G7 X Click to enlarge the picture
Contents of the user manual for the Ikelite Underwater Housing for Canon PowerShot
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
|
User manual for the Ikelite Underwater Housing for Canon PowerShot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Capture images and video beneath the surface with your Canon PowerShot G7 X digital camera in this Ikelite Underwater Housing, which features a depth rating of 200'. The waterproof enclosure features large, ergonomic mechanical controls that provide access to virtually all camera functions. Expand your system by adding an optional AF35 AutoFlash wireless slave strobe, which replicates TTL exposure. The housing is also equipped with two ports for the connection of fiber-optic cables.
Built for durability, the housing is designed, made by hand, and tested in the USA. It's manufactured from corrosion-resistant polycarbonate, which is clear to allow you to monitor the o-ring seal and maintain a full view of the camera. The integrated flat glass lens port has a 3.0" diameter. It accepts optional, external wide-angle and macro add-on lenses for an increased field of view or extreme close-up shots with better clarity and detail, respectively. You can also add optional color-correction filters to restore colors that get absorbed by the water. The housing includes a diffuser to soften the light of the camera's flash and a deflector to redirect it towards an external strobe. - Waterproofing
-
- Features a depth rating of 200'
- Close the two locking lid snaps and see the o-ring form a watertight seal
- Controls and Handling
-
- Large, ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and a lever
- Access to rear control dial and virtually all other camera functions
- Only flash switch and mobile device connection button are inaccessible
- Easy-to-reach gear activates camera's versatile front control ring
- Sensitive shutter lever makes it easy to half-depress the trigger for focusing and metering
- All rear controls are clearly marked with engravings
- Optional tray with 1 or 2 quick-release handles provides improved balance underwater, while also offering attachment points for optional lighting arms
- Construction Details
-
- Designed, made by hand, and tested in the USA
- Made from corrosion-resistant polycarbonate, which is clear to allow you to monitor the o-ring seal and maintain a full view of the camera
- Stainless steel locking lid snaps are double-passivated to prevent corrosion and rust
- Lens Port
-
- Built-in flat glass lens port has a 3.0" diameter
- Compatible with optional, external wide-angle and macro add-on lenses with 67mm threads for an increased field of view or extreme close-up shots with better clarity and detail, respectively.
- Both types of lenses will enable you to get closer to your subjects, cutting down on the amount of water between you and them to reduce distortion
- Ikelite W30 and INON UWL-H100 Wide Angle Lenses are recommended, as they provide a lot of edge sharpness with minimal vignetting
- Add optional color-correction filters to restore colors that get absorbed by the water.
- Flash Use
-
- Expand your system by adding an optional AF35 AutoFlash wireless slave strobe, which replicates TTL exposure
- AF35 features a flex arm and mounts onto the grip handle of an optional tray
- Two ports enable the connection of fiber-optic cables from Ikelite, Sea & Sea, and Olympus
- Housing includes a diffuser to soften the light of the camera's flash and a deflector to redirect it towards an external strobe.
- Since a built-in flash is generally only effective within very short distance from subject, the use of a more powerful external strobe is highly recommended. Will provide greater illumination, color accuracy, and vibrancy, and will virtually eliminate backscatter, glare, and hard shadows
- Additional Recommended Optional Accessories
-
- Vega Video + Photo Light outputs 2200 lumens in a diffused 65° beam, which has a color temperature of 5700K. Runs for 45-180 min
- Gamma Waterproof Flashlight outputs 220 lumens in concentrated 10° beam with daylight-balanced 6500K color temperature. Offers run time of over 10 hr
- Quick Release Kit for GoPro includes everything you need to attach your GoPro action cam to an Ikelite Quick Release Handle
UPC: 883711049427 In the Box Ikelite Underwater Housing for Canon PowerShot G7 X Port Cover Flash Diffuser Flash Deflector 1cc Tube Silicone Lubricant Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing for Canon PowerShot G7 X in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 6146.07 Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical push-buttons, knurled knobs/dials, and a lever | | Controls | Provide access to all camera functions except flash switch and mobile device connection button | | Material of Construction | Polycarbonate | | Lens Port | Built-in glass port with flat front element and 3.0" / 76 mm diameter | | Color Correction Filter | Optional #6441.41 for blue water and #6441.81 for green water | | Buoyancy | Slightly negative in fresh water | | Internal Flash Usable | Yes, camera's built-in flash | | External Flash Connector | Optional AF35 AutoFlash strobe can be triggered wirelessly by camera's flash
Two ports for connection of Ikelite, Sea & Sea, and Olympus fiber-optic cables | | Mounting | 12-24 thread with 3.0" / 76 mm spacing to connect optional tray with 1-2 handles for lighting arms | | Dimensions | 6.9 x 5.0 x 5.4" / 17.5 x 12.7 x 13.7 cm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 9.8 x 6.4 x 6.4" |
