User Manual for Ikelite Underwater Housing for Canon PowerShot G7X Mark II Click to enlarge the picture
Contents of the user manual for the Ikelite Underwater Housing for Canon PowerShot
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
 |
User manual for the Ikelite Underwater Housing for Canon PowerShot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|

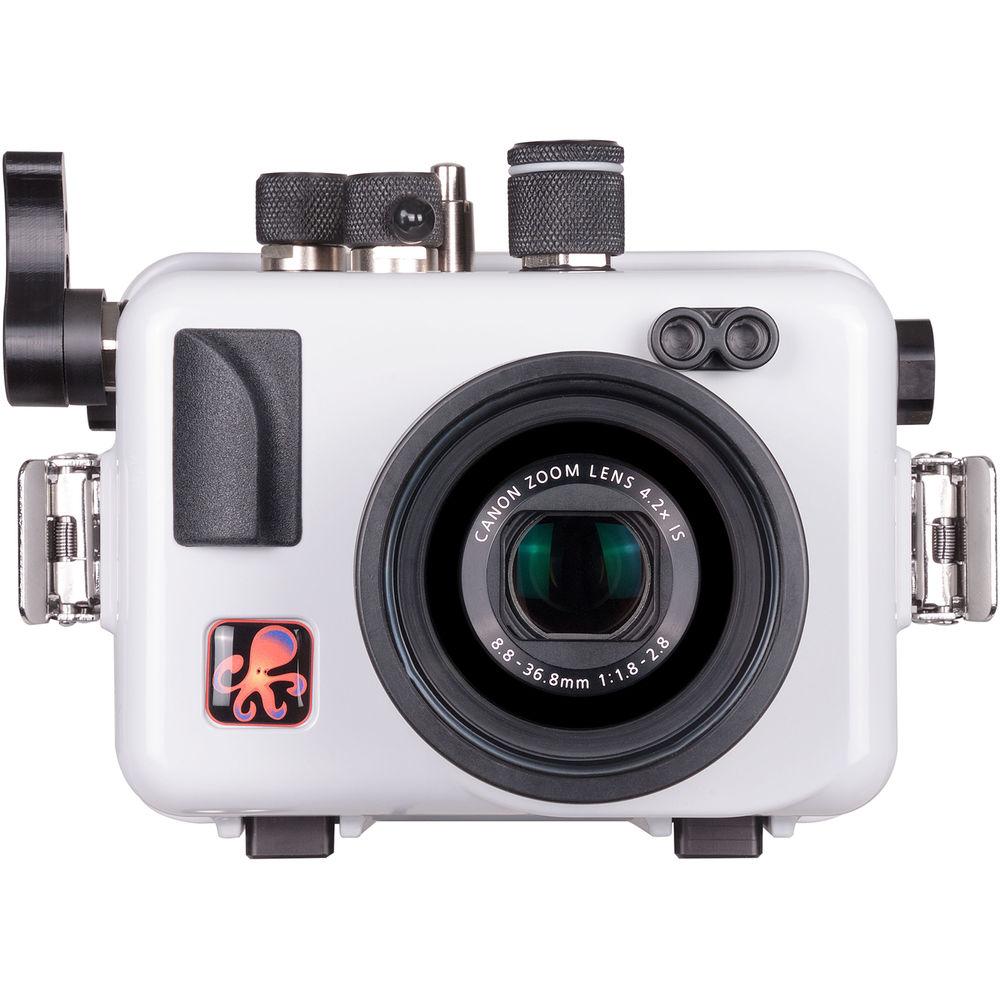

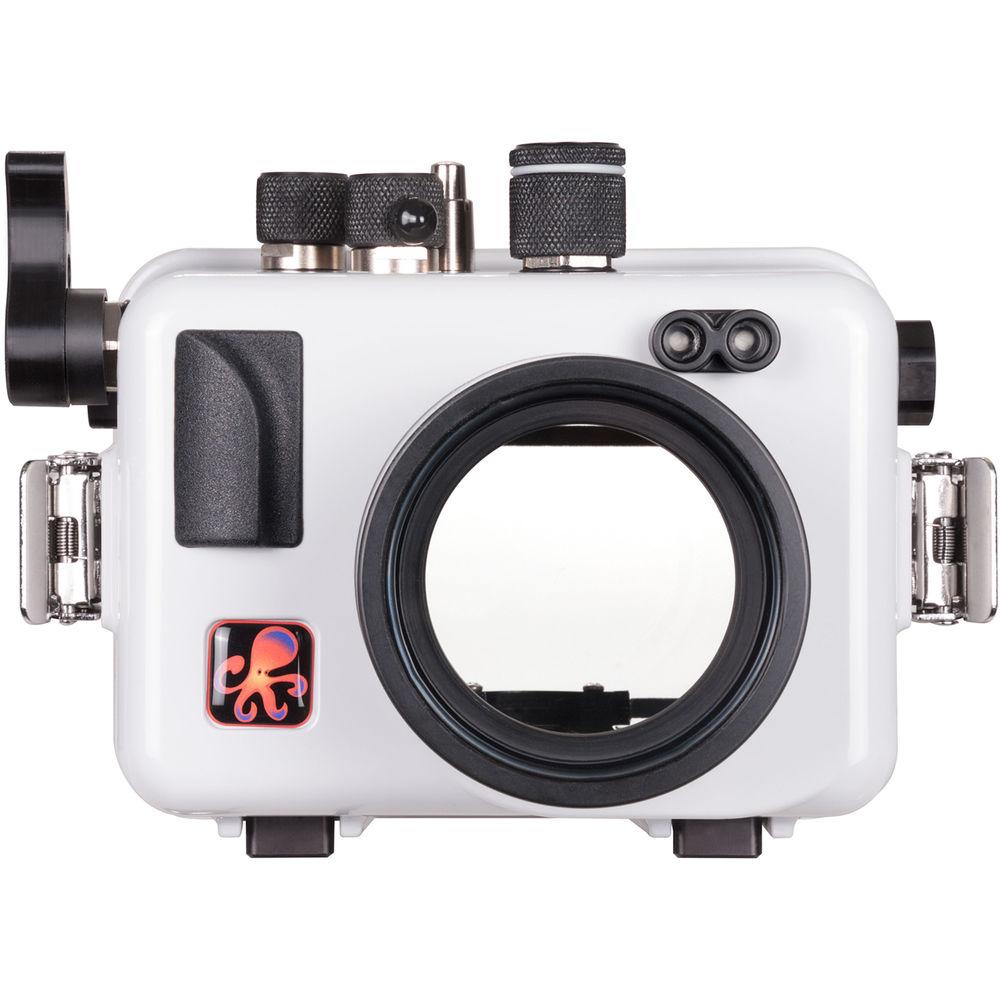

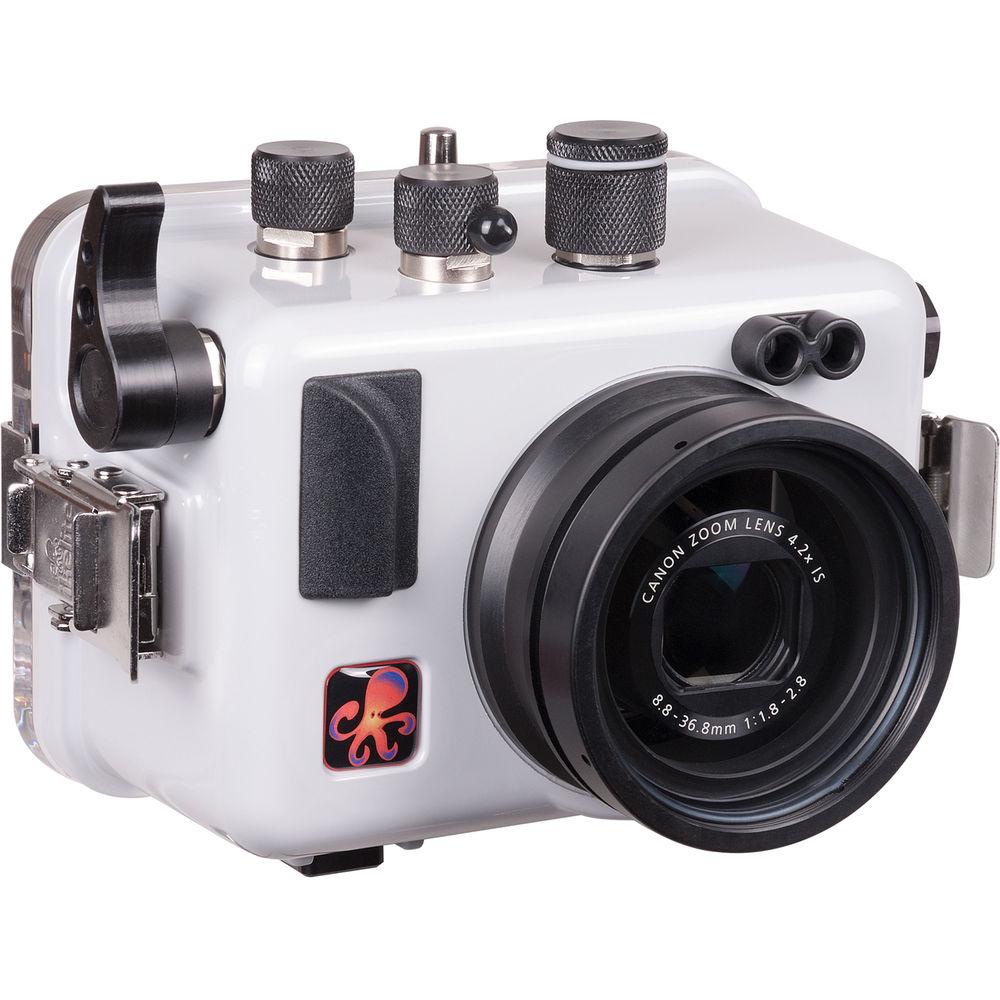

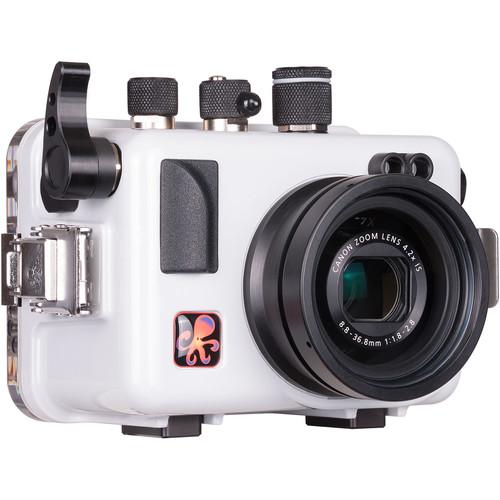

Product description Capture detailed photos and HD video at depths as great as 200' beneath the surface with Ikelite's Underwater Housing for the Canon PowerShot G7X Mark II. The enclosure is equipped with two fiber-optic ports for the connection of optional, external strobes via the appropriate cords. Access to all camera functions except for the flash switch and mobile device connection button is afforded by the large, ergonomic, mechanical controls, including push-buttons, knurled gears/knobs, and levers.
Built for durability, the housing is made in the USA from a corrosion-resistant ABS and polycarbonate blend, which is light gray/white on the front, sides, top, and bottom but clear in the back to allow you to monitor the O-ring seal and rear camera controls. The housing features a built-in, flat, optical glass lens port with a 3.0" diameter. Optional, accessory wide-angle and macro conversion lenses, as well as color-correction filters, can be attached to the front of the port to enhance your images. - Construction Details
-
- Depth Rating: 200'
- Made by hand in USA
- Crafted from corrosion-resistant ABS and polycarbonate blend

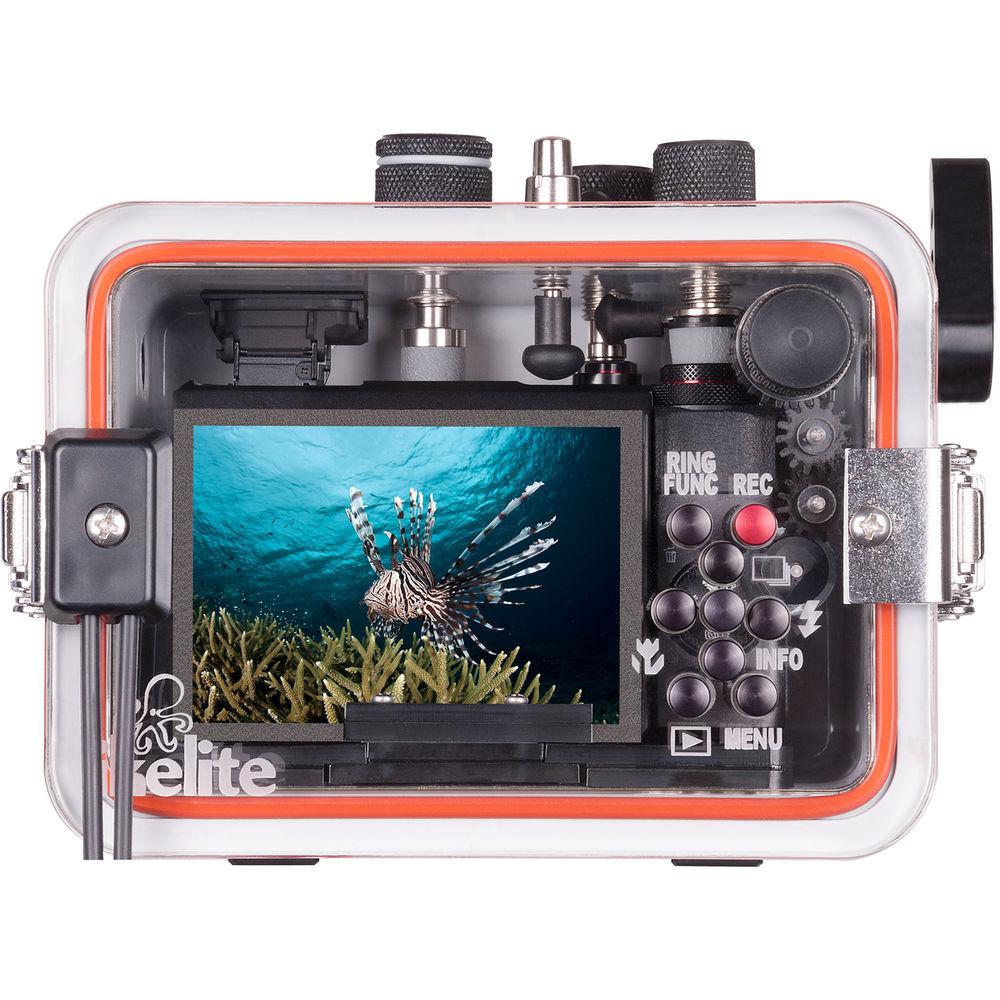

- Light gray/white on the front, sides, top, and bottom but clear in the back to allow you to monitor the O-ring seal and rear camera controls
- Light gray/off-white color reflects sunlight to keep camera cool when shooting at or above water's surface, and also offers better contrast for improved viewing of camera, monitor, and O-ring seal
- Design eliminates need for O-ring groove or channel, which can trap sand, dirt, or debris
- Two double-passivated, stainless steel locking lid snaps help ensure secure closure
- Front-loading camera mounting system makes installation and removal a breeze
- Camera mounting plate allows ready access to battery and memory card, and features a standard 1/4"-20 threaded mount for connection to tripod topside
- Strobe Connection and Operation
-
- Dual fiber-optic ports for the connection of optional, external strobes via the appropriate cords
- At depths greater than about 60', or when diving in dark conditions, an external light source is necessary to provide adequate illumination and restore colors that get absorbed by water and turned into muted blue and green shades
- To preserve natural colors of subjects and environments in images, try to stay within arm's reach of what you're shooting. The further away you go, the more light is absorbed by water, which acts like a big blue/green filter
- Controls, Handling, and Operation
-
- Access to all camera functions except for flash switch and mobile device connection button is afforded by large, ergonomic, mechanical controls, including push-buttons, knurled gears/knobs, and levers
- Rear controls marked with easy-to-see, laser-engraved symbols that won't fade or fall off with time
- Extra-sensitive shutter lever for easy activation
- Front rubberized grip for secure hold

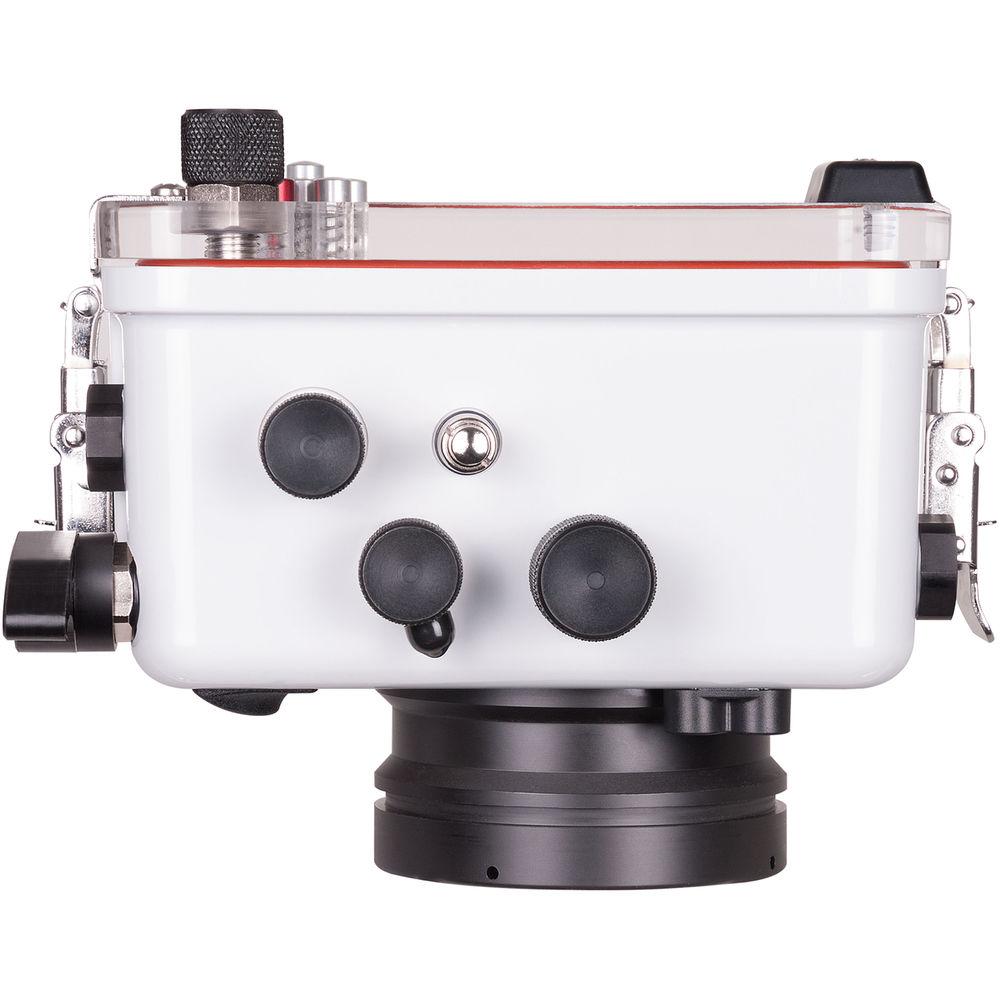

- Two 1/4"-20 threaded holes are included on bottom of housing for attachment of optional tray with grips, which will improve balance and handling underwater while offering attachment points for lighting arms
- Lens Port
-
- Built-in, flat, optical glass lens port with a 3.0" diameter allows full use of zoom range
- Optional, accessory wide-angle and macro conversion lenses can be attached to port's 67mm front threads with minimal vignetting, while 3.9" color-correction filters can be fitted onto front of port
- INON UWL-H100 lens results in least vignetting and best clarity
- Wide-angle lenses provide greater angle of coverage to allow you to fit more in frame, while macro lenses magnify your image to enable close-ups with greater clarity and detail
- Both types of conversion lenses get you closer to subjects, reducing amount of water in between you and therefore minimizing distortion
- Optional, external color-correction filters, available for tropical blue and green water help restore hues that get absorbed underwater in order to bring back richness, vibrancy, and color accuracy to images
- Since color filters reduce amount of light that enters lens, they are most effective in sunny conditions at depths of about 80' or less
- Color filters not recommended for use in conjunction with external lighting, as combination can throw off color accuracy in images
UPC: 883711052403 In the Box Ikelite Underwater Housing for Canon PowerShot G7X Mark II Port Cover Lubricant Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing for Canon PowerShot G7X Mark II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 6146.08 Specs | Depth Rating | 200' / 61 m | | Control Type | Mechanical controls, including push-buttons, knurled gears/knobs, and levers | | Controls | Access to all camera functions except for flash switch and mobile device connection button | | Material of Construction | ABS and polycarbonate blend with stainless steel snap closures | | Lens Port | Built-in port with flat, optical glass front element
3.0" / 76.2 mm diameter
67 mm front thread diameter
Accepts optional, 67 mm threaded accessory wide-angle and macro conversion lenses
Accepts 3.9" / 99 mm color-correction filters for tropical blue and green water | | Buoyancy | Nearly neutral buoyancy in fresh water | | Lighting | 2x fiber-optic ports for connection of optional, external strobes via cords (not included) | | Mounting | 2x 1/4"-20 threaded holes with 3.0" / 76.2 mm spacing on bottom for optional tray mounting
1/4"-20 threaded hole on camera mounting plate for connection to tripod topside | | Dimensions | 6.0 x 5.4 x 6.9" / 15.2 x 13.7 x 17.5 cm | | Weight | 2.9 lb / 1.3 kg | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 9.8 x 6.4 x 6.3" |
