User Manual for Ikelite Underwater Housing for Canon PowerShot SX700 HS or SX710 HS Digital Camera Click to enlarge the picture
Contents of the user manual for the Ikelite Underwater Housing for Canon PowerShot
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
 |
User manual for the Ikelite Underwater Housing for Canon PowerShot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|

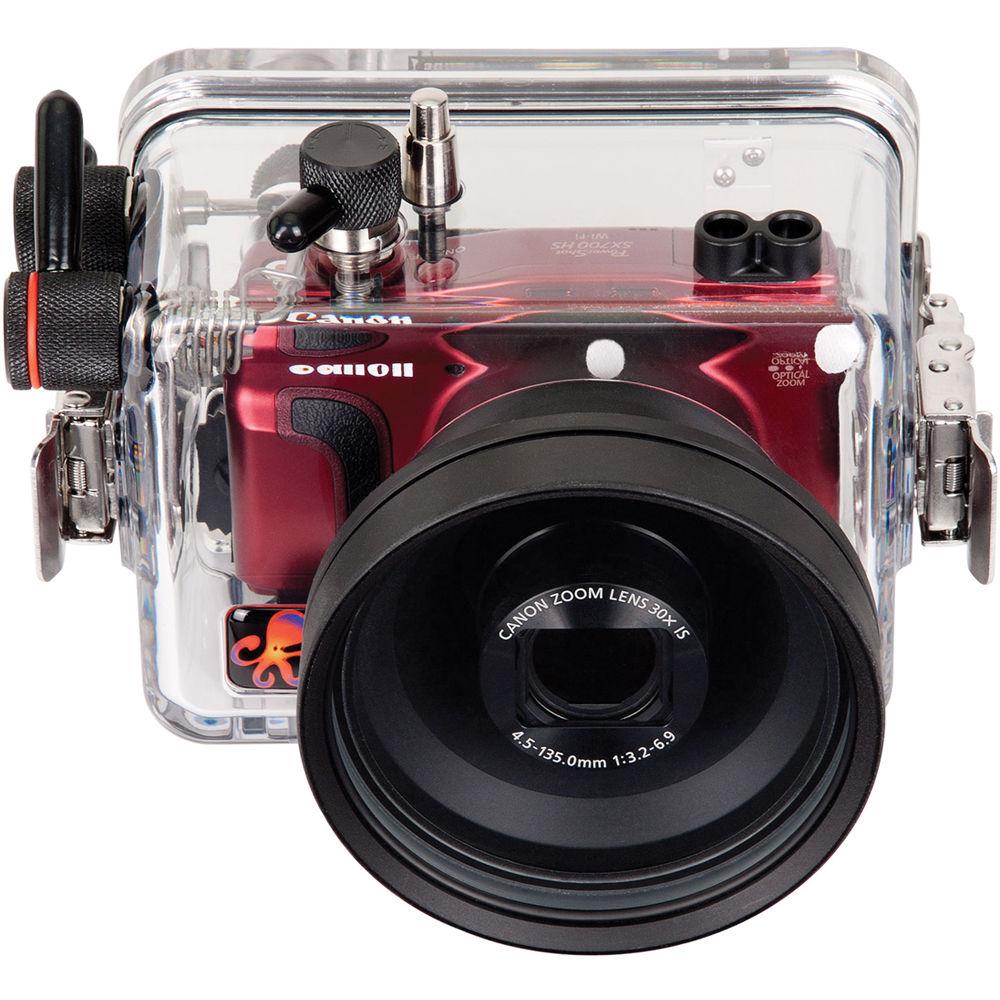

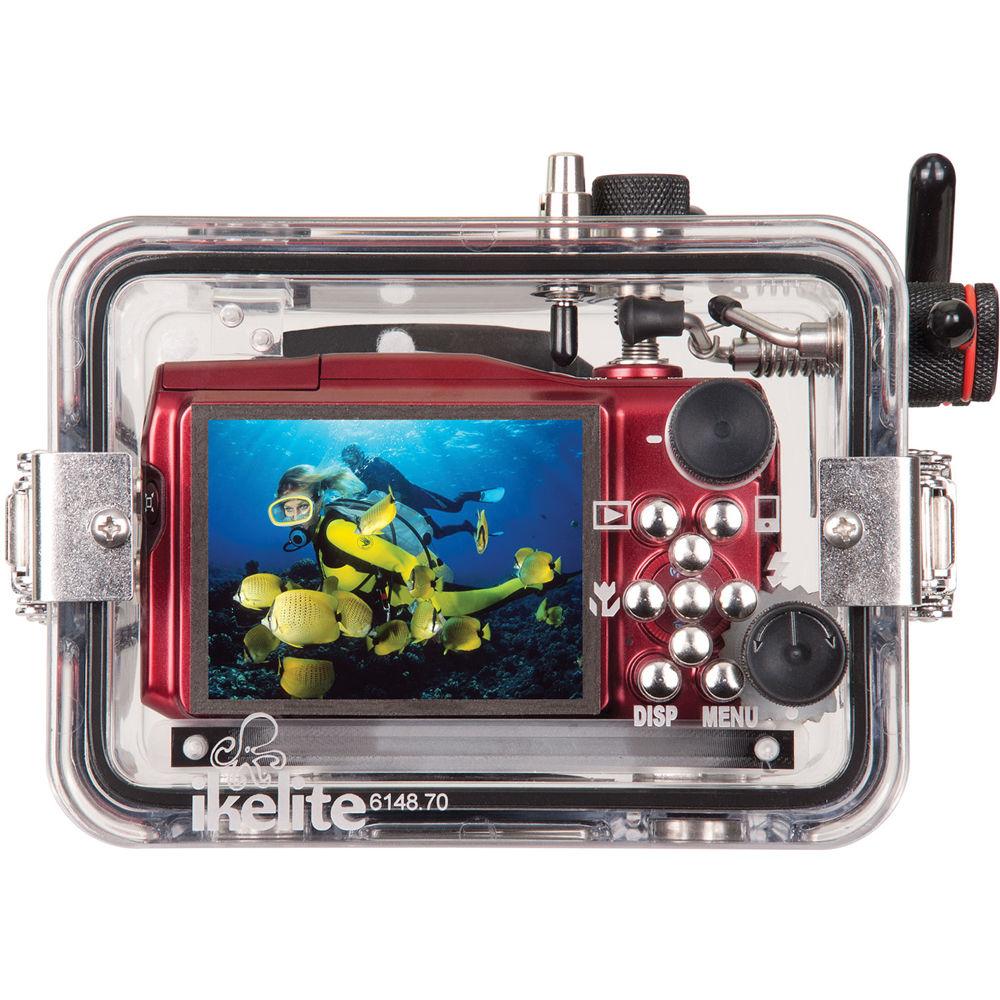

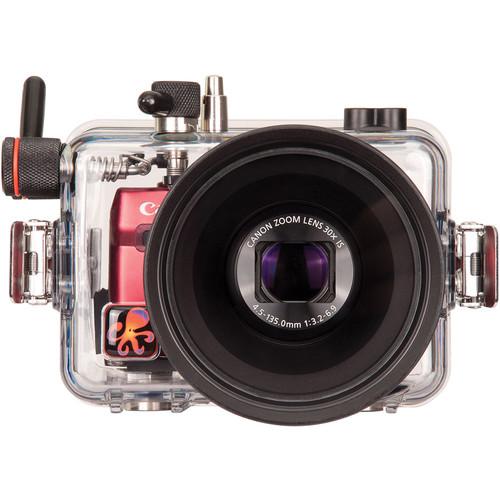

Product description This Underwater Housing from Ikelite is a waterproof enclosure enabling you to shoot beneath the surface with your Canon PowerShot SX700 HS or SX710 HS Digital Camera. It has a depth rating of 200'. Ergonomic mechanical controls, including knurled knobs, levers, dials, and push-buttons, provide access to all camera functions except for the flash-up switch and the framing assist-seek button.
Built for durability, the housing is designed, constructed, and tested in the USA. It's manufactured from corrosion-resistant polycarbonate, which is clear to allow you to monitor the o-ring seal and maintain a full view of the camera. The integrated flat glass lens port has a 3.9" diameter. It accepts optional, external wide-angle, and macro add-on lenses for an increased field of view or extreme close-up shots with better clarity and detail, respectively. You can also add optional color-correction filters to restore colors that get absorbed by the water.
Expand your system by adding an optional AF35 AutoFlash strobe, which features a flex arm and mounts onto the grip handle of an optional tray. This external strobe is triggered as a wireless slave by the firing of the camera's built-in flash and replicates TTL exposure. The housing is also equipped with two ports for Ikelite, Sea & Sea, or Olympus-type fiber-optic cables. It includes a diffuser to soften the light of the camera's built-in flash and a deflector to redirect it towards an external strobe. - Waterproofing
- Can be safely used at a maximum depth of 200'. Simply close the two double-passivated stainless steel locking lid snaps and see the o-ring form a solid watertight seal.
- Controls and Handling
- Large, easy-to-reach, ergonomic mechanical controls, including knurled knobs, levers, dials, and push-buttons, provide access to all camera functions except for the flash-up switch and the framing assist-seek button. Record start/stop is activated via the control lever on the right-hand side of the housing for a seamless transition into shooting video. The housing is configured with a 12-24 thread with 3.0" spacing for the mounting of an optional tray with single or dual handles, which will provide improved balance and handling, as well as quick-release attachment points for lighting arms.
- Construction Details
- Designed, constructed, and tested in the USA. Manufactured from durable, corrosion-resistant polycarbonate, which is clear to allow you to monitor the o-ring seal and maintain a full view of the camera.
- Lens Port
- The built-in, flat glass lens port has a 3.9" diameter. It accepts optional, external wide-angle and macro add-on lenses for an increased field of view or extreme close-up shots with better clarity and detail, respectively. Both types of lenses will enable you to get closer to your subjects, cutting down on the amount of water between you and them to reduce distortion. The recommended WD-4 Wide Angle Dome provides 0.75x magnification. The 3.9" Macro Port Adapter enables the attachment of 67mm threaded macro lenses from Inon and Epoque. You can also add optional color-correction filter #6441.46 for blue water or 6441.86 for green water to restore colors that get absorbed below the surface.
- Flash Use
- You can add an optional AF35 AutoFlash strobe, which features a flex arm and mounts onto the grip handle of an optional tray. This external strobe is triggered as a wireless slave by the firing of the camera's built-in flash and replicates TTL exposure. The housing is also equipped with two ports for Ikelite, Sea & Sea, or Olympus-type fiber-optic cables. It includes a diffuser to soften the light of the camera's built-in flash and a deflector to redirect it towards an external strobe. Since a built-in flash is generally only effective within a very short distance from your subject, the use of a more powerful external strobe is highly recommended. It will provide greater illumination, color accuracy, and vibrancy, and will virtually eliminate backscatter, glare, and hard shadows.
- Additional Recommended Optional Accessories
- The Gamma Waterproof Flashlight outputs 220 lumens in a concentrated 10° beam with a daylight-balanced color temperature of 6500K. Run time is over 10 hr. The Quick Release Kit for GoPro includes everything you need to attach your GoPro camera/housing to an Ikelite Quick Release Handle.
UPC: 883711048604 In the Box Ikelite Underwater Housing for Canon PowerShot SX700 HS or SX710 HS Digital Camera Port Cover Flash Diffuser Flash Deflector 1cc Tube Silicone Lubricant Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing for Canon PowerShot SX700 HS or SX710 HS Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 6148.70 Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical: Knurled knobs, levers, dials, and push-buttons | | Controls | Provide access to all camera functions except flash-up switch and framing assist-seek button | | Material of Construction | Polycarbonate with stainless steel locking lid snaps | | Lens Port | Built-in flat glass port | | Color Correction Filter | Optional filter #6441.46 for blue water or 6441.86 for green water | | Buoyancy | Slightly negative in fresh water | | Internal Flash Usable | Yes, camera's built-in flash | | External Flash Connector | Trigger optional AF35 AutoFlash strobe as wireless slave via camera's built-in flash
2 ports for optional Ikelite, Sea & Sea, or Olympus-type fiber-optic cables | | Mounting | Configured with 12-24 thread with 3.0" / 76 mm spacing for optional tray with single or dual handles | | Dimensions | Overall: 6.9 x 4.8 x 5.9" / 17.5 x 12.2 x 15 cm
Lens Port Diameter: 3.9" / 99 mm | | Weight | 2.9 lb / 1.3 kg | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 9.843 x 6.457 x 6.378" |
