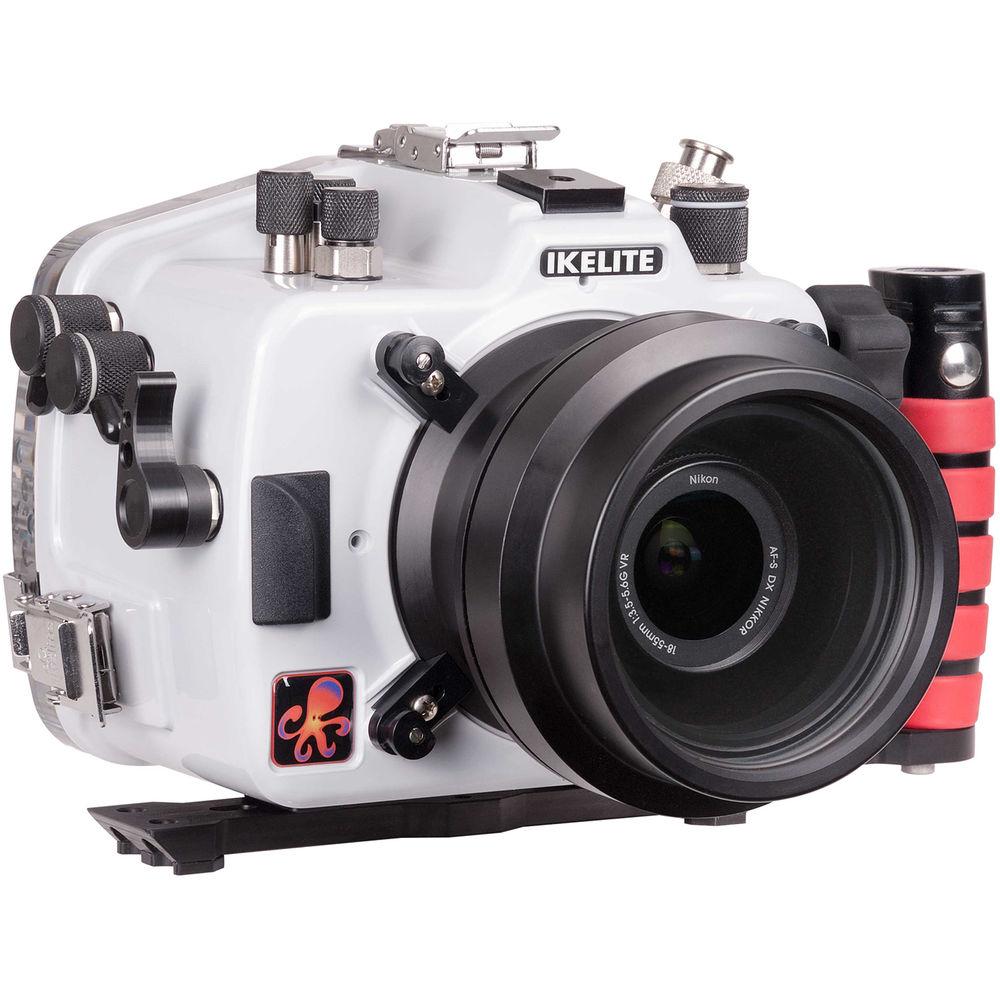

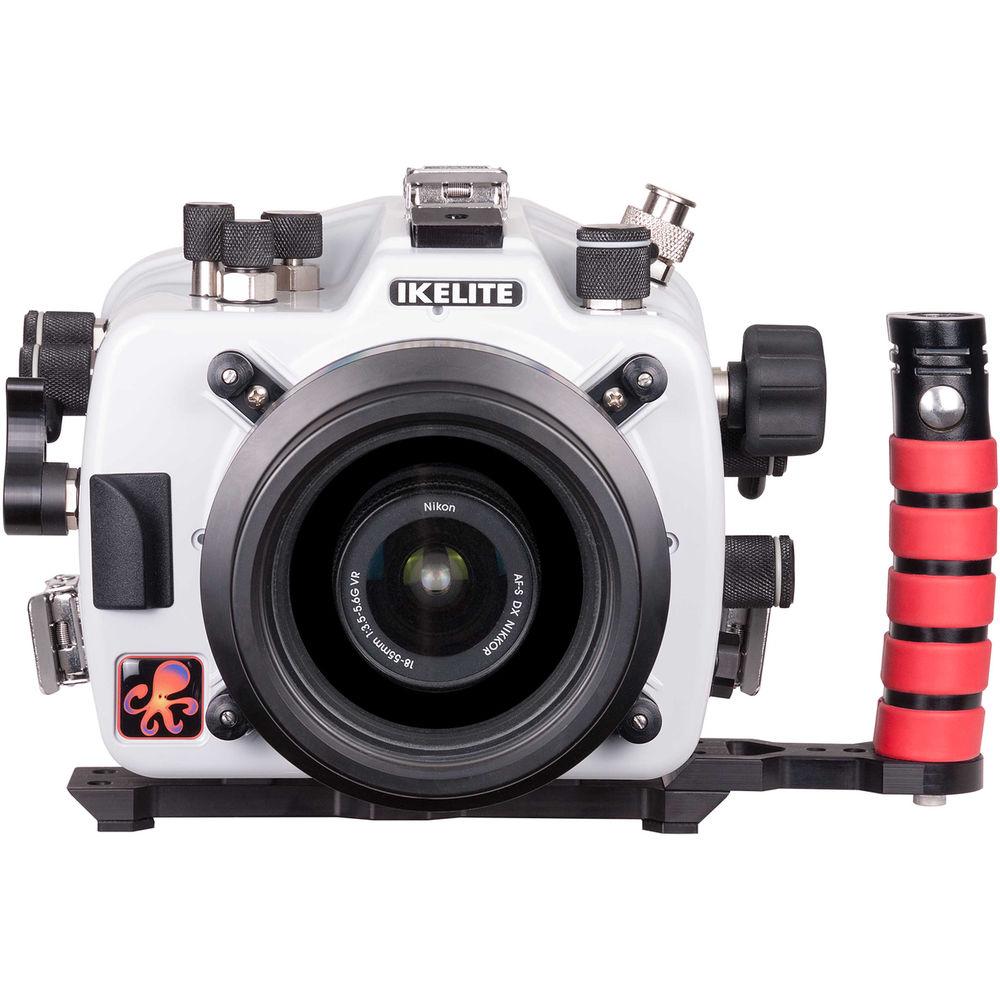

Product description Capture sharp, detailed photos and video at depths as great as 200' beneath the surface with your Nikon D3300 or D3400 DSLR in Ikelite's Underwater Housing with Four Lock Port Mount. An Ikelite bulkhead connector and integrated TTL circuitry enable the connection of optional, external strobes. Ikelite DS flash units can be used in TTL or manual exposure mode, while third-party strobes will work in manual mode.
Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers, afford access to virtually all camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It is white/light gray on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm.

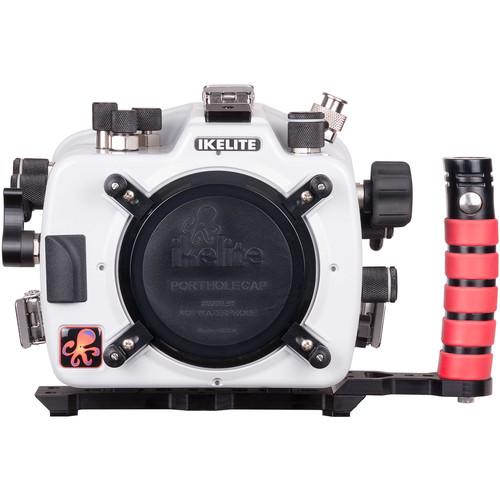

The housing ships without a required lens port, and accepts various dome and flat ports for a broad array of zoom, macro, and wide-angle lenses. For full compatibility, see the Port Chart. The Four Lock (FL) Port System is compatible with legacy ports and makes quick, easy work of changing lenses. - Construction Details
-
- Depth rating of 200'
- Made by hand in USA from corrosion-resistant polycarbonate and ABS plastic blend
- White/light gray on front, top, sides, and bottom to reflect sunlight and keep camera cool when shooting on or above water's surface

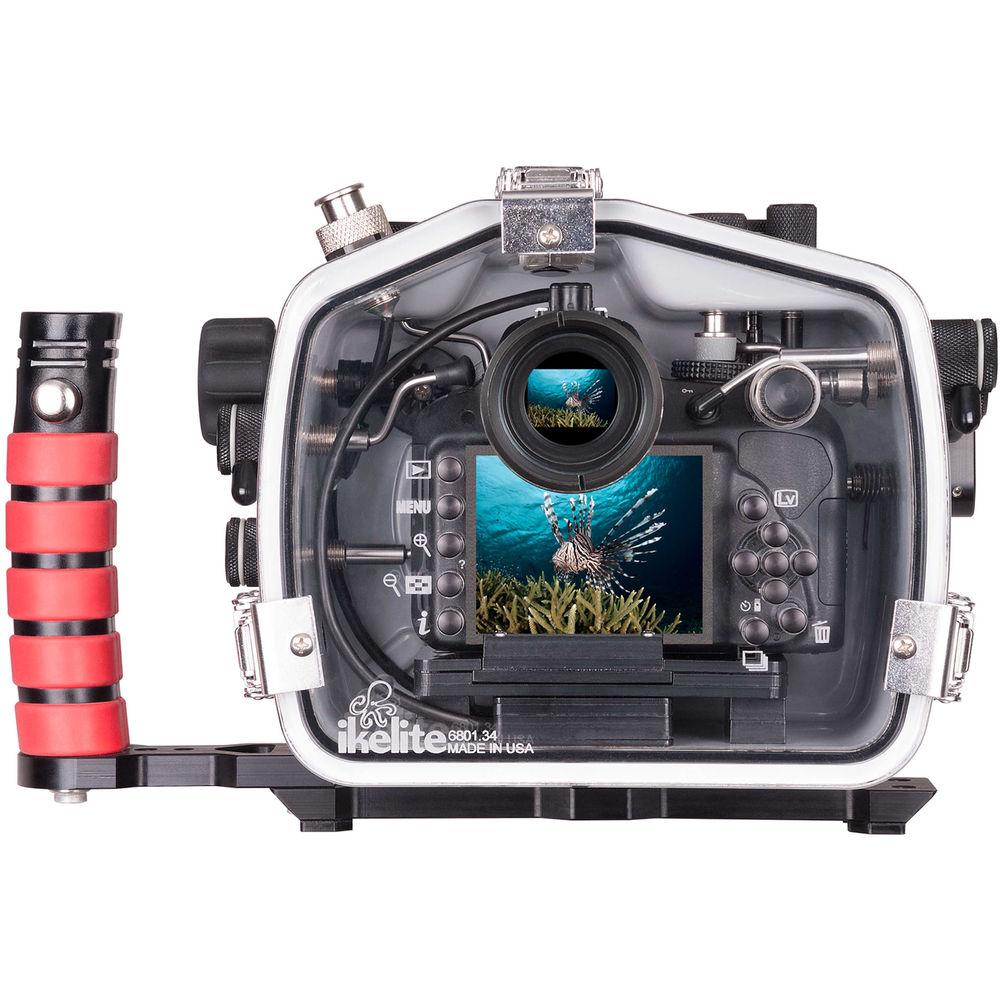

- Clear in back to allow you to monitor O-ring seal and maintain view of camera's rear controls
- Nearly neutral buoyancy in fresh water; actual buoyancy varies depending on choice of lens and port
- Open-groove design suspends rear O-ring in natural position, allowing for easier maintenance and preventing accidental twisting or stretching of O-ring
- Front-loading camera-mounting system makes for quick and easy setup
- Mounting plate enables hassle-free access to battery and memory card
- Strobe Connection and Operation
-
- Camera's built-in flash cannot be used inside enclosure
- Use of external strobe highly recommended for color-correction and adequate brightness, and basically essential once you descend further than 15-20' underwater
- Strobe restores hues that get absorbed by water, so your images are vibrant and accurate
- Try to stay no more than 3-4' away from subject to preserve natural colors in images
- Ikelite bulkhead with hot shoe connection and integrated TTL circuitry enables reliable electrical triggering of optional, external strobes via sync cords
- Circuit powered by strobe, so there are no batteries to change and there is no maintenance to be done
- Exposure compensation in TTL mode is supported using camera's built-in control
- Ikelite DS strobes, such as DS50 (above serial number 70000), 51, 125 (above serial number 5000), 160, 161, and 200 (above serial number 7163), are operable in TTL or manual mode
- Third-party strobes, such as those from Sea & Sea, INON, and Nikonos, operable in manual mode only
- Housing provides direct electrical connection to camera's hot shoe
- Cord attachment is as easy as screwing in a lightbulb, and threaded fit prevents accidental detachment during use
- Bulkhead connection has been moved to top of enclosure to keep cords out of the way and reduce strain on ends
- Housing ships without required sync cord and accepts following ones: Ikelite-to-Ikelite TTL (#4103.51), Ikelite-to-Ikelite TTL Dual (#4103.52), Sea & Sea/INON-to-Ikelite Non-TTL (#4118.1), Sea & Sea/INON-to-Ikelite Non-TTL Dual (#4118.2), Nikonos SB-to-Ikelite Non-TTL (#4116.31), and Nikonos SB-to-Ikelite Non-TTL Dual (#4116.32)
- Controls and Handling
-
- Large, ergonomic, mechanical push-buttons, knurled knobs/dials, and levers are easily operable with or without thick gloves
- Controls afford access to virtually all camera functions and, whenever possible, are located in same configuration as they are on camera
- Rear control symbols are laser-engraved so as not to peel or fade off with time
- Camera's large, bright LCD screen is visible edge-to-edge through rear of housing
- Two 1/4"-20 threaded mounts on bottom permit attachment to included aluminum tray with grip handle, which supports optional lighting arm for strobe or video light
- Grip handle is curved slightly to fit natural shape of your hand, and features soft molding for comfort
- Tray and handle system easily detached for storage and travel
- Optional right-hand grip can be added on with ease for extra stability and another attachment point for lighting
- Lens Port System
-
- Ships without a required lens port
- Four Lock (FL) interchangeable lens port system accepts various dome and flat ports for a broad array of zoom, macro, and wide-angle lenses
- Compatible with legacy ports
- Four locking latches provide great security and make quick, easy work of changing lenses
- Soft-touch zoom knob allows use of universal zoom gear system for lenses with large and small diameters
UPC: 883711053554 In the Box Ikelite Underwater Housing for Nikon D3300 or D3400 with TTL Circuitry and Four Lock Port Mount O-Ring (Replacement) zxtaaqbctwezzwcxet Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings Body Cap for Ikelite SLR Housings ICS Bulkhead Cap (Replacement) Zoom/Focus Clamp and Gear Sleeve Set for Lenses up to 2.8" in Diameter in DSLR Housings Zoom Sleeve 0184.1 1cc Tube Silicone Lubricant Limited 1-Year Warranty Port Charts PDF 373.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing for Nikon D3300 or D3400 with TTL Circuitry and Four Lock Port Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 6801.34 Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical, i.e., push-buttons, knurled knobs/dials, and levers | | Controls | Provide access to all camera functions except for diopter adjustment control, info button, self-timer, and flash mode/compensation button | | Material of Construction | Polycarbonate and ABS plastic blend | | Lens Port | Ships without required lens port
Four Lock (FL) interchangeable lens port system accepts various dome and flat ports for zoom, macro, and wide-angle lenses
Compatible with legacy ports
Universal zoom gear system for lenses with large and small diameters included | | Buoyancy | Nearly neutral in fresh water
Actual buoyancy varies depending on choice of lens and port | | External Flash Connector | Ikelite bulkhead connector with integrated TTL circuitry | | Mounting | 2x 1/4"-20 threaded mounts on bottom for included tray with grip handle | | Dimensions | 9.0 x 7.1 x 6.3" / 22.9 x 18 x 16 cm | | Weight | 5.1 lb / 2.3 kg excluding tray and handles | | | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 14.6 x 9.4 x 8.6" |
