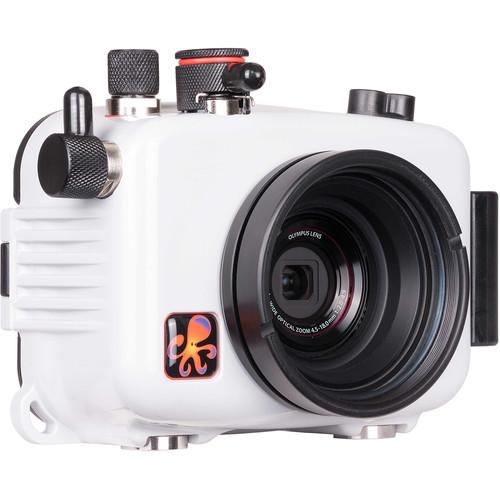

Product description You can capture sharp, detailed photos and brilliant 4K video at depths as great as 200' beneath the surface, thanks to Ikelite's dedicated Underwater Housing for your Olympus Tough TG-5 digital camera. Dual fiber-optic ports enable the connection of optional, external strobes for illumination and color correction. Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers, afford access to virtually all camera functions.

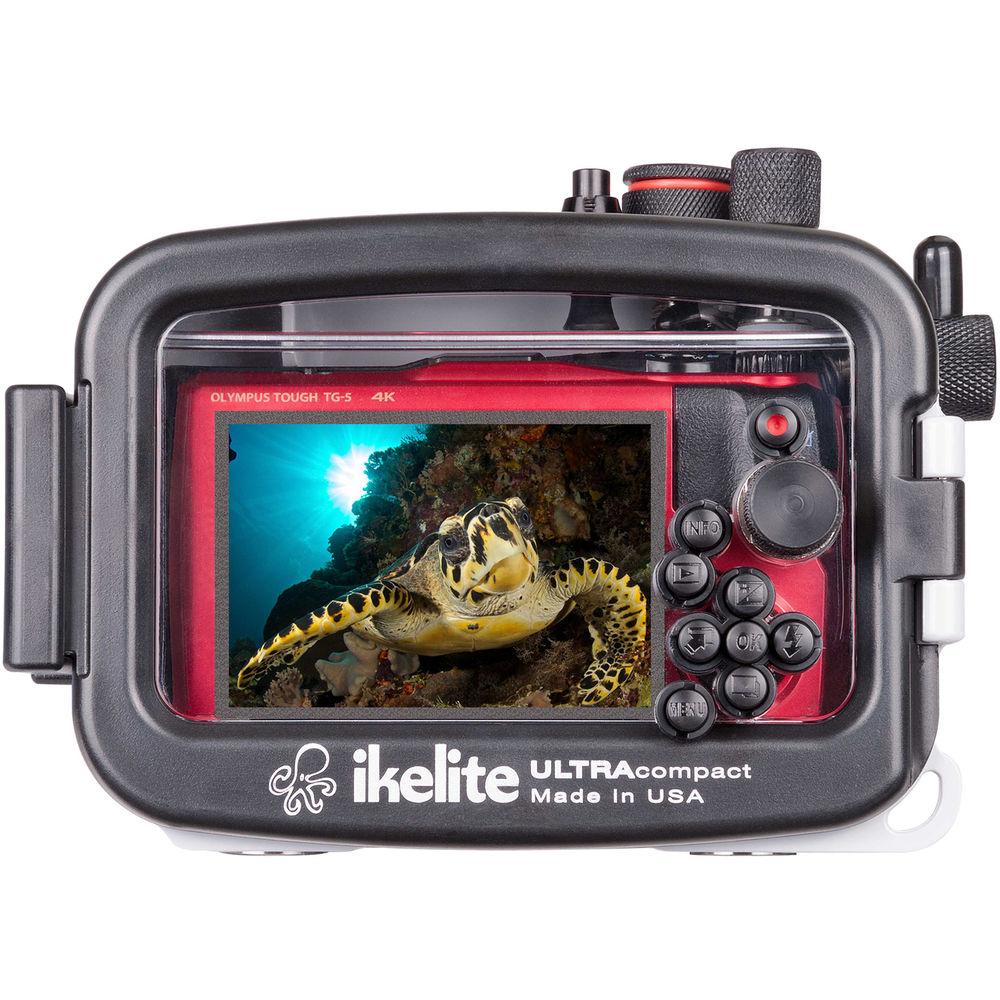

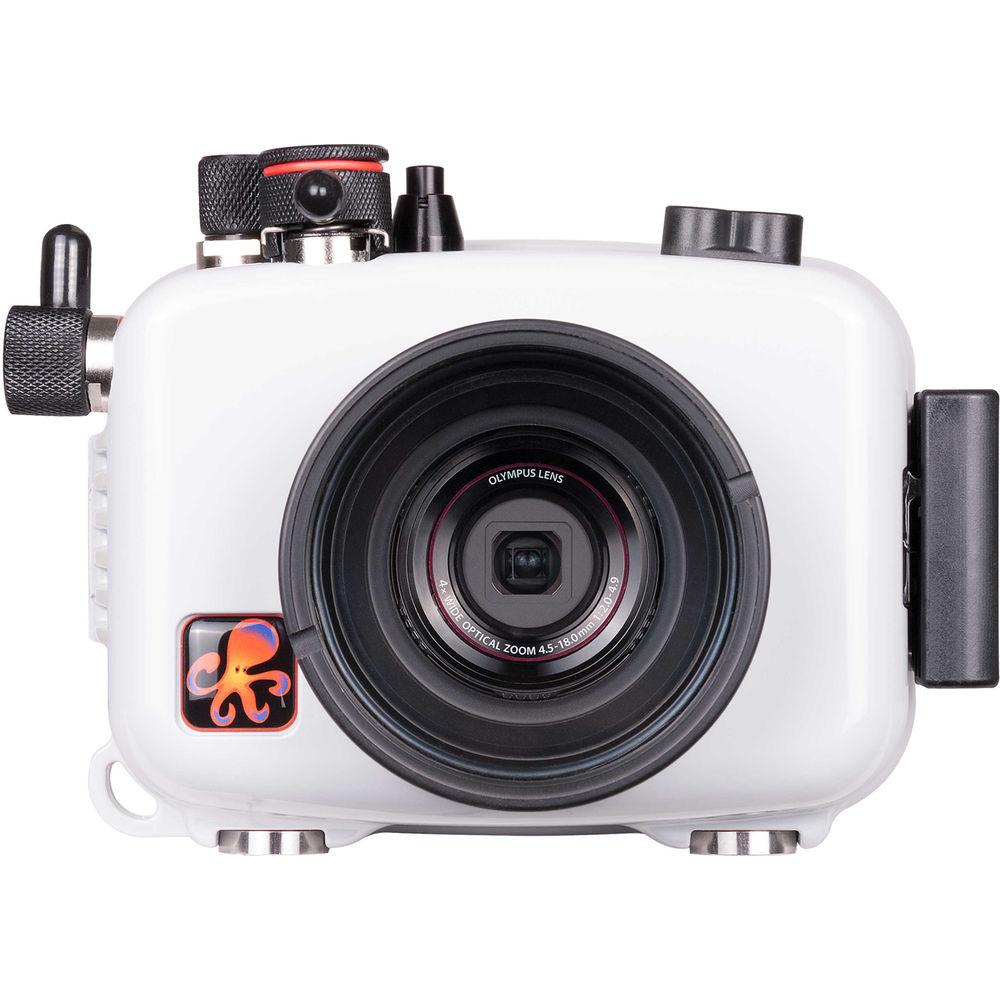

Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It is white/light gray on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. The built-in, flat glass lens port features a 3.0" diameter, and accepts optional wide-angle and macro conversion lenses to increase your field of view and enable extremely clear, detailed close-up shots, respectively. Optional color-correction filters can also be added to restore hues that get absorbed by the water. - Construction Details
-
- Depth rating of 200'
- Made by hand in the USA from a corrosion-resistant polycarbonate and ABS plastic blend
- White/light gray on front, top, sides, and bottom to reflect sunlight and keep camera cool when shooting on or above water's surface
- Clear in back to allow you to monitor O-ring seal and maintain view of camera's rear controls
- Controls are crafted from durable, hard-anodized aluminum and acetyl, which, like the ABS and PC of the body, are corrosion-resistant
- Controls and Handling
-
- Large, ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers, provide access to all camera functions except for the Log Switch
- Side-mounted shutter lever and a redesigned zoom control make shooting easy
- Optional tray with a quick-release grip provides comfort and improves overall balance and handling beneath the surface
- Housing has slightly positive buoyancy in fresh water
- Lens Port
-
- Built-in, flat glass lens port with a 3.0" diameter
- Features 67mm threads designed to accept optional wide-angle and macro conversion lenses, a.k.a. "wet lenses"
- Wide-angles increase your field of view, allowing you to get closer to your subject while fitting more in the frame; macros allow for extreme close-ups with great clarity and detail
- Both types of lenses reduce the amount of water between you and your subjects to minimize distortion and improve color, exposure, and clarity
- Recommended Ikelite WD-3 Wide-Angle Dome provides a mid-range field of view and does not result in any vignetting
- Ikelite W-30 Wide-Angle Lens, INON UWL-H100, and other 67mm wide lenses offer greater coverage, but some vignetting and edge distortion will occur. However, these effects can be minimized or eliminated via smaller apertures, zooming in, and/or cropping in post-production
- Macro lenses with 67mm threads are available from INON, Epoque, and other brands
- External color-correction filters with 3.0" diameters can be pressed directly onto the port, while those with 3.6" diameters can be attached to many wide-angle wet lenses
- Strobe Connection and Operation
-
- Built-in flash is not suitable for illuminating photos underwater, but can trigger optional, external strobes via fiber-optic cables
- Use of an optional, external strobe will be extremely helpful once you descend farther than 15-20' underwater, except when shooting with color filters on very clear days with bright sunlight
- Strobe restores hues that get absorbed by the water, so your images are vibrant and accurate
- Try to stay no more than 3-4' away from the subject to preserve natural colors in images
- Housing is equipped with two fiber-optic ports
- Any Ikelite DS strobe can be connected via the #4401.1 Fiber-Optic Converter and #4501 Fiber Optic Cord
- F.O. Converter effectively turns the sync cord bulkhead of the DS strobe into a fiber-optic port, and allows for manual exposure
- Compatible fiber-optic cords: Ikelite #4501 Fiber-Optic Coiled Cord, INON "Non-Wireless" L-Type Optical D Cable, Sea & Sea #50107 L-Type Fiber-Optic Cable, Sea & Sea #50128 Fiber Optic Cable II, Olympus PTCB-E02 UW Fiber-Optic Cable, Nauticam-to-INON #26211 Optical Fiber Cable, Nauticam-to-Sea & Sea #26212 Optical Fiber Cable
UPC: 883711054766 In the Box Ikelite Underwater Housing for Olympus Tough TG-5 Vinyl Port Cover for 3" Diameter uszsxrqtrqsq Lanyard #0184.1 Silicone Lubricant Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing for Olympus Tough TG-5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 6233.06 Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical push-buttons, knurled knobs/dials, and levers | | Controls | Afford access to all camera functions except for Log Switch | | Material of Construction | Body: Polycarbonate and ABS plastic blend
Controls: Hard-anodized aluminum and acetal plastic | | Lens Port | Built-in, flat glass port | | Buoyancy | Slightly positive in fresh water | | External Flash Connector | 2x Fiber-optic ports for attaching optional, external strobes (cables not included)
Optional #4401.1 Fiber-Optic Converter and #4501 Fiber Optic Cord enable connection of Ikelite DS strobes | | Mounting | 1/4"-20 threaded mounts with 3.0" / 76 mm spacing for connecting optional tray with handle(s) | | Dimensions | Housing: 6.2 x 4.4 x 3.7" / 15.8 x 11.2 x 9.4 cm
Lens Port Diameter: 3.0" / 76 mm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 6.8 x 5.4 x 5.3" |
