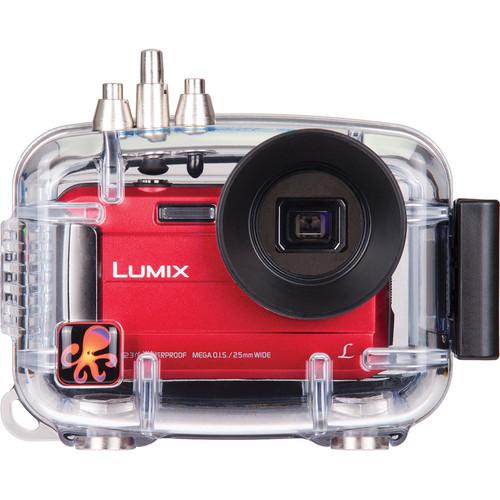

User Manual for Ikelite Underwater Housing for Panasonic Lumix DMC-TS25 or TS30 Digital Camera Click to enlarge the picture
Contents of the user manual for the Ikelite Underwater Housing for Panasonic Lumix
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
|
User manual for the Ikelite Underwater Housing for Panasonic Lumix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description This Underwater Housing from Ikelite is a waterproof case enabling you to shoot beneath the surface with your Panasonic Lumix DMC-TS25 or TS30 digital camera, a.k.a. FT25 or FT30, respectively. It has a depth rating of 200'. Mechanical controls provide access to all camera functions.
Built for durability, the housing is constructed by hand in the USA from corrosion-resistant polycarbonate, which is clear to allow you to monitor the o-ring seal and maintain a full view of the camera. The built-in, flat, optical glass port accommodates the camera's wide-angle zoom lens. Due to the nature of this lens, external wide-angle add-on lenses provide no significant advantage.
Expand your system by adding an optional AF35 AutoFlash strobe, which features a flex arm and mounts onto the grip handle of an optional tray. This external strobe is triggered as a slave by the firing of the camera's built-in flash and replicates TTL exposure. The housing comes bundled with a diffuser to soften the light of the camera's built-in flash and a deflector to redirect it towards an external strobe. - Depth Rating
- Can be used at a maximum depth of 200'
- Controls
- Mechanical controls provide access to all camera functions, and the most important ones are at your fingertips for ease of use
- Construction
- Built by hand in the USA from durable, corrosion-resistant polycarbonate, which is clear to allow you to monitor the o-ring seal and maintain a full view of the camera
- Buoyancy
- Neutral in fresh water
- Lens Port
- The built-in, flat, optical glass port accommodates the camera's wide-angle zoom lens. Due to the nature of this lens, external wide-angle add-on lenses provide no significant advantage
- Color Correction Filters
- Optional 6441.31 and 6441.71 filters for blue and green water, respectively, intended for use when shooting without a strobe, help restore colors that get absorbed underwater
- TTL Flash Exposure Replication
- The optional AF35 AutoFlash strobe features a flex arm and mounts onto the grip handle of an optional tray. The strobe is triggered as a wireless slave unit by the firing of the camera's built-in flash and automatically varies its own power to replicate TTL exposure. The housing comes bundled with a diffuser to soften the light of the camera's built-in flash and a deflector to redirect it towards an external strobe
- Mounting
- Optional aluminum tray with rubberized grip handle(s) provides improved handling and attachment points for lighting arms. It's easily attached with two screws to enable quick, easy disassembly for storage and travel
- Additional Recommended Optional Accessories
- The lightweight (4 oz) aluminum Gamma LED light offers an output of over 220 lumens, a beam angle of 10° and a burn time of 10 hr
UPC: 883711046976 In the Box Ikelite Underwater Housing for Panasonic Lumix DMC-TS25 or TS30 Digital Camera Port Cover Flash Diffuser Flash Deflector Silicone Lubricant Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing for Panasonic Lumix DMC-TS25 or TS30 Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 6270.25 Specs | Depth Rating | 200' (60 m) | | Control Type | Mechanical | | Controls | Provide access to all camera functions | | Construction | Polycarbonate | | Lens Port | Built-in, flat, optical glass port | | Color Correction Filter | Optional 6441.31 and 6441.71 filters for blue and green water, respectively | | Buoyancy | Neutral in fresh water | | Internal Flash Usable | Yes, camera's built-in flash | | External Flash Connector | Strobes triggered as wireless slave units by camera's built-in flash | | Mounting | 12-24 thread with 3.0" (7.6 cm) spacing for tray mounting | | Dimensions | Overall: 5.9 x 4.7 x 3.1" (15 x 11.9 x 7.9 cm)
Port diameter: 2.2" (55 mm) | | Weight | 1.0 lb (0.45 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 6.8 x 5.5 x 5.5" |
