User Manual for Ikelite Underwater Housing for Panasonic Lumix TS7 or FT7 Click to enlarge the picture
Contents of the user manual for the Ikelite Underwater Housing for Panasonic Lumix
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
 |
User manual for the Ikelite Underwater Housing for Panasonic Lumix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|

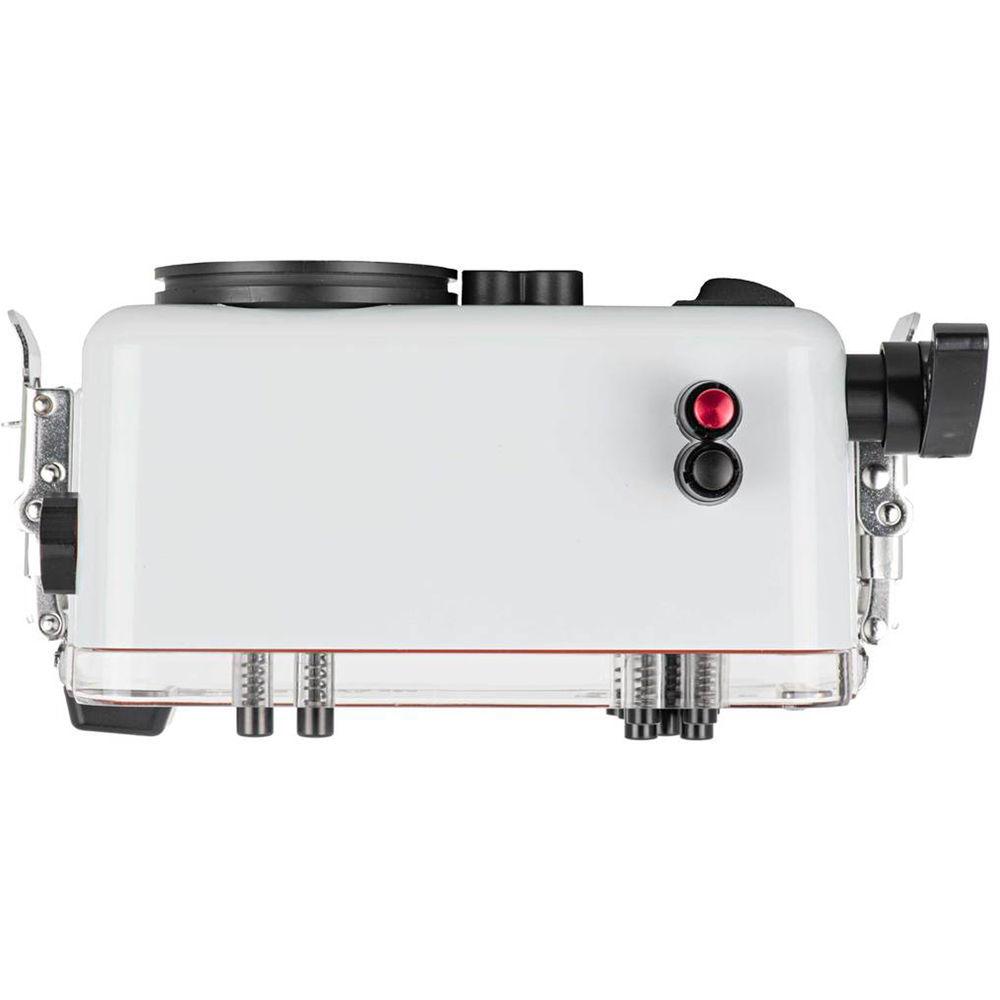

Product description Capture detailed photos and vivid video as deep as 200' beneath the surface with Ikelite's Underwater Housing for the Panasonic Lumix TS7 or FT7 digital camera. The enclosure is equipped with two fiber-optic ports for the connection of optional, external strobes via the appropriate cords. Access to all camera functions except the diopter adjustment dial is provided by ergonomic mechanical controls, including a curved shutter lever that can be extended for use with a tray, via a separately sold adapter.
Built for durability, the housing is made in the USA from a corrosion-resistant ABS and polycarbonate blend, which is light gray/white on the front, sides, top, and bottom but clear in the back to allow you to monitor the O-ring seal and rear camera controls. The enclosure features a built-in, optical glass lens port with a 2.2" diameter. - Construction Details
-
- Depth Rating: 200'
- Made by hand in USA
- Crafted from corrosion-resistant ABS and polycarbonate blend

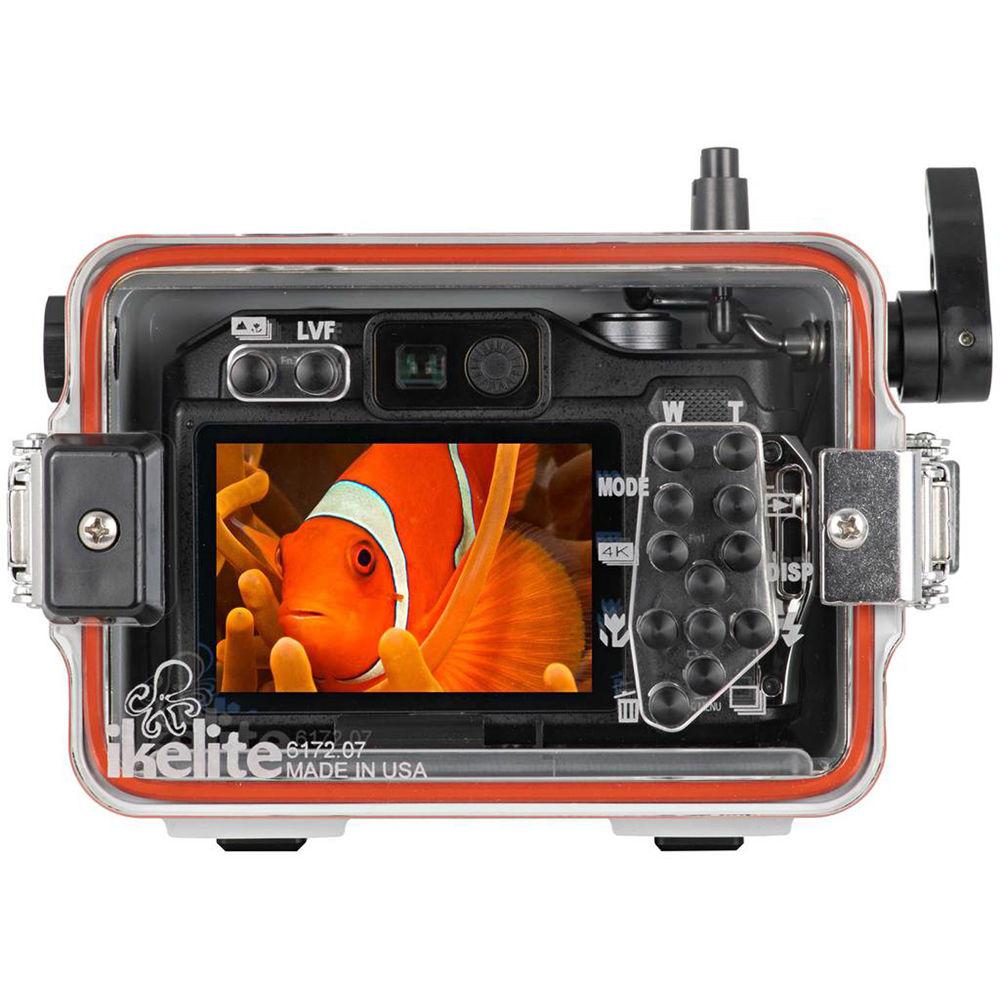

- Clear back to monitor O-ring seal and rear camera controls
- Light gray/off-white color reflects sunlight to keep camera cool when shooting at or above water's surface, and offers better contrast for improved viewing of camera, monitor, and O-ring seal
- No-groove O-ring eliminates sand/dirt/debris, prevents accidental twisting or stretching of seal

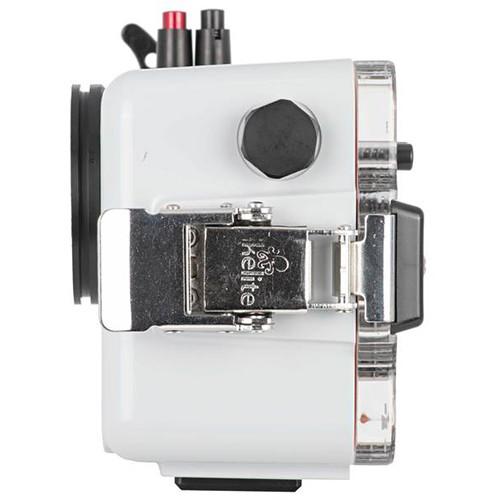

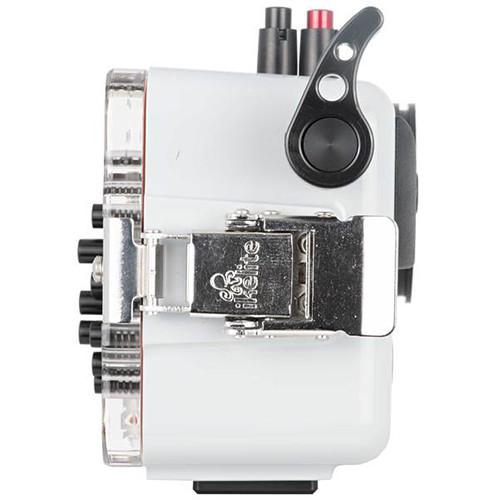

- Two double-passivated stainless steel locking lid snaps ensure secure closure
- Front-loading camera mounting system makes installation and removal easy
- Camera mounting plate allows ready access to battery and memory card, and features a standard 1/4"-20 threaded mount for connection to tripod topside
- Strobe Connection and Operation
-
- Dual fiber-optic ports allow for connection of optional, external strobes
- Controls, Handling, and Operation
-

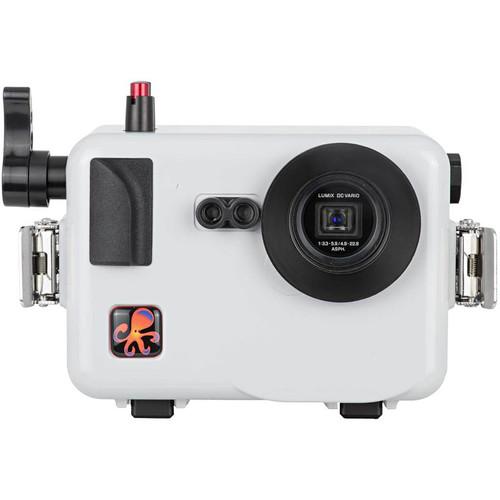

- Built-in 2.2" diameter lens port
- Access to all camera functions except diopter adjustment dial provided by ergonomic mechanical controls, including push buttons, knurled gears/knobs, and levers
- Controls are easy to reach and operate with or without diving gloves
- Rear controls marked with easy-to-see, laser-engraved symbols that won't fade or fall off with time
- Two 1/4"-20 threaded holes are included on bottom of housing for attachment of optional tray with grips
UPC: 883711056364 In the Box Ikelite Underwater Housing for Panasonic Lumix TS7 or FT7 Vinyl Port Cover for 2" Diameter 0109 O-Ring (Replacement) 1 cc Tube of Silicone Lubricant Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing for Panasonic Lumix TS7 or FT7 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 6172.07 Specs | Depth Rating | 200' / 61 m | | Material of Construction | ABS/Polycarbonate Blend with Stainless Steel Snap Closures | | Lens Port | 2.2" / 56 mm diameter | | Lighting | 2 x Fiber-Optic Ports | | Mounting | 2 x 1/4"-20 Threaded Holes with 3.0" / 76.2 mm Spacing for Optional Tray Mounting | | Dimensions | 7.0 x 4.3 x 3.3" / 17.8 x 10.8 x 8.3 cm | | Weight | 1.7 lb / 0.8 kg |
