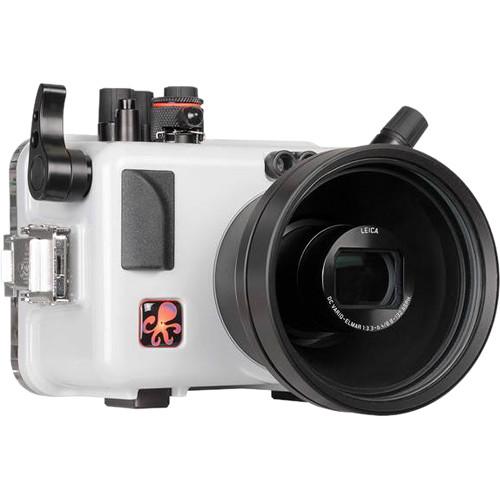

User Manual for Ikelite Underwater Housing for Panasonic Lumix ZS200 TZ200, TZ202 Digital Cameras Click to enlarge the picture
Contents of the user manual for the Ikelite Underwater Housing for Panasonic Lumix
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
 |
User manual for the Ikelite Underwater Housing for Panasonic Lumix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|

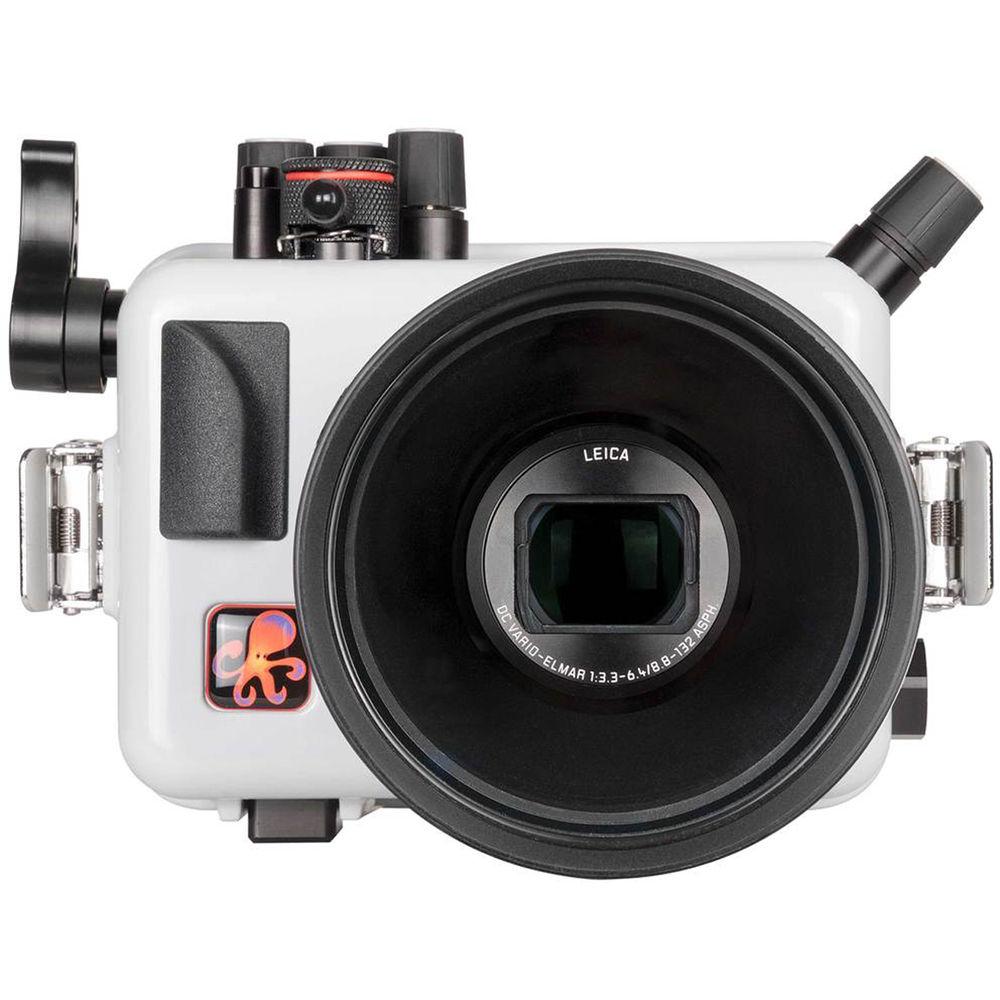

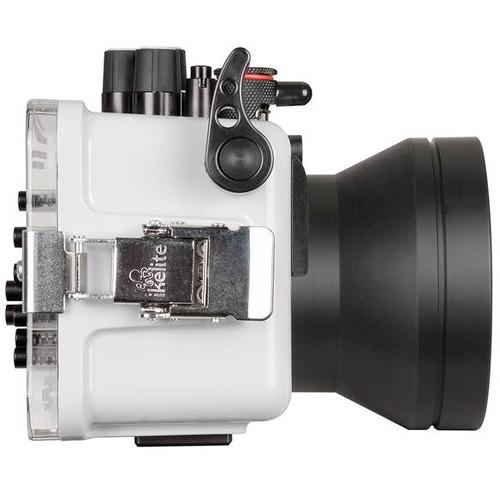

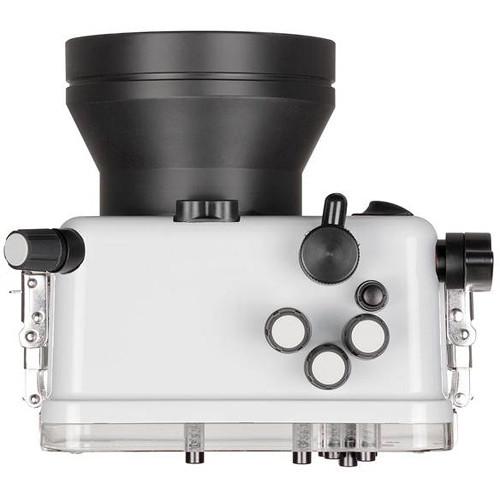

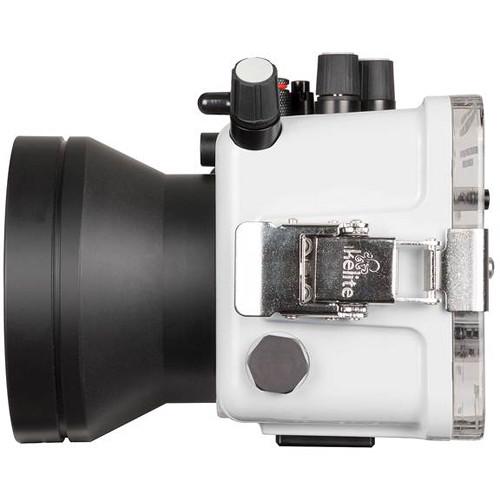

Product description Capture clear, detailed images and video at depths as great as 200' with this Ikelite Underwater Housing for your Panasonic Lumix ZS200/TZ200 or TZ202 camera. Two ports for optional fiber-optic cables enable the connection of external strobes. Large, easy-to-reach controls, including a shutter lever (extendable for handle use with optional # 4077.93 extension), provide access to all camera functions. Rear controls are marked with easy-to-see laser engraved symbols which never fade or fall off.Built for durability, the housing is designed, constructed, and tested in the USA. It's manufactured from a white ABS/polycarbonate blend, which is still corrosion-resistant but also reflects sunlight to keep your camera cooler when shooting at or above the water's surface. The back plate is clear to allow you to monitor the O-ring seal and maintain a full view of the camera. The integrated 3.9" flat glass lens port accepts the separately sold Ikelite WD-4 Wide-Angle Dome # 6430.4 for a wider angle of view and 0.75 magnification with no edge distortion. An adapter allows the use of 67mm-threaded macro lenses (threaded wide-angle lenses are not recommended). Optional color-correction filters can also be added to restore colors that get absorbed by the water.Note: the camera cannot be zoomed beyond 135mm equivalent inside the housing. - Construction Details
-
- Can be safely used at a maximum depth of 200'
- Designed, constructed by hand, and tested in the USA
- Made of white ABS/polycarbonate blend with clear back panel
- Slide-in, front-loading design for quick and easy setup
- A 1/2-20 size accessory port has been added for installation of optional vacuum valve to allow you to confirm watertight integrity before diving
- Controls, Handling, and Operation
-
- Large controls including shutter lever provide access to all camera functions
- Shutter lever can be extended for handle use with separately sold Shutter Trigger Extension # 4077.93

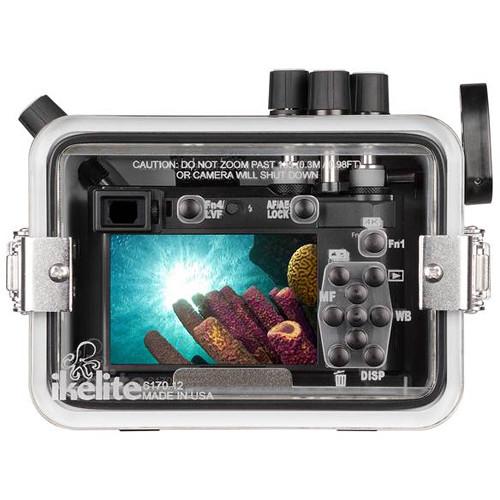

- All rear controls are clearly marked with laser engravings
- Housing is configured with a 1/4"-20 thread with 3.0" spacing for the mounting of an optional tray with single or dual handles/light arms
- Lens Port
-
- Built-in, 3.9" flat glass lens port
- Accepts optional WD-4 Wide-Angle Dome
- Press-on adapter for 67mm-threaded macro lenses
- Add optional blue-water and green-water color-correction filters to restore colors absorbed by the water
- Compatible with optional Yellow Fluorescence Filter # 6441.16
- Strobe Connection and Operation
-
- Two fiber-optic ports for external strobes triggered by camera's built-in flash
UPC: 883711056050 In the Box Ikelite Underwater Housing for Panasonic Lumix ZS200/TZ200, TZ202 Digital Cameras Replacement 4" Vinyl Port Cover for Flat Assembly 0184.1 1cc Tube Silicone Lubricant Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing for Panasonic Lumix ZS200 TZ200, TZ202 Digital Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 6170.12 Specs | Depth Rating | 200' / 60 m | | Material of Construction | Top/Front/Sides/Bottom: White ABS/polycarbonate blend
Back Plate: Clear polycarbonate
Locking Latches: Stainless steel | | Lens Port | Built-in, flat glass port 3.9" / 9.9 cm | | Buoyancy | Slightly negative in fresh water | | External Flash Connector | 2x fiber-optic ports | | Mounting | 2x 1/4"-20 threaded holes with 3.0" / 76 mm spacing for mounting optional tray | | Dimensions | 6.8 x 6.2 x 5.1" / 17.3 x 15.7 x 13.0 cm | | Weight | 2.8 lb / 1.3 kg | | | | Package Weight | 3.44 lb | | Box Dimensions (LxWxH) | 9.0 x 8.4 x 6.4" |
