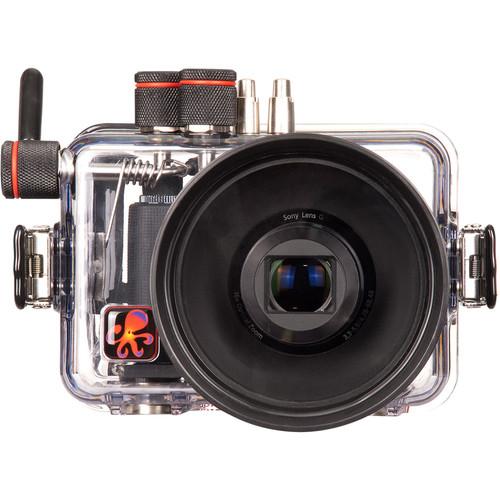

User Manual for Ikelite Underwater Housing for Sony Cyber-shot DSC-HX90 or DSC-WX500 Click to enlarge the picture
Contents of the user manual for the Ikelite Underwater Housing for Sony Cyber-shot
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
|
User manual for the Ikelite Underwater Housing for Sony Cyber-shot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Capture images and video at depths up to 200' beneath the surface using this Ikelite Underwater Housing for the Sony Cyber-shot DSC-HX90 or DSC-WX500 digital camera. Large, ergonomic mechanical controls provide access to virtually all camera functions.
The enclosure's dual built-in fiber-optic ports allow for the attachment of optional Ikelite, SEA&SEA, and Olympus-type strobes via cables. Alternatively, the housing is also compatible with the optional wireless AF35 strobe, which replicates TTL exposure. Both the fiber-optic and wireless connections rely on the firing of the camera's built-in flash to trigger a strobe. Additionally, a flash diffuser and deflector are supplied.
Built for durability, the housing is designed, made by hand, and tested in the USA. Manufactured from durable, clear polycarbonate, it resists corrosion and allows you to maintain a full view of the camera while monitoring the O-ring seal. The integrated, flat glass lens port has a 3.9" diameter and accepts optional wide-angle and macro add-on lenses, as well as color-correction filters. - Construction Details
-
- Features a depth rating of 200'
- Close two double-passivated (corrosion-resistant), stainless steel locking lid snaps and see O-ring form a solid watertight seal
- Designed, made by hand, and tested in USA
- Made from clear, corrosion-resistant polycarbonate, allowing you to monitor O-ring seal and maintain a full view of camera
- Controls and Handling
-
- Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and a lever, afford access to all camera controls except for flash pop-up switch and viewfinder pop-up switch
- Controls are large for easy operation while wearing diving gloves
- Optional tray with single or dual quick-release handles can be connected to 1/4"-20 mount on bottom of housing, in order to improve balance and provide attachment point for lighting arm
- Lens Port
-
- Built-in, flat glass lens port with 3.9" diameter
- Accepts optional, external wide-angle and macro add-on lenses for increased field of view or extreme close-up shots with better clarity and detail, respectively
- Both types of lenses enable you to get closer to subjects, cutting down on amount of water between subject and lens to reduce distortion
- Optional color-correction filters can also be attached to restore hues that get absorbed by water
- Flash Use
-
- Dual built-in fiber-optic ports allow for the attachment of optional Ikelite, SEA&SEA, and Olympus-type strobes via cables
- Housing also compatible with optional wireless AF35 strobe, which varies power automatically to replicate TTL exposure and also features six manual power settings
- As most built-in flashes are only effective at a range of about 1-3' from your subject in clear conditions, external lighting is highly recommended for brighter, clearer images with greater color accuracy and vibrancy
- External strobes also virtually eliminate backscatter, the reflecting of light off particles in the water, which can lead to "snow" in your images
- Housing includes flash diffuser to soften the light from camera's built-in flash, in order to make it less harsh and reduce backscatter
- Also supplied is a flash deflector to redirect light from built-in flash towards an external strobe
UPC: 883711051475 In the Box Ikelite Underwater Housing for Sony Cyber-shot DSC-HX90 or DSC-WX500 Port Cover Flash Diffuser Flash Deflector 1cc Tube of Silicone Lubricant Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing for Sony Cyber-shot DSC-HX90 or DSC-WX500 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 6115.90 Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical push-buttons, knurled knobs/dials, and a lever | | Controls | Provide access to all camera functions except for flash pop-up switch and viewfinder pop-up switch | | Material of Construction | Polycarbonate | | Lens Port | Built-in glass lens port with flat front element
Diameter: 3.9" / 99 mm | | Color Correction Filters | Optional Ikelite #6441.46 for blue water and 6441.86 for green water | | Buoyancy | Nearly neutral in fresh water | | Internal Flash Usable | Yes, camera's built-in flash | | External Flash Connector | 2x fiber-optic ports for optional Ikelite, SEA&SEA, and Olympus-type strobes
Compatible with optional wireless AF35 strobe | | Mounting | 1/4"-20 mounts with 3.0" / 76 mm spacing on bottom for connection to optional tray with one or two quick-release handles | | Dimensions | 6.8 x 5.0 x 5.8" / 17.3 x 12.7 x 14.7 cm | | Weight | 3.1 lb / 1.4 kg | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 9.8 x 6.5 x 6.4" |
