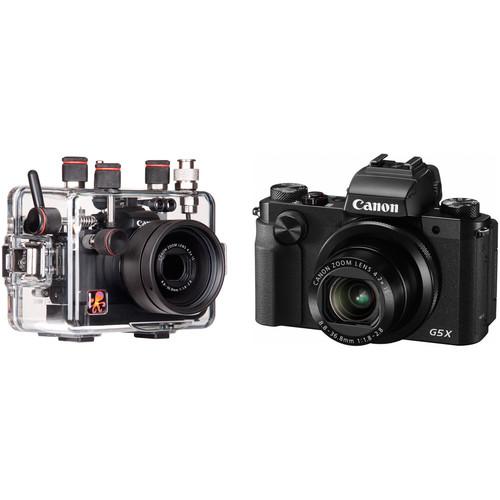

User Manual for Ikelite Underwater Housing with TTL Circuitry and Canon PowerShot G5 X Camera Kit Click to enlarge the picture
Contents of the user manual for the Ikelite Underwater Housing with TTL Circuitry
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
|
User manual for the Ikelite Underwater Housing with TTL Circuitry contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Using this Ikelite Underwater Housing with TTL Circuitry and Canon PowerShot G5 X Camera Kit from B&H, you can capture images of coral, pygmy seahorses, and other aquatic wonders at depths as great as 200'. Providing everything you need for a photo or video adventure beneath the surface, the kit bundles the durable waterproof enclosure with the advanced, 20MP point-and-shoot digital camera. The housing affords access to virtually all the G5 X's functions, and features a built-in, flat glass port for the camera's 24-100mm f/1.8-2.8 lens. - Ikelite Underwater Housing with TTL Circuitry for Canon PowerShot G5 X Capture images and video at depths up to 200' beneath the surface using this Underwater Housing with TTL Circuitry for the Canon PowerShot G5 X from Ikelite. Large, ergonomic mechanical controls provide access to virtually all camera functions.
The enclosure's built-in, proprietary circuitry and Ikelite bulkhead connector allow for TTL exposure with optional, external Ikelite DS Substrobes. Non-Ikelite strobes are compatible in manual mode, as well. Alternatively, you can make use of the two fiber-optic ports built into the front of the housing, which enable the attachment of optional cables from most major manufacturers. The connectors are threaded to prevent accidental detachment during use. Optional SEA&SEA, INON, and Nikonos strobes can be used in manual exposure modes. A fiber-optic connection relies on the firing of the camera's built-in flash to trigger strobes, whereas a TTL bulkhead connection uses a sync cord and does not require the camera's flash to fire.
Built for durability, the housing is designed, made by hand, and tested in the USA. Manufactured from durable, clear polycarbonate, it resists corrosion and allows you to maintain a full view of the camera while monitoring the o-ring seal. The camera is secured inside by way of a compact mounting tray that attaches to the camera's tripod mount and slides into the front. Two 1/4"-20 attachment points underneath offer rotation-free mounting of an optional tray and handles.
The housing's integrated flat glass lens port has a 3.0" diameter and accepts the optional WD-3 wide-angle dome, as well as external wide-angle and macro add-on lenses for an increased field of view or clearer, more detailed close-ups. Additionally, optional color-correction filters with 3.0-3.6" diameters can be attached to restore colors that get absorbed underwater. Once back up above the surface, the camera's built-in Wi-Fi can be used through the housing to transfer your images. - Construction Details
-
- Features a depth rating of 200'
- Close the two locking lid snaps at each side to see the o-ring form a watertight seal
- Controls and Handling
-
- Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and a lever, afford access to all camera controls except for diopter adjustment dial and mobile device connect button
- Mobile devices may be connected through housing via camera's menus
- Controls are large for easy operation while wearing diving gloves
- Easy-to-reach gear activates camera's versatile front control ring
- All rear controls are clearly marked with laser engraving that will never peel off or fade
- Two 1/4"-20 mounts at bottom of housing offer rotation-free mounting of an optional tray and handles
- Optional tray with 1 or 2 quick-release handles provides improved balance underwater, while also offering attachment points for optional lighting arms
- Construction Details
-
- Designed, made by hand, and tested in USA
- Made from corrosion-resistant, clear polycarbonate, allowing you to monitor O-ring seal and maintain a full view of camera
- Lens Port
-
- Built-in flat glass lens port has a 3.0" diameter
- Compatible with optional, external wide-angle and macro add-on lenses with 67mm threads for increased field of view or extreme close-up shots with better clarity and detail, respectively
- Both types of lenses enable you to get closer to subjects, cutting down on amount of water between subject and lens to reduce distortion
- Macro lenses by INON, Epoque, and other manufacturers can be attached directly to front of housing's port
- Optional WD-3 wide-angle dome provides mid-range angle of view with no vignetting
- Ikelite W30 and INON UWL-H100 wide-angle lenses are recommended, as they provide edge sharpness with minimal vignetting
- Vignetting and edge distortion effects can be reduced or eliminated by using a smaller aperture, zooming in slightly, and/or cropping in post
- Optional 3.0" color-correction filters (or 3.6" filters for wide-angle coverage) can also be used to restore colors that get absorbed by water
- Flash Use
-
- Housing provides a direct electrical connection to camera's external hot shoe, which offers extended battery life and rapid fire shooting capabilities
- Built-in circuitry is fine-tuned to Canon's latest flash exposure protocol to enable the most accurate exposure possible
- Circuit powered by strobe, so there's no maintenance required and no batteries to change
- TTL exposure with integrated circuitry is only possible using Ikelite DS strobes and their required sync cords
- SEA&SEA, INON, and Nikonos strobes may be used with the required sync cords in manual exposure modes only, but will still benefit from improved battery life and faster recycle times
- Bulkhead connector has been moved to the top of the housing to keep cords out of your way and reduce strain on ends
- Two ports enable connection of fiber-optic cables from most major manufacturers
- Use of fiber optic connector requires firing of built-in flash, bypassing the housing's TTL functionality
- Threaded fit of cord attachment prevents accidental detachment during use
- Built-in flash is suitable for firing an external strobe, but not for lighting a photo underwater
- Strobe and Cord Compatibility
-
- Strobes:
- AF35: Not compatible
- DS50: Yes, above serial number 70000
- DS51: Yes
- DS125: Yes, above serial number 5000
- DS160, DS161: Yes
- DS200: Yes, above serial number 7163
- Sync Cords:
- Ikelite-to-Ikelite TTL Sync Cord (TTL) Product 4103.51
- Ikelite-to-Ikelite TTL Dual Sync Cord (TTL) Product 4103.52
- SEA&SEA / INON Strobe-to-Ikelite Non-TTL Sync Cord (Manual) Product 4118.1
- SEA&SEA / INON Strobe-to-Ikelite Non-TTL Dual Sync Cord (Manual) Product 4118.2
- Nikonos SB Strobe-to-Ikelite Non-TTL Sync Cord (Manual) Product 4116.31
- Nikonos SB Strobe-to-Ikelite Non-TTL Sync Cord (Manual) Product 4116.32
- Fiber-Optic Cables:
- Ikelite 4501 Fiber Optic Coiled Cord
- INON Optical D Cable "Non-wireless type" L-Connector
- Sea&Sea Fiber Optic Cable (L-type) Product No. 50107
- Olympus UW Fiber Optic Cable PTCB-E02
- Nauticam Optical Fiber Cable No. 26211 Nauticam to INON
- Nauticam Optical Fiber Cable No. 26212 Nauticam to SEA&SEA
- Built-in Wi-Fi
-
- Camera's built-in Wi-Fi can be used through the housing to transfer photos after your dive
- Wi-Fi function cannot be used underwater
UPC: 883711051727 - Canon PowerShot G5 X Digital Camera An advanced compact camera characterized by a large image sensor and fast zoom lens, the PowerShot G5 X from Canon pairs a 20.2MP 1" High-Sensitivity CMOS sensor and DIGIC 6 image processor to form the Canon HS SYSTEM for enhanced low-light capabilities, fast performance and Full HD 1080p/60 video recording. Matching the imaging versatility is the 4.2x optical zoom lens, which provides a 24-100mm equivalent focal length range, and features a bright f/1.8-2.8 maximum aperture for depth of field control and working in difficult lighting conditions. Both a high-resolution 2.36m-dot electronic viewfinder and 3.0" 1.04m-dot multi-angle touchscreen LCD are available for monitoring and image review, and built-in Wi-Fi with NFC allows you to wirelessly share imagery with a smartphone, tablet, or Connect Station CS100. Revolving around the sophisticated sensor and processor combination, the G5 X sports both apt imaging capabilities as well as a wealth of functional assets for shooting control and sharing.
To benefit handling, the G5 X has been fitted with numerous physical controls, including a dedicated exposure compensation dial, front dial, control ring and control dial for quickly customizing various shooting settings. A hot shoe is incorporated into the design for working with an optional external flash, and the camera is also compatible with the optional RS-60E3 for wired remote shooting. - 20.2MP 1" CMOS Sensor and DIGIC 6 Processor
- A large 20.2MP 1" High-Sensitivity CMOS sensor and DIGIC 6 image processor combine to create the Canon HS SYSTEM, which offers enhanced low-light performance with reduced image noise, as well as a top sensitivity of ISO 12800. The sensor and processor also benefit performance speeds throughout the camera, including a top 5.9 fps shooting rate in one-shot AF or 4.4 fps with continuous AF. The physically large sensor and advanced processing techniques also contribute to rich image quality that is well-suited to printing applications.
- 4.2x Optical Zoom Lens
- The versatile 4.2x optical zoom lens covers a wide-angle to short telephoto 24-100mm equivalent focal length range, and features an f/1.8-2.8 maximum aperture along with image stabilization to benefit handheld shooting in difficult lighting conditions. The fast maximum aperture also pairs with a nine-blade diaphragm to produce a smooth out-of-focus quality when working with selective focus techniques.
- Intelligent IS
- Utilizing the unique Intelligent IS image stabilization system, this camera compensates for a variety of types of camera shake by analyzing different movement types and applying specific settings to produce the sharpest imagery and smoothest movies:
- Normal IS: Corrects for a wide variety of camera movement types when shooting stills.
- Panning IS: Intended for use when making tracking shots, this setting ensures that IS will not interfere with desired lateral camera movements.
- Macro (Hybrid) IS: Used for both stills and video recording, this setting corrects for shift-type camera shake that is common when photographing close-up subjects. It also compensates for motion blur associated with recording video while walking.
- Tripod: Image stabilization is deactivated when shooting stills atop a tripod.
- Dynamic IS: This setting is effective when recording video using wider focal lengths and simultaneously walking or moving.
- Powered IS: Ideally suited for shooting video with telephoto focal lengths, this mode compensates for the camera movements that become more apparent with greater zoom magnifications.
- Active Tripod IS: Unlike the stills tripod mode, this video-specific tripod mode compensates for slight amounts of shake that can be caused when recording movies from a tripod.
- Body Design
-
- A 2.36m-dot electronic viewfinder offers high-resolution, wide gamut eye-level monitoring for critical viewing in harsh lighting conditions. The viewfinder provides 100% frame coverage, incorporates a sensor for switching between the finder and rear monitor, has a smooth refresh rate of 120 fps, and has an eye point of 22mm for viewing flexibility.
- For live view monitoring and image playback, a 3.0" 1.04m-dot LCD screen is available and features a multi-angle design for working from high and low angles, and is also a touchscreen for intuitive settings control and menu navigation. The vari-angle design can rotate up to 270° and can also be turned around and closed against the camera body for protection while shooting.
- An exposure compensation dial, as well as a customizable front dial, control ring, and control dial, lend easily accessible, direct control over various shooting settings.
- A hot shoe allows you to pair optional external flashes as well as other shoe-mounted accessories with the camera.
- A remote socket permits use of the optional RS-60E3 Remote Switch for wired remote camera control.
- Full HD Video Recording
- In addition to stills shooting, Full HD 1080p video recording is possible in multiple frame rates, including 60, 30, and 24 fps. Movies are saved in the MP4 format and an HDMI port permits direct, high definition playback and live monitoring on external screens. Audio quality has been enhanced thanks to a wider dynamic range and better signal-to-noise ratio and for greater control during recording, access to manual exposure modes is available. Additionally, focus peaking can be used for faster, more intuitive manual focusing.
- Built-In Wi-Fi with NFC
- Both photos and movies can be wirelessly shared to smartphones or tablets, using the Canon Camera Connect app, for instant online sharing or backed up to the Canon Connect Station CS100 via built-in Wi-Fi with NFC connectivity. Remote shooting from a linked mobile device is also available, allowing you to wirelessly configure exposure modes, aspect ratios, AF frame modes, or drive modes. In addition to the touch-to-connect functionality of NFC, a dedicated mobile device connect button is also integrated into the camera's design for seamless pairing of the camera to a device for browsing and sharing imagery.
- Other Camera Features
-
- Dedicated Star Modes and functions can be used to capture photos and videos of the nighttime sky with enhanced brilliance and clarity. Star Nightscape, Star Trails, and Star Time-Lapse Movies can be recorded, with auto or manual settings, and support functions, such as Night Display, Color Adjustment, and star Emphasis, offer greater control over the final results.
- A built-in pop-up flash can be used to provide additional illumination to a scene when working in challenging lighting conditions.
- The included NB-13L rechargeable lithium-ion battery provides up to 210 shots per charge when working with the LCD screen, 215 shots per charge with the electronic viewfinder, or 320 shots per charge in the ECO Mode.
- An electronic level function helps to ensure plumb verticals and level horizons.
- Photo Effects: My Colors Off, Vivid, Neutral, Sepia, Black & White, Positive Film, Lighter Skin Tone, Darker Skin Tone, Vivid Blue, Vivid Green, Vivid Red, and Custom Color.
- Playback Functions: Story Highlights, Protect, Favorites, Erase, Print, Group Playback, Play Movie, List/Play Digest Movies, Image Search, Slideshow, Rotate, Album Playback, Play Creative Shot Movies, Short Clip Mix, i-Contrast, Resize, Cropping, Red-Eye Correction, My Colors, Face ID Info, Print Settings, Photobook Set-up, Transition Effect, Index Effect, Scroll Display, Group Images, Auto Rotate, Resume, Image Jump with Control Ring/Front Dial, and Set Touch Actions.
UPC: 013803266986 In the Box - Underwater Housing with TTL Circuitry for Canon PowerShot G5 X ucqqxwqesbyqvdrf
- Waterproof Bulkhead Cap
- 1cc Tube of Silicone Lubricant
- Limited 2-Year Warranty
- Canon - PowerShot G5 X Digital Camera
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing with TTL Circuitry and Canon PowerShot G5 X Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Ikelite Underwater Housing with TTL Circuitry for Canon PowerShot G5 X
| Depth Rating | 200' / 60 m | | Control Type | Mechanical push-buttons, knurled knobs/dials, and a lever | | Controls | Provide access to all camera functions except diopter adjustment dial and mobile device connection button (mobile devices may be connected through housing using camera menus) | | Material of Construction | Polycarbonate | | Lens Port | Built-in glass port with flat front element and 3.0" / 76 mm diameter
Compatible with optional WD-3 Wide Angle Dome and optional external wide-angle and macro add-on lenses with 67 mm threads | | Color Correction Filters | 3.0" / 76 mm diameter color-correction filters press directly onto port | | Buoyancy | Slightly negative in fresh water | | Internal Flash Usable | Suitable for firing an external strobe, but not for underwater lighting | | External Flash Connector | Ikelite bulkhead connector with built-in TTL circuitry works with optional Ikelite DS strobes Two ports for connection of optional Ikelite, SEA&SEA, INON, or Nikonos fiber-optic cables | | Mounting | Two 1/4"-20 threaded mounts with 3.0" / 76 mm spacing to connect optional tray with 1-2 lighting arms | | Dimensions | 7.4 x 5.8 x 5.8" / 18.8 x 14.7 x 14.7 cm | | Weight | 3.3 lb / 1.5 kg (excluding tray, handles, and port) | | | | Box Dimensions (LxWxH) | 9.6 x 6.5 x 6.5" | - Canon PowerShot G5 X Digital Camera
| | | Pixels | Actual: 20.9 Megapixel
Effective: 20.2 Megapixel | | Sensor | 1" CMOS | | Bit Depth | 14-Bit | | File Formats | Still Images: JPEG, RAW
Movies: MP4,
Audio: AAC LC | | Max Resolution | 20.2 MP: 5472 x 3648 | | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 | | Image Stabilization | Optical | | | | Lens | Effective Focal Length: 8.8 to 36.8mm (35 mm Equivalent: 24 to 100mm)
Aperture: f/1.8 (W) to f/2.8 (T) | | Zoom | Optical: 4.2x
Digital: 4x | | Focus Range | Wide: 2" to Infinity / 5.08 cm to Infinity
Telephoto: 1.3' to Infinity / 39.62 cm to Infinity
Macro: 2" to 1.6' / 5.08 cm to 48.77 cm | | | | ISO Sensitivity | Auto, 125 to 6400 (Extended Mode:125 to 12800) | | Shutter | 30 to 1/2000 Second , Bulb Mode
1 to 1/2000 Second in Auto Mode
1/8 to 1/2000 Second in Movie Mode | | Exposure Metering | Center-Weighted, Evaluative, Spot | | Exposure Modes | Modes: Aperture Priority, Auto, Creative Filters, Creative Shot, Custom, Hybrid Auto, Manual, Movie, Program, SCN, Shutter Priority
Compensation: -3 EV to +3 EV (in 1/3 EV Steps) | | Shooting Modes | Background Defocus
Fireworks
Fish-Eye Effect
HDR
Handheld Night Scene
Miniature Effect
Monochrome
Movie
Nostalgic
Portrait
Poster Effect
Self-Portrait
Soft Focus
Sports
Star Nightscape
Star Portrait
Star Time-Lapse Movie
Star Trails
Super Vivid
Toy Camera Effect | | White Balance | Auto, Cloudy, Custom 1, Custom 2, Daylight, Flash, Fluorescent, Fluorescent H, Shade, Tungsten | | Continuous Shooting | Up to 5.9 fps at 20.2 MP for up to Exposures
Up to 4.4 fps at 20.2 MP for up to Exposures | | Self-Timer | 2, 10 Sec | | Interval Recording | Yes | | Remote Control | RS-60E3 (Optional) | | | | Flash Modes | Auto
Forced On
Off
Slow Sync | | Built-In Flash | Yes | | Effective Flash Range | Wide:1.6 to 23.0' / 0.5 to 7 m
Telephoto:1.6 to 13.1' / 0.5 to 4 m | | External Flash Connection | Hot Shoe | | | | Memory Card Type | SD
SDHC
SDXC | | | | Video Recording | Yes, NTSC/PAL | | Resolution | 1920 x 1080p: 59.94 fps, 29.97 fps, 23.98 fps, 14.985 fps
1280 x 720p: 29.97 fps, 6 fps, 3 fps, 1.5 fps
640 x 480p: 29.97 fps, 6 fps, 3 fps, 1.5 fps | | | | Video Clip Length | Up to 4 GB or 29 Minutes 59 Seconds | | Audio Recording | Built-In Mic: With Video (Stereo) | | | | Viewfinder Type | Electronic | | Viewfinder Coverage | 100% | | Screen | 3.0" LCD Rear Touchscreen Swivel (1,040,000 Pixels) | | Screen Coverage | 100% | | | | Connectivity | HDMI D (Micro), USB 2.0 Micro-B, USB 2.0 | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) Built In | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | | | Battery | 1 x NB-13L Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1250 mAh | | AC Power Adapter | ACK-DC110 (Not Included) | | | | Dimensions (W x H x D) | 4.4 x 3.0 x 1.7" / 112.4 x 76.4 x 44.2 mm | | Weight | 13.3 oz / 377.1 g with battery and memory card | | | | Box Dimensions (LxWxH) | 7.087 x 6.693 x 3.543" |
