Ikelite Underwater Housing with TTL Circuitry

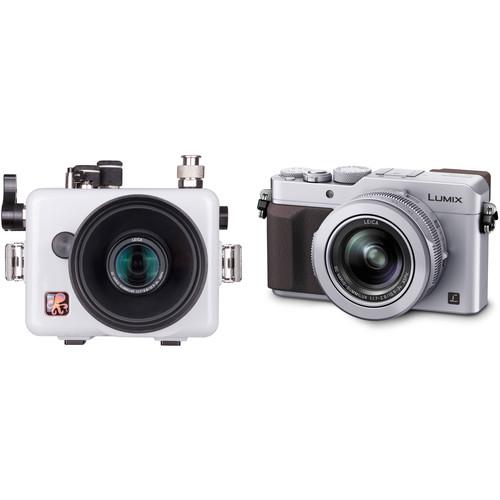

User Manual for Ikelite Underwater Housing with TTL Circuitry and Panasonic Lumix DMC-LX100 Camera Kit

• Product category: Still Cameras & Housings Ikelite
• Brand: Ikelite
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Ikelite Still Cameras & Housings

Product description

• Ikelite Underwater Housing with TTL Circuitry for Panasonic LUMIX LX100, LX100 II or Leica D-Lux Typ 109 (White) Capture photos and video 200' beneath the surface with your Panasonic LUMIX LX100, LX100 II or Leica D-Lux Typ 109 digital camera, thanks to this updated version of the dedicated Ikelite Underwater Housing. The large, ergonomic mechanical controls provide access to all camera functions except for the flash and viewfinder switches. This version adds an ergonomic, side-mounted shutter lever, and offers improved zoom and rear dial control. Two 1/4"-20 mounts have also been added on the bottom for connection to a tray.

  Additionally, while the rear plate is clear, the front, top, and sides of the housing are now made of a white ABS/polycarbonate blend, which is still corrosion resistant but also reflects sunlight to keep your camera cooler when shooting at or above the water's surface. The housing features built-in, proprietary TTL circuitry and an Ikelite 5-pin bulkhead connector, which combine to allow for TTL exposure with optional, external Ikelite DS Substrobes. Non-Ikelite strobes are compatible in manual mode.

  An integrated flat glass lens port with a 3.9" diameter accepts optional, external wide-angle and macro add-on lenses to enhance your view. You can also add optional color-correction filters to restore hues that get absorbed by the water.
  Waterproofing
  • • Features a depth rating of 200'
    • Two double-passivated, stainless steel locking lid snaps are easy to use and virtually unbreakable
    • See O-ring form a solid watertight seal as you close housing
    • Rear seal design prevents accidental twisting or stretching of O-ring, and eliminates need for groove or channel that can trap dirt, sand, or debris
    • Spare 1/2-20 accessory port for installing optional vacuum valve
  Controls and Handling
  • • Large, ergonomic mechanical controls, including push buttons, knurled knobs/dials, and levers enable smooth operation
    • Access provided to all camera functions except for flash and viewfinder switches
    • Ergonomic, side-mounted shutter lever has been added
    • Improves upon previous version of housing with better zoom and rear dial control
    • Controls placed in similar configuration as they are on camera, allowing for seamless transition based on familiarity and muscle memory that have already been developed
    • Rear controls marked with easily visible, laser-engraved symbols, which won't peel or fade off with time
    • Attaching an optional single or dual-handle tray will afford improved handling and balance, while offering connection points for arms that can hold flash units or video lights
  Construction Details
  • • Designed, made by hand, and tested in the USA
    • Top, front, and sides are made from durable, corrosion-resistant, white ABS/polycarbonate blend
    • Reflects sunlight to keep your camera cooler when shooting at or above water's surface
    • Provides greater contrast than totally clear housings, giving you better view of camera, screen, and O-ring seal when looking through clear back plate
    • Front-loading camera installation makes for quick and easy setup
    • Two standard 1/4"-20 mounts added on bottom for connection to optional tray
  Lens Port
  • • Integrated flat glass lens port has 3.9" diameter
    • Accepts optional, external, 0.75x WD-4 Wide-Angle Dome or 67mm threaded macro conversion lenses, in order to provide increased field of view or better clarity and detail in close-ups, respectively
    • Macro lenses available from Epoque, INON, Subsee, Nauticam, and others, and can be attached using optional press-fit Macro Adapter
    • Both wide-angle and macro lenses will enable you to get closer to your subjects, cutting down on the amount of water between you and them to reduce distortion
    • Use of WD-4 results in no edge distortion or vignetting
    • Add optional color-correction filters to restore colors that get absorbed by water
    • #6441.46 filter available for blue water and #6441.86 available for green water
  External Strobe Connection
  • • Integrated TTL circuitry is fine-tuned to camera's flash exposure protocol, in order to allow for most accurate exposure possible
    • Circuit is powered by strobe, so no replacement of batteries or maintenance is required
    • Exposure compensation in TTL mode is supported using camera's built-in control
    • TTL and manual modes possible with Ikelite DS strobes, including DS50 (above serial number 70000), DS51, DS125 (above serial number 5000), DS160, DS161, and DS200 (above serial number 7163)
    • Third-party strobes operable in manual mode only, but will still benefit from fast recycle times and improved battery life
    • Housing provides direct electrical connection to camera's hot shoe
    • Features Ikelite bulkhead sync cord connector, eliminating need for camera's built-in flash to fire
    • Sync cord attachment is as easy as screwing in a light bulb, and threaded fit prevents accidental detachment during use
    • Bulkhead sync cord connector has been moved to top of housing to keep cords out of the way and reduce strain on ends
    • Various sync cords available, including Ikelite-to-Ikelite TTL Single (#4103.51), Ikelite-to-Ikelite TTL Dual (#4103.52), Sea & Sea/INON-to-Ikelite Non-TTL Single (#4118.1), Sea & Sea/INON-to-Ikelite Non-TTL Dual (#4118.2), Nikonos SB-to-Ikelite Non-TTL Single (#4116.31), and Nikonos SB-to-Ikelite Non-TTL Dual (#4116.32)
  UPC: 883711053745
• Panasonic Lumix DMC-LX100 Digital Camera (Silver) The silver Panasonic Lumix DMC-LX100 Digital Camera is an advanced Four Thirds format point-and-shoot with manual controls designed to enable and inspire creativity. It features a large multi-aspect 4/3" type MOS sensor to produce 12.8MP still images (4:3) and 4K Ultra HD video at 30 and 24 fps. You also have the ability to extract high-resolution 8MP images from the 4K video, letting you capture entire scenes without missing a shot.

  The built-in Leica DC Vario-Summilux zoom lens provides a 35mm-equivalent focal length range of 24-75mm, covering wide-angle to portrait-length perspectives. With a fast maximum aperture of f/1.7-2.8, the lens lets you work in lower light situations and provides selective focus control for shallow depth of field imagery, enhanced by a nine-bladed aperture for smooth out-of-focus rendering. When more light is needed, the camera features an integrated hot shoe, letting you use external flash units. A compact flash unit is included with the camera, matching the style and color of the body, and providing a GN of 23' (7m) at ISO 100.

  The lightweight, compact body features both an electronic viewfinder and a rear LCD screen. The high-density 2,764k-dot viewfinder lets you confidently frame your shots, even in bright outdoor environments. Delivering approximately 100% of the Adobe RGB color space, the viewfinder accurately reproduces hues, so you know what you see is what you're capturing. The rear 3.0" screen is also available, with a 921k-dot resolution. Additionally, built-in Wi-Fi connectivity with NFC allows remote camera control and image sharing from linked mobile devices using the Panasonic Image App.
  4/3" Type MOS Sensor
  • The LX100 features a 4/3"-sized MOS image sensor - similar in size to the sensors found in Panasonic's interchangeable lens mirrorless Micro Four Thirds cameras. The high-sensitivity sensor features a multi-aspect sensor with 16.8MP total resolution, enabling you to use more height or width of the sensor, depending on the aspect ratio you're shooting in. Additionally, by maintaining an effective resolution of 12.8MP (in 4:3 mode), the volume of light is controlled to improve the S/N ratio for clearer, detailed imaged with reduced noise, even when shooting at ISO 25600.
  Multiple Aspect Ratios
  • To take advantage of the multi-aspect sensor, a switch on the lens barrel lets you quickly switch between 4:3, 3:2, or 16:9 aspect ratios without having to scroll through menus.
  Manual Controls
  • The LX100 is designed to inspire creativity by offering a full range of manual controls and advanced imaging features. Dedicated lens rings give you intuitive control of aperture, zoom, while dials on the top of the camera give you easy access to shutter speed and exposure compensation.
  24-75mm Leica DC Vario-Summilux f/1.7-2.8 Lens
  • The built-in Leica DC Vario-Summilux lens provides a 35mm-equivalent focal length range of 24-75mm, covering wide-angle to portrait length perspectives to suit working in a wide variety of shooting conditions. An f/1.7-2.8 maximum aperture benefits working in low light conditions throughout the entire zoom range and enables greater control over focus placement for shallow depth of field imagery. Five aspherical elements, including two ED lenses, are incorporated into the lens design to minimize chromatic aberrations throughout the zoom range to benefit creating sharp, clear imagery.
  Light Speed AF with DFD Technology
  • Light Speed AF, a contrast-detection AF system, uses Depth from Defocus technology to greatly reduce focus time. It instantly calculates distance to subject by evaluating two separate images with different sharpness levels. The result is a high-speed AF in approximately 0.14 seconds.
  High-Resolution EVF
  • The integrated 2764k-dot resolution viewfinder lets you frame and capture shots even in bright sunlight. Based on the Adobe RGB color space, the viewfinder faithfully reproduces the primary colors for more true-to-life hues, allowing you to accurate judge the colors of your scene. And to prevent missing any shooting opportunity, the Eye Sensor AF can be set to initiate auto focusing the instant you look into it.
  4K UHD and Full HD Video Recording
  • Take advantage of 4K Ultra HD 3840 x 2160 video recording at 30 or 24 fps in MP4 format. 4K video can be recorded for up to 15 minutes, and requires an SD card rated at UHS-I Speed Class 3. The camera also records Full HD 1080p video at 60 or 30 fps in MP4 or AVCHD formats.
  Grab High-Resolutions Stills from 4K Video
  • The LX100 has the ability to use the 4K video as a high-speed burst shooting mode, letting you extract 8MP resolution stills from the footage. This yields images with enough resolution to enlarge and print high-quality photos. Once 4K photo mode is selected, the luminance level is adjusted to 0-255. At the same time, you can select 4:3 or 3:2, in addition to 16:9 with the aspect ratio switch.
  Brackets
  • In addition to tradition exposure bracketing, the camera can also bracket images with different aspect ratios (4:3, 3:2, 16:9, and 1:1), white balance parameters, and monochrome photo styles.
  Creative Control with 22 Filter Effects
  • Expressive, Retro, Old Days, High Key, Low Key, Sepia, Monochrome, Dynamic Monochrome, Rough Monochrome, Silky Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Toy Pop, Bleach Bypass, Miniature Effect, Soft Focus, Fantasy, Star Filter, One Point Color, Sunshine

    Note: Available effects vary depending on shooting mode
  External Flash Included
  • When extra light is needed, take advantage of the camera's integrated hot shoe with the included external flash unit. The flash features a guide number of 23' (7 m) at ISO 100.
  Wireless Connectivity
  • Built-in Wi-Fi lets you use the Panasonic Image App on your mobile device to set focus and shoot photos and videos remotely. You can then instantly upload and share images to social media sites, as well as tag location information to the image using the GPS log on your smartphone or tablet. NFC support lets you instantly sync an NFC-compatible smartphone or tablet simply by touching it to the camera. You can also scan the QR code displayed on the camera monitor to sync.
  Additional Features
  • • Fast shutter speed
    • 11 fps burst shooting with mechanical shutter; up to 40 fps with electronic shutter
    • Time lapse shot
    • Stop motion animation
    • Highlight/Shadow gamma curve control
    • Focus Peaking with control ring
    • Digital level gauge
    • 43mm Filter thread
  UPC: 885170226739

• Underwater Housing with TTL Circuitry for Panasonic LUMIX LX100, LX100 II or Leica D-Lux Typ 109 (White) zyfcwqyqevuucaft
• Replacement 4" Vinyl Port Cover for Flat Assembly
• 0184.1 1cc Tube of Silicone Lubricant
• Limited 2-Year Warranty

• Panasonic - Lumix DMC-LX100 Digital Camera (Silver)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ikelite Underwater Housing with TTL Circuitry for Panasonic LUMIX LX100, LX100 II or Leica D-Lux Typ 109 (White)

  Depth Rating	200' / 60 m
  Control Type	Mechanical, including push buttons, knurled knobs/dials, and levers
  Controls	Provide access to all camera functions except for flash and viewfinder switches
  Material of Construction	ABS and polycarbonate blend
  Lens Port	Built-in, flat glass port with 3.9" / 9.9 cm diameter
  Color Correction Filter	#6441.46 filter available for blue water and #6441.86 available for green
  Buoyancy	Slightly negative in fresh water
  External Flash Connector	Integrated TTL circuitry and Ikelite 5-pin bulkhead sync cord connector TTL and manual exposure modes possible with Ikelite DS strobes Third-party strobes operable in manual mode
  Mounting	2x 1/4"-20 threaded mounts with 3.0" / 76 mm spacing for optional tray
  Dimensions	6.0 x 7.3 x 5.9" / 15.2 x 18.5 x 15 cm
  Weight	3.5 lb / 1.6 kg

  Box Dimensions (LxWxH)	10.0 x 9.9 x 7.0"

• Panasonic Lumix DMC-LX100 Digital Camera (Silver)

  Pixels	Actual: 16.84 Megapixel Effective: 12.8 Megapixel
  Sensor	Four Thirds CMOS
  File Formats	Still Images: JPEG, RAW Movies: AVCHD, MP4
  Max Resolution	4112 x 3088
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Image Stabilization	Optical

  Lens	Lumix DC Vario, 11 Elements in 8 Groups 5 Aspherical, 2 ED Effective Focal Length: 10.9 to 34mm (35 mm Equivalent: 24 to 75mm) Aperture: f/1.7 (W) to f/2.8 (T) to f/16
  Filter Thread	43mm
  Zoom	Optical: 3.1x Extra Optical Zoom (EZ): 6.2x Intelligent Zoom: 6.2x Digital: 4x
  Focus Range	Normal: 19.69" to Infinity / 50 cm to Infinity Macro: 1.18" to Infinity / 3 cm to Infinity Manual: 1.18" to Infinity / 3 cm to Infinity

  ISO Sensitivity	200 to 25600 (Extended Mode:100 to 25600)
  Shutter	Type: Mechanical Speed: 60 to 1/4000 Second Type: Electronic Speed: 1 to 1/16000 Second 1/2 to 1/16000 Second in Movie Mode
  Exposure Metering	Center-Weighted, Multi, Spot
  Exposure Modes	Modes: Aperture Priority, Manual, Program, Shutter Priority Compensation: -3 EV to +3 EV (in 1/3 EV Steps)
  Shooting Modes	A (Aperture Priority) Bleach-Bypass Cross-Process Dynamic Monochrome Expressive Fantasy High Dynamic High-Key Impressive Art Intelligent Auto Low Key M (Manual) Miniature Effect Monochrome Natural Old Days One Point Color P Panorama Portrait Retro Rough Monochrome S (Speed Priority) Scenery Sepia Silky Monochrome Soft Focus Standard Star Filter Sunshine Toy Camera Effect Toy Pop Vivid Color
  White Balance	Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4
  Continuous Shooting	Up to 40 fps for up to Exposures

  Built-In Flash	No
  Effective Flash Range	Wide:2.0 to 46.3' / 0.6 to 14.1 m Telephoto:0.98 to 27.89' / 0.3 to 8.5 m
  External Flash Connection	Hot Shoe

  Memory Card Type	SD SDHC SDXC

  Video Recording	Yes
  Resolution	3840 x 2160p: 30 fps, 24 fps 1920 x 1080p: 60 fps, 30 fps 1280 x 720p: 30 fps 640 x 480p: 30 fps

  Video Clip Length	Up to 29 Minutes 59 Seconds

  Viewfinder Type	Electronic
  Viewfinder Coverage	100%
  Screen	3.0" LCD Rear Screen (921,000 Pixels)
  Screen Coverage	100%

  Connectivity	AV / USB Multi, AV Output, HDMI D (Micro)
  Wi-Fi	Yes, Wi-Fi 4 (802.11n) Built In

  Battery	Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1025 mAh

  Dimensions (W x H x D)	4.5 x 2.6 x 2.2" / 114.8 x 66.2 x 55.0 mm
  Weight	13.86 oz / 393 g with battery and SD card

  Box Dimensions (LxWxH)	6.5 x 6.0 x 4.5"
