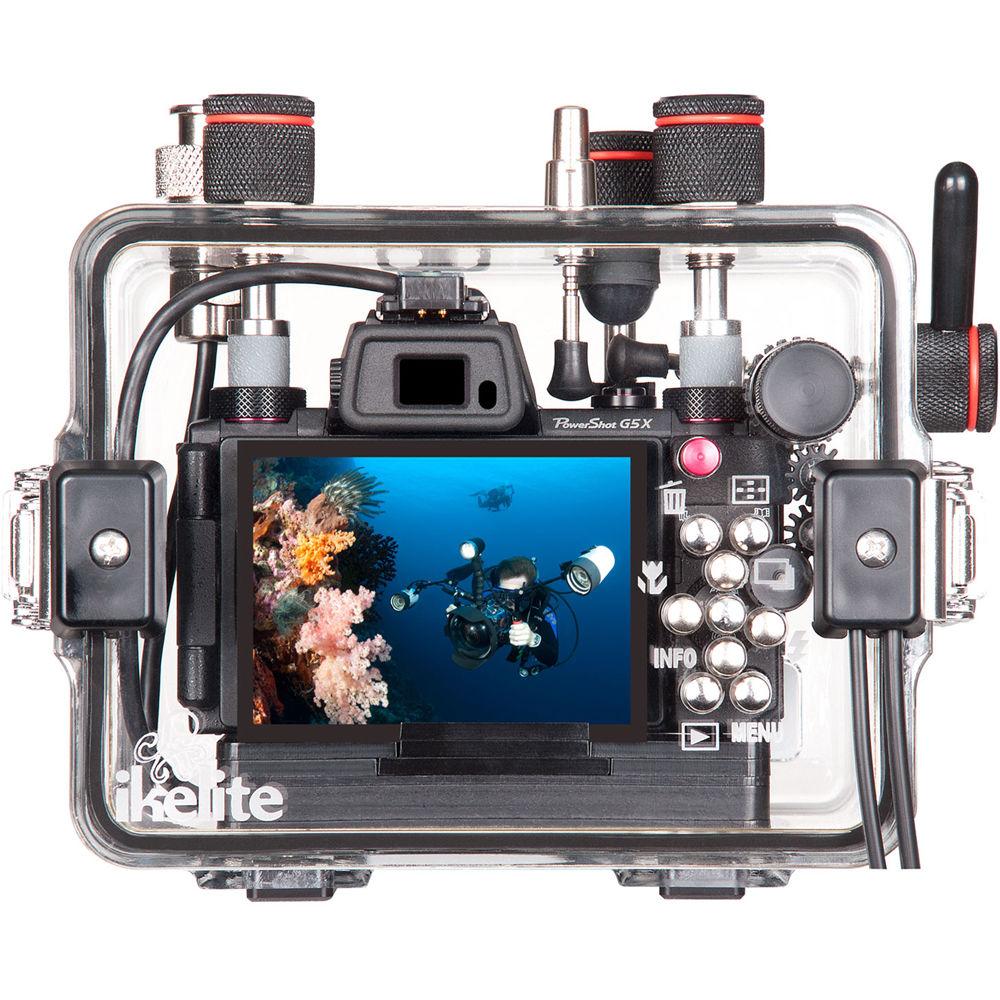

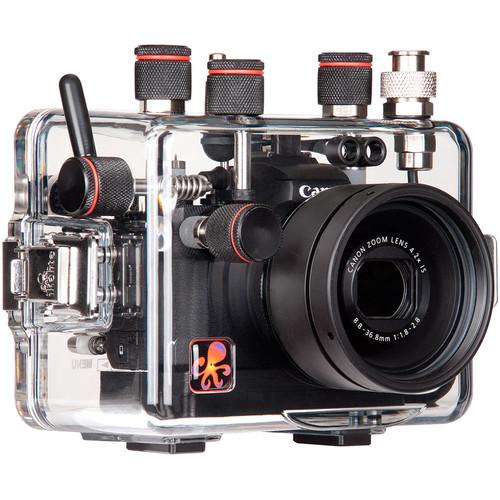

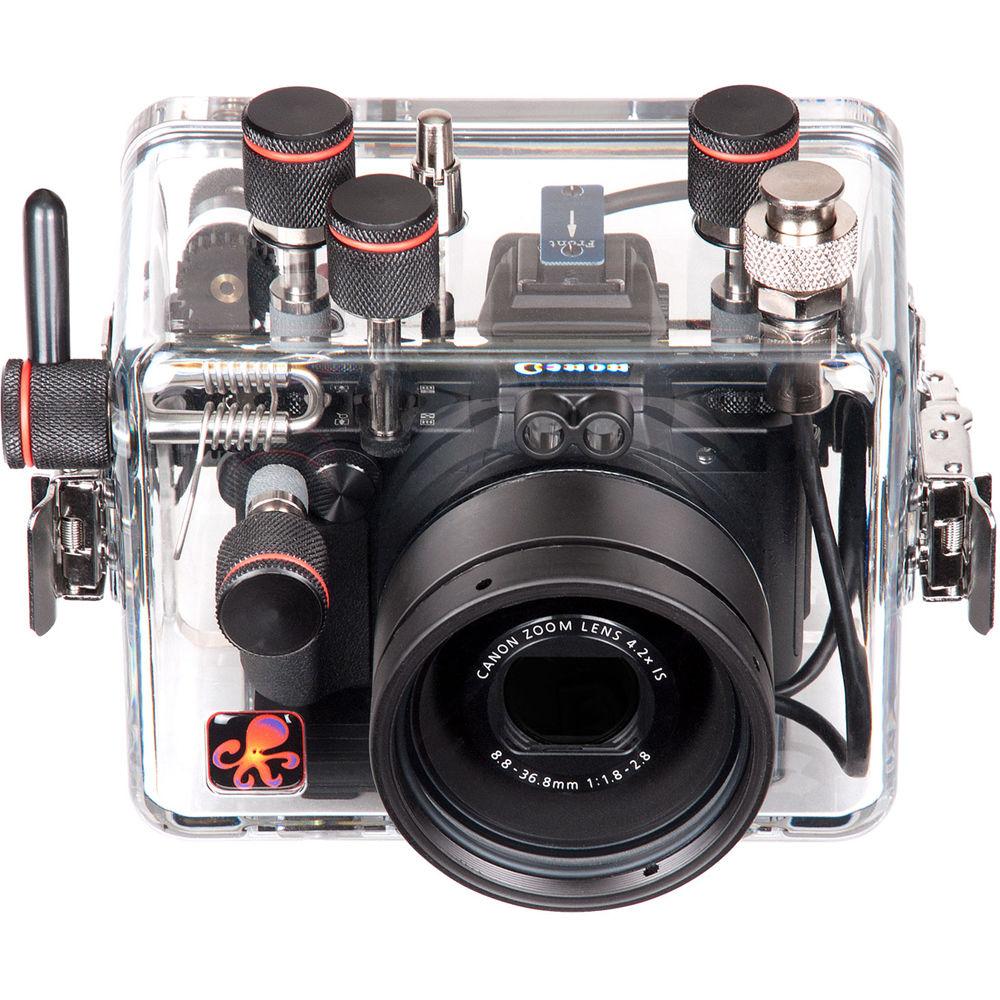

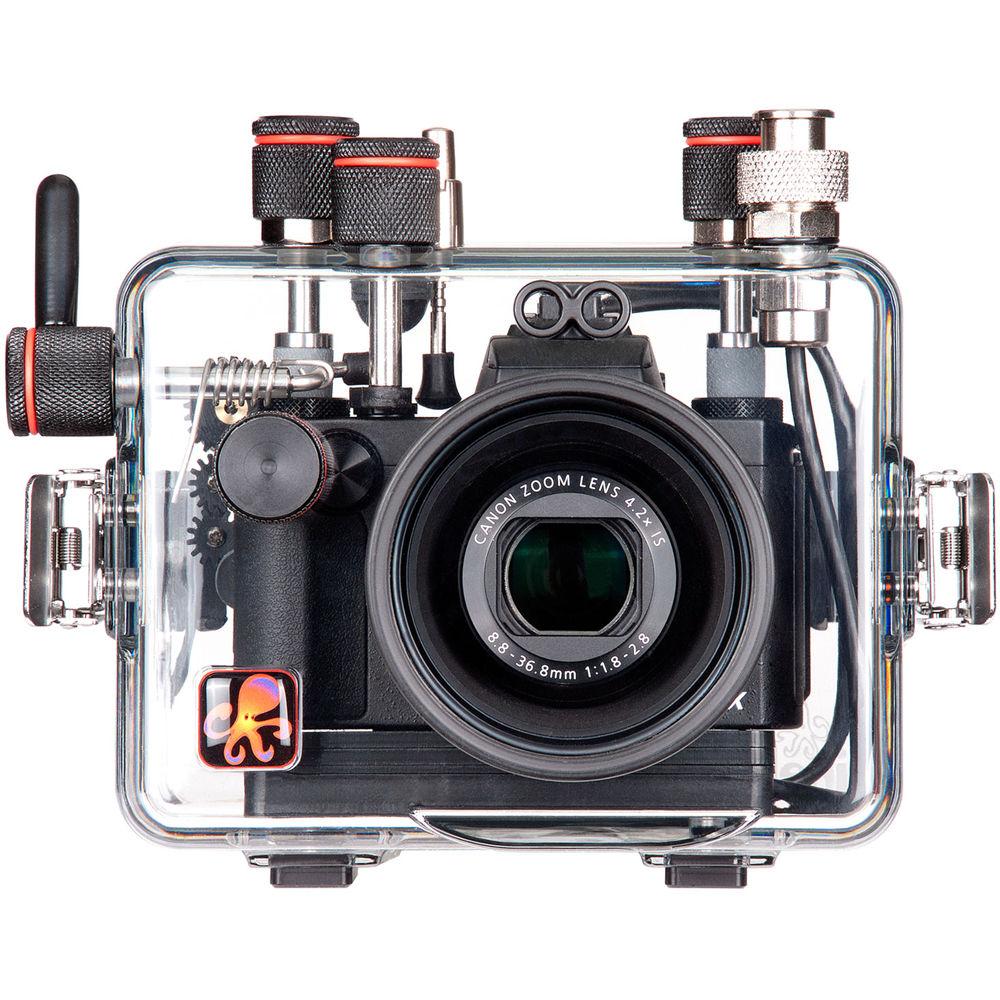

User Manual for Ikelite Underwater Housing with TTL Circuitry for Canon PowerShot G5 X Click to enlarge the picture
Contents of the user manual for the Ikelite Underwater Housing with TTL Circuitry
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
 |
User manual for the Ikelite Underwater Housing with TTL Circuitry contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Capture images and video at depths up to 200' beneath the surface using this Underwater Housing with TTL Circuitry for the Canon PowerShot G5 X from Ikelite. Large, ergonomic mechanical controls provide access to virtually all camera functions.
The enclosure's built-in, proprietary circuitry and Ikelite bulkhead connector allow for TTL exposure with optional, external Ikelite DS Substrobes. Non-Ikelite strobes are compatible in manual mode, as well. Alternatively, you can make use of the two fiber-optic ports built into the front of the housing, which enable the attachment of optional cables from most major manufacturers. The connectors are threaded to prevent accidental detachment during use. Optional SEA&SEA, INON, and Nikonos strobes can be used in manual exposure modes. A fiber-optic connection relies on the firing of the camera's built-in flash to trigger strobes, whereas a TTL bulkhead connection uses a sync cord and does not require the camera's flash to fire.
Built for durability, the housing is designed, made by hand, and tested in the USA. Manufactured from durable, clear polycarbonate, it resists corrosion and allows you to maintain a full view of the camera while monitoring the o-ring seal. The camera is secured inside by way of a compact mounting tray that attaches to the camera's tripod mount and slides into the front. Two 1/4"-20 attachment points underneath offer rotation-free mounting of an optional tray and handles.
The housing's integrated flat glass lens port has a 3.0" diameter and accepts the optional WD-3 wide-angle dome, as well as external wide-angle and macro add-on lenses for an increased field of view or clearer, more detailed close-ups. Additionally, optional color-correction filters with 3.0-3.6" diameters can be attached to restore colors that get absorbed underwater. Once back up above the surface, the camera's built-in Wi-Fi can be used through the housing to transfer your images. - Construction Details
-
- Features a depth rating of 200'
- Close the two locking lid snaps at each side to see the o-ring form a watertight seal
- Controls and Handling
-
- Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and a lever, afford access to all camera controls except for diopter adjustment dial and mobile device connect button
- Mobile devices may be connected through housing via camera's menus
- Controls are large for easy operation while wearing diving gloves
- Easy-to-reach gear activates camera's versatile front control ring
- All rear controls are clearly marked with laser engraving that will never peel off or fade
- Two 1/4"-20 mounts at bottom of housing offer rotation-free mounting of an optional tray and handles
- Optional tray with 1 or 2 quick-release handles provides improved balance underwater, while also offering attachment points for optional lighting arms
- Construction Details
-
- Designed, made by hand, and tested in USA
- Made from corrosion-resistant, clear polycarbonate, allowing you to monitor O-ring seal and maintain a full view of camera
- Lens Port
-
- Built-in flat glass lens port has a 3.0" diameter
- Compatible with optional, external wide-angle and macro add-on lenses with 67mm threads for increased field of view or extreme close-up shots with better clarity and detail, respectively
- Both types of lenses enable you to get closer to subjects, cutting down on amount of water between subject and lens to reduce distortion
- Macro lenses by INON, Epoque, and other manufacturers can be attached directly to front of housing's port
- Optional WD-3 wide-angle dome provides mid-range angle of view with no vignetting
- Ikelite W30 and INON UWL-H100 wide-angle lenses are recommended, as they provide edge sharpness with minimal vignetting
- Vignetting and edge distortion effects can be reduced or eliminated by using a smaller aperture, zooming in slightly, and/or cropping in post
- Optional 3.0" color-correction filters (or 3.6" filters for wide-angle coverage) can also be used to restore colors that get absorbed by water
- Flash Use
-
- Housing provides a direct electrical connection to camera's external hot shoe, which offers extended battery life and rapid fire shooting capabilities
- Built-in circuitry is fine-tuned to Canon's latest flash exposure protocol to enable the most accurate exposure possible
- Circuit powered by strobe, so there's no maintenance required and no batteries to change
- TTL exposure with integrated circuitry is only possible using Ikelite DS strobes and their required sync cords
- SEA&SEA, INON, and Nikonos strobes may be used with the required sync cords in manual exposure modes only, but will still benefit from improved battery life and faster recycle times
- Bulkhead connector has been moved to the top of the housing to keep cords out of your way and reduce strain on ends
- Two ports enable connection of fiber-optic cables from most major manufacturers
- Use of fiber optic connector requires firing of built-in flash, bypassing the housing's TTL functionality
- Threaded fit of cord attachment prevents accidental detachment during use
- Built-in flash is suitable for firing an external strobe, but not for lighting a photo underwater
- Strobe and Cord Compatibility
-
- Strobes:
- AF35: Not compatible
- DS50: Yes, above serial number 70000
- DS51: Yes
- DS125: Yes, above serial number 5000
- DS160, DS161: Yes
- DS200: Yes, above serial number 7163
- Sync Cords:
- Ikelite-to-Ikelite TTL Sync Cord (TTL) Product 4103.51
- Ikelite-to-Ikelite TTL Dual Sync Cord (TTL) Product 4103.52
- SEA&SEA / INON Strobe-to-Ikelite Non-TTL Sync Cord (Manual) Product 4118.1
- SEA&SEA / INON Strobe-to-Ikelite Non-TTL Dual Sync Cord (Manual) Product 4118.2
- Nikonos SB Strobe-to-Ikelite Non-TTL Sync Cord (Manual) Product 4116.31
- Nikonos SB Strobe-to-Ikelite Non-TTL Sync Cord (Manual) Product 4116.32
- Fiber-Optic Cables:
- Ikelite 4501 Fiber Optic Coiled Cord
- INON Optical D Cable "Non-wireless type" L-Connector
- Sea&Sea Fiber Optic Cable (L-type) Product No. 50107
- Olympus UW Fiber Optic Cable PTCB-E02
- Nauticam Optical Fiber Cable No. 26211 Nauticam to INON
- Nauticam Optical Fiber Cable No. 26212 Nauticam to SEA&SEA
- Built-in Wi-Fi
-
- Camera's built-in Wi-Fi can be used through the housing to transfer photos after your dive
- Wi-Fi function cannot be used underwater
UPC: 883711051727 In the Box Ikelite Underwater Housing with TTL Circuitry for Canon PowerShot G5 X - Waterproof Bulkhead Cap
- 1cc Tube of Silicone Lubricant
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing with TTL Circuitry for Canon PowerShot G5 X in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 6146.05 Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical push-buttons, knurled knobs/dials, and a lever | | Controls | Provide access to all camera functions except diopter adjustment dial and mobile device connection button (mobile devices may be connected through housing using camera menus) | | Material of Construction | Polycarbonate | | Lens Port | Built-in glass port with flat front element and 3.0" / 76 mm diameter
Compatible with optional WD-3 Wide Angle Dome and optional external wide-angle and macro add-on lenses with 67 mm threads | | Color Correction Filters | 3.0" / 76 mm diameter color-correction filters press directly onto port | | Buoyancy | Slightly negative in fresh water | | Internal Flash Usable | Suitable for firing an external strobe, but not for underwater lighting | | External Flash Connector | Ikelite bulkhead connector with built-in TTL circuitry works with optional Ikelite DS strobes Two ports for connection of optional Ikelite, SEA&SEA, INON, or Nikonos fiber-optic cables | | Mounting | Two 1/4"-20 threaded mounts with 3.0" / 76 mm spacing to connect optional tray with 1-2 lighting arms | | Dimensions | 7.4 x 5.8 x 5.8" / 18.8 x 14.7 x 14.7 cm | | Weight | 3.3 lb / 1.5 kg (excluding tray, handles, and port) | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 9.6 x 6.5 x 6.5" |
