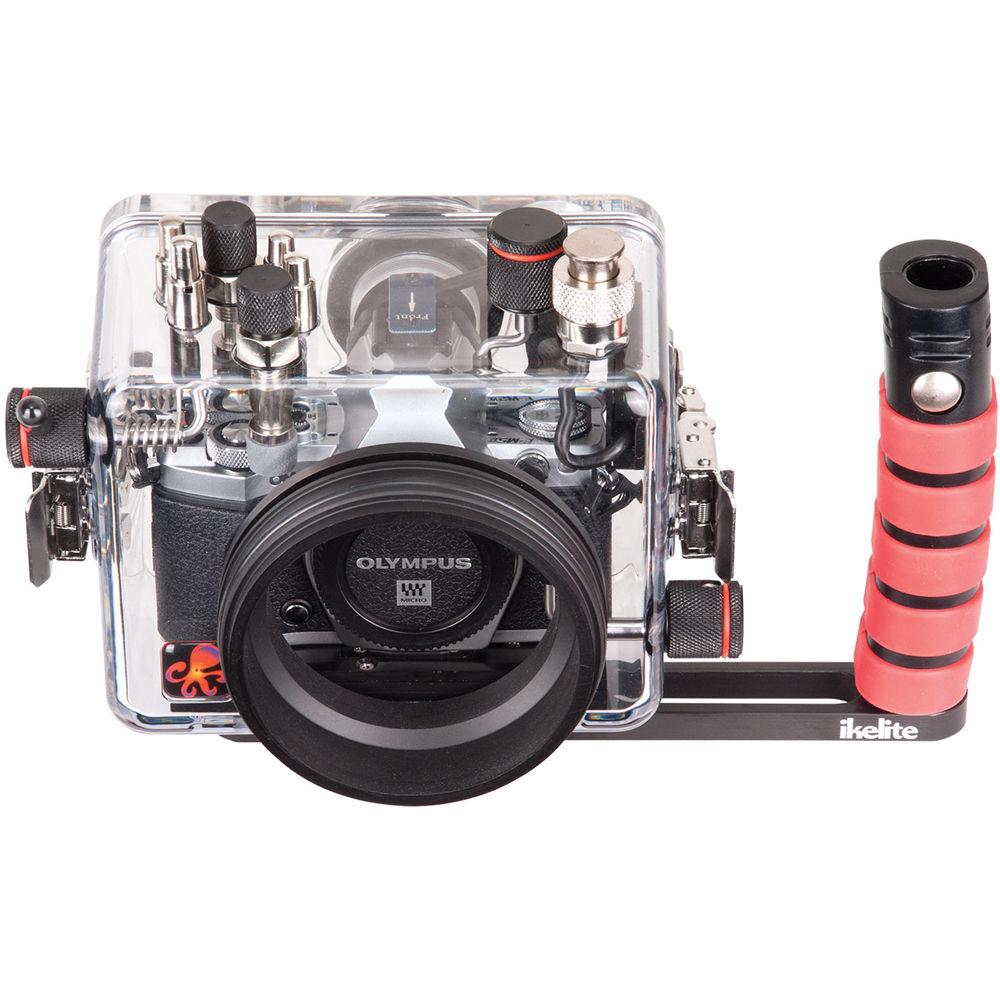

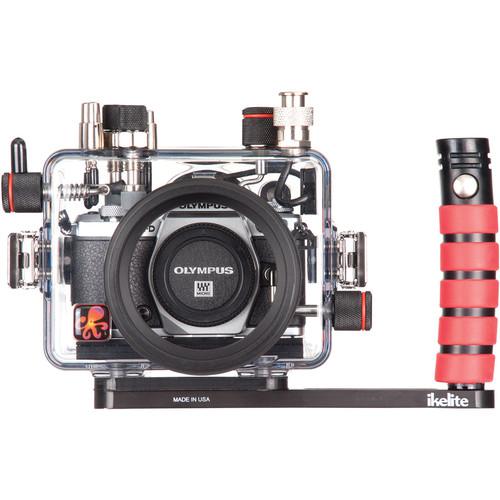

Product description Capture images and Full HD video at 200' beneath the surface with your Olympus OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera, thanks to this Ikelite Underwater Housing. It has built-in, proprietary circuitry and an Ikelite bulkhead strobe connector, allowing for TTL exposure with optional, external Ikelite DS Substrobes attached via sync cord. Non-Ikelite strobes are compatible in manual mode. Mechanical controls afford access to all important camera functions.
The housing includes an aluminum mounting tray with a quick-release handle, which improves balance and gives you an attachment point for an optional lighting arm. Built for durability, the enclosure is constructed from corrosion-resistant polycarbonate, which is clear to allow you to monitor the O-ring seal and maintain a full view of the camera. It is designed, made by hand, and tested in the USA.
The housing is shipped without a required lens port, and accepts one of several interchangeable ports for various lenses. For compatibility, see Port Chart. - Construction Details
-
- Depth rating: 200'
- Made from corrosion-resistant polycarbonate, which is clear to allow you to monitor O-ring seal and maintain a full view of camera
- Designed, made by hand, and tested in the USA
- Made as compact as possible to minimize bulk, strain, and drag in water
- Strobe Connection and Operation
-
- Built-in, proprietary circuitry and an Ikelite bulkhead strobe connector enable TTL exposure with optional, external Ikelite DS Substrobes attached via sync cord
- Non-Ikelite strobes are compatible in manual mode
- In order to keep housing as compact as possible, attachment of on-camera flash is not possible--but sync cord connection makes use of camera's flash unnecessary
- By not requiring camera's flash to fire, sync connection eliminates shutter lag caused by camera's flash recycling and conserves battery life
- Heat build-up inside housing is reduced, as well, since camera's flash remains inactive
- Sync cord method also eliminates problems of signal interference, inconsistent exposure/weak transmission, and false triggering by other light sources
- Sync cords available for most popular strobes from Ikelite, Sea & Sea, Inon, and Nikonos
- Strobe Compatibility
-
- Ikelite DS series substrobes: DS50 (above serial number 70000), DS51, DS125 (above serial number 5000), DS160, DS161, DS200 (above serial number 7163)
- Third-party strobes in manual mode only
- Controls, Handling, and Operation
-
- Mechanical controls, including push-buttons, knurled dials, and a lever, afford access to all camera functions except rear touch screen, Fn1 button, mode dial lock, diopter adjustment dial, and external flash connector
- Controls are placed right at your fingertips
- Symbols are laser-engraved into back of housing so as not to peel off or fade, even through years of use

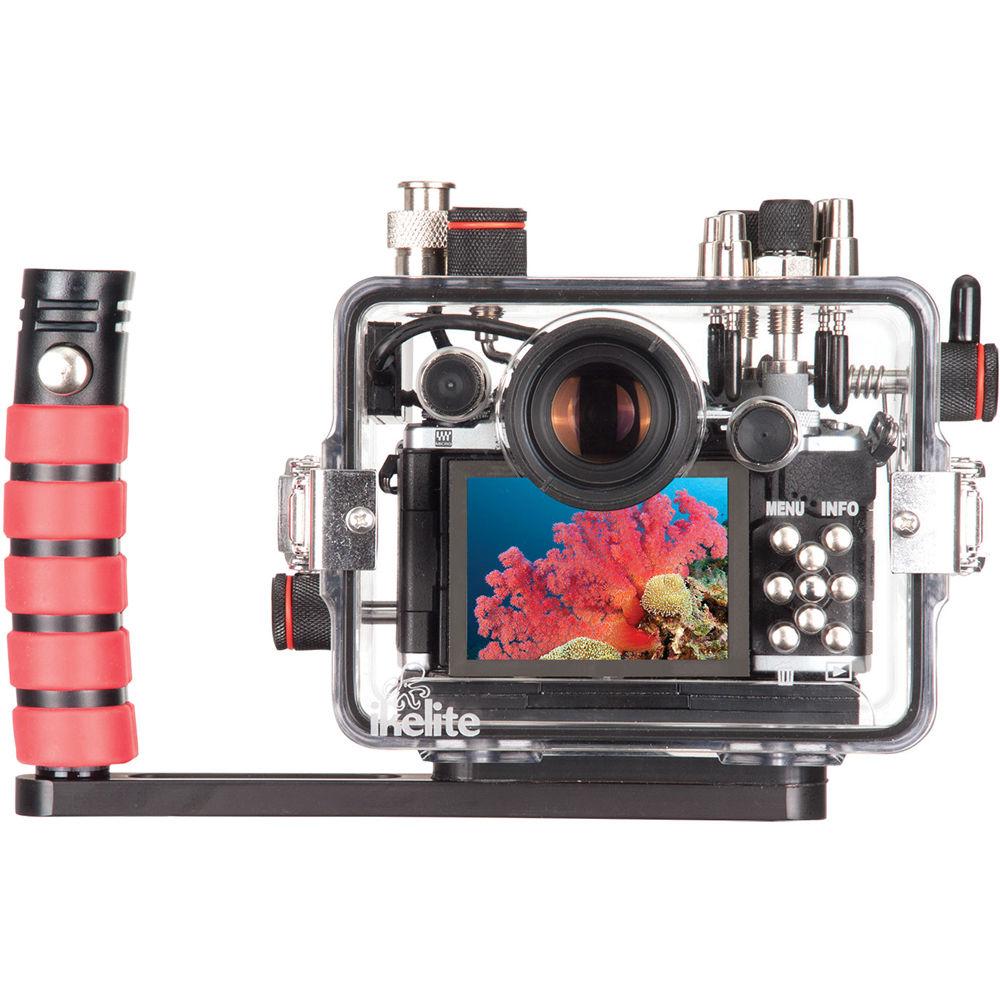

- Camera's large, bright LCD monitor is viewable edge-to-edge through back of housing
- Built-in magnifying viewfinder includes special optics to provide clear view of camera's EVF when wearing a dive mask
- Compatible with Ikelite's optional Straight and 45° Magnified Viewfinders
- When above the surface, you can use the camera's Wi-Fi connectivity to transfer images while camera is still in housing
- Supplied with aluminum mounting tray with a quick-release handle, which improves balance and gives you an attachment point for an optional lighting arm
- Handle is curved slightly to fit natural curvature of your hand for comfort
- Tray and handle can be removed easily for storage or travel
- Optional Tray with Dual Handles can further increase ease of use while providing a connection point for an additional flash or video light
- Lens Port
-
- Shipped without a required lens port
- Accepts one of several interchangeable ports for various lenses
- For compatibility, see Port Chart linked above
- Each port simply slides on and is secured via three thumb screws
- Dome and flat ports are available with optical acrylic and glass front elements, respectively
- Available ports fit various zoom, macro, and wide-angle lenses from Olympus and Panasonic
UPC: 883711050799 In the Box Ikelite Underwater Housing with TTL Circuitry for Olympus OM-D E-M5 Mark II Tray with Quick-Release Handle Waterproof Bulkhead Cap 1cc Tube of Silicone Lubricant Limited 1-Year Warranty Compatibility chart PDF 578.2kbttrrfweacfryqvbfscarwcyyv Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing with TTL Circuitry for Olympus OM-D E-M5 Mark II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 6950.52 Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical controls, including push-buttons, knurled dials, and a lever | | Controls | Access to all camera functions except rear touch screen, Fn1 button, mode dial lock, diopter adjustment dial, and external flash connector | | Material of Construction | Polycarbonate | | Lens Port | Shipped without a required lens port
Accepts one of several interchangeable ports for various zoom, macro, and wide-angle lenses from Olympus and Panasonic
For compatibility, see Port Chart linked in Overview
Dome and flat ports available with optical acrylic and glass front elements, respectively | | Buoyancy | Slightly negative in fresh water
Actual buoyancy varies depending on choice of lens and port | | External Flash Connector | Ikelite bulkhead sync cord connector with built-in TTL circuitry (sync cord not included)
TTL is supported with optional Ikelite DS Substrobes
Non-Ikelite strobes are compatible in manual mode only | | Mounting | Aluminum tray with quick-release handle for optional lighting arm (included)
Optional Tray with Dual Handles for 2 lighting arms | | Viewfinder | Built-in magnifying OVF
Compatible with Ikelite's optional Straight and 45° Magnified Viewfinders | | Dimensions | 6.5 x 7.0 x 5.3" / 16.5 x 17.7 x 13.5 cm | | Weight | Housing: 3.3 lb / 1.5 kg without tray, handle, and port
Tray and Handle: 8.7 oz / 247 g | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 11.8 x 7.4 x 7.4" |
