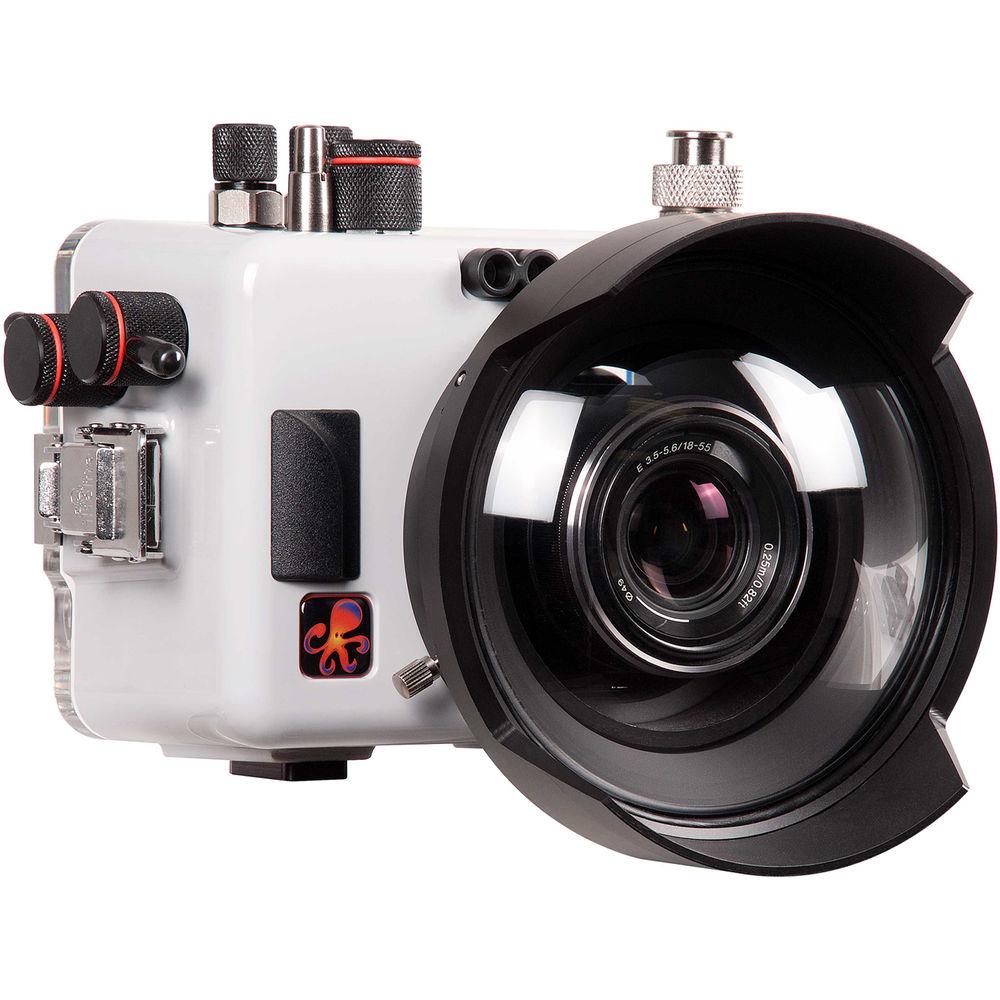

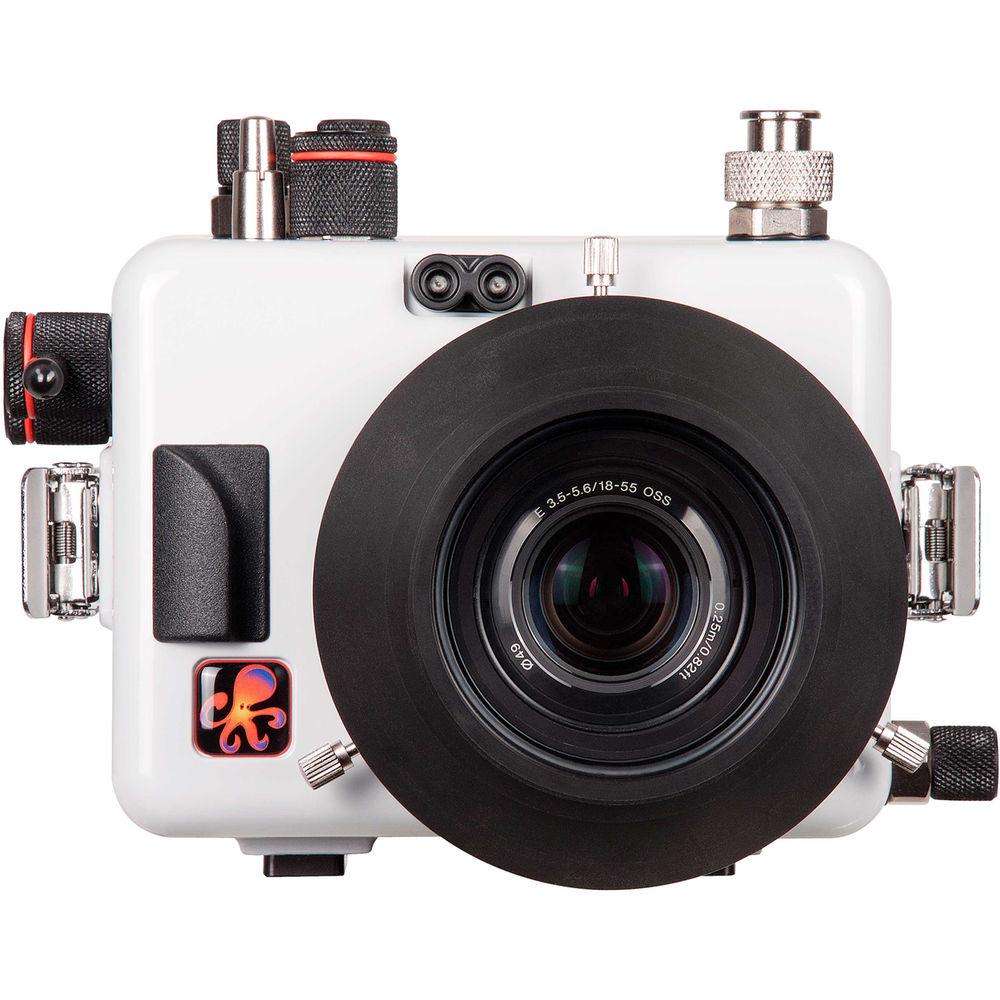

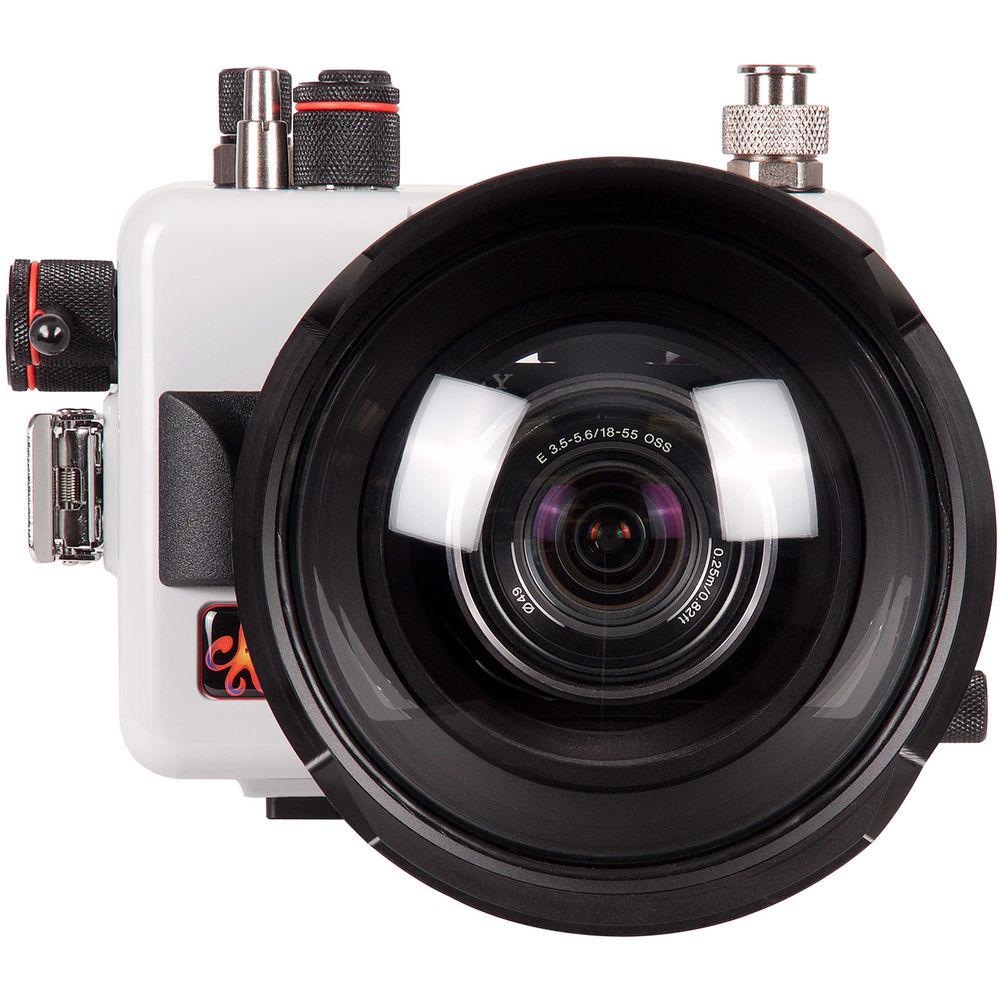

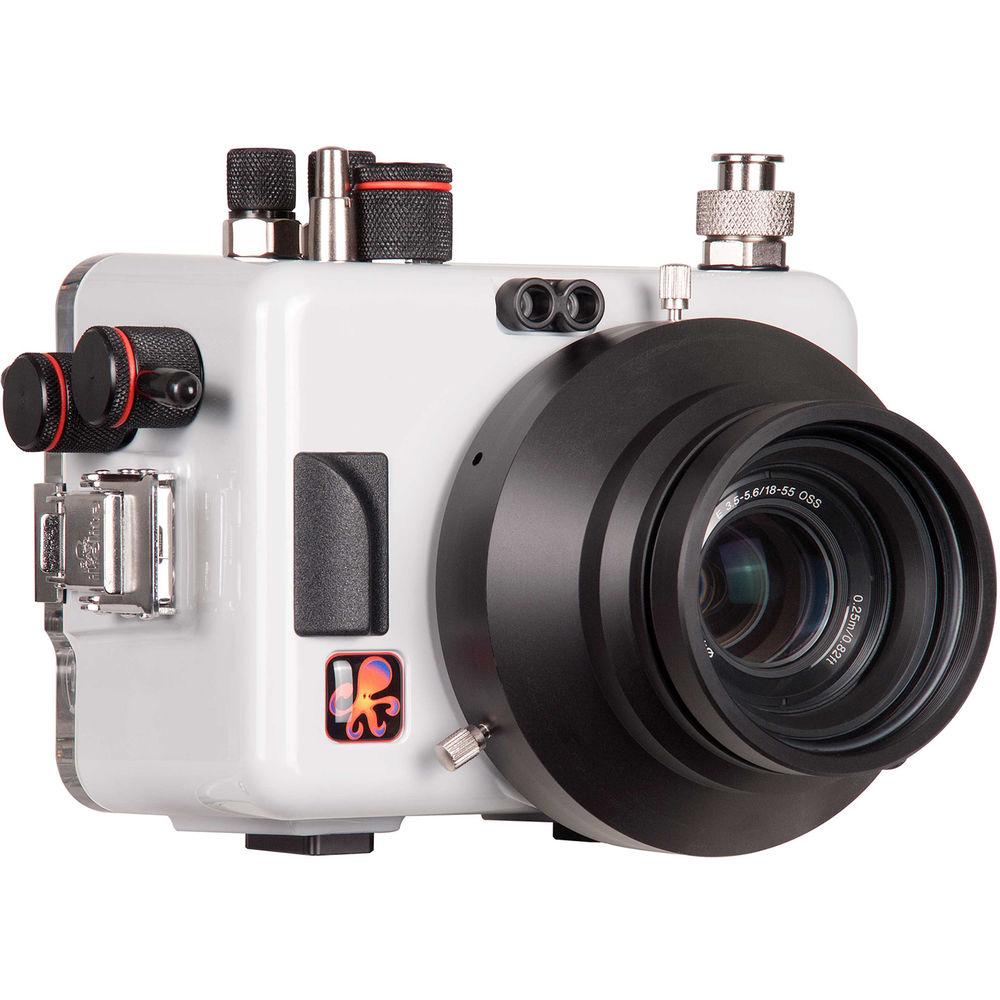

Product description Capture photos and video at depths as great as 200' beneath the surface with your Sony Alpha a6000 Mirrorless Digital Camera, thanks to this updated version of the dedicated Ikelite Underwater Housing. The enclosure features built-in, proprietary circuitry and an Ikelite bulkhead strobe connector, allowing for TTL or manual exposure with optional, external Ikelite DS Substrobes attached via sync cord. Non-Ikelite strobes are compatible in manual mode only. The housing is also fitted with dual fiber-optic cable ports as an alternative method of flash connection. Large, mechanical controls, including a newly added, ergonomic shutter lever, provide access to all important camera functions.
Another change in this version of the housing is that it's now made of a white ABS/polycarbonate blend, which is still corrosion-resistant but also reflects sunlight to keep your camera cooler when shooting at or above the water's surface. The back plate is still clear to allow you to monitor the O-ring seal and maintain a full view of the camera. Additionally, this version features two standard 1/4"-20 threaded mounts for connection to an optional tray with a grip handle.
The housing can be connected to an optional mounting tray with an ergonomic quick-release grip handle, which improves balance and gives you an attachment point for an optional lighting arm. A lens port is required, and several interchangeable ports for various lenses are available separately. For compatibility details, see the Port Chart. - Construction Details
-
- Features a depth rating of 200'
- Designed, made by hand, and tested in the USA
- Made of a white ABS/polycarbonate blend, which is still corrosion-resistant but also reflects sunlight to keep your camera cooler when shooting at or above the water's surface
- Back plate is made of clear polycarbonate to allow you to monitor O-ring seal and maintain full view of camera. A port has been added for installation of optional vacuum valve to allow you to confirm watertight integrity before diving
- Rear seal design prevents accidental twisting or stretching of O-ring, eliminating need for a groove or channel that can trap sand, dirt, or debris
- Features two double-passivated stainless steel locking lid snaps that are easy to use and virtually unbreakable

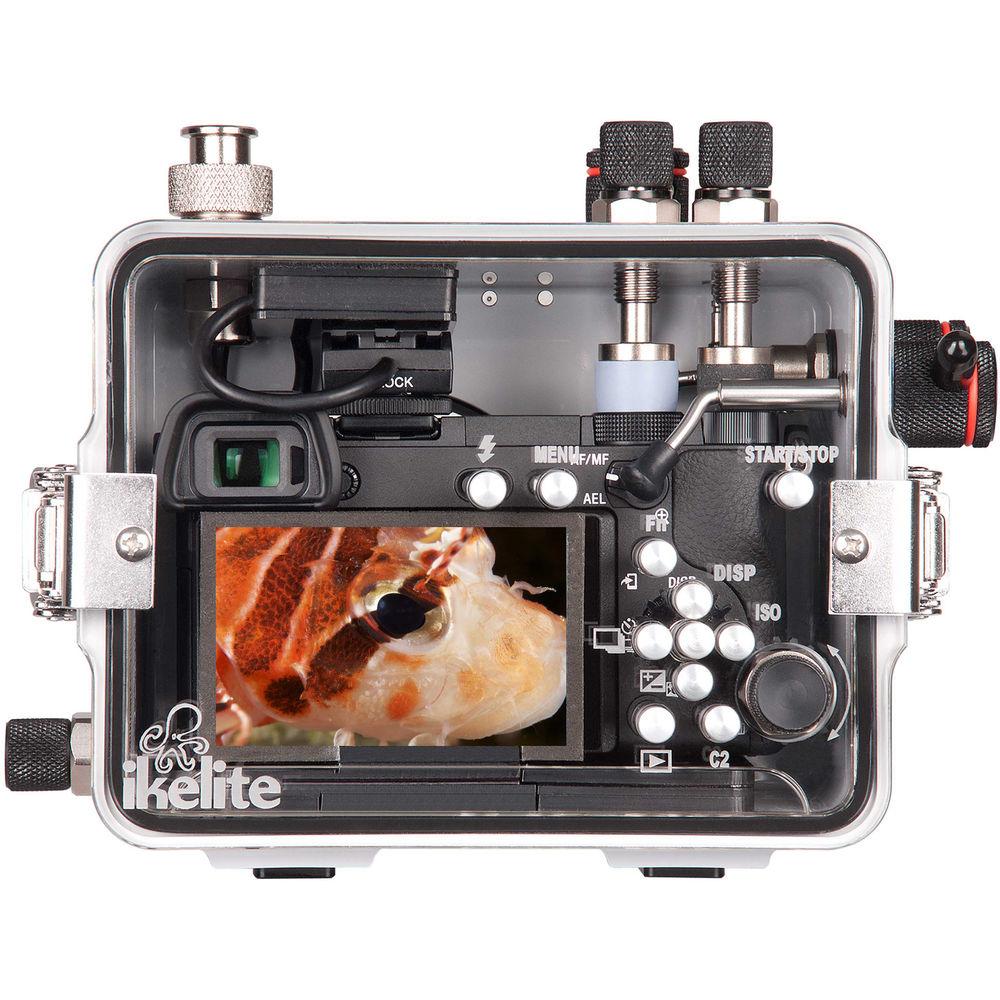

- Camera's large, bright LCD screen can be viewed edge-to-edge through back of housing

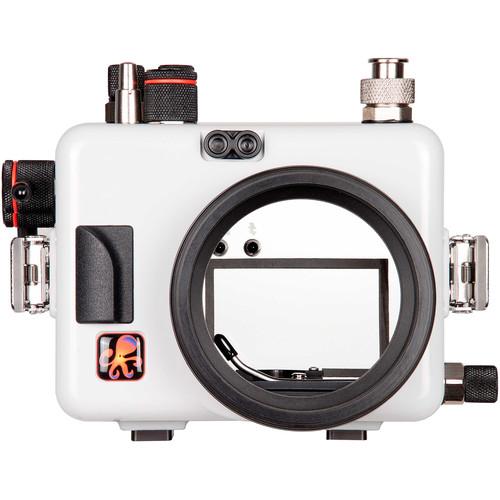

- Easy, front-loading camera mounting system
- Battery and memory card compartments are readily accessible
- Two standard 1/4"-20 mounts added on bottom for connection to optional tray
- Strobe Connection and Operation
-
- Built-in, proprietary circuitry and Ikelite bulkhead strobe connector enable TTL and manual exposure with optional, external Ikelite DS Substrobes attached via sync cord
- Circuit powered by strobe, so there's no maintenance required and no batteries to change
- Exposure compensation in TTL mode is supported using camera's built-in control
- Housing provides a direct electrical connection to camera's external flash hot shoe
- Non-Ikelite strobes are compatible in manual mode only
- Sync cord attachment is as easy as screwing in a light bulb, and threaded fitting prevents accidental detachment during use

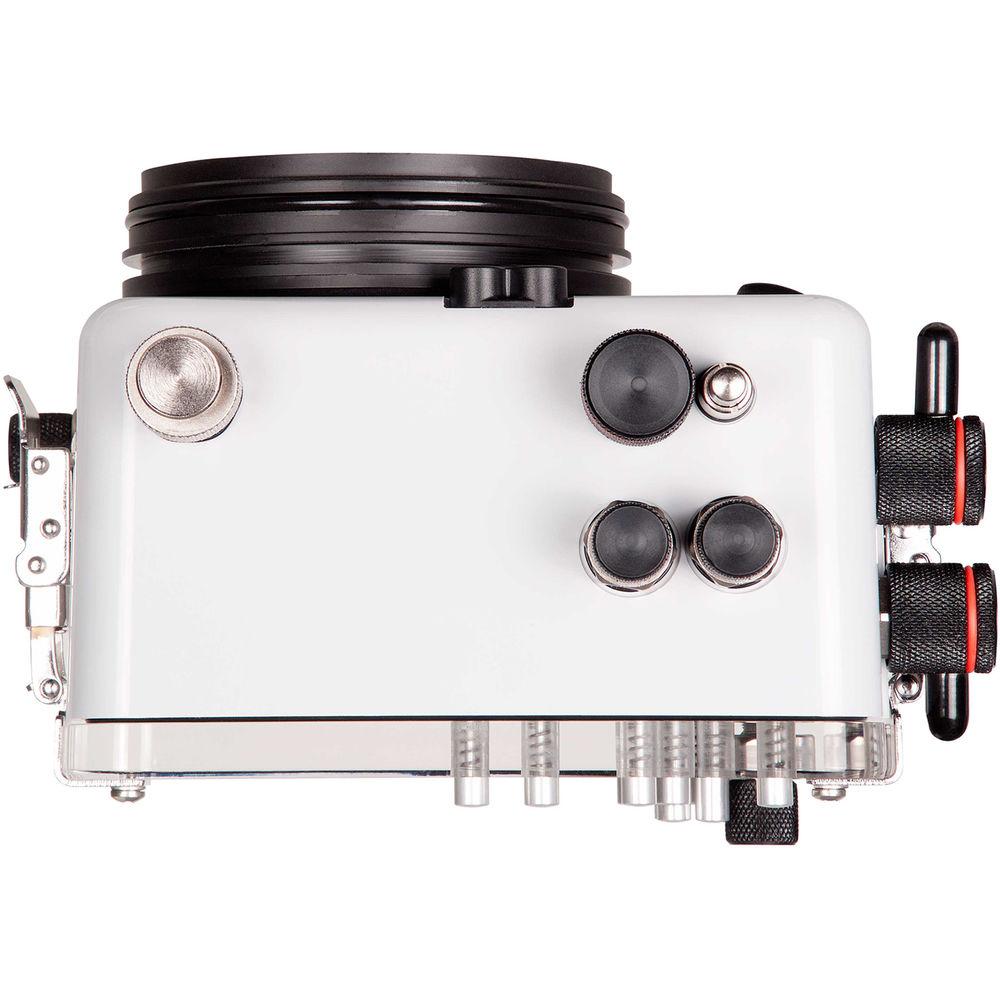

- Bulkhead connection has been moved to top of housing to keep cords out of the way and reduce strain on cord ends
- Various sync cords are available for Ikelite, Sea & Sea, Inon, and Nikonos strobes
- Dual fiber-optic cable ports allow for connection of up to two Ikelite, Sea & Sea, or Olympus-type fiber-optic cables
- Camera's built-in flash triggers external strobes but is not usable for subject illumination
- Sync cord connection is recommended over fiber-optic cable, as it will eliminate shutter lag, battery drain, and heat build-up resulting from camera's flash having to fire and recycle
- Sync cord also solves problems of signal interference, inconsistent exposure, and false triggering by other light sources
- Fiber-optic connection bypasses TTL functionality
- Strobe and Cord Compatibility
-
Strobes:- DS50, above serial number 70000
- DS51
- DS125, above serial number 5000
- DS160
- DS161
- DS200, above serial number 7163
- Non-Ikelite strobes with Ikelite-style connectors, or those with different connectors that can be plugged into available sync cords, such as INON-to-Ikelite or Nikonos SB-to-Ikelite options
Sync Cords:- #4103.51 Ikelite-to-Ikelite TTL Sync Cord (TTL)
- #4103.52 Ikelite-to-Ikelite TTL Dual Sync Cord (TTL)
- #4118.1 Sea & Sea / INON Strobe-to-Ikelite Non-TTL Sync Cord (Manual)
- 4118.2 Sea & Sea / INON Strobe-to-Ikelite Non-TTL Dual Sync Cord (Manual)
- #4116.31 Nikonos SB Strobe-to-Ikelite Non-TTL Sync Cord (Manual)
- #4116.32 Nikonos SB Strobe-to-Ikelite Non-TTL Sync Cord (Manual)
Fiber-Optic Cords:- #4501 Ikelite Fiber Optic Coiled Cord
- INON Optical D Cable L-Connector>
- #50107 Sea & Sea Fiber Optic Cable (L-type)
- #PTCB-E02 Olympus UW Fiber Optic Cable
- #26211 Nauticam to INON Optical Fiber Cable
- #26212 Nauticam to Sea & Sea Optical Fiber Cable
- Controls and Handling
-
- Mechanical controls, including push-buttons, knurled knobs, a dial, and a lever, provide access to all important camera functions
- Controls are placed right at your fingertips and, whenever possible, in same position as on camera
- Large size allows for easy operation, even with thick diving gloves on
- Symbols are laser-engraved into back of housing for easy identification over years of use
- Optional aluminum mounting tray with one or two ergonomic quick-release grip handles improves balance and gives you an attachment point for an optional lighting arm
- Lens Port
-
- Delivered without a required lens port
- Accepts one of several interchangeable ports for various zoom, macro, and wide-angle lenses
- For compatibility, see Port Chart linked above
- Simply press port on and tighten three thumb screws to secure it
UPC: 883711053431 In the Box Ikelite Underwater Housing with TTL Circuitry for Sony Alpha a6000 (Updated Version, White) Waterproof Bulkhead Cap Tube of Silicone Lubricant Limited 2-Year Warranty compatibility chart PDF 578.9kbaszerwqdvt Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing with TTL Circuitry for Sony Alpha a6000 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 6910.61 Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical push-buttons, knurled knobs, dial, and lever | | Controls | Provide access to all important camera functions | | Material of Construction | Front/Top/Sides/Bottom: White ABS/polycarbonate blend
Back Plate: Clear polycarbonate
Controls: Acetyl resin | | Lens Port | Delivered without required lens port
Accepts one of several interchangeable ports for various zoom, macro, and wide-angle lenses
For compatibility, see Port Chart linked in Overview | | Buoyancy | Slightly negative in fresh water
Precise buoyancy varies depending on choice of lens and port | | External Flash Connector | Built-in, proprietary circuitry and Ikelite bulkhead strobe connector
TTL or manual exposure with optional, external Ikelite DS Substrobes attached via sync cord
Non-Ikelite strobes are compatible in manual mode only
Dual fiber-optic cable ports for Ikelite, Sea & Sea, or Olympus-type cables | | Mounting | 2 x 1/4"-20 threaded mounts with 3.0" / 7.6 cm for connection to optional tray with grip handle(s) | | Dimensions | 6.3 x 7.5 x 5.2" / 16 x 19.1 x 13.2 cm | | Weight | 3.1 lb / 1.4 kg | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 9.8 x 6.5 x 6.3" |
