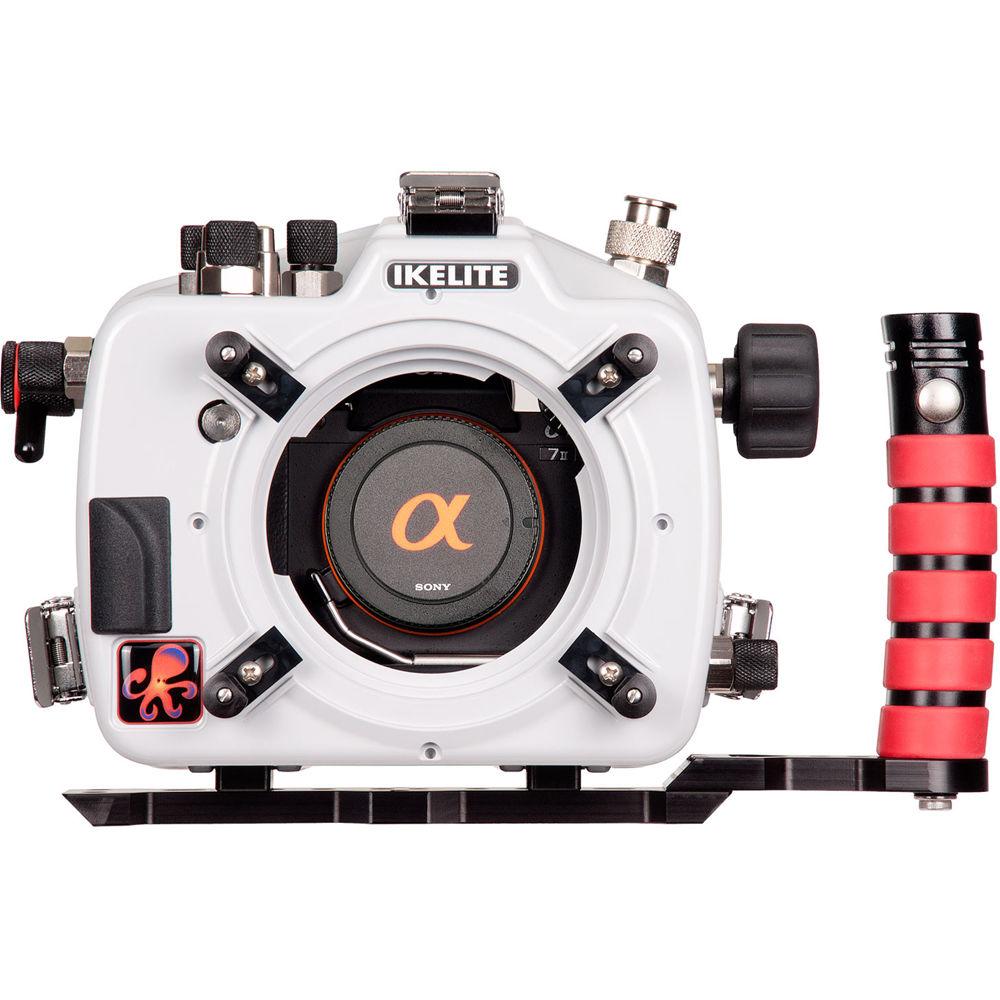

User Manual for Ikelite Underwater Housing with TTL Circuitry for Sony Alpha a7 II, a7R II, or a7S II Click to enlarge the picture
Contents of the user manual for the Ikelite Underwater Housing with TTL Circuitry
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
|
User manual for the Ikelite Underwater Housing with TTL Circuitry contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|

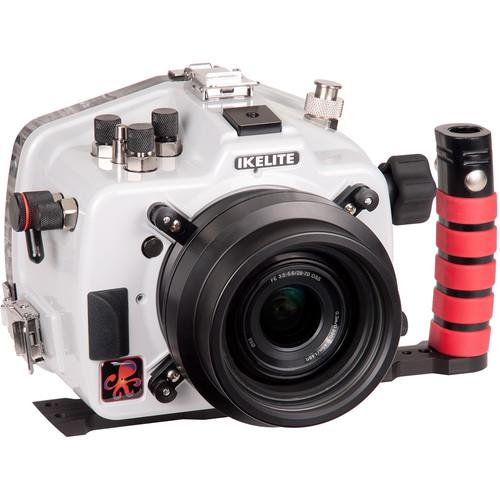

Product description Capture images and video at depths up to 200' beneath the surface with Ikelite's Underwater Housing with TTL Circuitry for the Sony Alpha a7 II, a7R II, or a7S II Digital Camera. Built-in, proprietary circuitry and an Ikelite bulkhead connector allow for TTL exposure with optional, external Ikelite DS Substrobes. Non-Ikelite strobes are compatible in manual mode, as well.

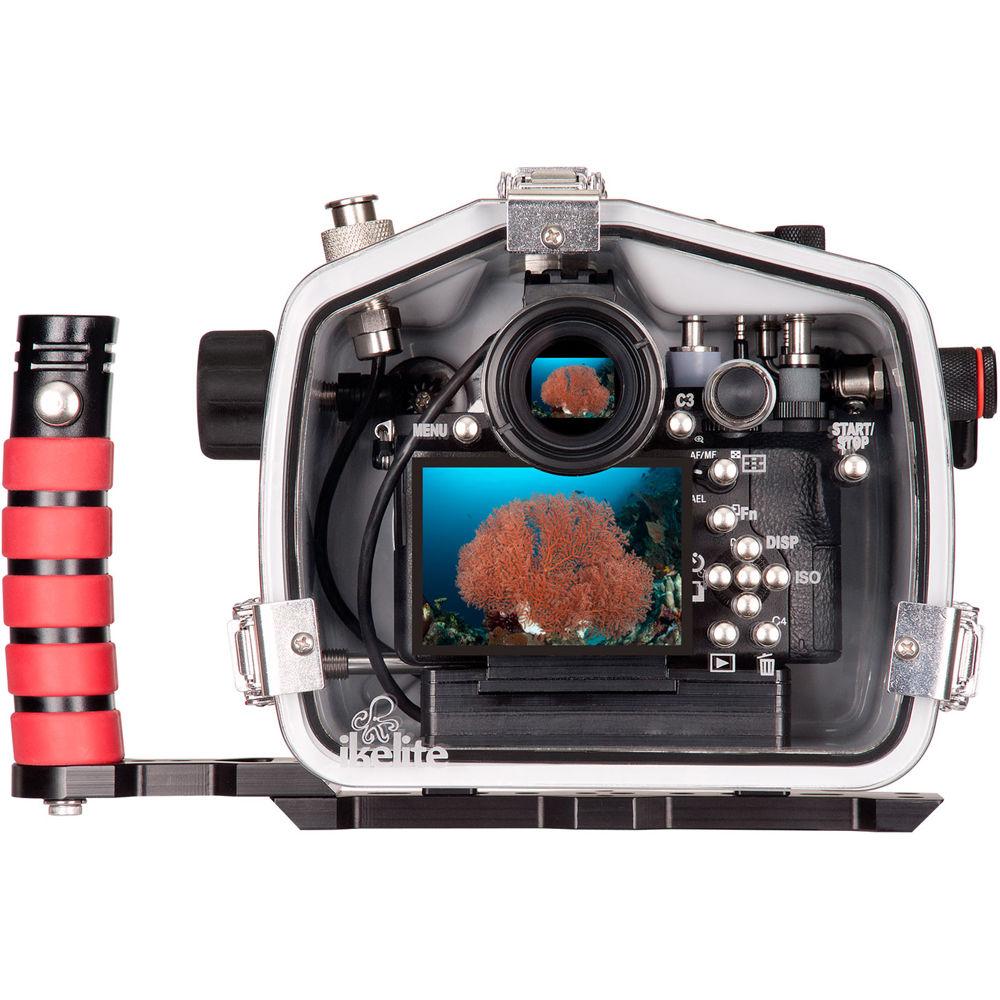

Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and a lever, afford access to all camera controls except for the AF/MF/AEL switch lever, control wheel, and diopter adjustment dial. Built for durability, the enclosure is made in the USA from corrosion-resistant polycarbonate, which is white on the front, sides, top, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. A compact aluminum mounting tray and quick-release handle are supplied to improve balance and offer an attachment point for an optional lighting arm.
The housing ships without a required lens port, and accepts various dome and flat ports for a broad array of zoom, macro, and wide-angle lenses. For full compatibility, see the Port Chart. - Construction Details
-
- Features a depth rating of 200'
- Close the two locking lid snaps at each side to see the o-ring form a watertight seal
- Constructed by hand in USA from corrosion-resistant polycarbonate, which is white on the front, sides, top, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain view of camera's controls
- Open-groove design suspends O-ring in natural position that is easier to maintain and more reliable than forcing it into a channel
- Nearly neutral buoyancy in fresh water
- Actual buoyancy varies depending on choice of lens and port
- Strobe Connection and Operation
-
- Housing provides direct electrical connection to camera's external hot shoe
- Integrated circuitry and bulkhead sync cord connector enable TTL exposure with optional, external Ikelite DS Substrobes
- Circuit features model-specific encoding, which has been fine-tuned to Sony's latest flash exposure protocol as of Nov 2015
- Circuit powered by strobe, so there's no maintenance required and no batteries to change
- Exposure compensation in TTL mode supported via camera's built-in control
- SEA&SEA, INON, and Nikonos strobes may be used with the required sync cords in manual exposure modes only, but will still benefit from improved battery life and faster recycle times
- Threaded bulkhead connector prevents accidental sync cord detachment during use
- Bulkhead connection has been moved to top of housing to keep cords out of your way and reduce strain on ends
- Strobe and Cord Compatibility
-
- Strobes:
- Ikelite DS50: Yes, above serial number 70000
- Ikelite DS51: Yes
- Ikelite DS125: Yes, above serial number 5000
- Ikelite DS160, DS161: Yes
- Ikelite DS200: Yes, above serial number 7163
- Sync Cords:
- Ikelite-to-Ikelite TTL Sync Cord (TTL) #4103.51
- Ikelite-to-Ikelite TTL Dual Sync Cord (TTL) # 4103.52
- SEA&SEA / INON Strobe-to-Ikelite Non-TTL Sync Cord (Manual) #4118.1
- SEA&SEA / INON Strobe-to-Ikelite Non-TTL Dual Sync Cord (Manual) # 4118.2
- Nikonos SB Strobe-to-Ikelite Non-TTL Sync Cord (Manual) #4116.31
- Nikonos SB Strobe-to-Ikelite Non-TTL Sync Cord (Manual) Product 4116.32
- Controls and Handling
-
- Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and a lever, afford access to all camera controls except for AF/MF/AEL switch lever, control wheel, and diopter adjustment dial
- Controls are large and knurled or grooved for easy operation even when wearing diving gloves
- Whenever possible, controls are located in same configuration as on camera to replicate muscle memory and familiarity you've developed with camera
- Control symbols laser-engraved onto rear of housing won't peel off or fade with time
- Compact aluminum mounting tray with 1/4"-20 mount and quick-release handle included
- Tray offers improved balance and handle provides attachment point for optional lighting arm
- Handle is curved slightly to fit natural curvature of hand, and is covered by soft molding for comfort
- Tray/handle assembly can be detached easily by removing 2 screws
- Optional second handle can be added for a second strobe or a video light
- Lens Port System
-
- Ships without required lens port
- Accepts various dome and flat ports for a broad array of zoom, macro, and wide-angle lenses
- For compatibility, see Port Chart linked above
- Changing ports is quick and easy--just press on and snap the four locks closed
- New soft-touch zoom knob puts a system of universal zoom gears right at your fingertips
- Two sets of zoom gears included: one for use with most popular large-diameter zoom lenses, and a second for use with small-diameter zooms. Both are lightweight and easy to install with no modification to lens required
- Camera Compatibility
-
- Compatible only with Sony Alpha a7 II, a7R II, and a7S II
- Although they are very similar, the Alpha a7, a7R, and a7S have slight differences in size and lens/control placement that make them incompatible with this housing
UPC: 883711051567 In the Box Ikelite Underwater Housing with TTL Circuitry for Sony Alpha a7 II, a7R II, or a7S II Aluminum Tray Left-Hand Quick Release Handle with Rubberized Grip Port Hole Cover Waterproof Bulkhead Cap Zoom/Focus Clamp and Gear Sleeve Set for Lenses up to 2.8" in Diameter in DSLR Housings uqbbbdzzvdbtcdwfyqurdcttcqsdte Zoom Sleeve 1cc Tube of Silicone Lubricant Microfiber Lens Cloth Limited 2-Year Warranty Port Chart PDF 102.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Underwater Housing with TTL Circuitry for Sony Alpha a7 II, a7R II, or a7S II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 6843.72 Specs Depth Rating | 200' / 61 m | Control Type | Mechanical, including push-buttons, knurled knobs/dials, and a lever | Controls | Afford access to all camera controls except for AF/MF/AEL switch lever, control wheel, and diopter adjustment dial | Material of Construction | Polycarbonate | Lens Port | Ships without required lens port Accepts various dome and flat ports for a broad array of zoom, macro, and wide-angle lenses For compatibility, see Port Chart linked above | Buoyancy | Nearly neutral in fresh water Actual buoyancy varies depending on choice of lens and port | External Flash Connector | Integrated circuitry and bulkhead sync cord connector enable TTL exposure with optional, external Ikelite DS Substrobes SEA&SEA, INON, and Nikonos strobes may be used in manual exposure modes only Required sync cord not included | Mounting | Aluminum mounting tray with 1/4"-20 stud and quick-release handle included Optional second handle can be added for a second strobe or video light | Dimensions | Approx. 9.0 x 7.1 x 5.9" / 230 x 180 x 150 mm | Weight | 5.1 lb / 2.3 kg excluding tray and handles | | Package Weight | 7.95 lb | Box Dimensions (LxWxH) | 14.95 x 9.25 x 8.3" |
