Product description

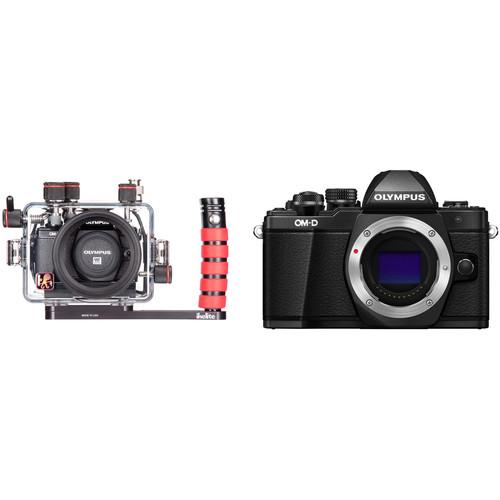

• Ikelite Underwater Housing with TTL Circuitry for Olympus OM-D E-M10 Mark II Capture images and video at depths up to 200' beneath the surface using this Ikelite Underwater Housing with TTL Circuitry for the Olympus OM-D E-M10 Mark II Mirrorless Micro Four-Thirds camera. Large, ergonomic mechanical controls provide access to virtually all camera functions.

  The waterproof enclosure is equipped with built-in TTL circuitry, an Ikelite bulkhead sync cord connector, and an electrical hot shoe to enable the connection and firing of optional external strobes. The circuitry enables TTL exposure with Ikelite DS strobes only. Third-party strobes will work in manual mode.

  Built for durability, the housing is made in the USA from clear, corrosion-resistant polycarbonate. It ships without a required lens port and is compatible with a series of interchangeable ports for various lenses. For full details, see the Port Chart.
  Construction Details
  • • Depth Rating: 200'
    • Made in the USA from durable, corrosion-resistant polycarbonate, which is clear to allow you to monitor O-ring seal and maintain a full view of camera
    • Close two locking snaps on sides to see O-ring form watertight seal
  Controls and Handling
  • • Large, ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and a lever, provide access to virtually all camera functions and are easy to activate with or without gloves
    • Only Fn3 button and diopter adjustment dial are inaccessible
    • Control symbols laser-engraved into back of housing won't peel off or fade, even with years of use
    • Camera's large, bright LCD screen can be viewed edge-to-edge through rear of housing
    • Built-in, magnifying optical viewfinder offers a clear view of the camera's EVF, even when you're wearing a dive mask
    • This standard OVF can be replaced easily by the optional Straight or 45° Magnified Optical Viewfinders, which enhance your view while eliminating vignetting and offering greater long-term comfort
    • Supplied aluminum tray with quick-release handle improves balance and gives you an attachment point for optional lighting arm
    • Handle is curved slightly to fit natural curvature of your hand, and features a soft mold for comfort and better grip
    • Tray and handle are removed quickly and easily for storage or transport
  Lens Port System
  • • Ships without a required lens port
    • Accepts a series of interchangeable ports for a variety of zoom, macro, and wide-angle lenses. For details, see Port Chart link above
    • Attaching/changing ports is easy--just press on and tighten 3 thumb screws
  Strobe Connection and Operation
  • • Equipped with built-in TTL circuitry, an Ikelite bulkhead sync cord connector, and an electrical hot shoe to enable the connection and firing of optional, external Ikelite, SEA&SEA, INON, and Nikonos strobes
    • Sync cord connection is much faster than a fiber-optic one, since you don't have lag time while waiting for camera's built-in flash to recycle. Camera's flash doesn't need to fire, so your battery life will be conserved, as well
    • Circuitry enables TTL exposure with Ikelite DS strobes only
    • Third-party strobes will still benefit from fast recycle times and improved battery life, but will work in manual mode only
    • Camera-specific TTL encoding for automatic exposure fine-tuned to the E-M10 Mark II's flash protocol
    • Circuit powered by strobe so batteries and maintenance are not required
  Strobe Compatibility
  • • DS50 above serial number 70000
    • DS51
    • DS125 above serial number 5000
    • DS160
    • DS161
    • DS200 above serial number 7163
    • Non-Ikelite (SEA&SEA, INON, and Nikonos) in manual mode only
  UPC: 883711051581
• Olympus OM-D E-M10 Mark II Mirrorless Micro Four Thirds Digital Camera (Body Only, Black) Sporting a classic design and sleek form factor, the black OM-D E-M10 Mark II from Olympus is a mirrorless Micro Four Thirds digital camera featuring refined stills and movie recording capabilities to suit working in a variety of day-to-day environments. A high-resolution 16.1MP 4/3 Live MOS sensor pairs with the TruePic VII image processor to facilitate up to 8.5 fps shooting and full HD 1080p/60 movie recording, with a top sensitivity of ISO 25600. In-camera 5-axis image stabilization compensates for up to 4 stops of camera shake to benefit working in difficult lighting conditions and a FAST AF system employs 81 contrast-detection areas for quick, accurate performance with dedicated subject tracking modes. The retro-themed body incorporates a range of assignable function buttons and dials, as well as a 2.36m-dot OLED electronic viewfinder and 3.0" 1.04m-dot tilting touchscreen LCD for clear image monitoring and playback. Besides the handsome appeal of the E-M10 Mark II's design, its main assets lie in its versatility of shooting functions and performance to benefit photographers and videographers alike.

  Benefited by the range of imaging capabilities, the E-M10 Mark II also incorporates a variety of shooting modes to suit working in various situations. A Silent Mode utilizes an electronic shutter for perfectly quiet picture-taking, with shutter speeds up to 1/16,000 sec. available. Live Bulb and Live Time modes are well-suited to creative long exposure photography and a dedicated Live Composite mode lets you watch a long exposure gradually build up during the course of the shot. Built-in Wi-Fi allows you to pair the camera with your smartphone or tablet for wireless sharing and remote camera control, and an interval shooting mode can be used to produce in-camera 4K time lapse movies.
  16.1MP Live MOS Sensor and TruePic VII Image Processor
  • Featuring a 16.1MP 4/3 Live MOS sensor, along with the TruePic VII image processor, the E-M10 Mark II is capable of recording high-resolution stills and full HD 1080p video with sensitivity to ISO 25600. The processing speed also avails a top continuous shooting rate of 8.5 fps in full-resolution, with the ability to record up to 22 12-bit raw files in a single burst or 36 JPEGs. When working at a slower, 4 fps shooting rate, you are able to record infinite bursts for the capacity of your memory card.
  In-Camera 5-Axis Image Stabilization
  • In-body, sensor-shift image stabilization helps to minimize the appearance of camera shake by up to 4 stops with any lens in use and compensates for camera movements that become especially noticeable when working with telephoto shots, macro imagery, and long exposures. Furthermore, this unique image stabilization system works across five axes to compensate for vertical angle rotation, horizontal angle rotation, horizontal shift, vertical shift, and rolling camera shake movement. This range of detected movements serves to benefit traditional still image shooting as well as movie recording and working with moving subjects more effectively. Additionally, image stabilization can also be used when framing shots, for more accurate compositions, by half-pressing the shutter button.
  Body Design
  • • Characterized by a compact, lightweight design, the E-M10 Mark II features a classically-styled body design with a black leatherette wrap and black metal finish.
    • For manual, direct control over drive modes and programmable function settings, three dials are positioned on the top panel and feature a knurled finish for easier adjustment.
    • The large, 0.62x equivalent magnification OLED viewfinder features a 2.36-million dot resolution and covers 100% of the frame for accurate composing in a variety of lighting conditions and working situations. The EVF also allows you to pre-visualize any creative effects or exposure adjustments prior to shooting.
    • An alternative to the viewfinder, the camera also features a 3.0" 1.04m-dot tilting touchscreen monitor. The monitor can tilt 85° upward, for low-angle shooting, and 45° downward, for high-angle shooting. The touchscreen design also avails direct control when navigating the menus, reviewing images, and choosing focus points or other shooting controls.
    • When working with the EVF, the AF Targeting Pad feature allows you to trace your thumb along the touchscreen to intuitively move the focus point while shooting.
    • A trio of Fn (Function) buttons can be assigned specific controls for quick adjustment or access to your most oft-used settings.
    • A built-in pop-up flash can be used for additional illumination or a top hot shoe is also available for optional external flashes. When using the built-in flash, the top sync speed is 1/250 sec. and with an external flash, the top sync speed is 1/200 sec.
  FAST AF System and Focus Controls
  • The FAST contrast-detection autofocus system employs 81 areas to quickly and accurately acquire focus on both moving and stationary subjects. Both face and eye-detection modes can also be used for precise tracking of subjects, and single and continuous focusing modes can also be employed. When working with manual focus, a manual focus assist function can magnify the image for easily identifying sharp focus and a peaking function can be used, too, for quickly determining in-focus areas in the scene based on colored, highlighted lines of contrast.
  OM-D Movie
  • Full HD 1080p video recording is supported in a variety of frame rates up to 60 fps in ALL-I or IPB compressions, with a maximum bit-rate of 77 Mbps. In addition to standard video recording, high-speed video recording is also supported at 120 fps in 640 x 480 resolution. A dedicated clips feature is ideal for sharing short movies in preset times of 1, 2, 4, and 8 second durations, with the ability to extend limits by re-pressing the record button.

    Sound is recorded during movies using the built-in stereo microphone, and a wind noise reduction tool can be used for cleaner sound. Also, the microphone volume can be limited during recording.
  Other Camera Features
  • • Built-in Wi-Fi connectivity allows you to pair the E-M10 Mark II with a smartphone using the Olympus Image Share app for wireless image sharing and remote camera control.
    • The included BLS-50 rechargeable lithium-ion battery provides approximately 320 shots per charge under normal conditions, or up to 750 shots per charge with Quick Sleep Mode.
    • Interval shooting is possible for up to 999 sequential frames, with 1 second to 24 hour intervals, and automatic time lapse processing can save your individual images into a movie for playback. Time lapse movies can also be saved at 4K resolution for greater detail and resolution.
    • A dedicated Silent Mode utilizes and electronic shutter for quiet, undetectable shooting. When working in this mode you have a range of shutter speeds from 1/16,000 to 60 seconds.
    • Live Bulb and Live Time settings can be used to produce creative long exposure imagery. Live Bulb lets you hold the shutter open for up to one minute and Live Time lets you press the shutter button once to open the shutter and then press again within a minute to end the exposure.
    • Live Composite is a unique long exposure mode that allows you to gradually build up an exposure over time without overexposing key elements within the frame. This mode works to only record newly detected light sources over time, and allows you to watch as an image develops, making it ideally suited for photographing star trails or other moving light sources.
    • A two-axis electronic level helps to ensure consistently level horizons and plumb verticals.
    • Keystone Compensation allows you to correct for convergence when working in live view.
    • A multi exposure mode blends two frames using an auto gain to maintain a controlled exposure value.
    • Photo Story lets you capture sequential shots of a scene from varying angles, and then composite them into a single image. When working in this mode, you can record sequential images by sliding a finger across the screen, zoom in or out between two photos, apply unique frames or borders, or arrange multiple images in different compositions.
    • Scene Select modes can be used to optimize camera settings based on the scene conditions at hand, and include Portrait, e-Portrait, Landscape, Landscape + Portrait, Sport, Hand-held Starlight, Night scene, Night + Portrait, Children, High Key, Low Key, DIS mode, Macro, Nature Macro, Candle, Sunset, Documents, Panorama, Fireworks, Beach & Snow, Fisheye Conv., Wide Conv., Macro Conv., Panning, and 3D.
    • Art Filters are available for creatively adjusting the look of your imagery, and include Pop Art, Soft Focus, Pale & Light Color, Light Tone, Grainy Film, Pinhole, Diorama, Cross Process, Gentle Sepia, Dramatic Tone, Key Line, Watercolor, Vintage, and Partial Color. Art Effects can also be used to further enhance photos' appearance, including Soft Focus Effect, Pinhole Effect, White Edge Effect, Frame Effect, Star Light Effect, Blur Effect, B&W Effect, Picture Tone Effect, and Shade Effect.
    • Language support: English, French, German, Spanish, Italian, Japanese, Korean, Traditional Chinese, Simplified Chinese, Russian, Czech, Dutch, Danish, Polish, Portuguese, Swedish, Norwegian, Finnish, Croatian, Slovenian, Hungarian, Greek, Slovakian, Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Serbian, Bulgarian, Romanian, Indonesian, Malay, and Thai.
  UPC: 050332189928

• Underwater Housing with TTL Circuitry for Olympus OM-D E-M10 Mark II xezzrebcratcbt
• Tray with Quick-Release Handle
• Waterproof Bulkhead Cap
• 1cc Tube of Silicone Lubricant
• Limited 2-Year Warranty

• Olympus - OM-D E-M10 Mark II Mirrorless Micro Four Thirds Digital Camera (Body Only, Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ikelite Underwater Housing with TTL Circuitry for Olympus OM-D E-M10 Mark II

  Depth Rating	200' / 60 m
  Control Type	Mechanical push-buttons, knurled knobs/dials, and a lever
  Controls	Provide access to all camera functions except for Fn3 button and diopter adjustment dial
  Material of Construction	Polycarbonate
  Lens Port	Ships without a required port Accepts a series of interchangeable ports for a variety of zoom, macro, and wide-angle lenses For details, see Port Chart link in Overview
  Buoyancy	Slightly negative buoyancy in fresh water Actual buoyancy varies depending on choice of lens and port
  Internal Flash Usable	No
  External Flash Connector	Built-in TTL circuitry, Ikelite bulkhead sync cord connector, and electrical hot shoe for optional, external strobe Ikelite, SEA&SEA, INON, and Nikonos models can be connected TTL exposure only possible with Ikelite DS Substrobes Third-party strobes will work in manual mode
  Mounting	Supplied aluminum tray with quick-release handle for optional lighting arm attachment
  Dimensions	6.4 x 7.5 x 5.3" / 16.3 x 19.0 x 13.5 cm
  Weight	3.3 lb / 1.5 kg excluding tray and handles

  Box Dimensions (LxWxH)	11.8 x 7.4 x 7.3"

• Olympus OM-D E-M10 Mark II Mirrorless Micro Four Thirds Digital Camera (Body Only, Black)

  Lens Mount	Micro Four Thirds
  Camera Format	Micro Four Thirds (2x Crop Factor)
  Pixels	Actual: 17.2 Megapixel Effective: 16.1 Megapixel
  Maximum Resolution	4608 x 3456
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Sensor Type	MOS
  Sensor Size	17.3 x 13 mm
  Image File Format	JPEG, MPO, RAW
  Bit Depth	12-Bit
  Image Stabilization	Sensor-Shift, 5-Axis

  ISO Sensitivity	Auto, 200 to 25600 (Extended: 100 to 25600)
  Shutter Speed	Electronic Front Curtain Shutter 1/4000 to 60 Seconds 0.5 to 1 Minute in Bulb Mode Electronic Shutter 1/16000 to 60 Seconds
  Metering Method	Center-Weighted Average, Multi-Zone, Spot, Highlight Weighted
  Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2, 1 EV Steps)
  Metering Range	-2 to 20 EV
  White Balance	Auto, Custom
  Continuous Shooting	Up to 8.5 fps at 16.1 MP for up to 36 Exposures Up to 4 fps at 16.1 MP for Unlimited Exposures
  Interval Recording	Yes
  Self Timer	2/12-Second Delay

  Recording Modes	MOV Full HD (1920 x 1080) at 23.976p/25p/29.97p [77 Mb/s] Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p [18 to 52 Mb/s] HD (1280 x 720) at 23.976p/25p/29.97p/50p/59.94p [18 to 77 Mb/s] AVI HD (1280 x 720) at 29.97p SD (640 x 480) at 120p SD (640 x 480) at 29.97p
  External Recording Modes	4:2:2 Full HD (1920 x 1080) HD (1280 x 720)
  Recording Limit	Up to 29 Minutes
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo)
  Audio File Format	Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Contrast Detection: 81

  Viewfinder Type	Electronic
  Viewfinder Resolution	2,360,000 Dot
  Viewfinder Eye Point	19.2 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 1.08x
  Diopter Adjustment	-4 to +2 m
  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	Yes
  Flash Modes	Auto, Fill Flash, Manual, Off, Red-Eye Reduction, Second-Curtain Sync, Slow Sync, Slow Sync/Red-Eye Reduction
  Guide Number	19.03' / 5.8 m at ISO 100
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-3 to +3 EV (1/3, 1/2, 1 EV Steps)
  Dedicated Flash System	TTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SDHC/SDXC
  Connectivity	HDMI D (Micro), USB 2.0
  Wireless	Wi-Fi
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	30 to 90%

  Battery	1 x BLS-50 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1175 mAh
  Dimensions (W x H x D)	4.7 x 3.3 x 1.8" / 119.5 x 83.1 x 46.7 mm
  Weight	13.76 oz / 390 g (Body with Battery and Memory)

  Box Dimensions (LxWxH)	9.4 x 9.1 x 3.9"
