Product description

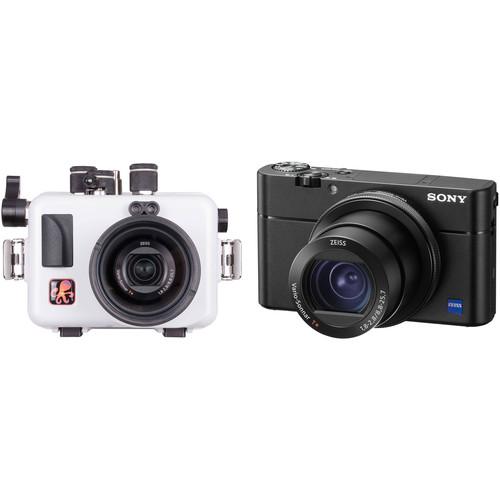

• Ikelite Underwater Housing for Sony Cyber-shot RX100 Mark III, IV, or V (Updated Version, White) Capture clear, detailed images of coral, sharks, and more at depths as great as 200', thanks to this updated version of Ikelite's Underwater Housing for your Sony Cyber-shot RX100 Mark III, IV, or V Camera. Two ports for optional Ikelite, Sea & Sea, or Olympus-type fiber-optic cables enable the connection of external strobes. Large, ergonomic mechanical controls, including knurled knobs, a newly added shutter lever, a dial, and push-buttons, provide access to all camera functions except for the flash and viewfinder switches. In addition to the improved shutter lever, the housing offers better zoom control than the previous model.

  Built for durability, the housing is designed, constructed, and tested in the USA. It's manufactured from a white ABS/polycarbonate blend, which is still corrosion-resistant but also reflects sunlight to keep your camera cooler when shooting at or above the water's surface. The back plate is clear to allow you to monitor the O-ring seal and maintain a full view of the camera. The integrated flat glass lens port has a 3.0" diameter, and accepts optional, external wide-angle and macro add-on lenses for an enhanced view. Optional color-correction filters can also be added to restore colors that get absorbed by the water.

  Construction Details
  • • Can be safely used at a maximum depth of 200'
    • Simply close the two double-passivated, stainless steel locking latches, and see the
      O-ring form a solid watertight seal
    • Designed, constructed by hand, and tested in the USA
    • Made of a white ABS/polycarbonate blend, which is still corrosion-resistant but also reflects sunlight to keep your camera cooler when shooting at or above the water's surface
    • Back plate is made of clear polycarbonate to allow you to monitor O-ring seal and maintain full view of camera
    • Slide-in, front-loading design for quick and easy setup
    • A 1/2-20 size accessory port has been added for installation of optional vacuum valve to allow you to confirm watertight integrity before diving
  Controls, Handling, and Operation
  • • Large, ergonomic mechanical controls, including knurled knobs, dials, push-buttons, and an improved shutter lever on the side, provide access to all camera functions except for the flash switch and viewfinder switch
    • Spring-loaded rear control dial
    • Bright red push-button for video recording
    • Sensitive lever makes it easy to half-press the shutter for focusing and metering
    • All rear controls are clearly marked with laser engravings
    • The housing is configured with a 1/4"-20 thread with 3.0" spacing for the mounting of an optional tray with single or dual handles, which will provide improved balance and handling, as well as quick-release attachment points for lighting arms
    • Camera's built-in Wi-Fi allows you to download photos to another device without removing the camera from the housing
    • Wi-Fi can only be used above water in close proximity to the connected device
    • Older RX100 Mark I and Mark II cameras are not usable in this housing due to differences in lens and control placement
  Lens Port
  • • Built-in, flat glass lens port has a 3.0" diameter
    • It accepts optional, external wide-angle and macro add-on lenses with 67mm diameter threads for an increased field of view or extreme close-up shots with better clarity and detail, respectively
    • Both types of lenses will enable you to get closer to your subjects, cutting down on the amount of water between you and them to reduce distortion
    • The recommended Ikelite W30 and INON UWL-H100 wide-angle lenses provide notable edge sharpness with minimal vignetting, which can be eliminated altogether by zooming in slightly, using a smaller aperture, or cropping in the editing stage
    • Ikelite WD-3 Wide Angle Dome provides medium angle of coverage with no vignetting
    • Add optional color-correction filters to restore colors that get absorbed by the water
    • Filter #6441.41 for blue water and 6441.81 for green water are available
  Strobe Connection and Operation
  • • Housing is equipped with two ports for Ikelite, Sea & Sea, INON, Nauticam, or Olympus-type fiber-optic cables
    • Compatible with the following cables: Ikelite 4501 Fiber Optic Coiled Cord, INON L-type Optical D Cable, Sea & Sea 50107 L-type Fiber Optic Cable, Olympus PTCB-E02 UW Fiber Optic Cable, Nauticam-to-INON 26211 Optical Fiber Cable, and Nauticam-to-Sea & Sea 26212 Optical Fiber Cable
    • Camera's built-in flash cannot illuminate subject from within housing but is used to trigger external strobes, which provide greater illumination, color accuracy, and vibrancy, while virtually eliminating backscatter, glare, and hard shadows
    • Ikelite DS strobes may be connected using the optional Fiber Optic Converter # 4401.1 and Fiber Optic Cord # 4501
  UPC: 883711053714
• Sony Cyber-shot DSC-RX100 V Digital Camera Taking an amazing pocket-sized series and further improving it, the Cyber-shot DSC-RX100 V Digital Camera from Sony takes the compact RX100 line up a notch by adding a Fast Hybrid AF system with 315 focal-plane phase-detection points. Incorporating a proven and reliable 20.1MP 1" Exmor RS BSI CMOS sensor, the RX100 V is able to create highly detailed images at sensitivities up to ISO 12800 with ease. Also, combining this sensor's speed and power with the BIONZ X processor and a newly developed front-end LSI, users can enjoy even faster performance, including continuous shooting of up to 24 fps with a buffer up to 148 JPEG frames, improved High Frame Rate recording times, and fast continuous AF with stills and while recording UHD 4K video.

  The hallmark features are the advanced AF system which can now lock on in just 0.05 seconds and operate during the camera's maximum continuous shooting speed of 24 fps. The High Frame Rate mode, which can reach an incredible 960 fps can now record for twice as long. Other improvements made to the RX100 V include the addition of new functions and modes, such as a Gamma Display Assist which provides a more contrasty image while using a flat S-Log2 gamma and a built-in Photo Capture mode for pulling 8.29MP stills from your movies.

  The front of the camera offers a familiar Zeiss Vario-Sonnar T* lens equivalent to 24-70mm and with a fast f/1.8-2.8 maximum aperture. This lens provides outstanding versatility for working in a wide range of conditions. In terms of design, the RX100 V retains the clean, versatile construction as its predecessors, including a lens control ring, built-in ND filter, and a variety of customizable buttons. For monitoring, this camera offers both a pop-up 0.39" 2.36m-dot OLED Tru-Finder EVF and a 3.0" 1.23m-dot LCD which can tilt upwards 180° for selfies as well as downward 45° for low-angle shooting. It also has built-in Wi-Fi with NFC for connecting to a smartphone.
  20.1MP 1" Exmor RS CMOS Sensor & BIONZ X Image Processor
  • Utilizing an advanced stacked structure with an integrated DRAM chip, the 20.1MP 1" Exmor RS CMOS sensor of the RX100 V is able to deliver outstanding image quality at up to ISO 12800 with incredibly fast performance. This sensor stacks the pixel area, a high-speed signal processing circuit, and memory in order to increase data throughput by over five times and deliver features such as 40x super slow motion, an Anti-Distortion shutter, UHD 4K video, and more. This is also the first 1" sensor to have focal-plane phase-detection AF points for faster, more precise focusing.

    This sensor is paired with the BIONZ X image processor and a newly developed front-end LSI that dramatically improves the speed and throughput of the entire imaging system, enabling continuous shooting with AF/AE at up to 24 fps. An expanded buffer makes continuous shooting possible for longer bursts, up to 148 JPEGs or 71 raw files. The front-end LSI is also able to improve overall quality of the images, especially at higher sensitivities. Additionally, another advantage of this setup is raw output which provides outstanding color fidelity and image quality.
  Zeiss Vario-Sonnar T* Lens
  • Equivalent to a 24-70mm, the integrated Zeiss Vario-Sonnar T* lens of the RX100 V will help users capture a wide range of subjects in a vast variety of situations. The wide angle to short telephoto range is a much loved option for professional photographers and it is further benefited by a fast maximum aperture range of f/1.8-2.8, improving performance in low-light conditions and enabling shallow depth-of-field effects.

    In terms of optics, this lens uses a ten elements in nine group design, which features nine aspherical elements, including two advanced aspherical (AA) lenses. This helps to minimize chromatic aberrations and ensure sharp, clear images. The lens also uses Zeiss' advanced T* anti-reflective coating to combat flare and ghosting for improved contrast and color. Furthermore, Optical SteadyShot image stabilization will help reduce the effects of camera shake while a built-in 3-stop neutral density (ND) filter is available to enable working in bright light with wider aperture settings.
  Fast Hybrid AF System with 315 Phase-Detection Points
  • The RX100 V is equipped with an on-sensor phase-detection AF system that will dramatically improve autofocus speed for both stills and video. The camera uses a hybrid system with 315 phase-detection points that provide about 65% frame coverage along with a contrast-detection system to provide fast, accurate focusing in a range of situations. The RX100 V is able to lock onto subjects quickly, in just 0.05 seconds, and it can use AF tracking when shooting at 24 fps.

    In order to make operation seamless, the RX100 V benefits from reduced blackout for easier tracking when using the EVF or LCD. Furthermore, an AF-A mode is now available, which will allow the camera to automatically switch from AF-S and AF-C mode as the situation needs. Users can also display the phase-detection area to help users focus on their subject.
  UHD 4K Video Recording
  • Able to record UHD 4K video at 30/24 fps for up to 5 minutes, the RX100 V is a pocket-sized powerhouse, delivering movies with exceptional clarity. By using a full pixel readout without binning, the camera collects about 1.7x the information needed for 4K output. This oversampling helps to increase clarity while reducing the impact of moire and jaggies. Fast Hybrid AF is available during movie shooting for ensuring accurate, fast tracking using phase-detection AF points. The camera also offers Sony's advanced XAVC S format for recording a high bit rates up to 100 Mbps.

    For advanced users, picture profiles and image controls are available, including the S-Log2 gamma that is able to help expand the dynamic range by recording a flat image. Gamma Display Assist helps users view a more natural image when shooting with S-Log2. Other options such as timecode, zebras, peaking, and more are present for making shooting and editing easier. When recording internally, users will record video with a 4:2:0 sampling at 8-bit, however, to even further improve image quality the RX100 V has clean HDMI output for use with an external recorder. This allows users to capture 4:2:2 uncompressed video and save in an edit-ready format.

    A Photo Capture function is built directly into the camera, allowing shooters to quickly save an 8.29MP still from their UHD 4K movies. Full HD can also benefit from this feature, where users will be able to pull a 2MP still. Additionally, the camera is NTSC/PAL switchable, making it usable around the world.
  High Frame Rate and Slow Motion Shooting
  • Speed is a huge advantage of the RX100 V, and in video users will benefit from advanced High Frame Rate shooting and super slow motion. In Full HD, shooters will have access to a standard 120 fps setting that will enable outstanding slow motion when placed in an editing software. In addition to this, the camera also offers a dedicated HFR mode which will boost the cameras frame rate to up to 960 fps. Videographers will have the option of recording in Quality Priority and Shoot Time Priority modes for approximately twice as long with the RX100 V compared to its predecessor. This results in about 7 seconds of recording in Shoot Time Priority at the 240 fps setting. The camera will output a Full HD file from slightly lower resolutions in order to produce high quality images at all frame rates. Additionally, an end trigger mode enables users to record 4 or 6 seconds before the record button is pressed.
  Body Design and Wi-Fi Connectivity
  • • Pop-up 0.39" XGA OLED electronic viewfinder offers a resolution of 2.36m dots for crisp, clear imagery. The EVF also uses a Zeiss T* coating to ensure clarity from corner to corner.
    • The rear 3.0" Xtra Fine LCD screen can tilt upwards 180° and downwards 45° for shooting at different angles or for composing the perfect selfie. The screen sports a resolution of about 1.23m dots and WhiteMagic technology has been applied to the LCD's design to increase effective brightness for easier viewing in bright lighting.
    • A manual control ring surrounds the lens and features a smooth, click-less design for quick and quiet changing of settings. The ring can be assigned to control a variety of features, at different values, such as zoom, aperture, and Picture Effects.
    • Custom button and other programmable button can be set to one of over 40 functions for quick access to commonly used settings.
    • A built-in 3-stop neutral density (ND) filter is available to enable working in bright light with wider aperture settings.
    • Pop-up flash will help illuminate subjects in dimly-lit scenes.
    • Built-in Wi-Fi connectivity enables instant transferring of imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices, with no complex set-up required. Once connected, the linked mobile device can also display a live view image on its screen and, using Smart Remote Control, remotely control the camera's shutter release. Additionally, the RX100 V can now connect to a smartphone using a QR code for faster access.
    Other Camera Features
    • • Anti-Distortion electronic shutter can enable completely silent shooting as well as the ability to work at shutter speeds as fast as 1/32000 second. This shutter also keeps rolling shutter effects to an absolute minimum and enables photographers to work in bright light with wider apertures.
      • File name setting allows users to change the first three characters of the file name from DSC to three characters of their choice.
      • PlayMemories Camera Apps are available for download over Wi-Fi, and allow you to personalize the camera's features depending on specific shooting styles. Apps are available to suit creating portraits, detailed close-ups, sports, time lapse, motion shot, and other specific types of imagery.
      • Step Zoom lets you quickly change between five common focal lengths (24, 28, 35, 50, or 70mm) by rotating the control ring.
      • Clear Image Zoom allows users to enlarge the center of the still or movie frame being shot by up to 5.8x equivalent when using optical zoom as well.
      • Eye AF in AF-C mode will lock on and tack a subject's eye, even as the face moves.
      • Users can set a minimum shutter speed when using ISO AUTO to help minimize shutter blur.
      • Creative Style settings: Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn Leaves, Black & White, and Sepia (all with +/- 3 step contrast, saturation, and sharpness adjustment).
      • Picture Effect modes: Posterization (Color, B&W), Pop Color, Retro Photo, Partial Color (R/G/B/Y), High Contrast Monochrome, Toy Camera, Soft High-Key, Soft Focus, HDR Painting, Rich-Tone Monochrome, Miniature, Watercolor, and Illustration.
      • Adjustable Picture Profile parameters: Black level, Gamma (Movie, Still, Cine1-2, ITU709, ITU709 [800%], S-Log2), Black Gamma, Knee, Color Mode (Movie, Still, Cinema, Pro, ITU709 Matrix, White & Black, S-Gamut), Saturation, Color Phase, Color Depth, Detail, Copy, and Reset.
      UPC: 027242903371
    In the Box
    • Underwater Housing for Sony Cyber-shot RX100 Mark III, IV, or V (Updated Version, White) xxdwvbexvsedrfex
    • Vinyl Port Cover for 3" Diameter
    • 0184.1 1cc Tube Silicone Lubricant
    • Limited 2-Year Warranty
    • Sony - Cyber-shot DSC-RX100 V Digital Camera
    Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ikelite Underwater Housing for Sony Cyber-shot RX100 Mark III, IV, or V (Updated Version, White)

  Depth Rating	200' / 60 m
  Control Type	Mechanical, i.e., knurled knobs, lever, dials, and push-buttons
  Controls	Provide access to all camera functions except flash switch and viewfinder switch
  Material of Construction	Top/Front/Sides/Bottom: White ABS/polycarbonate blend Back Plate: Clear polycarbonate Locking Latches: Stainless steel
  Lens Port	Built-in, flat glass port
  Color Correction Filter	Optional filter #6441.41 for blue water and 6441.81 for green water
  Buoyancy	Slightly negative in fresh water
  Internal Flash Usable	Yes, camera's built-in flash usable for external strobe triggering
  External Flash Connector	2x ports for optional Ikelite, Sea & Sea, or Olympus-type fiber-optic cables to attach external strobes Optional Fiber Optic Converter #4401.1 for connecting Ikelite DS strobes
  Mounting	2x 1/4"-20 threaded holes with 3.0" / 76 mm spacing for mounting optional tray
  Dimensions	Housing: 6.8 x 5.0 x 5.4" / 17.3 x 12.7 x 13.7 cm Lens Port Diameter: 3.0" / 76 mm
  Weight	2.6 lb / 1.2 kg

  Box Dimensions (LxWxH)	9.8 x 6.4 x 6.3"

• Sony Cyber-shot DSC-RX100 V Digital Camera

  Pixels	Actual: 21.0 Megapixel Effective: 20.1 Megapixel
  Sensor	1" (13.2 x 8.8 mm) CMOS
  File Formats	Still Images: JPEG, RAW Movies: AVCHD 2.0, MP4, XAVC S Audio: AAC LC, AC3, Dolby Digital 2ch, Linear PCM (Stereo)
  Max Resolution	20 MP: 5472 x 3648
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Image Stabilization	Optical
  Color Spaces	sRGB, Adobe RGB

  Lens	Carl Zeiss Vario-Sonnar, 10 Elements in 9 Groups 9 Aspherical Effective Focal Length: 8.8 to 25.7mm (35 mm Equivalent: 24 to 70mm) Aperture: f/1.8 (W) to f/2.8 (T)
  Zoom	Optical: 2.9x Clear Image Zoom: 5.8x Digital: 11x
  Focus Range	Wide: 1.97" to Infinity / 5 cm to Infinity Telephoto: 11.81" to Infinity / 30 cm to Infinity

  ISO Sensitivity	Auto, 125 to 12800 (Extended Mode:80 to 12800)
  Shutter	Type: Mechanical Speed: 4 to 1/2000 Second in Auto Mode Type: Mechanical Speed: 30 to 1/2000 Second in Program Mode Type: Mechanical Speed: 30 to 1/2000 Second in Manual Mode 30 to 1/2000 Second in Aperture Priority Mode Type: Mechanical Speed: 30 to 1/2000 Second in Shutter Priority Mode Type: Electronic Speed: 4 to 1/32000 Second in Auto Mode Type: Electronic Speed: 30 to 1/32000 Second in Bulb Mode Type: Electronic Speed: 30 to 1/32000 Second in Program Mode Type: Electronic Speed: 30 to 1/32000 Second in Aperture Priority Mode Type: Electronic Speed: 30 to 1/32000 Second in Shutter Priority Mode
  Exposure Metering	Center-Weighted, Multi, Spot
  Exposure Modes	Modes: Aperture Priority, Intelligent Auto, Manual, Memory Recall, Movie, Panorama Shot, Programmed Auto, Scene Selection, Shutter Priority, Superior Auto
  Shooting Modes	Anti-Motion Blur Fireworks Gourmet Handheld Twilight High Sensitivity Landscape Macro Night Portrait Night Scene Pet Mode Portrait Sports Sunset
  White Balance	Auto, Cloudy, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade
  Continuous Shooting	Up to 24 fps at 20.1 MP for up to 148 Exposures (JPEG Format) Up to 24 fps at 20.1 MP for up to 71 Exposures (Raw Format)
  Self-Timer	2, 5, 10 Sec
  Remote Control	RM-VPR1 (Optional)

  Flash Modes	Auto Flash On Off Rear Sync Red-Eye Reduction Slow Sync
  Built-In Flash	Yes
  Effective Flash Range	Wide:1.31 to 33.46' / 0.4 to 10.2 m Telephoto:1.31 to 21.33' / 0.4 to 6.5 m
  External Flash Connection	None

  Memory Card Type	Memory Stick Duo Memory Stick Pro Duo Memory Stick PRO Duo (High Speed) Memory Stick PRO HG-Duo SD SDHC SDXC

  Video Recording	Yes, NTSC/PAL
  Resolution	3840 x 2160p: 30 fps, 25 fps, 24 fps 1920 x 1080p: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps 1920 x 1080i: 60 fps, 50 fps 1280 x 720p: 30 fps, 25 fps 1920 x 1080p: 240 fps, 480 fps, 960 fps 1824 x 1026p: 240 fps, 480 fps, 960 fps 1676 x 566p: 240 fps, 480 fps, 960 fps 1920 x 1080p: 250 fps, 500 fps, 1000 fps 1824 x 1026p: 250 fps, 500 fps, 1000 fps 1676 x 566p: 250 fps, 500 fps, 1000 fps

  Video Clip Length	Up to 29 Minutes
  Audio Recording	Built-In Mic: With Video (Stereo)

  Viewfinder Type	Electronic
  Diopter Adjustment	-4 to +3 m
  Viewfinder Coverage	100%
  Screen	3.0" LCD Rear Screen Tilt (1,228,800 Pixels)

  Connectivity	HDMI D (Micro), USB 2.0 Micro-B, USB 2.0
  Wi-Fi	Yes, Wi-Fi 4 (802.11n) Built In

  Battery	1 x NP-BX1 Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1240 mAh
  AC Power Adapter	AC-UB10C (Included)

  Dimensions (W x H x D)	4.0 x 2.3 x 1.6" / 101.6 x 58.1 x 41.0 mm
  Weight	10.55 oz / 299 g with battery and memory card

  Box Dimensions (LxWxH)	6.1 x 4.7 x 2.9"
