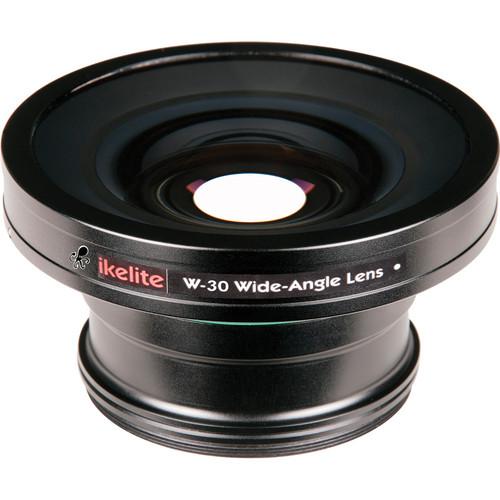

User Manual for Ikelite W-30 Underwater Wide-Angle Conversion Lens Click to enlarge the picture
Contents of the user manual for the Ikelite W-30 Underwater Wide-Angle Conversion Lens
- Product category: Lenses Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Lenses
|
User manual for the Ikelite W-30 Underwater Wide-Angle Conversion Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Get closer to those coral reefs, shipwrecks, and whale sharks while fitting more in frame with the Ikelite W-30 Underwater Wide-Angle Conversion Lens, which features a depth rating of 200'. It is specifically designed for digital cameras with wide lenses that have focal lengths of 28mm or less (35mm equivalent), and it increases your angle of view by about 40%. The lens offers a magnification of 0.59x. Adding it onto your camera housing will allow you to reduce the distance between you and your subject, thus cutting down on the amount of water in your way.
Water absorbs light and turns rich, varied colors into muted shades of blue, gray, or green, so minimizing the water standing between you and what you want to shoot is critical to maintaining color vibrancy and accuracy. Since this conversion lens has such a wide angle of coverage, you can get up close and personal while still fitting your whole subject in the shot. For more help restoring natural colors that get lost beneath the surface, attach the optional #6441.42 blue or 6441.82 green water filter available from Ikelite.
Additionally, the lens is made of optical glass with an anti-reflective coating, and it features 4 elements in 4 groups. One of these is a rare-earth element that helps provide improved permeability, clarity, and brightness. The lens body is constructed from an aluminum alloy. This completely waterproof wide-angle lens has both 46mm and 67mm threads for mounting onto many different lens ports on camera housings, and it can be attached to housings with 56mm thread diameters via the optional #9306.81 adapter. The lens can be removed and replaced with ease while underwater. UPC: 883711044989 In the Box Ikelite W-30 Underwater Wide-Angle Conversion Lens Front Cap Rear Cap Pouch Lens Cloth Silicone Lubricant Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite W-30 Underwater Wide-Angle Conversion Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite W-30 Specs | Angle of Coverage | Increases coverage by approx. 40% | | Magnification | 0.59x | | Depth Rating | 200' / 60 m | | Coating | Anti-reflective | | Elements/Groups | 4 elements / 4 groups | | Attachment Method | 46 mm and 67 mm threads for mounting onto housing ports
Attaches to housings with 56mm thread diameters via #9306.81 adapter (not included) | | Material of Construction | Lens: Optical glass
Body: Aluminum alloy | | Buoyancy | Negative, approx. 0.9 lb / 0.4 kg | | Dimensions | Diameter x Length: 3.8 x 2.1" / 96 x 53 mm | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 4.2 x 4.1 x 4.1" |
