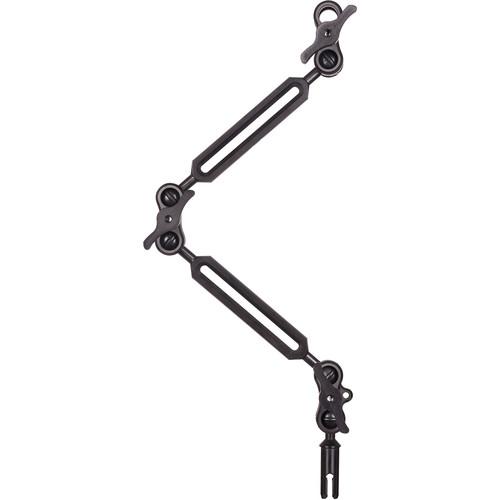

User Manual for Ikelite Wide-Angle 1" Ball Arm for QR Handle Click to enlarge the picture
Contents of the user manual for the Ikelite Wide-Angle 1" Ball Arm for
- Product category: Arms & Accessories Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Arms & Accessories
|
User manual for the Ikelite Wide-Angle 1" Ball Arm for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Using this versatile Wide-Angle 1" Ball Arm for Quick Release Handle from Ikelite, you can add an optional strobe or light to your underwater photo/video system for various shots covering perspectives from wide-angle to macro. The package includes two double-ball arm segments, each measuring 7" long. The bottom segment connects to a QR mount that enables easy attachment to the top of the quick-release handles on Ikelite's trays for camera housings.
In addition to two standard ball clamps, this arm system offers a third ball clamp with an auxiliary mount to allow for the attachment of a focus light or a top handle. The ball mounts measure 1" in diameter and work with all standard 1" ball arms and components, including those from Ikelite, Aquatica TLC, Sea & Sea, Inon, Ultralight, and Nauticam. The ball clamps enable attachment to the QR mount at the bottom and the required, user-supplied strobe or video light mount at the top.
The slotted design of the arm extension allows for the connection of lightweight accessories along its length via the addition of a Sliding Ball Mount. To prevent slipping and enable a better hold with less force, the ball mounts have grooves and O-rings. The clamps can be finger-tightened underwater and allow you to adjust the position of your lighting without loosening them. The arm and balls are made of aluminum that has been treated with a hard, type III anodized finish for long-lasting resistance to corrosion. UPC: 883711052632 In the Box Ikelite Wide-Angle 1" Ball Arm for QR Handle (Two 7" Arm Segments) 2 x 7" Arm Segments/Extensions 2 x Standard Ball Clamps Ball Clamp with Auxiliary Mount Quick-Release Handle Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Wide-Angle 1" Ball Arm for QR Handle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 4080.06 Specs | Material of Construction | Aluminum with hard type III anodized finish | | Length | Each Arm Segment: 7.0" / 17.8 cm
Total Length with Clamps and QR Mount: Approx. 23" / 58.4 cm | | Diameter | Ball Mounts: 1.0" / 2.5 cm | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 8.7 x 3.5 x 3.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
