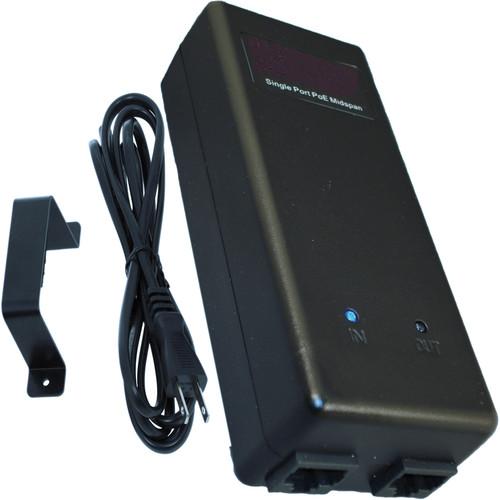

User Manual for Iluminar IL-PoE35 Series Single Port High Power PoE Plus Midspan Injector with North American Power Cord Click to enlarge the picture
Contents of the user manual for the Iluminar IL-PoE35 Series Single Port High
- Product category: Power over Ethernet (PoE) Iluminar
- Brand: Iluminar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Iluminar Power over Ethernet (PoE)
|
User manual for the Iluminar IL-PoE35 Series Single Port High contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Iluminar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Iluminar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Iluminar product will considerably shorten its lifespan!
|
Product description The IL-PoE35 Series Single Port High Power / PoE Plus Midspan Injector from Iluminar supports powering IP end devices such as PoE powered illuminators over an Ethernet cable. It adds up to 35W of continuous power at 48 VDC to unused (non-data) wires in a standard CAT5/5e/6 Ethernet cable. It delivers both data and power over a single Ethernet cable to a PoE-enabled end device that is designed to receive both data and power through its RJ45 connector. The second RJ45 port of the injector passes only data through the Ethernet switch. The maximum supported cable distance from the Ethernet switch to the end IP device is 328' (100m). This midspan injector includes a power cord with a North American type plug. - Compliant and exceeds IEEE 802.3at (PoE Plus) and 802.3af (High PoE) specifications
- Compatible with Iluminar PoE illuminators
- Outputs up to 35W of continuous power at 48 VDC
In the Box Iluminar IL-PoE35 Series Single Port High Power / PoE Plus Midspan Injector with North American Power Cord Mounting Bracket North American Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Iluminar IL-PoE35 Series Single Port High Power PoE Plus Midspan Injector with North American Power Cord in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIluminar IL-POE35NA Specs | | | Power Cord | Removable IEC320 inlet 2-pin C8 cord with North American plug | | Power Supply | Single, internal | | Voltage Range | Range: 90 to 264 VAC auto sensing
Rating: 100 to 240 VAC | | Frequency | Range: 47 to 63 Hz
Rating: 50 to 60 Hz | | In-Rush Current | 60 A maximum @ 240 VAC | | | | PoE Class | IEEE 802.3af & 802.3at with class detection | | Pin Assignments | Power on Data Pins: 3 & 6 (+), 1 & 2 (-) | | Output Voltage | +56 VDC (+1 V / -2 V) | | Maximum Power Supported | On Port: 35 W (class 4) @ 104°F (40°C) (exceeds PoE standard) | | Load | Minimum: 10 mA
Maximum: 0.35 A | | Regulation | Line/Load: ±5% | | Efficiency | 80% (typical) at maximum load & 120 VAC, 60 Hz, class 4 | | Hold-Up Time | 10 ms | | | | Throughput | 10 Mb/s Ethernet, 100 Mb/s Fast Ethernet, or 1000 Mb/s Gigabit | | Connector Type | Non-shielded RJ45; meets EIA 568A and 568B | | | | Operating Temperature | -4 to 104°F (-20 to 40°C) @ 35 W
-4 to 131°F (-20 to 55°C) @ 25 W
-4 to 140°F (-20 to 60°C) @ 20 W | | Relative Humidity | 5 to 90%, non-condensing | | | | Compatible Devices | Any PoE compliant device | | Wiring Distance | 328' (100 m) between Ethernet switch and PoE-enabled end device | | LED Indicators | Display power status | | Surge Protection | Over voltage current & short circuit protected | | Bracket Type | Wall mounting bracket | | Safety Approvals | FCC, CE, UL/cUL | | Dimensions | 5.0 x 2.0 x 1.4" (12.8 x 5.1 x 3.5 cm) | | Weight | 6.3 oz (178.6 g) | | | | Box Dimensions (LxWxH) | 12.0 x 8.0 x 6.0" |
