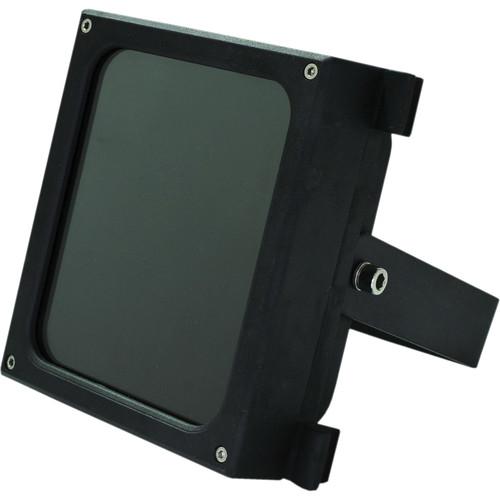

User Manual for Iluminar IR Illuminator with 50' Range Click to enlarge the picture
Contents of the user manual for the Iluminar IR Illuminator with 50' Range
- Product category: Illuminators Iluminar
- Brand: Iluminar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Iluminar Illuminators
|
User manual for the Iluminar IR Illuminator with 50' Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Iluminar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Iluminar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Iluminar product will considerably shorten its lifespan!
|
Product description Illuminar's IR Illuminator with 50' Range is a well-suited source of illumination for surveillance cameras. The light reflected by the illuminator is invisible to the human eye, but perceptible to true day/night security cameras for a covert, non-obtrusive form of illumination in darkness and low-light conditions. Furthermore, this illuminator has a 15 to 120*° positioning angle range, built-in photocell IR On/Off function, operates and is IP66 dust- and water-resistant for outdoor or indoor video monitoring applications. Lastly, please note that a power supply is not included with this illuminator. An Altronix 12 VDC or 24 VAC input is recommended for optimal performance. - Power Supply Compatibility
- Please note that a power supply is not included with this illuminator. An Altronix 12 VDC or 24 VAC input is recommended for optimal performance.
In the Box Iluminar IR Illuminator with 50' Range Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Iluminar IR Illuminator with 50' Range in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIluminar IRC250-A120-24 Specs | Number of LEDs | 16 x SMT | | Viewing Angle | 120° | | IR Distance | 50' (15 m) | | Construction | Aluminum extrusion
Font window: tempered glass panel Finish: black powder coated | | Power Cable Length | 1.47' (45 cm) | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Wavelength | 850 nm
*semi-covert faint red glow visible on the illuminator only; no visible light | | Certification | Safety: EN60598:2004 Electrical Safety / EN60825-1 Laser Eye Safety
IP Rating: IP66 in accordance with EN60529:1992
EMC: EN61000, FCC part 15.107 15.108 Class B
WEEE: Waste Electrical & Electronic Equipment European directive 202/96/EC
RoHS: Restriction of Hazardous Substances European directive 202/95/EC | | Input Voltage | 12 VDC or 24 VAC | | Input Current | 1.6 A at 24 VAC or 3.2 A at 12 VDC | | Power Consumption | 32 W | | Dimensions | 8.3 x 6.7 x 4.9" (210 x 170 x 124 mm) | | Weight | 3.5 lb (1.6 kg) |
