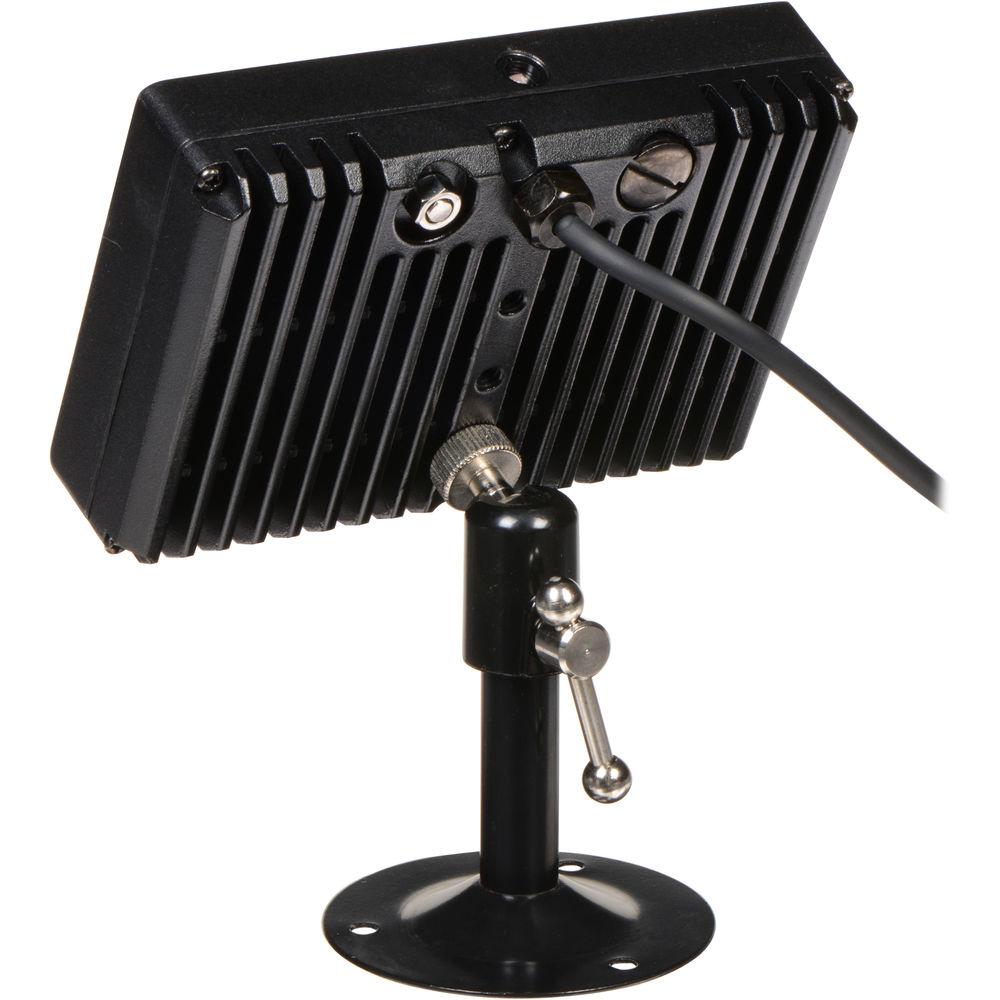

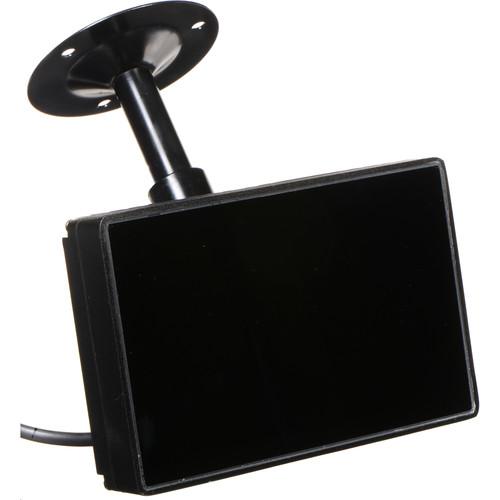

User Manual for Iluminar IR229-C30-24 Medium-Range IR Illuminator Click to enlarge the picture
Contents of the user manual for the Iluminar IR229-C30-24 Medium-Range IR Illuminator
- Product category: Illuminators Iluminar
- Brand: Iluminar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Iluminar Illuminators
 |
User manual for the Iluminar IR229-C30-24 Medium-Range IR Illuminator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Iluminar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Iluminar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Iluminar product will considerably shorten its lifespan!
|
Product description The Iluminar IR229-C30-24 Medium-Range IR Illuminator is designed to provide superior IR lighting for CCTV systems. This IR illuminator is IP67 rated, which makes it resistant to ingress of dust and water, and thus ideal for outdoor applications. It is also vandal resistant. - IR illuminator with LED technology
- Even illumination at a distance of up to 65' (20 m)
- Ceiling or wall mountable
- Built-in photocell (IR on / off)
- Alloy housing with high transmittance and protective (vandal-proof) IR filter construction
- Black polyester powder-coat finish
In the Box Iluminar IR229-C30-24 Medium-Range IR Illuminator 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Iluminar IR229-C30-24 Medium-Range IR Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIluminar IR229-C30-24 Specs | | | Input Voltage | 24 VAC | | Input Current | 480 mA maximum | | Wavelength | Optional (C): 940 nm (covert) | | Angle | 30° | | Certifications | Meets NEMA Type 4 and IP67 standards
CE and RoHs certified | | | | Construction | Alloy housing with high transmittance protective (vandal-proof) IR filter | | Operating Temperature | 14 to 120˚F (-10 to 50˚C) | | Humidity | Within 90% RH | | MTBF | 20,000 hours | | Output Terminal | 12" (30 cm) L / W | | Mount | Metal adjustable wall mount | | Dimensions (W x H x D) | 5.8 x 3.9 x 1.4" (149 x 99 x 35 mm) | | Weight | 2.8 lb (1.27 kg) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 7.5 x 5.8 x 4.0" |
