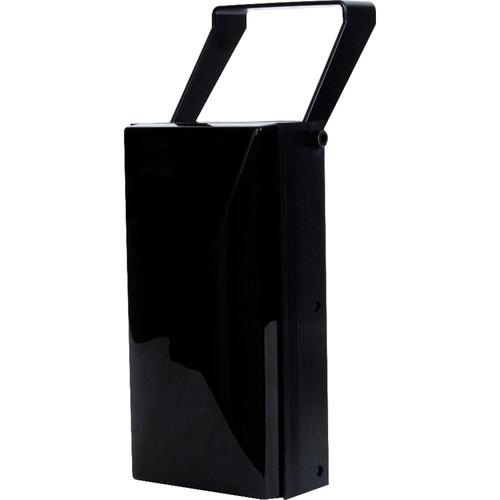

User Manual for Iluminar IR919 Series Long Range IR Illuminator Click to enlarge the picture
Contents of the user manual for the Iluminar IR919 Series Long Range IR
- Product category: Illuminators Iluminar
- Brand: Iluminar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Iluminar Illuminators
|
User manual for the Iluminar IR919 Series Long Range IR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Iluminar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Iluminar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Iluminar product will considerably shorten its lifespan!
|
Product description The IR919 Series Long Range IR Illuminator from Iluminar emits infrared illumination, which is invisible to the human eye but can be seen by a night vision camera with its IR cut filter removed. The illuminator has a 30° light distribution angle that provides an HOV of 157’ and a range of 295’.The IR919 illuminator is designed to provide IR lighting for CCTV systems. With an IP67 rating, the illuminator is weatherproof and can be used outdoors. The hardened housing provides protection from harsh weather conditions and rapid temperature variations (-58 to 140°F). This covert camera is not effected by light pollution and has a longer range (295’) than visible light illuminators due to its higher wavelength. - Long range IR illuminator
- 30° light distribution angle
- Covert illuminator with no visible glow from illuminator, making it ideal for transportation or high-security applications
- Low power consumption (52W)
- Built-in photocell IR on/off
- Telemetry input for remote switching
In the Box Iluminar IR919 Series Long Range IR Illuminator (940nm, 30°) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Iluminar IR919 Series Long Range IR Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIluminar IR919-C30-POE-2 Specs | Electronics | High efficiency surface mount high-power LEDs with advanced current limited integral control circuitry | | Number of SMT LEDs | 32 | | Front Window | Polycarbonate high transmittance protective IR filter | | Construction | Aluminum extrusion | | HOV | 157' (48 m) | | Angle | 30° | | Range | 295' (90 m) | | Power Cable | 9' (3 m) | | Interface Connector | Photocell following contact & remote telemetry input | | Pressure Equalization Vent | Prevents thermal expansion & pressure cycling | | Photocell | Adjustment via pot | | Illumination | Adjustable via pot | | Operating Temperature | -58 to 140°F (-50 to 60°C) | | Wavelength | 940 nm | | Electrical | 24 VAC | | Input Current | 2.2 A at 24 VAC | | Consumption | 52 W | | Mount | Black powder-coated stainless steel wall mount. Adjustable via M6 Allen key (included) | | Safety | EN60598:2004: Electrical Safety
EN60825-1: Laser Eye Safety | | IP | IP67, in accordance with EN60529:1992 | | EMC | EN61000, FCC part 15.107, 15.108 Class B | | WEEE | Waste Electrical & Electronic Equipment European directive 202/96/EC | | RoHS | Restriction of Hazardous Substances European directive 202/95/EC | | Dimensions | 8.4 x 4.3 x 3.1" (21 x 11 x 7.8 cm) | | Weight | 3.9 lb (1.75 kg) |
