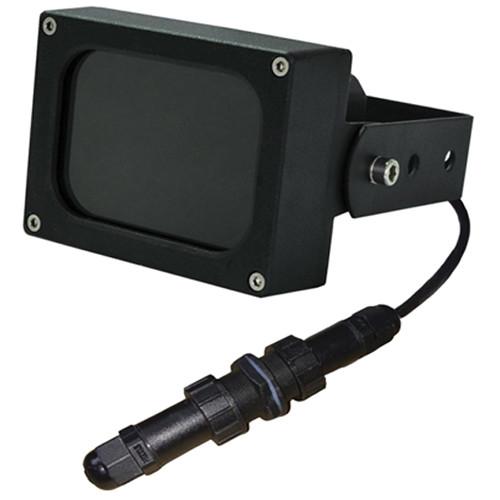

User Manual for Iluminar IRC132-PoE Series Short Range 850nm IR PoE Illuminator for True Day Night CCTV Camera Click to enlarge the picture
Contents of the user manual for the Iluminar IRC132-PoE Series Short Range 850nm
- Product category: Illuminators Iluminar
- Brand: Iluminar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Iluminar Illuminators
|
User manual for the Iluminar IRC132-PoE Series Short Range 850nm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Iluminar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Iluminar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Iluminar product will considerably shorten its lifespan!
|
Product description The black IRC132-PoE Series Short Range 850nm IR PoE Illuminator from Iluminar is designed to be used with true day/night CCTV cameras. This illuminator is invisible to the human eye but visible to black/white and true day/night cameras, which makes it a covert/non-obtrusive illumination. Also, thanks to its invisibility to the human eye, it does not create the problem of light pollution. It has a longer range than visible light due to the higher wavelength of approximately up to 919’ (280m). The illuminator is designed to provide superior IR lighting for CCTV cameras.Supplied with an IP66 rating, this illuminator is vandal-proof and designed for both indoor & outdoor use. The tempered glass panel and die-cast aluminum housing provide protection from the harsh weather conditions and rapid temperature variations (-58 to 140°F). Note: This IR illuminator requires true day/night camera with mechanical IR cut filter. - Short range IR illuminator for true day/night CCTV cameras
- Built-in photocell IR on/off
In the Box Iluminar IRC132-PoE Series Short Range 850nm IR PoE Illuminator for True Day/Night CCTV Camera (30°, Black) M6 Allen Key Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Iluminar IRC132-PoE Series Short Range 850nm IR PoE Illuminator for True Day Night CCTV Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIluminar IRC132-A30-POE Specs | | | Safety | EN60598:2004 - Electrical Safety
EN60825-1 - Laser Eye Safety | | IP | IP66 in accordance with EN60529:1992 | | EMC | EN61000, FCC part 15.107
15.108 Class B | | WEEE | Waste Electrical & Electronic Equipment European directive 202/96/EC | | RoHS | Restriction of Hazardous Substances European directive 202/95/EC | | | | Input Voltage | Power over Ethernet (PoE) IEEE.802.3af standard | | Consumption | 12 W | | | | Electronics | High efficiency surface mount high power LED's with advanced current limited integral control circuitry | | Number of SMT LEDs | 6 | | Wavelength | 850 nm, Standard (A)
Faint red glow visible on the illuminator only (no visible light) | | Angle | 30° | | Illumination Distance | 66' (20 m) | | Construction | Robust high quality aluminum extrusion | | Front Window | Tempered glass panel | | Cable | IP66 rated RJ45 jack and CAT5e | | Finish | Black powder coated | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Mount | Black powder coated stainless steel wall mount.
Adjustable via M6 Allen key (included) | | Dimensions | 4.3 x 3.3 x 3.5" (11.0 x 8.5 x 8.8 cm) | | Weight | 2.2 lb (1.0 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
