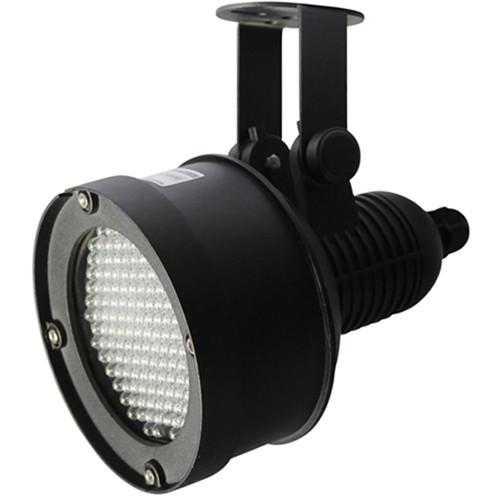

User Manual for Iluminar IRC182 Series Medium-Range IR Illuminator Click to enlarge the picture
Contents of the user manual for the Iluminar IRC182 Series Medium-Range IR Illuminator
- Product category: Illuminators Iluminar
- Brand: Iluminar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Iluminar Illuminators
|
User manual for the Iluminar IRC182 Series Medium-Range IR Illuminator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Iluminar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Iluminar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Iluminar product will considerably shorten its lifespan!
|
Product description The 940nm IRC182 Series Medium-Range IR Illuminator from Iluminar is designed to provide IR lighting for CCTV systems. It offers and illumination angle of 120° and has a range of up to 33'. The IP66-rated and vandal-proof IR illuminator can be used outdoors. The tempered glass panel and die-cast aluminum housing provide protection from harsh weather conditions and rapid temperature variations. - Medium-range IR illuminator for day/night CCTV cameras
- 940nm (covert) wavelength; no visible glow from illuminator-suitable for transportation or high-security applications
- Illumination distance up to 33'
- 120° angle of illumination
- Built-in photocell IR on/off
- Black powder-coated metal cylindrical case
- Black powder-coated stainless steel wall mount
In the Box Iluminar IRC182 Series Medium-Range IR Illuminator (940nm, 120°) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Iluminar IRC182 Series Medium-Range IR Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIluminar IRC182-C120-24 Specs | Illumination Angle | 120° | | Illumination Distance | 33' (10 m)
Note: Viewing distance tested using Sony 1/3" CCD camera with 0.01 lux. To achieve the distance needed, please check your camera and lens specifications prior to purchase. IR illuminators require true day/night camera with mechanical IR cut filter. Distances realized may vary due to different camera and lens specifications. | | Wavelength | 940 nm (covert)
No visible glow from the illuminator-suitable for transportation or high-security applications | | Electronics | IR LEDs | | Number of LEDs | 147 | | Construction | Metal cylindrical case with black powder-coated finish | | Front Window | Tempered glass panel | | Mount | Black powder-coated stainless steel wall mount; adjustable via M6 Allen key (included) | | Power Cable Length | 3' (1 m) | | Input Voltage | 12 VDC or 24 VAC | | Input Current | 1.5 A at 24 VAC or 2 A at 12 VDC | | Power Consumption | 42 W | | Certifications | Safety: EN60598:2004 electrical safety
EN60825-1 laser eye safety
EMC: EN61000, FCC part 15.107
15.108 Class B
WEEE directive 202/96/EC
RoHS directive 202/95/EC | | IP Rating | IP66 in accordance with EN60529:1992 | | Operating Temperature | -22 to 104°F (-30 to 40°C) | | Dimensions | 6.18 x 8.97" (157 x 228 mm) | | Weight | 5.1 lb (2.3 kg) |
