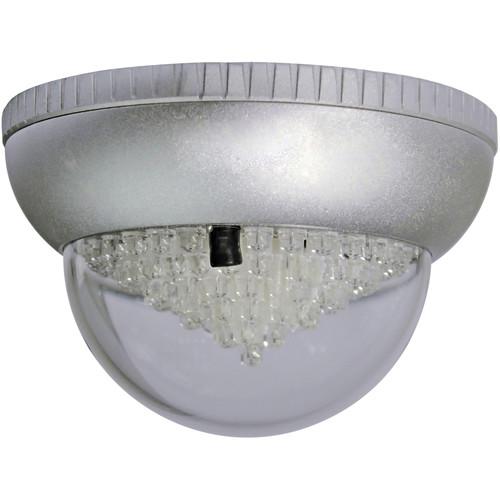

Product description The gray powder coated IRC315 Series Indoor 180° Panoramic IR Illuminator from Iluminar is equipped with 90 wide-angle IR LEDs that provide an illumination angle of 180°, making it suitable for panoramic day/night CCTV cameras. It is capable of illuminating areas up to 1023 ft2 (95m2), and features dual power input (12 VDC or 24 VAC) and automatic IR on/off via built-in photocell. This IP65-rated weatherproof illuminator can withstand a temperature range of -22 to 104°F. - Indoor panoramic IR illuminator for day/night CCTV cameras
- Suitable for 180° panoramic cameras
- 1023 ft2 (95m2) area of illumination
- Low power consumption of 7.6W
- IP65-rated weatherproof (indoor only)
- Automatic IR on/off via built-in photocell
- Dual power input (12 VDC or 24 VAC)
In the Box Iluminar IRC315 Series Indoor 180° Panoramic IR Illuminator (850nm, Gray) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Iluminar IRC315 Series Indoor 180° Panoramic IR Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIluminar IRC315-A180-24 Specs | | | Number of LEDs | 90 wide-angle IR LEDs | | Wavelength | 850 nm (semi-covert); faint red glow visible on illuminator only (no visible light) | | Illumination Angle | 180° | | Illumination Distance | Up to 1023 ft2 (95 m2) Tested using Sony 1/3" CCD camera with 0.01 lux. Distance may vary due to camera and lens specifications. | | | | Input Voltage | 12 VDC or 24 VAC ±10% | | Input Current | 550 mA @ 24 VAC or 640 mA @ 12 VDC | | Power Consumption | 7.6 W | | | | Construction | Aluminum heat evaporating case | | Front Window | Clear plastic dome | | Power Cable | 31.5" (80.0 cm) | | Control | CDS automatic control; 10 Lux | | Operating Temperature | -22 to 104°F (-30 to 40°C) | | Certifications | CE, RoHS, WEEE | | Dimensions | 4.25 x 2.76" (10.8 x 7.0 cm) | | Weight | 12.9 oz (365.0 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 4.8 x 4.8 x 3.6" |
