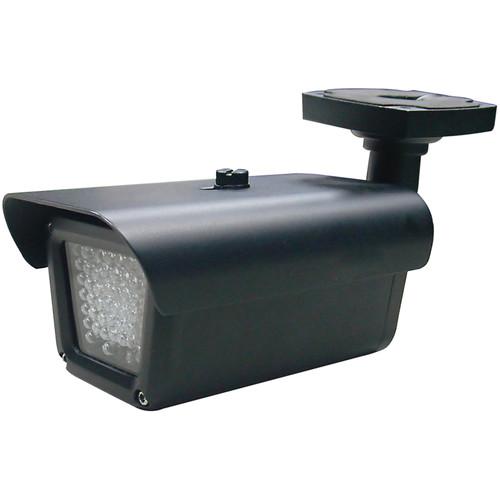

User Manual for Iluminar IRC99 Series Short Range IR Illuminator Click to enlarge the picture
Contents of the user manual for the Iluminar IRC99 Series Short Range IR
- Product category: Illuminators Iluminar
- Brand: Iluminar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Iluminar Illuminators
|
User manual for the Iluminar IRC99 Series Short Range IR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Iluminar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Iluminar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Iluminar product will considerably shorten its lifespan!
|
Product description The IRC99 Series Short Range IR Illuminator from Iluminar is designed to be used with surveillance cameras to provide additional illumination for better visibility at night and in low-light environments. The illuminator has a 80° beam angle and can illuminate to a maximum range of 66'. It is housed in an IP66-rated enclosure making it suitable for outdoor use and is made of durable aluminum with a tempered glass panel. The illuminator can be wall-mounted for proper proximity to a surveillance camera. - Short range semi-covert IR illuminator for surveillance cameras
- Up to 66' illumination range
- 15W low power consumption
- IP66-rated for outdoor use
- Built-in photocell IR on/off
In the Box Iluminar IRC99 Series Short Range IR Illuminator (66') M6 Allen Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Iluminar IRC99 Series Short Range IR Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIluminar IRC99-A80-24 Specs | | | Electronics | IR LEDs | | Number of LEDs | 55 | | Wavelength | 850 nm (semi-covert)
Faint red glow visible on the illuminator only (no visible light) | | Field of View | 80° | | Illumination Distance | 66' (20 m) | | Construction | Aluminum | | Front Panel | Tempered glass | | Finish | Black powder coated | | Operating Temperature | -22 to 104°F (-30 to 40°C) | | Storage Temperature | -58 to 140°F (-50 to 60°C) | | Mount | Black powder coated stainless steel wall mount
Adjustable via M6 Allen key (included) | | Power Cable Length | 3' (1 m) | | | | Input Voltage | 12 VDC or 24 VAC | | Input Current | 1 A at 12 VDC, 0.5 A at 24 VAC | | Consumption | 9 W | | | | Safety | EN60598: 2004 Electrical Safety
EN60825-1 Laser Eye Safety | | IP Rating | IP66 in accordance with EN60529: 1992 | | EMC | EN61000, FCC part 15.107
15.108 Class B | | WEEE | Waste Electrical & Electronic Equipment European directive 202/96/EC | | RoHS | Restriction of Hazardous Substances European directive 202/95/EC | | Dimensions | 4.3 x 3.3 x 3.5" (11 x 8.5 x 8.8 cm) | | Weight | 1.6 lb (0.75 kg) | | | | Box Dimensions (LxWxH) | 14.0 x 8.0 x 8.0" |
