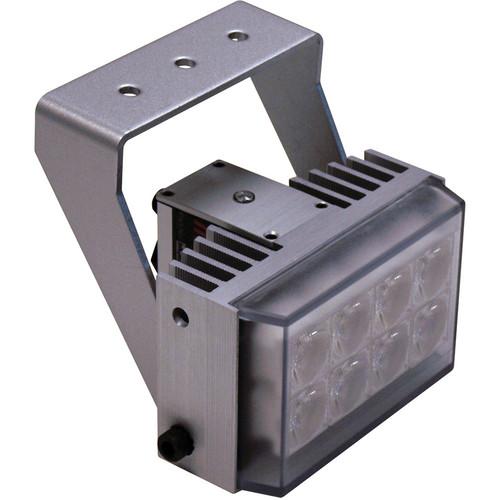

User Manual for Iluminar WL105-30-POE Short-Range White Light Illuminator Click to enlarge the picture
Contents of the user manual for the Iluminar WL105-30-POE Short-Range White Light Illuminator
- Product category: Illuminators Iluminar
- Brand: Iluminar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Iluminar Illuminators
|
User manual for the Iluminar WL105-30-POE Short-Range White Light Illuminator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Iluminar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Iluminar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Iluminar product will considerably shorten its lifespan!
|
Product description The Iluminar WL105-30-POE Short-Range White Light Illuminator (46' / 14 m, 30°) is a visible light illuminator for IP network cameras. This illuminator features high power SMT (Surface Mount Technology)-enabled LEDs with current-limited integral control circuitry, which provide illumination at a distance of 46' (14 m) and at a 30° illumination angle. This illuminator has a built-in photocell and features both photocell following contact and telemetry input for remote switching connection interface. This IP67-rated illuminator is protected from ingress of dust and water (for immersion up to 1 m). Moreover, resistance to vandalism makes this illuminator ideal for outdoor applications. The hardened housing provides protection from harsh weather conditions and rapid temperature variations ranging from -58 to 140°F (-50 to 60°C). - Short-range white light illuminator with SMT LED technology
- Illuminates up to a distance of 46' (14 m) and at a 30° illumination angle
- For use with IP network cameras
- Energy efficient with low power consumption of 13 W
- Built-in photocell with IR on / off
- Photocell following contact and telemetry input for remote switching
- Powder-coated stainless steel wall mount with silver finish
In the Box Iluminar WL105-30-POE Short-Range White Light Illuminator (46' / 14 m, 30°) Wall Mounting Bracket M6 Allen Key 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Iluminar WL105-30-POE Short-Range White Light Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIluminar WL105-30-POE-2 Specs | | | Illumination | Angle: 30°
Distance: 46' (14 m)
Adjustable via potentiometer | | HOV | 25' (8 m) | | Number of SMT LEDs | 8 | | Construction | Material: Robust, high quality aluminum extrusion
Front Window: Polycarbonate, facilitates high transmittance, protective (vandal-proof), and clear | | Power Connector | IP67 rated RJ45 Cat5e-compliant connector | | Interface Connector | Photocell following contact & remote telemetry input | | Pressure Equalization Vent | Prevents thermal expansion & pressure cycling | | Photocell | Adjustment via potentiometer | | Operating Temperature | -58 to 140°F (-50 to 60°C) | | Mount | Material: Stainless steel
Adjustable via M6 Allen key (included) | | | | PoE | IEEE802af-compliant interface
Power classification (class 0) | | Consumption | 12 W | | | | Lumen Output | 928 lumen | | Wavelength | Visible Spectrum: 400 to 750 nm | | Color Temperature | 6500 K | | Color Rendering Index | 74-80+ | | | | Safety | Electrical Safety: EN60598:2004
Laser Eye Safety: EN60825-1 | | Weatherproof Rating | IP IP67 in accordance with EN60529:1992 | | Certification | EMC: EN61000, FCC part 15.107 15.108 Class B
WEEE (Waste Electrical & Electronic Equipment European) directive 202/96/EC
RoHS (Restriction of Hazardous Substances European) directive 202/95/ECc | | Dimensions | 2.68 x 4.33 x 3.07" (68 x 110 x 78 mm) | | Weight | 26.46 oz (750 g) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 12.0 x 8.0 x 8.0" |
