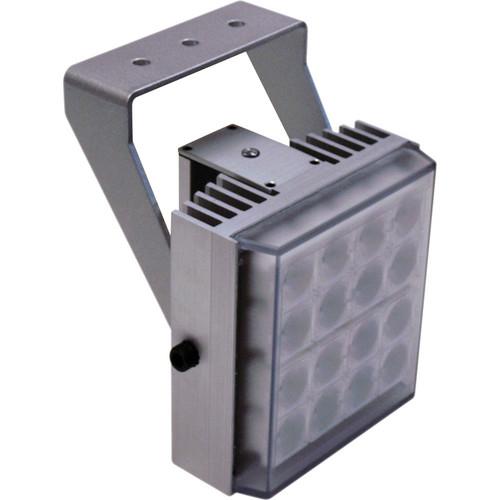

Product description The silver WL220-2 Series Medium-Range White Light Illuminator from Iluminar is a visible light illuminator for surveillance cameras. This illuminator features high-power SMT-enabled (Surface Mount Technology) LEDs with current-limited integral control circuitry. It provides illumination to a distance of 220' (67m) at an angle of 10°. It also has a built-in photocell and comes with a wall mounting bracket. The IP67-rated and vandal-resistant illuminator can be used outdoors. The hardened housing provides protection from harsh weather conditions and rapid temperature variations ranging from -58 to 140˚F (-50 to 60˚C). - Medium-range white light illuminator with SMT LED technology
- Provides visible light for surveillance cameras
- Illumination distance up to 220' (67m) at an angle up to 10°
- 38' (12m) horizontal field of view
- Energy efficient with low power consumption of 26W
- Built-in photocell with IR on/off
- Photocell following contact
- Telemetry input for remote switching
- Pressure equalization vent prevents thermal expansion & pressure cycling
- Black powder-coated stainless steel wall mount
In the Box Iluminar WL220-2 Series 10° Medium-Range White Light Illuminator (220', Silver) M6 Allen Key Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Iluminar WL220-2 Series 10° Medium-Range White Light Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIluminar WL220-10-24-2 Specs | Illumination Angle | 10° | | Illumination Distance | 220' (67 m) | | Horizontal Field-of-View | 38' (12 m) | | Lumen Output | 1856 lumens | | Wavelength | Visible Spectrum (400 to 750 nm) | | Color Temperature | 6500K | | Color Rendering Index | 74-80+ | | Electronics | High-efficiency surface mount high-power LEDs with advanced current limited integral control circuitry | | Number of SMT LEDs | 16 | | Photocell | Adjustment via remote | | Illumination | Adjustment via remote | | Mount | Black, powder-coated stainless steel wall mount
Adjustable via M6 Allen key (included) | | Construction | Aluminum extrusion | | Front Window | Polycarbonate high transmittance protective (vandal-proof) clear | | Telemetry | Following contact via cable | | Power Cable | 9' (3 m) | | Input Voltage | 12 to 32 VDC or 24 VAC | | Input Current | 1 A at 24 VAC | | Power Consumption | 24 W | | IP Rating | IP67 in accordance with EN60529:1992 | | Certifications | Safety:
EN60598:2004 Electrical Safety
EN60825-1 Laser Eye Safety
EMC:
EN61000, FCC part 15.107
15.108 Class B
WEEE directive 202/96/EC
RoHS directive 202/95/EC | | Operating Temperature | -58 to 140˚F (-50 to 60˚C) | | Dimensions | 4.33 x 4.33 x 3.15" (11 x 11 x 8 cm) | | Weight | 2.2 lb (1 kg) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 12.0 x 8.0 x 8.0" |
