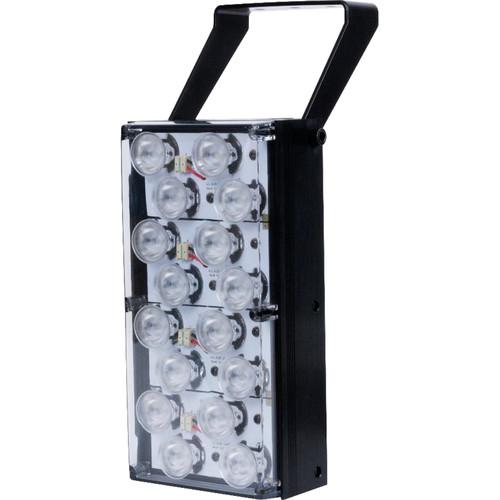

User Manual for Iluminar WL643 Series Super Long-Range White Light Illuminator Click to enlarge the picture
Contents of the user manual for the Iluminar WL643 Series Super Long-Range White
- Product category: Illuminators Iluminar
- Brand: Iluminar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Iluminar Illuminators
|
User manual for the Iluminar WL643 Series Super Long-Range White contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Iluminar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Iluminar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Iluminar product will considerably shorten its lifespan!
|
Product description The WL643 Series Super Long-Range White Light Illuminator from Iluminar is a visible light illuminator for color CCTV cameras. This illuminator features high-power SMT (Surface Mount Technology)-enabled LEDs with current-limited integral control circuitry. It provides illumination up to a distance of 289' at an angle of 60°. It also has a built-in photocell and comes with a wall mounting bracket. The IP67-rated and vandal-resistant illuminator can be used outdoors. The hardened housing provides protection from harsh weather conditions and rapid temperature variations ranging from -58 to 140˚F (-50 to 60˚C). - Long-range white light illuminator with SMT LED technology
- Provides visible light for color CCTV cameras
- Illumination distance up to 289' (88m) at 60°
- 333' (102m) horizontal field of view
- Low power consumption of 48W
- Built-in photocell with IR on/off
- Telemetry input for remote switching
In the Box Iluminar WL643 Series Super Long-Range White Light Illuminator (289', 60°) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Iluminar WL643 Series Super Long-Range White Light Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIluminar WL643-60-POE-2 Specs | Illumination Angle | 60° | | Illumination Distance | 289' (88 m) | | Horizontal Field-of-View | 333' (102 m) | | Lumen Output | 3712 lumens | | Wavelength | Visible Spectrum: 400 to 750 nm | | Color Temperature | 6500K | | Color Rendering Index | 74-80+ | | Electronics | High-efficiency surface mounted high-power LEDs with advanced current-limited integral control circuitry | | Number of SMT LEDs | 16 | | Photocell | Adjustment via Remote | | Illumination | Adjustment via Remote | | Mount | Black powder-coated stainless steel wall mount | | Construction | Robust aluminum extrusion | | Front Window | Clear polycarbonate | | Interface Connector | Via cable | | Power Cable | 9' (3 m) | | Power Consumption | 48 W | | IP Rating | IP67 in accordance with EN60529:1992 | | Certifications | Safety:
EN60598:2004 Electrical Safety
EN60825-1 Laser Eye Safety
EMC:
EN61000, FCC part 15.107
15.108 Class B
WEEE directive 202/96/EC
RoHS directive 202/95/EC | | Operating Temperature | -58 to 140˚F (-50 to 60˚C) | | Dimensions | 8.3 x 4.3 x 3.2" (21 x 11 x 8 cm) | | Weight | 4.4 lb (2 kg) |
