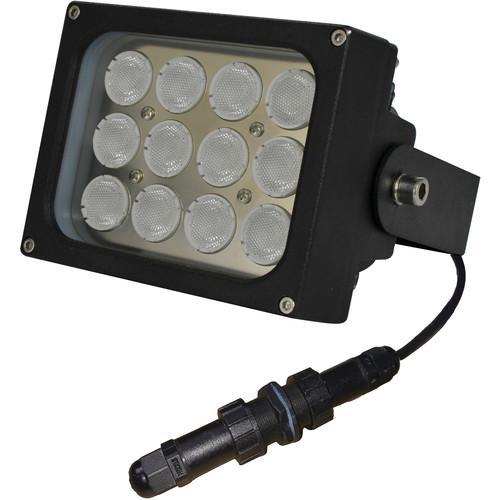

Product description The black powder coated WLC150-PoE Series Medium-Range White Light Illuminator from Iluminar is designed to provide visible lighting for color network cameras via PoE (Power over Ethernet)-enabled network infrastructure. It employs 12 SMT (Surface Mount Technology) white LEDs that provide illumination up to 132' (40m). This IP66-rated illuminator is vandal-resistant and can be installed both indoors and outdoors. Its die-cast aluminum housing and tempered glass panel provide protection from harsh weather conditions and rapid temperature variations ranging from -40 to 122°F (-40 to 50°C). The illuminator features dual power input (12 VDC or 24 VAC) and automatic light on/off via built-in photocell. - Medium-range white light illuminator for color CCTV cameras
- Illumination distance up to 132' (40m) and illumination angle of 30°
- PoE+ powered (IEEE802.3at compliant)
- Automatic light on/off via built-in photocell
- Black powder coated stainless steel wall mount
In the Box Iluminar WLC150-PoE Series Medium-Range White Light Illuminator (132', 30°, Black) M6 Allen Key Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Iluminar WLC150-PoE Series Medium-Range White Light Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIluminar WLC150-30-POE Specs | | | Number of LEDs | 12 | | Type | SMT (Surface Mount Technology) white LEDs | | Color Temperature | 6000 K | | Luminous Flux | 1440 lumens | | Illumination Angle | 30° | | Illumination Distance | Up to 132' (40 m) Tested using Sony 1/3" CCD camera with 0.01 lux. Distance may vary due to camera and lens specifications. | | | | Input Voltage | High Power over Ethernet (PoE+); IEEE.802.3at standard | | Power Consumption | 24 W | | | | Safety | Electrical Safety: EN60598:2004
Laser Eye Safety EN60825-1 | | IP Rating | IP66 in accordance with EN60529:1992 | | EMC | EN61000, FCC part 15.107, 15.108 class B | | Others | WEEE 202/96/EC, RoHS 202/95/EC | | | | Construction | Die-cast aluminum | | Front Window | Tempered glass panel | | Power Input Connection | IP66 rated RJ45 jack and CAT5e cable | | Mount | Stainless steel wall mount adjustable via M6 Allen key (included) | | Temperature | -40 to 122°F (-40 to 50°C) | | Dimensions | 5.4 x 4.4 x 3.5" (13.7 x 11.1 x 8.9 cm) | | Weight | 2.9 lb (1.3 kg) |
