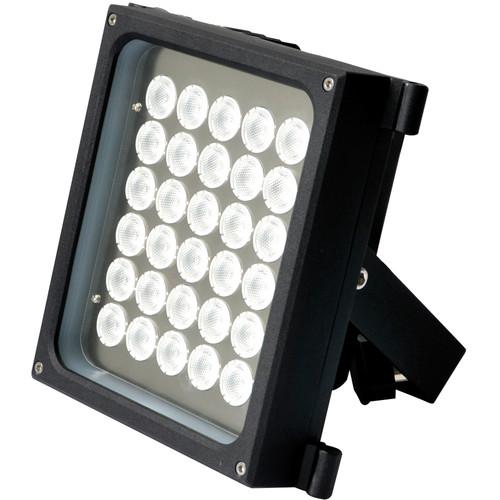

User Manual for Iluminar WLC250 Series Super Long Range White Light Illuminator Click to enlarge the picture
Contents of the user manual for the Iluminar WLC250 Series Super Long Range
- Product category: Illuminators Iluminar
- Brand: Iluminar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Iluminar Illuminators
|
User manual for the Iluminar WLC250 Series Super Long Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Iluminar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Iluminar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Iluminar product will considerably shorten its lifespan!
|
Product description The black powder coated WLC250 Series Super Long Range White Light Illuminator from Iluminar is designed to provide visible lighting for color CCTV cameras. It employs 30 SMT (Surface Mount Technology) white LEDs that provide illumination up to 43' (13m). This IP66-rated illuminator is vandal-resistant and can be installed both indoors and outdoors. Its die-cast aluminum housing and tempered glass panel provide protection from harsh weather conditions and rapid temperature variations ranging from -40 to 122°F (-40 to 50°C). The illuminator features dual power input (12 VDC or 24 VAC) and automatic light on/off via built-in photocell. - Super long range white light illuminator for color CCTV cameras
- Illumination distance up to 43' (13m) and illumination angle of 120°
- Low power consumption of 60W
- Automatic light on/off via built-in photocell
- 12 VDC or 24 VAC power input
- Black powder coated stainless steel wall mount
In the Box Iluminar WLC250 Series Super Long Range White Light Illuminator (43', 120°, Black) M6 Allen Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Iluminar WLC250 Series Super Long Range White Light Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIluminar WLC250-120-24 Specs | | | Number of LEDs | 30 | | Type | SMT (Surface Mount Technology) white LEDs | | Color Temperature | 6000K | | Luminous Flux | 3600 lumens | | Illumination Angle | 120° | | Illumination Distance | Up to 43' (13 m) Tested using Sony 1/3" CCD camera with 0.01 lux. Distance may vary due to camera and lens specifications. | | | | Input Voltage | 12 VDC or 24 VAC | | Input Current | 2.5 A @ 24 VAC or 5.0 A @ 12 VDC | | Power Consumption | 60 W | | | | Safety | Electrical Safety: EN60598:2004
Laser Eye Safety EN60825-1 | | IP Rating | IP66 in accordance with EN60529:1992 | | EMC | EN61000, FCC part 15.107, 15.108 class B | | Others | WEEE 202/96/EC, RoHS 202/95/EC | | | | Construction | Die-cast aluminum | | Front Window | Tempered glass panel | | Power Cable | 17.6" (45.0 cm) | | Mount | Stainless steel wall mount adjustable via M6 Allen key (included) | | Temperature | -40 to 122°F (-40 to 50°C) | | Dimensions | 8.3 x 8.4 x 4.9" (21.0 x 21.3 x 12.4 cm) | | Weight | 7.3 lb (3.3 kg) |
