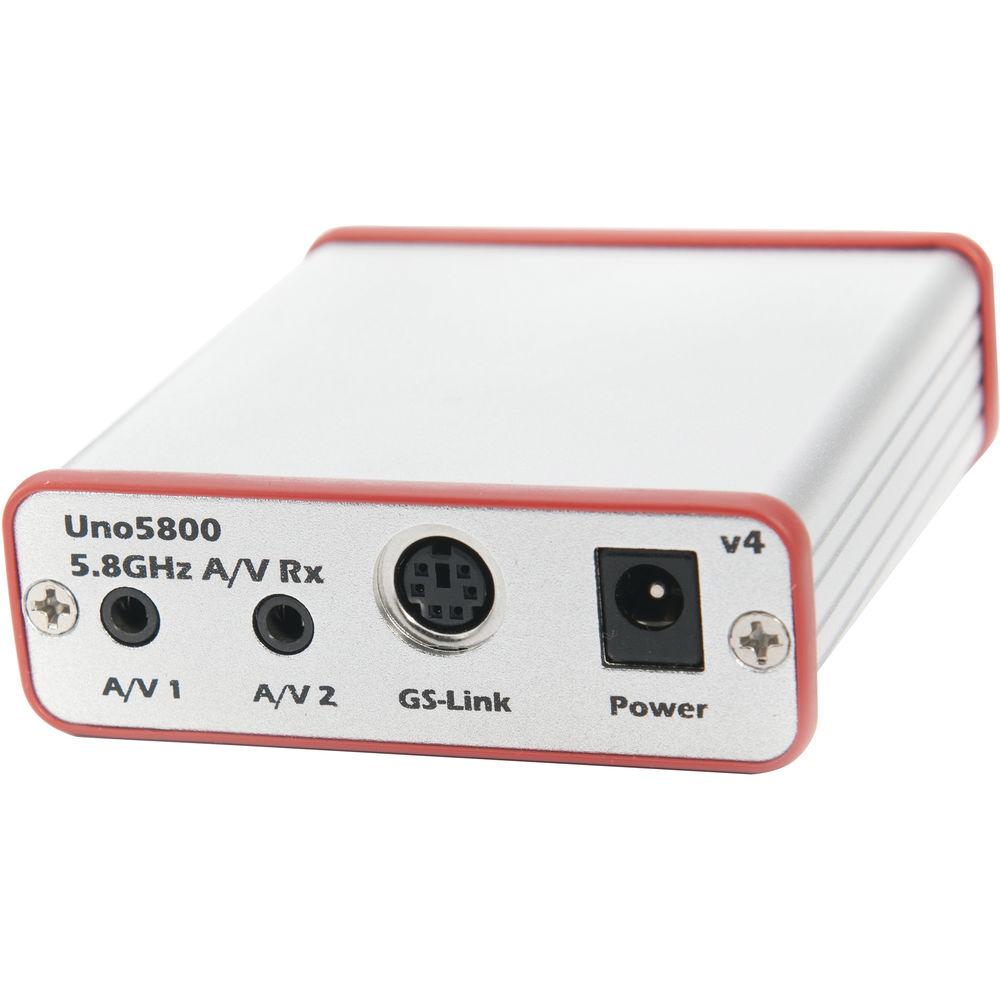

Product description The Uno 5800 V4 A/V Receiver for RC Aircraft is a 5.8 GHz AV receiver for FPV applications from ImmersionRC. It is designed to be used in conjunction with ImmersionRC ground station systems, and features a dedicated mini-DIN connector for this purpose. On top of that, there are two AV outputs for going to FPV goggles and monitors. - Dual buffered AV outputs on 3.5mm connectors - passes stereo audio as well as video
- Single-cable connection to ImmersionRC ground stations
- Bidirectional ground station receiver data link
- Accepts 6 to 13V DC power sources (>9V or 3S recommended)
- Single button operation for channel selection, with remote channel selection from ground station
- Uses SMA type antenna (not RP-SMA)
- FM audio/video modulation

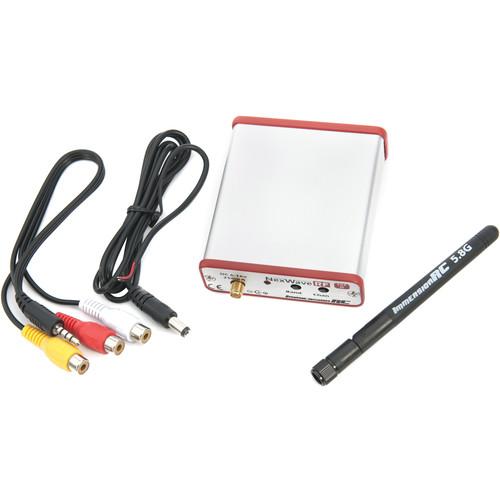

UPC: 840630180044 In the Box ImmersionRC Uno 5800 V4 A/V Receiver for RC Aircraft SMA Antenna AV Cable (3.5mm to RCA female) Power Lead Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ImmersionRC Uno 5800 V4 A V Receiver for RC Aircraft in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersImmersionRC IRL2401 Specs | | | Frequencies | 5740 MHz
5760 MHz
5780 MHz
5800 MHz
5820 MHz
5840 MHz
5860 MHz | | Modulation | FM audio/video modulation | | Sensitivity | -90 dB typical sensitivity | | | | Outputs | 2 x 3.5mm buffered A/V ports
Video Output Level: 1 Vpp
Audio Output Level: 3 Vpp
Note: Supports ImmersionRC ground stations | | Interface | 1 x Ground Station (GS) link interface | | Antenna | 1 x SMA antenna connector
Impedance: 50 ohm
Note: Standard SMA, not RP-SMA | | | | Power Requirements | 6 to 13 VDC (< 9 V, or 2S recommended) | | Dimensions | Excluding Antenna: 3.1 x 3.5 x 0.9" / 80 x 90 x 23 mm | | Weight | 6 oz / 169 g | | | | Box Dimensions (LxWxH) | 4.4 x 3.8 x 1.5" |
