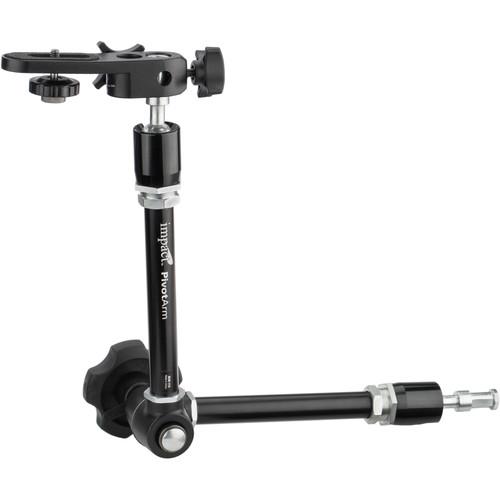

Product description has put together the Impact 20" Pivot Arm with Camera Platform Kit to offer photographers and videographers a space-saving solution for camera support. The kit contains a pivot arm with a tension-control wheel and a camera platform. Designed to hold a light fixture or accessory in place, the Impact 20" Pivot Arm is a space-saving grip tool with adjustable wheel lock control that's well-suited for a variety of applications. The wheel at the arm's elbow is capable of tension adjustment so that you can safely and easily secure gear weighing up to 8 lb in the position you've chosen. It's a great match-up with a super clamp, for instance or with the camera platform included in this kit. The Impact Camera Platform supports lightweight cameras on the Pivot Arm or similar accessories. The platform features a captive, sliding 1/4"-20 camera screw and a non-slip surface. There are two 5/8" receivers for the arm or a stud. - Impact Pivot Arm 20" with Adjustable Wheel Lock Control Designed to hold a light fixture or accessory in place, the Pivot Arm 20" with Adjustable Wheel Lock Control is a space-saving grip tool for a variety of applications. It's a great match-up with a super clamp, for instance, with an optional camera platform for highly mobile work. The wheel at the arm's elbow is capable of tension adjustment so that you can easily secure gear weighing up to 8 lb in the position you've chosen.
- Position your lighting or camera gear where you need it with 360° rotation of the pivot arms. Maximum extension is 20".
- One baby pin is threaded female 1/4ʺ-20 and the other female 3/8ʺ-16 threaded for flexibility in the type of gear you can mount.
- Lock the position of the pivot arms and baby pins simply by twisting the adjustable wheel lock control. Further adjustment to the positioning of your equipment is made by altering the tension of the internal locking mechanism.
- The pins at the end of each arm are capable of swiveling on their ball-and-socket joints providing extra flexibility for positioning your equipment.
UPC: 847628559189 - Impact BHE-104 Camera Platform for Flex Arm The Impact BHE-104 Camera Platform for Flex Arm supports lightweight cameras up to 1.0 lb on the Impact Flex Arm or similar accessory. The platform features a captive, sliding 1/4"-20 camera screw and a non-slip surface. There are two 5/8" receivers for the arm or a stud. UPC: 847628556102
In the Box - Pivot Arm 20" with Adjustable Wheel Lock Control zasebvyyebdddcuyxbvcbtafub
- Limited 1-Year Warranty
- BHE-104 Camera Platform for Flex Arm
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact 20" Pivot Arm with Camera Platform Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact Pivot Arm 20" with Adjustable Wheel Lock Control
| Material | Aluminum | | Load Capacity | 8.0 lb (3.6 kg) | | Dimensions | Extended: 20" (50.8 cm)
Folded: 10" (25.4 cm)
Arm Diameter: 0.78: (20 mm) | | Attachment | 2x 5/8" (16 mm) with one female 1/4"-20 tap and the other 3/8"-16 tap | | Weight | 2.0 lb (.91 kg) | | | | Box Dimensions (LxWxH) | 13.9 x 6.7 x 3.8" | - Impact BHE-104 Camera Platform for Flex Arm
| Construction | Black aluminum | | Mounting Screw | 1/4"-20 | | Mount | Dual 5/8" (16 mm) receivers | | Weight | 0.31 lb (0.14 kg) | | | | Box Dimensions (LxWxH) | 6.55 x 3.9 x 1.85" |
