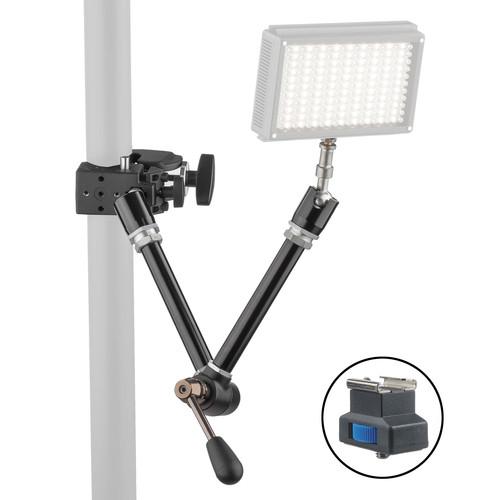

Impact 20" Pivot Arm with Super

User Manual for Impact 20" Pivot Arm with Super Clamp Kit

• Product category: Extension Arms Impact
• Brand: Impact
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Impact Extension Arms

Product description

• Impact Pivot Arm 20" with Locking Lever Designed to hold a light fixture or accessory in place, the Impact Pivot Arm 20ʺ with Locking Lever is a space-saving grip tool for a variety of applications. It's a great matchup with a super clamp, for instance, with an optional camera platform for highly mobile work. The lever at the arm's elbow locks down securely in the position you've chosen and will support gear weighing up to 8 lb.
  • Position your lighting or camera gear where you need it with 360° rotation of the pivot arms. Maximum extension is 20"
  • One baby pin is threaded female 1/4ʺ-20 and the other female 3/8ʺ for flexibility in the type of gear you can mount
  • The intra-locking lever freezes the pivot arms and baby pins in position with one movement of the internal quick-locking mechanism
  • The pins at the end of each arm are capable of swiveling on their ball and socket joints providing extra flexibility for positioning your equipment
  UPC: 847628559172
• Impact Super Clamp with Ratchet Handle The Impact Super Clamp with Ratchet Handle is a versatile grip tool made of lightweight cast alloy. With a load capacity of 33 lb, the clamp can hold a wide variety of items such as cameras, lights, umbrellas, hooks, shelves, plate glass, cross bars, even other Super Clamps.The Super Clamp can be securely mounted on any tube or pipe from 0.5" to 2.1" and is supplied with a wedge insert for clamping onto flat surfaces. The ratchet handle allows you to disengage it and tighten it down from any angle; a very handy feature when you're using the clamp in tight quarters. A built-in socket holds 5/8" accessories such as the supplied SRP-102 Hex Stud with 1/4"-20 male thread. UPC: 847628538870
• Impact 1/4"-20 To 1/4"-20 Adapter Spigot This Adapter Spigot from Impact is a male 1/4"-20 to male 1/4"-20 adapter. It allows two pieces of equipment that have female 1/4"-20 threads to be connected to each other. It has a hex nut center for tightening. UPC: 847628574397
• Pearstone Accessory Shoe Adapter with 1/4"-20 Screw Connector This Pearstone Accessory Shoe Adapter has a 1/4"-20 threaded screw on the bottom and cold flash shoe on the top, and it is designed for use with an auxiliary flash or accessory. The locking ring affixes this shoe to the device you screw it in to. It is ideally suited for use with camera brackets, tripods, or light stands with a 1/4"-20 threaded socket. UPC: 847628015043

• Pivot Arm 20" with Locking Lever srqucswdttuxwqrb
• 2 x Allen Wrench
• User Manual
• Limited 1-Year Warranty

• Super Clamp with Ratchet Handle

• 1/4"-20 To 1/4"-20 Adapter Spigot srqucswdttuxwqrb

• Pearstone - Accessory Shoe Adapter with 1/4"-20 Screw Connector

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Impact Pivot Arm 20" with Locking Lever

  Material	Aluminum
  Load Capacity	8.0 lb (3.6 kg)
  Dimensions	Extended: 20" (50.8 cm) Folded: 10" (25.4 cm) Arm diameter: 0.78: (20 mm)
  Attachment	2x 5/8" (16 mm) with one having 1 female 1/4"-20 tap and the other 3/8-16 tap
  Weight	2.0 lb (.91 kg)

  Box Dimensions (LxWxH)	13.55 x 7.85 x 3.2"

• Impact Super Clamp with Ratchet Handle

  Clamp Type	Jaw
  Jaw Shape	Round
  Jaw Opening	0.5 to 2.1 " / 1.3 to 5.3 cm
  Load Capacity	33 lb / 15 kg
  Weight	1.4 lb / 0.6 kg

  Box Dimensions (LxWxH)	10.2 x 5.35 x 2.3"

• Impact 1/4"-20 To 1/4"-20 Adapter Spigot

  Material	Brass
  Thread Size	Male, 1/4"-20 to male, 1/4"-20

  Box Dimensions (LxWxH)	6.2 x 3.55 x 0.7"

• Pearstone Accessory Shoe Adapter with 1/4"-20 Screw Connector

  Bottom Mount	1 x 1/4"-20 Male
  Top Mount	1 x Accessory Shoe

  Box Dimensions (LxWxH)	2.75 x 2.4 x 0.9"
