User Manual for Impact 20" Pivot Arm with Super Clamp Kit Click to enlarge the picture
Contents of the user manual for the Impact 20" Pivot Arm with Super
- Product category: Extension Arms Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Extension Arms
|
User manual for the Impact 20" Pivot Arm with Super contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

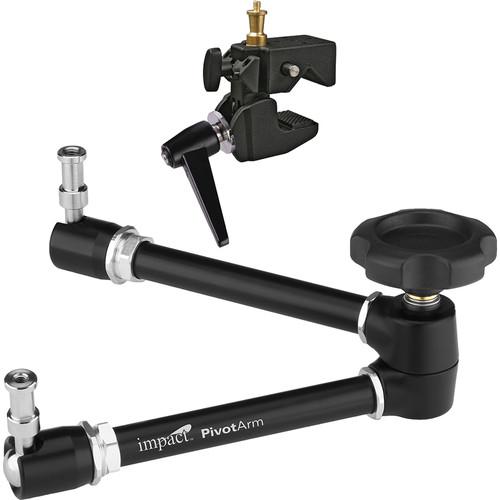

Product description Offering versatility and a wide range of mounting options, the Impact 20" Pivot Arm with Super Clamp Kit was put together by B&H to provide photographers and videographers with a space-saving alternative to a light stand, with an extensive variety of adjustments. The kit includes one Pivot Arm with a locking wheel and two 5/8" pins. The included Super Clamp has a ratcheting handle for tightening in close quarters and a removable 5/8" hex pin with 1/4"-20 male threads. It also comes with a wedge for better grip on flat surfaces. - Impact Pivot Arm 20" with Adjustable Wheel Lock Control Designed to hold a light fixture or accessory in place, the Pivot Arm 20" with Adjustable Wheel Lock Control is a space-saving grip tool for a variety of applications. It's a great match-up with a super clamp, for instance, with an optional camera platform for highly mobile work. The wheel at the arm's elbow is capable of tension adjustment so that you can easily secure gear weighing up to 8 lb in the position you've chosen.
- Position your lighting or camera gear where you need it with 360° rotation of the pivot arms. Maximum extension is 20".
- One baby pin is threaded female 1/4ʺ-20 and the other female 3/8ʺ-16 threaded for flexibility in the type of gear you can mount.
- Lock the position of the pivot arms and baby pins simply by twisting the adjustable wheel lock control. Further adjustment to the positioning of your equipment is made by altering the tension of the internal locking mechanism.
- The pins at the end of each arm are capable of swiveling on their ball-and-socket joints providing extra flexibility for positioning your equipment.
UPC: 847628559189 - Impact Super Clamp with Ratchet Handle The Impact Super Clamp with Ratchet Handle is a versatile grip tool made of lightweight cast alloy. With a load capacity of 33 lb, the clamp can hold a wide variety of items such as cameras, lights, umbrellas, hooks, shelves, plate glass, cross bars, even other Super Clamps.The Super Clamp can be securely mounted on any tube or pipe from 0.5" to 2.1" and is supplied with a wedge insert for clamping onto flat surfaces. The ratchet handle allows you to disengage it and tighten it down from any angle; a very handy feature when you're using the clamp in tight quarters. A built-in socket holds 5/8" accessories such as the supplied SRP-102 Hex Stud with 1/4"-20 male thread. UPC: 847628538870
In the Box - Pivot Arm 20" with Adjustable Wheel Lock Control cwyusveecxtcsy
- Limited 1-Year Warranty
- Super Clamp with Ratchet Handle
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact 20" Pivot Arm with Super Clamp Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact Pivot Arm 20" with Adjustable Wheel Lock Control
| Material | Aluminum | | Load Capacity | 8.0 lb (3.6 kg) | | Dimensions | Extended: 20" (50.8 cm)
Folded: 10" (25.4 cm)
Arm Diameter: 0.78: (20 mm) | | Attachment | 2x 5/8" (16 mm) with one female 1/4"-20 tap and the other 3/8"-16 tap | | Weight | 2.0 lb (.91 kg) | | | | Box Dimensions (LxWxH) | 13.9 x 6.7 x 3.8" | - Impact Super Clamp with Ratchet Handle
| Clamp Type | Jaw | | Jaw Shape | Round | | Jaw Opening | 0.5 to 2.1 " / 1.3 to 5.3 cm | | Load Capacity | 33 lb / 15 kg | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 10.2 x 5.35 x 2.3" |
