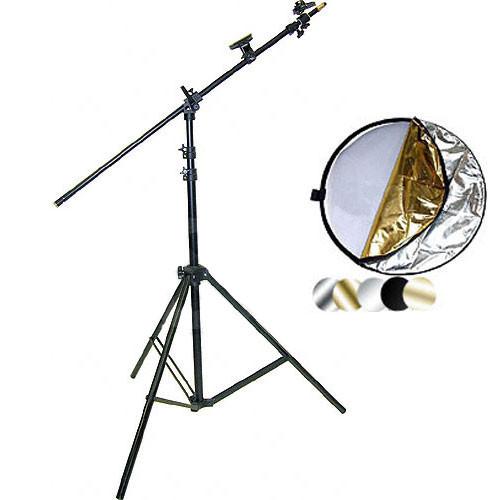

Impact 22" 5-in-1 Reflector with Lightstand

User Manual for Impact 22" 5-in-1 Reflector with Lightstand and Holder Kit

• Product category: Collapsible Reflectors Impact
• Brand: Impact
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Impact Collapsible Reflectors

Product description

• Impact 5-in-1 Collapsible Circular Reflector with Handles (22") This two-handle 22" 5-1 Circular Collapsible Reflector with Handles from Impact adds a polished-looking quality of light to your photos or videos. The reflector is built around a translucent disc which doesn't reflect as much as the solid white surface, but does exhibit soft neutral reflection. Its primary purpose, however, is as a diffuser that will tame contrast by being held over a subject's head in the harsh noon-day sun. The disc can also be used in situations where you'd use a softbox. Using a disc holder or one of the 3/8" sockets, place your flash or constant light behind the suspended disc for soft, flattering light with open shadows.The 5-in-1 reflector has handy convenience features that make it easy to use and deliver impressive results, while saving space by folding down to approximately one third of its open size. Impact's smart design provides ergonomic handgrips that allow you to hold the disc in a flat or U-shaped position, or in any way that gets the job done. Each of the grips has additional 3/8"-16 threaded sockets for attachment to accessories or grip equipment. The 5-in-1 Reflector comes with a carry/storage case.The surfaces are available on two removable, reversible sleeves that slip over the disc. Silver offers very high reflective qualities that render a snappy high-contrast look with a cool color bias. Just the opposite, the Gold surface reflects a very warm quality; similar to late afternoon or sunset light. The Black fabric subtracts light from the subject, and can be used to block out unwanted light or to greatly reduce reflections on shiny or reflective surfaces. Finally, the flat White surface provides neutral reflectance with a soft quality of light. UPC: 847628598843
• Impact Multiboom Light Stand and Reflector Holder - 13' (4m) This is an Impact Convertible Boom Arm/Light Stand. As a light stand, it can support a small or medium light head to a height of 13' (4 m). Raise the second section completely, click, and it is a boom stand.
  As a boom, it can hold a small light head to an extension of almost 3' from the center of the stand.
  It is a reflector holder by means of its two clips, which can support an Impact, Flexfill, or Photoflex light disc as large as 60".
  A hole at the end of the arm allows an optional counterweight to be hung, for greater stability.
  Instructions for Using This Stand as a Boom
  • 1. Loosen the large long handle in the middle of the stand.
    2. Loosen the top-most section of the stand. Pull that section all the way up.
    3. Pull! - swing it horizontally for the boom feature, and lock it for the desired setup.
  UPC: 847628012042

• 5-in-1 Collapsible Circular Reflector with Handles (22") ubvvttdayazqdtruxxuevzabxfrcwcbux
• Storage/Carry Case
• Limited 1-Year Warranty

• Multiboom Light Stand and Reflector Holder - 13' (4m)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Impact 5-in-1 Collapsible Circular Reflector with Handles (22")

  Shape	Circular
  Open Diameter	22" (51 cm)
  Folded Diameter	Approximately 1/3 its open size
  Surfaces	Translucent disc with Silver, Gold, White and Black surface sleeves

  Box Dimensions (LxWxH)	9.55 x 9.0 x 3.05"

• Impact Multiboom Light Stand and Reflector Holder - 13' (4m)

  Minimum Height	40" (102 cm)
  Maximum Height	13' (4 m) as light stand 9'(2.7 m) as boom stand, with boom @ 90 degree angle 10.5'(3.2 m) as boom stand, with boom @ 135 degree angle
  Closed Length	40" (102 cm)
  Footprint Diameter	36" (91 cm)
  Leg Tip	20mm
  Attachment Size	5/8" stud with 1/4"-20 threaded top
  Accepts Wheels	Yes
  Air Cushioned	No
  Maximum Load	5 lbs (2.3 kg) as light stand 3 lbs (1.4 kg) as boom stand
  Weight	4.6 lbs (2.1 kg)

  Box Dimensions (LxWxH)	42.0 x 4.8 x 4.8"
