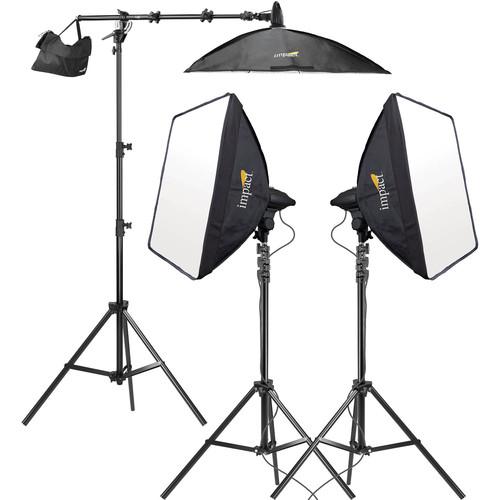

User Manual for Impact 3-Head Fluorescent Lighting Kit with Boom Arm Kit

• Product category: Fluorescent Lights Impact
• Brand: Impact
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Impact Fluorescent Lights

Product description

• 3 x Impact 4 Socket Fluorescent Fixture The 4 Socket Fluorescent Fixture from Impact is a lightweight fixture in a polycarbonate housing that accepts Edison-base compact fluorescent lamps up to 50W, for a four-socket total of 200W. The fixture's bracket tilts and locks into position and features a standard 5/8" receiver that mounts on any 5/8" stud or accessory, and also accepts standard photo umbrellas. UPC: 847628563599
• 3 x Impact 50 x 70 cm Softbox for Fluorescent Fixtures The 50 x 70 cm Softbox for Fluorescent Fixtures by Impact is a light modifier that softens the output from Impact FF-S1 and FF-S4 single- and four-socket fluorescent fixtures, as well as Impact's SF-ABRL160 Slave Flash. Installation is easy - no speed ring is needed; each of these heads has four receptacles located around the face of the fixture. The softbox can be used with up to four 50W fluorescent lamps for a total of 200W. UPC: 847628563629
• 12 x Impact Spiral Fluorescent Lamp (32W/120V) The SF-32-120 Impact Spiral Fluorescent Lamp is a 32W/120V E26 medium screw-base lamp that fits Impact fixtures such as the Octacool and VA902 as well as many other lamp head brands. The lamp is daylight color balanced and has an average lamp life of 10,000 hours. UPC: 847628571297
• 2 x Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
  Air Cushioned
  • Protects equipment from impact damage.
  Compact Design
  • Will fit easily into most location cases.
  Accepts Casters
  • Eases positioning of heavy lights.
  • Available as accessories.
  UPC: 847628012349
• Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5') This Impact Heavy-Duty Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 9.5' and folds down to 42" for storage and transport. The stand will handle up to 22 lb and is topped with a removable 5/8" spigot with 1/4"-20 and 3/8"-16 threads. It has a wide footprint of 52" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628012004
• Impact Aluminum Mid-Range Boom Arm If you're looking for an accessory with all the benefits of a boom minus the weight and bulk, the Aluminum Mid-Range Boom Arm from Impact is your solution. The three-section boom collapses down to just 26", extends to 60", and weighs only 2.95 lb. It has a counterweight hook for the included empty 5 lb capacity sandbag that you can fill with the weighted material of your choice, allowing it to support a light or other gear weighing up to 5 lb at full extension. The included 5/8" spigot is conveniently removable and has both 1/4"-20 and 3/8"-16 male threads, for multiple mounting options. The 5/8" industry standard receiver makes the boom compatible with a wide variety of light stands, while the heavy-duty pivot with ratcheting handle makes for easy tilting adjustments.
  Sturdy and Compact
  • Constructed from aluminum, the boom weighs just 2.95 lb and folds down to only 26", for easy packing and use on the road.
  Adjustable Length
  • The 3-section boom arm is adjustable from 26 to 60"
  Counterweight
  • The boom arm has a counterweight hook for the provided 5 lb capacity sandbag, allowing the boom to support 5 lb at maximum extension
  Attachments
  • The boom has a removable 5/8" spigot, for easy attachment to lights with a 5/8" receiver. It employs a pivot clamp with a ratcheting handle, for easy tilt adjustments
  UPC: 847628000940

• 3 x 4 Socket Fluorescent Fixture trqxwctfbqytuyuxtczxbwzqry
• Limited 1-Year Warranty

• 3 x 50 x 70 cm Softbox for Fluorescent Fixtures

• 12 x Spiral Fluorescent Lamp (32W/120V)

• 2 x Air-Cushioned Light Stand (Black, 8')

• Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

• Aluminum Mid-Range Boom Arm

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 3 x Impact 4 Socket Fluorescent Fixture

  Input Voltage	120 VAC
  Lamps	4 CFL (compact fluorescent lamps)
  Ballast	In lamps
  Mounting	5/8" / 16 mm
  Dimensions (LxWxH)	6.5 x 6.25 x 7.25" / 16.5 x 15.8 x 18.4 cm
  Weight	1.3 lb / 590 g

  Box Dimensions (LxWxH)	8.45 x 7.65 x 6.15"

• 3 x Impact 50 x 70 cm Softbox for Fluorescent Fixtures

  Shape	Rectangular
  Interior	Silver
  Requires Speed Ring	No
  Accepts Grids	No
  Maximum Wattage	250 W
  Removable Front Face	Yes
  Removable Interior Baffle	No
  Rectangular Dimensions	W: 20.0 x H: 27.5" / W: 50.0 x H: 70.0 cm

  Box Dimensions (LxWxH)	19.85 x 8.4 x 1.5"

• 12 x Impact Spiral Fluorescent Lamp (32W/120V)

  Code	SF-32-120
  Base Type	E26
  Bulb Shape	Spiral
  Lumens	1700
  Wattage	32 W
  Color Temperature	5500K
  Color Temperature Tolerance	+/-300K
  Bulb Color	None
  Average Life	10,000 Hours
  Maximum Overall Length (MOL)	6.3" / 16.0 cm
  Maximum Overall Diameter (MOD)	2.8" / 7.1 cm
  AC Input Power	120 VAC, 60 Hz

  Box Dimensions (LxWxH)	7.15 x 2.75 x 2.7"

• 2 x Impact Air-Cushioned Light Stand (Black, 8')

  Maximum Load	8 lb (3.6 kg)
  Leg Tip	20 mm
  Attachment Size	5/8" Stud with 1/4"-20 in threaded tip
  Accepts Wheels	Yes
  Air Cushioned	Yes
  Maximum Height	96" (243.8 cm)
  Minimum Height	34" (86.3 cm)
  Folded Height	29.6 (75.2 cm)
  Footprint Diameter	36" (91.4 cm)
  Weight	2.05 lb (1 kg)

  Box Dimensions (LxWxH)	29.75 x 3.2 x 3.15"

• Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

  Maximum Load	22 lb (10 kg)
  Maximum Height	114" (290 cm)
  Minimum Height	48" (123 cm)
  Closed Length	42" (106.7 cm)
  Footprint Diameter	52" (132 cm)
  Leg Tip	0.98" (25 mm)
  Attachment Size	Removable 5/8" (16 mm) spigot with 1/4"-20 and 3/8"-16 threaded ends
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	4.4 lb (2.0 kg)

  Box Dimensions (LxWxH)	42.8 x 5.5 x 5.2"

• Impact Aluminum Mid-Range Boom Arm

  Material of Construction	Aluminum
  Load Capacity	5.0 lb (2.3 kg), at full extension
  Mount	5/8" (16 mm) receiver
  Dimensions	Adjustable Length: 26 - 60" (66 - 152.4 cm) Tube Diameters: 1.0, 0.9, 0.75" (26, 22.5, 19 mm) Spigot: 5/8" diameter, with 1/4"-20 male threads at one end, and 3/8"-16 male threads at the other
  Weight	Overall: 2.95 lb (1.3 kg) Empty Sandbag Capacity: 5.0 lb (2.3 kg)

  Box Dimensions (LxWxH)	27.58 x 4.6 x 4.6"
