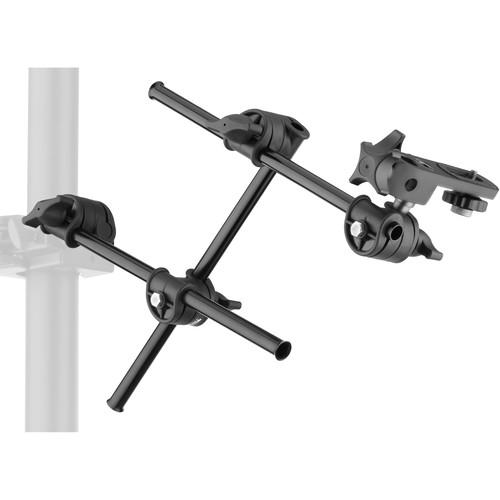

User Manual for Impact 3 Section Articulated Arm with Camera Bracket Click to enlarge the picture
Contents of the user manual for the Impact 3 Section Articulated Arm with
- Product category: Extension Arms Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Extension Arms
|
User manual for the Impact 3 Section Articulated Arm with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|
Product description The Impact 3 Section Articulated Arm with Camera Bracket is a great way to support a camera or other accessory weighing up to 2.2 lb without hauling along a tripod. The 33.46" aluminum arm features female threaded 5/8" studs at each end; one thread is 3/8"-16 while the other is 1/4"-20. One of the studs mounts to the included camera bracket and the other fits into your choice of Impact Super Clamps or Clip Clamps. - Impact 3 Section Articulated Arm without Bracket The 3 Section Articulated Arm without Camera Bracket from Impact is a handy accessory with a 33.46" reach for precise positioning of a small camera, light, flag or other item up 2.2 lb at full extension. Both ends of the arm terminate in 5/8" pins; one with a 1/4"-20 female thread and one with a 3/8"-16 female thread. Optional accessories include Impact's CC-106R and CC-106T Super Clamps, CC-101 Clip Clamp and BHE-104 Camera Platform. UPC: 847628565647
- Impact BHE-104 Camera Platform for Flex Arm The Impact BHE-104 Camera Platform for Flex Arm supports lightweight cameras up to 1.0 lb on the Impact Flex Arm or similar accessory. The platform features a captive, sliding 1/4"-20 camera screw and a non-slip surface. There are two 5/8" receivers for the arm or a stud. UPC: 847628556102
In the Box - 3 Section Articulated Arm without Bracket
- Limited 1-Year Warranty
- BHE-104 Camera Platform for Flex Arm
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact 3 Section Articulated Arm with Camera Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact 3 Section Articulated Arm without Bracket
| Construction | Black anodized aluminum, polymer | | Attachment | 5/8" (16 mm) Stud with 1/4"-20 female thread
5/8" (16 mm) Stud with 3/8"-16 female thread | | Load Capacity | 2.2 lb (1.5 kg) @ Full extension | | Sections | 3 | | Length | Maximum extended: 33.46" (85 cm) | | Weight | 1.1 lb (0.5 kg) | | | | Box Dimensions (LxWxH) | 11.5 x 3.6 x 3.6" | - Impact BHE-104 Camera Platform for Flex Arm
| Construction | Black aluminum | | Mounting Screw | 1/4"-20 | | Mount | Dual 5/8" (16 mm) receivers | | Weight | 0.31 lb (0.14 kg) | | | | Box Dimensions (LxWxH) | 6.55 x 3.9 x 1.85" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
